Length 500mm Matte Carbon Fiber Round Tube with 3K frame camera mount gimbal supporting

Minimum Order Quantity : 50pcs Price : USD 9.9-USD14.85
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Model Number: TM_OD25_ID23_500mm

Detail Information

Product Name: Twill Matte Carbon Fiber Tube Size Of Tube: O.D.: 25mm I.D.: 23mm
The Weave: Twill Length: 500mm
Tool Supplies: Cutting Remote Control : Starter
High Light:

Carbon Fiber Piping

,

Carbon Fiber Round Tube

Product Description

 Matte Carbon Fiber Tube 500mm with 3K frame kit camera mount gimbal supporting.





Introduction



Carbon Fiber tubes are The 25mm OD×23mm ID×500mm Length tube is mainly for R/C quadrocopter

booms. Round Carbon Fiber tubes are Carbon Fiber tube Epoxy Prepreg Fabric table-rolled outside a mandrel of certain diameter and thermoset at temperature 125 Celsius Degree.

N.W.:117.3g/pc Tolerance: ID ±0.05mm, OD ±0.10mm, Length ±0.5mm

Working Temperature: 80 Celsius Degree or Below

Stock Availability: MOQ or Qty 50pcs- stock available for immediate delivery, 50PCS+ Qty need to be

production arranged.

Size range and other sizes you might be interested in for immediate shipping.



 Specification



material

Full carbon fiber tube

The tolerance

 ±0.1 mm, if you have special tolerance requirements, please contact

customer service.

size

25mm*23mm*500mm

The thickness of the

1mm



Production process



Twists to make Carbon Fiber Tube position is stable, no sliding, and even continuously, be full of mandrel surface fiber does not overlap with adjacent seam, which requires the carbon fiber arranged according to certain rule, this rule is called "the law of the winding".Carbon fiber one point from the mandrel, bypass the mandrel to return to the starting point, the mandrel is formed on a not repeat type winding around the called line, winding rule is different, the line is different also, winding rule by the relative motion relationship between core and wire head.Winding form correct design is an important premise to ensure the quality of carbon fiber winding products, the use of pipeline, the winding line is different also, winding lines can be divided into: toroidal winding, longitudinal plane winding and spiral wound three.



Carbon Fiber Tube Application


  1. Aerospace,RC model parts Helicopters Model  drone , gimbal
  2. Decoration parts
  3. Manufacture fixtures and tooling
  4. Industrial automation and robotics
  5. Sports equipment
  6. Musical instruments
  7. Scientific apparatus
  8. Medical device
  9. Others



Display

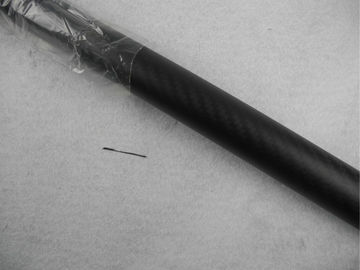

Length 500mm Matte Carbon Fiber Round Tube with 3K frame camera mount gimbal supporting 0

Length 500mm Matte Carbon Fiber Round Tube with 3K frame camera mount gimbal supporting 1

Length 500mm Matte Carbon Fiber Round Tube with 3K frame camera mount gimbal supporting 2
