High Strength Lightweight Pultruded Carbon Fiber Pipe and Tube in Customized Sizes

Product Description

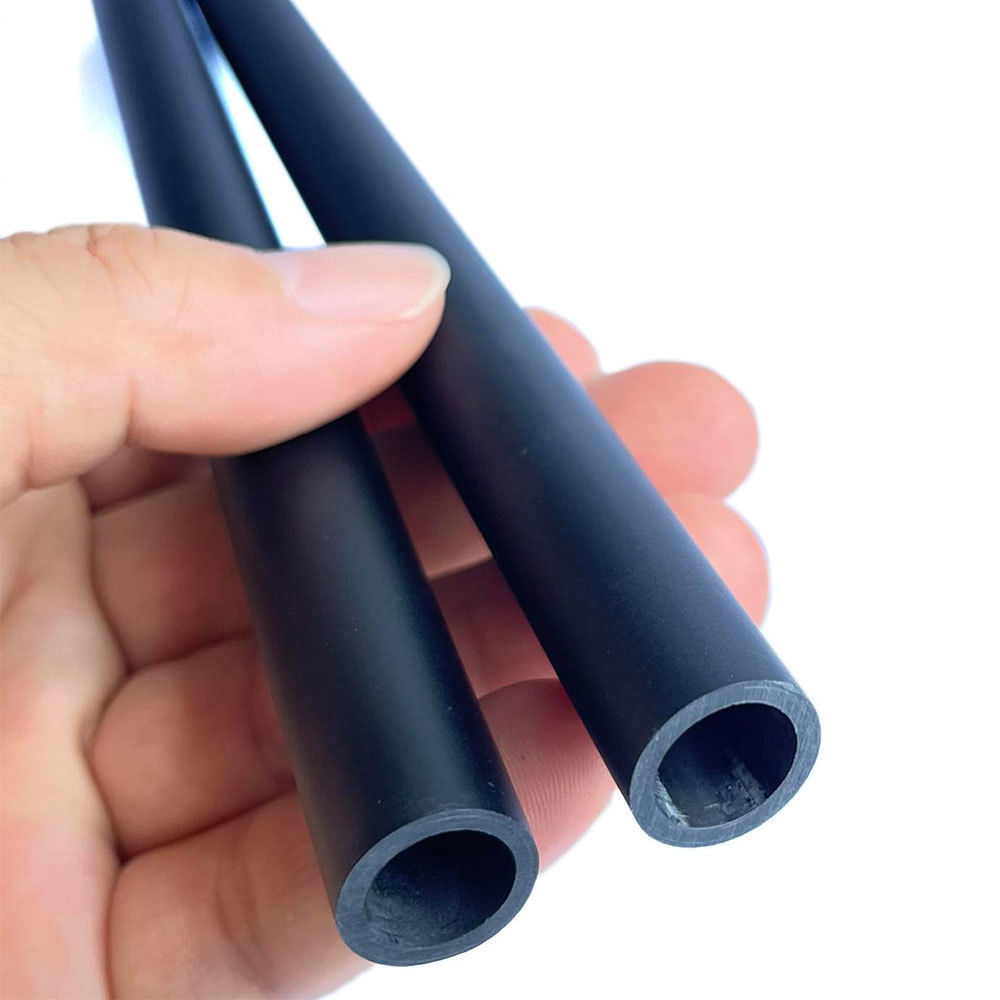

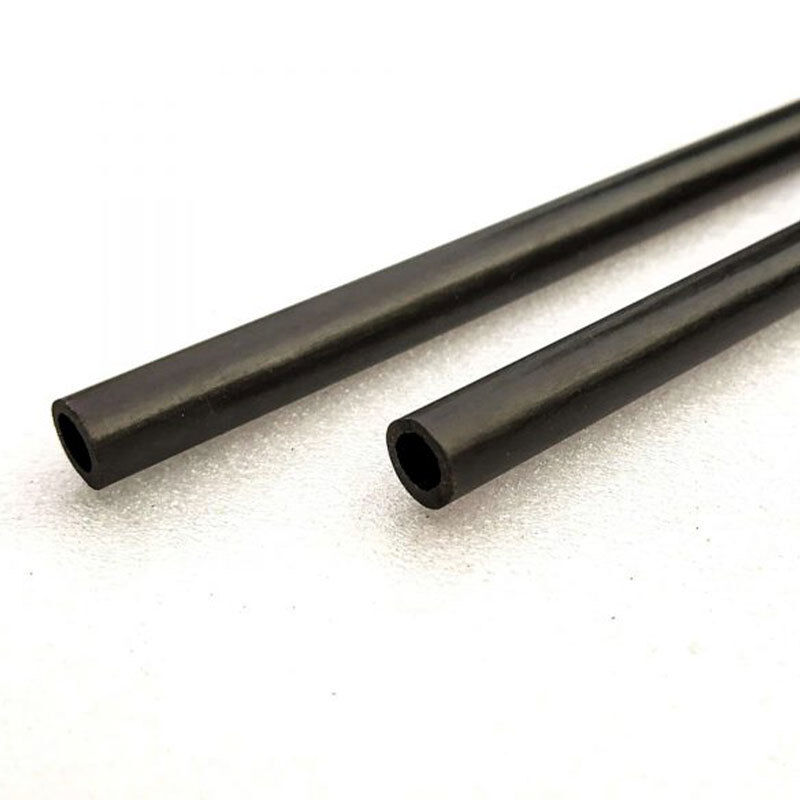

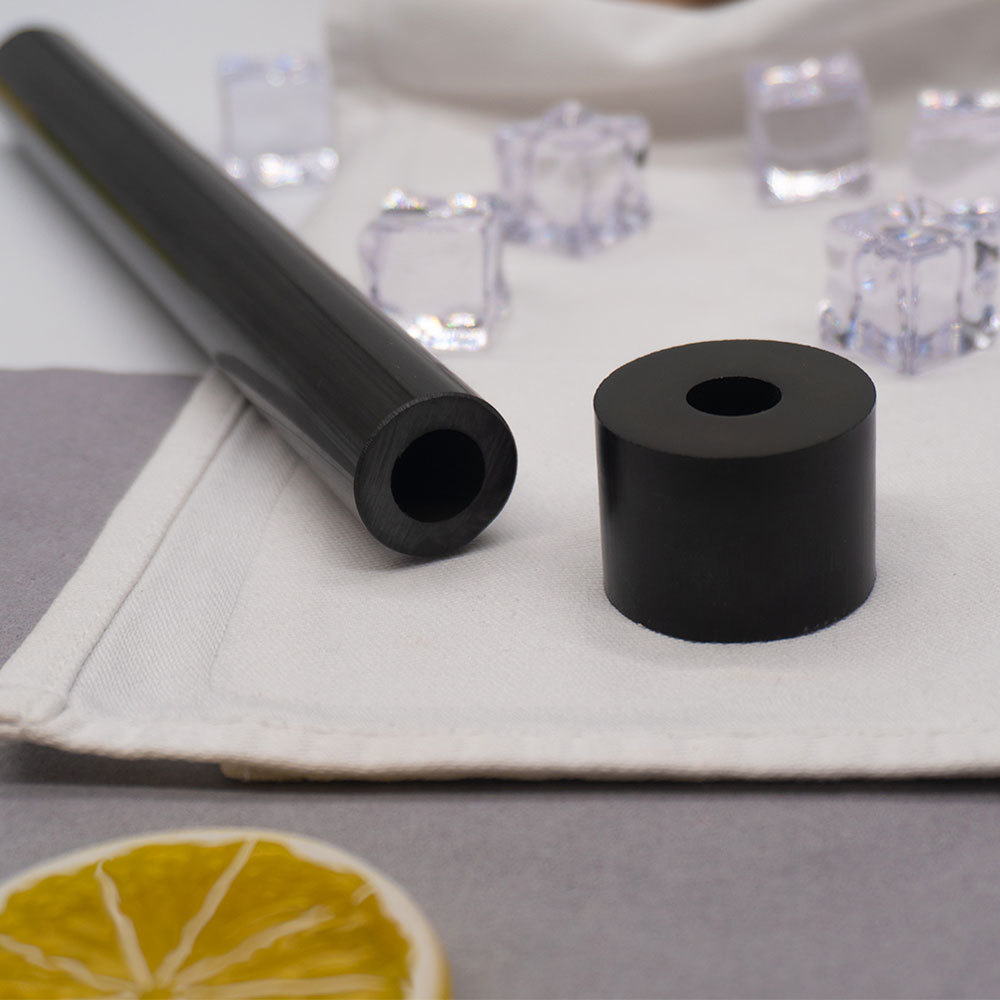

Pultruded Carbon Fiber Pipe High Strength Lightweight Carbon Fiber Tube

Carbon fiber tubes are often described with simple words: lightweight, strong, stiff, corrosion resistant. These descriptions are true, but they are not enough for real engineering or purchasing decisions.

A pultruded carbon fiber tube is not just a lighter version of an aluminum tube. It is a directional composite structure. Most of its strength comes from continuous carbon fibers running along the length of the tube. This makes it very efficient for certain loads, especially axial tension, compression, and bending. At the same time, it also means the tube may not behave like metal when it is twisted, clamped, crushed, drilled, or loaded from the side.

For this reason, choosing the right carbon fiber tube is not only about size and price. It is about matching the tube construction to the actual use case.

In industries such as UAVs, robotics, industrial automation, sports equipment, measuring tools, and lightweight structural assemblies, pultruded carbon fiber tubes are widely used because they offer a practical balance between performance, consistency, and cost.

What Is a Pultruded Carbon Fiber Tube?

A pultruded carbon fiber tube is a composite tube manufactured through the pultrusion process. In this process, continuous carbon fiber reinforcements are pulled through a resin system and then through a heated die. The heat cures the resin and forms the final tube shape.

The word “pultrusion” is sometimes confusing because it sounds similar to extrusion. The difference is important. In extrusion, material is pushed through a die. In pultrusion, fibers are pulled through the die. This pulling action helps keep the carbon fibers continuous and aligned along the tube length.

A basic pultrusion process usually includes the following steps:

• Continuous carbon fiber rovings are fed from spools.
• The fibers pass through a resin bath or resin impregnation system.
• The impregnated fibers enter a heated forming die.
• The resin cures inside the die.
• The finished tube is continuously pulled forward.
• The tube is cut to the required length.

Because this is a continuous process, pultrusion is especially suitable for producing long, straight profiles with a constant cross-section. Round tubes, square tubes, rods, bars, and other structural profiles can all be made by pultrusion.

Sizes and Sections

We offer many different sizes and shapes of carbon tubing to choose from. We have many round, square, rectangular, airfoil, and oval sections available. Not all of our available sections are listed. We are always getting new sizes and shapes for custom projects. Please contact us to see if we have something that may work for you.
