300mm x 200mm Twill Matte Carbon Fiber Plate Sheet High Strength Light Weight

Product Description

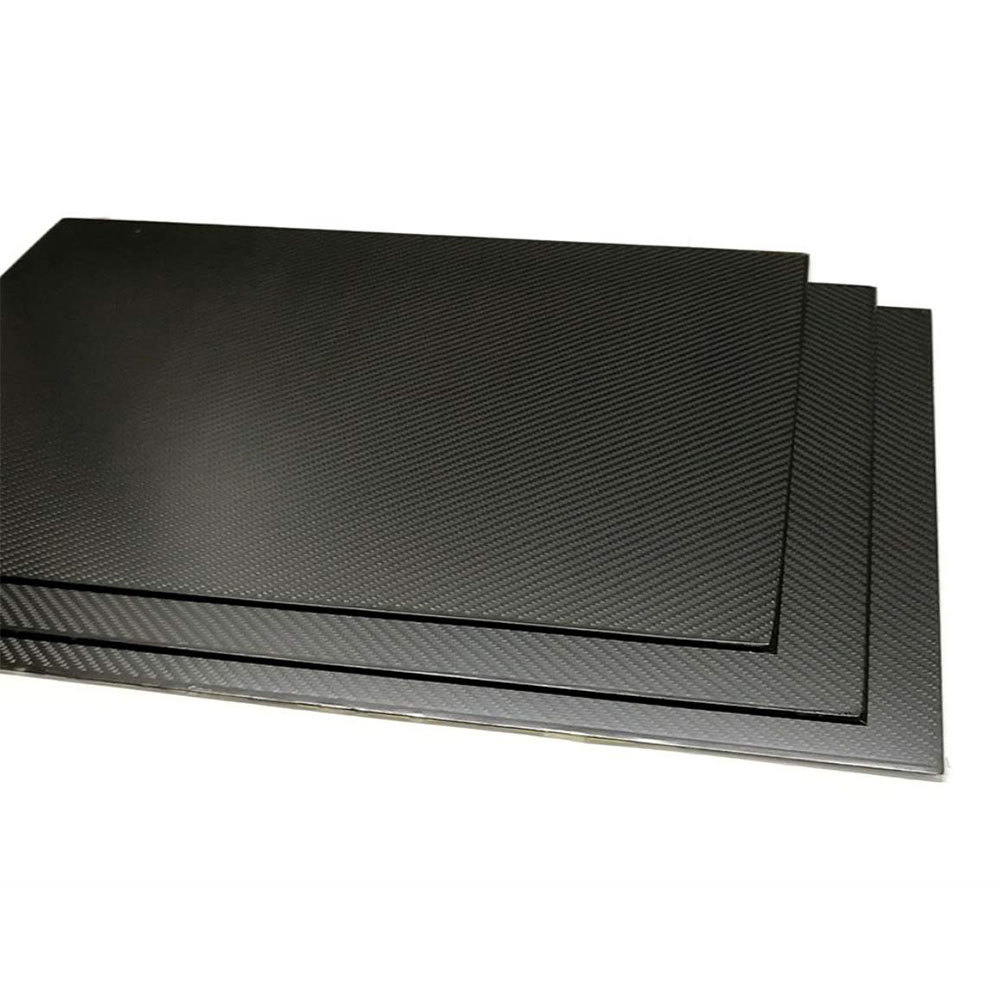

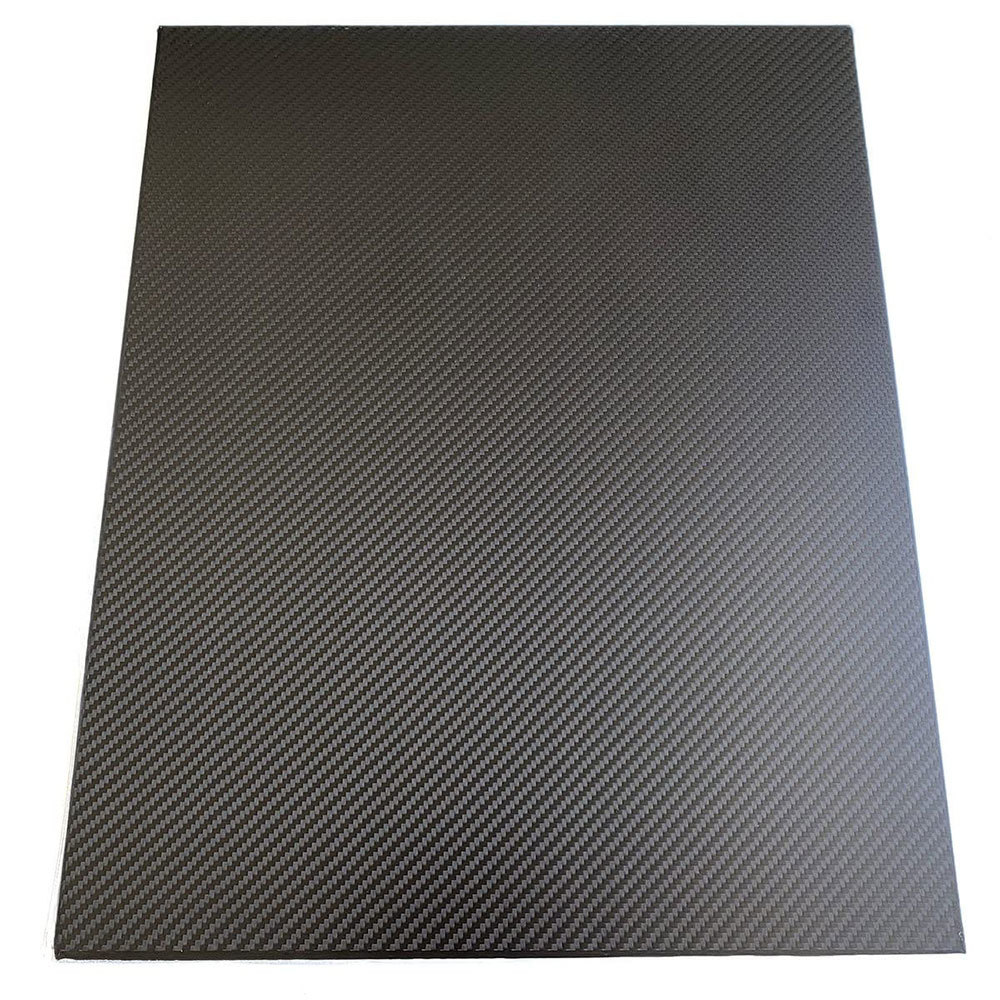

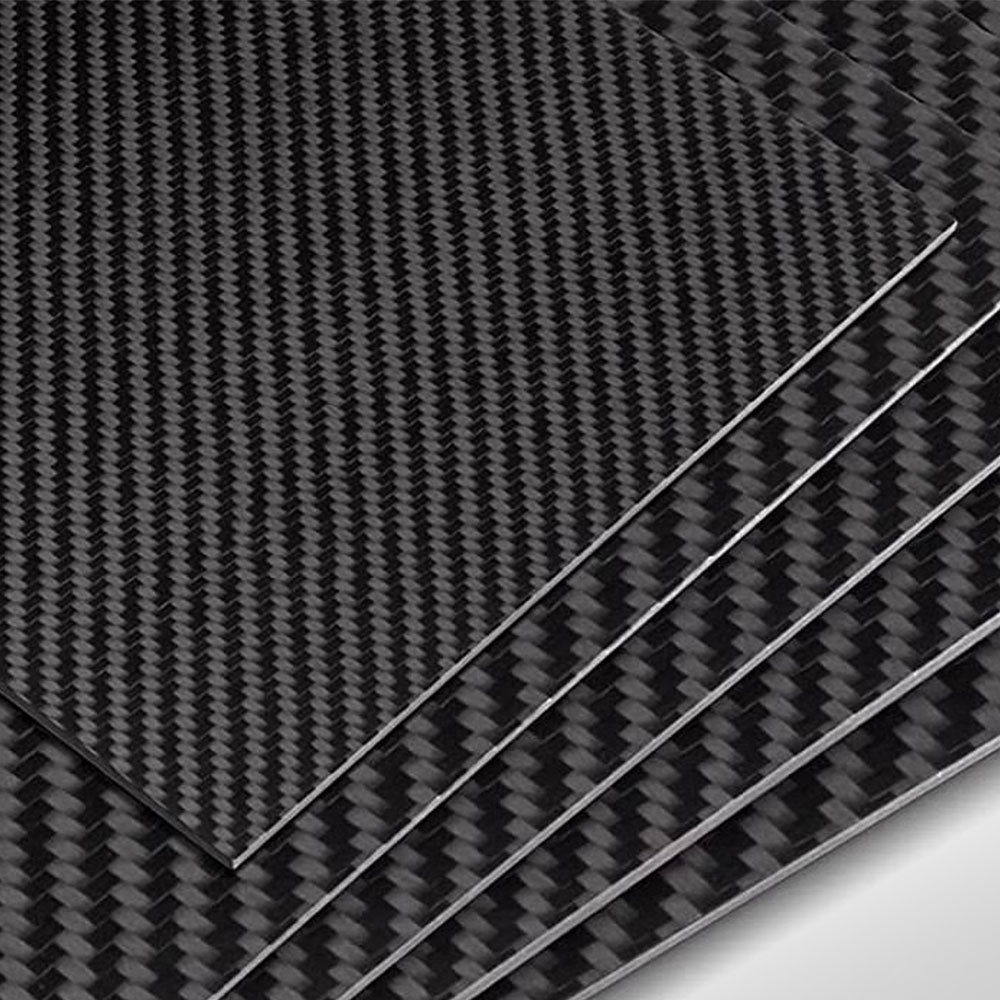

Carbon Fiber Plate Sheets 300mm x 200mm Carbon Fiber Board (Twill Matte)

High-quality carbon fiber sheets plate come in various sizes, made from 100%, 3K plain weave, carbon fiber and finished with a matt surface on both sides. Unlike many low-cost carbon sheets that are made by pressing two outer skins of carbon fiber over a carbon and resin core, these plates are made with layered sheets of carbon fiber and resin, making them the same strength all the way through.

Our high-quality carbon fiber sheets are made with multi-layer carbon fiber unidirectional cloth and epoxy resin; the two faces are 3K twill glossy or matte carbon fiber cloth, and the inner material is 100% pure carbon fiber. To achieve maximum stability and flatness in the carbon sheets, we used 'balanced' laminates for all carbon fiber sheet thicknesses, which makes them the same strength all the way through.

We use 100% high-strength carbon fibre reinforcement and epoxy resin under high pressure and temperature to manufacture 300x200mm carbon fiber sheets; after curing, they have a class-A finish on each side. Before cutting or stocking, or shipping the carbon fiber plates, we coated a high-quality protective film on their cosmetic side to ensure they remain in pristine condition.

Application: Perfect for any application including CNC Engraving, Cutting, Milling, DIY Crafts

Features

• Product Name: Carbon Fiber Plate Panel Sheet

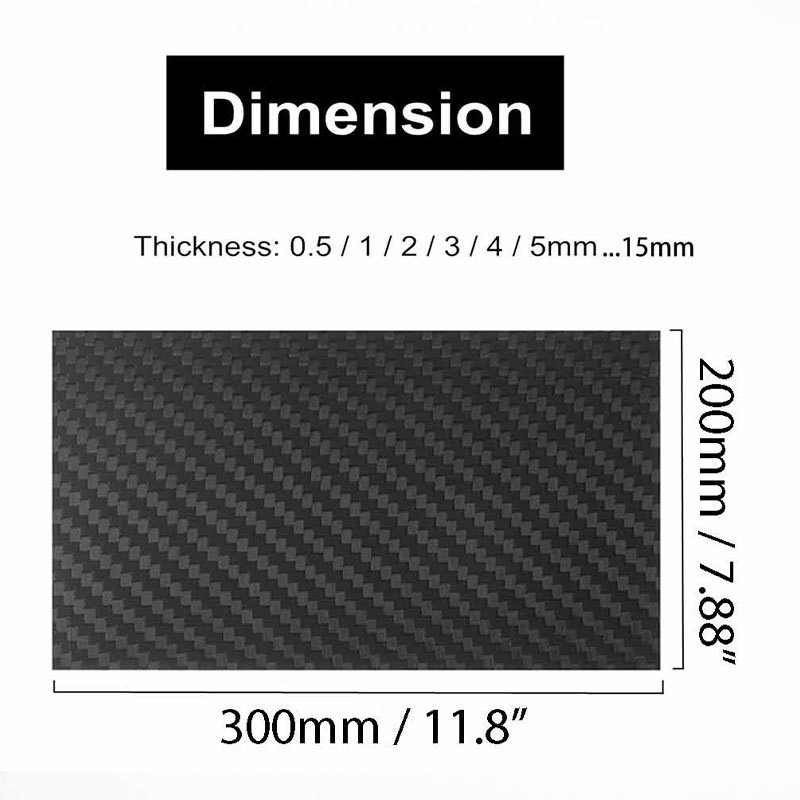

• Dimension: 300mm x 200mm x 1.3mm/11.81inch x 7.87inch x 0.05inch(L*W*T)
• Made of carbon fiber material, strong strength, and lightweight.
• Surface: 3k twill weave, matte finish.
• 3k carbon fiber sheet has extremely high strength, with a shiny and clear appearance.
• Made of Carbon Fiber material
• Very Strong and Light
• Smooth finish
• High Tensile Strength
• Excellent quality
• Resistance to ultraviolet light
• Anti-aging and corrosion resistance

Carbon fibre sheet, with exposed weave finish. This is made from one layer of carbon fibre, with a fibreglass backing. Ideal for making trim panels, for example dash panels or door cards. The sheet is produced using a special isophalic resin, which is also UV resistant. Various thicknesses are available depending on your application.

The sheet has a thickness tolerance of +/-0.6mm. Surface imperfections may be visible due to the manufacturing process for this sheet. For A grade sheet, see our separate listings for 'Double sided high strength Carbon Fibre Sheet.

Carbon Fiber Sheet Plate Specification:
