100% 3K Carbon Fiber Plate - Premium High Strength Lightweight Carbon Fiber Plate

Product Description

100% 3K Carbon Fiber Plate - Premium High Strength Lightweight Carbon Fiber Plate

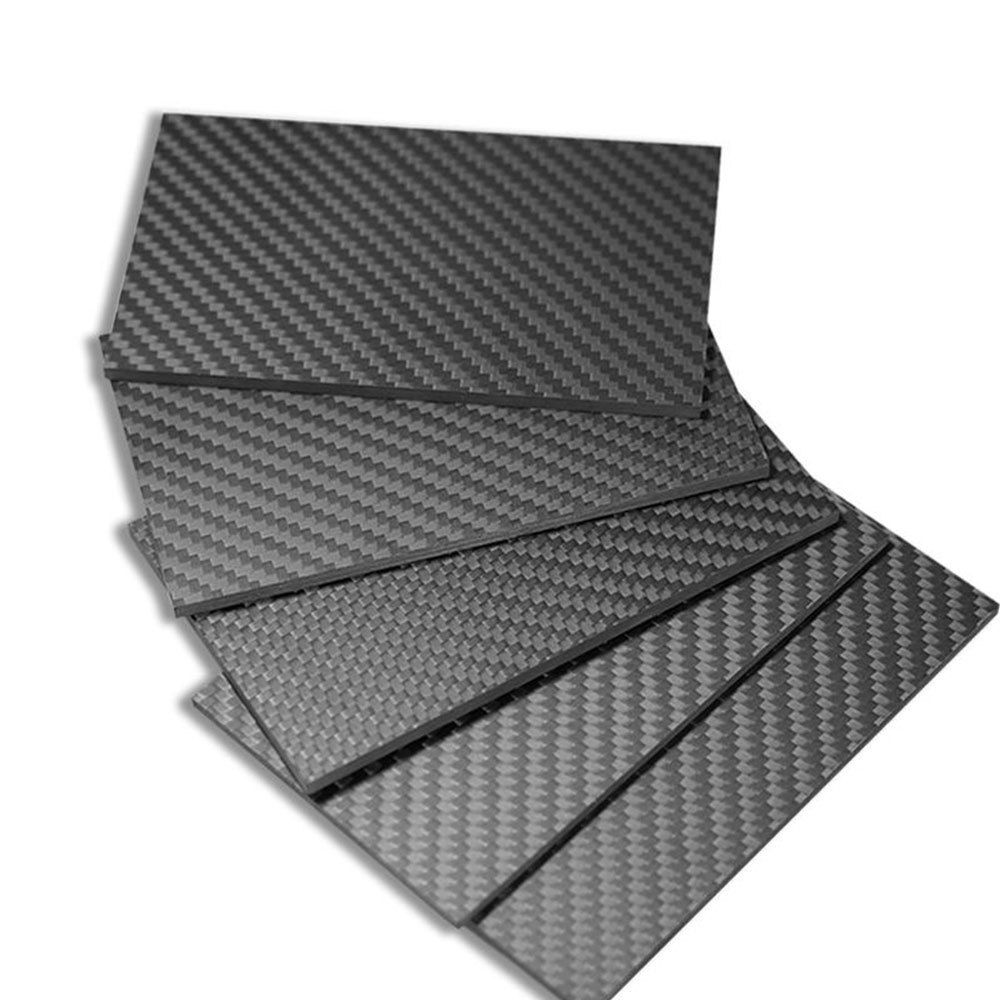

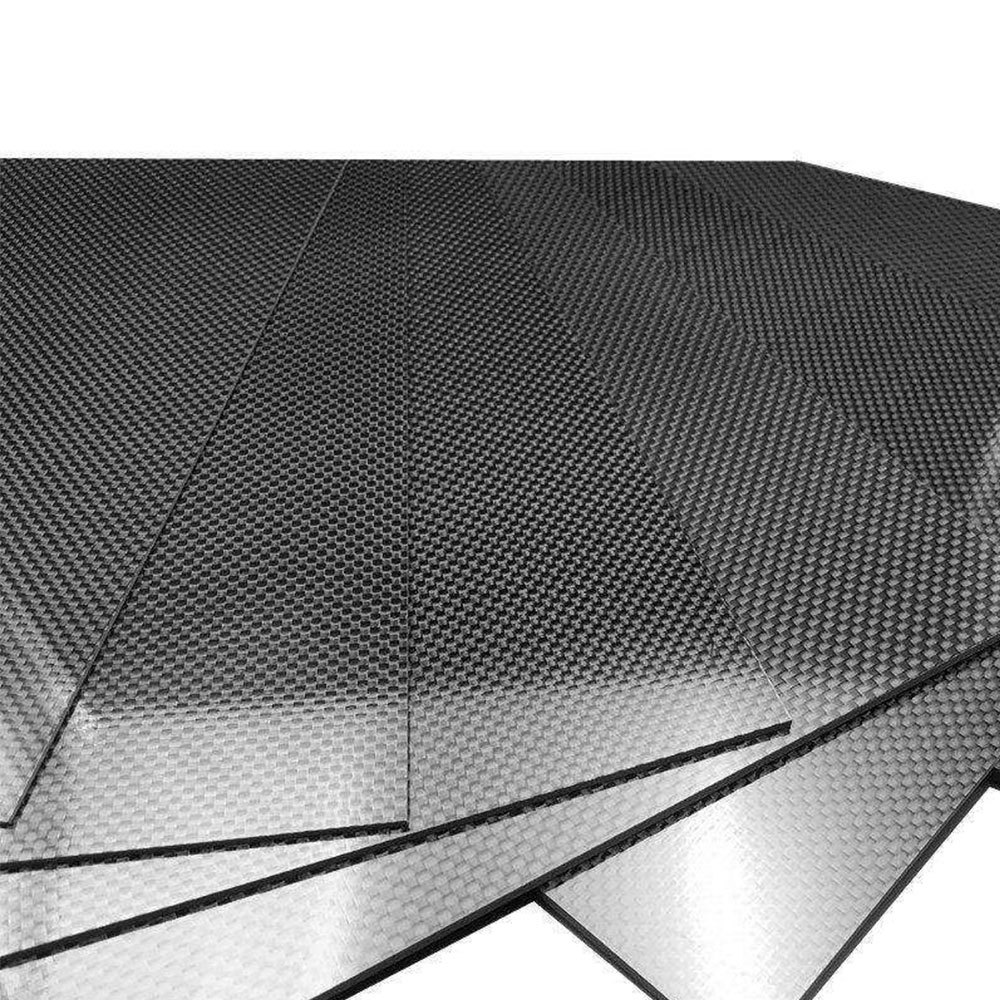

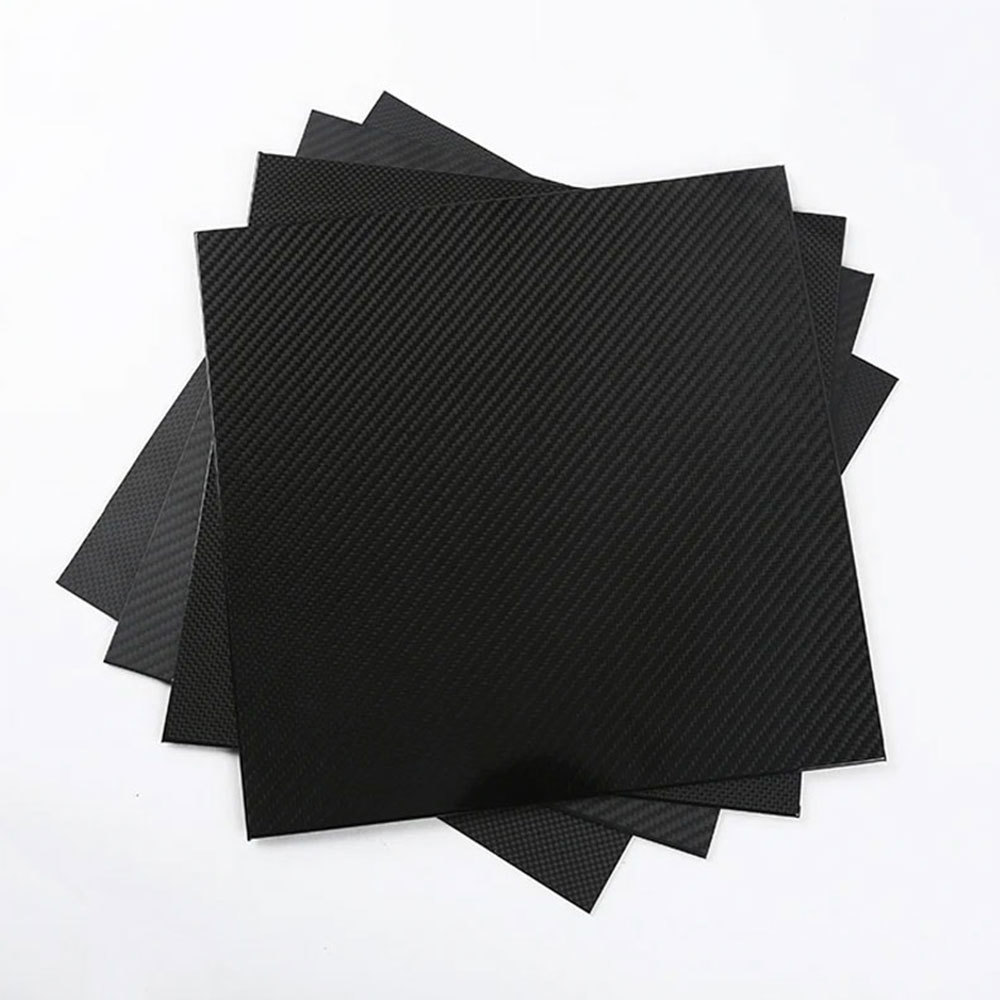

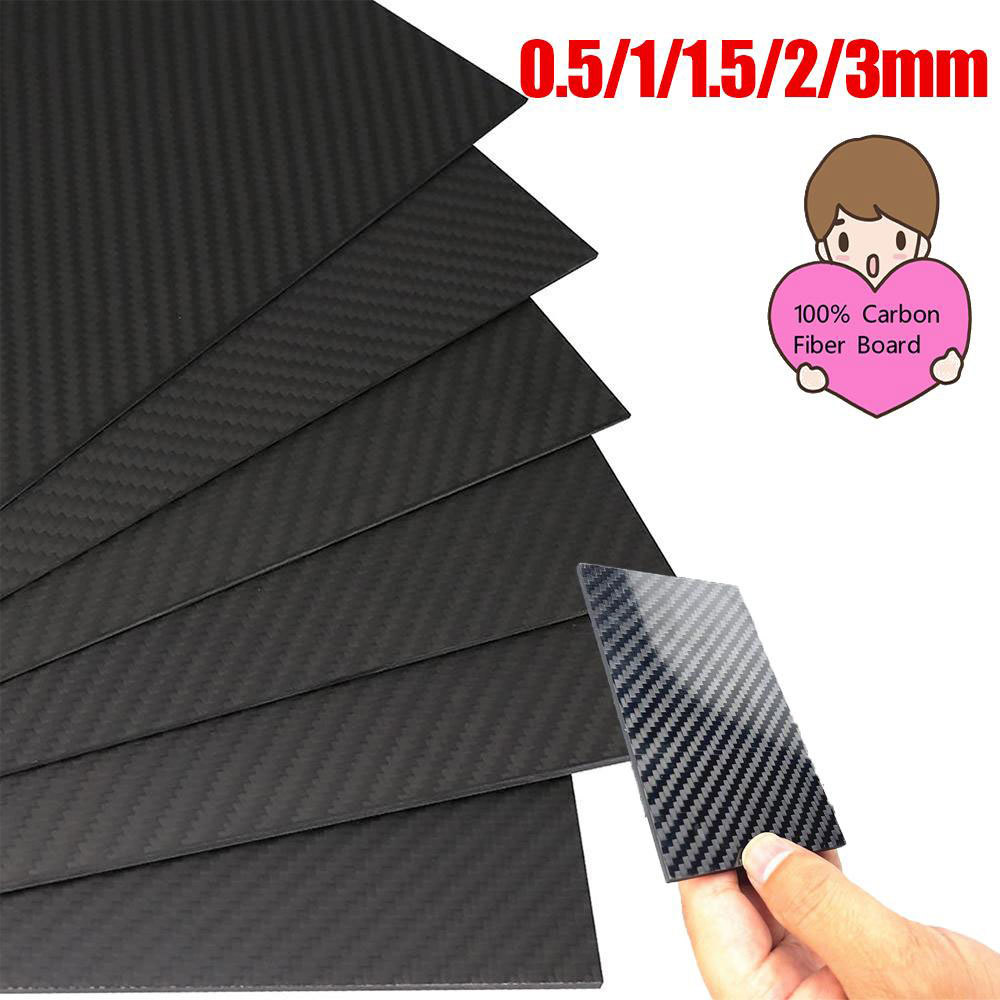

3K carbon fiber plate is a high-performance composite panel made of 3000-filament carbon fiber tow and high-purity epoxy resin via high-temperature and high-pressure lamination molding. As one of the most mainstream and high-cost-effective carbon fiber structural materials, it features an exquisite, uniform weave texture, ultra-high strength-to-weight ratio, stable dimensional performance, and excellent weather resistance. Different from 1K/6K/12K carbon fiber plates, 3K weave achieves a perfect balance of aesthetic appearance, mechanical properties, and processing adaptability, widely recognized as the preferred material for high-precision models, industrial equipment, aerospace, and automotive lightweight modification fields.

The carbon fiber sheets are all made by the hot-pressing process. The compactness, strength, and pressure resistance of the sheets have reached the level of products, completely avoiding the quality problems of product deformation, delamination, and bulging.

These carbon fiber sheets are 100% carbon fiber imported materials from Japan and Taiwan, The material is T300, T700. The surface can be made in Glossy or Matte surface; the weave can be made in Twill or Plain Weave. Mainly used in multicopters, helicopters, and RC airplanes etc.

Lightweight Carbon Fiber Sheet Features

- Lightweight Construction: Significantly lighter than steel and aluminum, ideal for weight-sensitive applications.
- High Strength and Rigidity: Provides excellent structural strength and stiffness with minimal weight.
- Excellent Durability: Offers reliable performance and long service life in demanding environments.
- Corrosion Resistance: Resists rust, moisture, and many chemicals for enhanced durability.
- Low Thermal Expansion: Maintains dimensional stability under temperature variations.
- Premium Surface Finish: Available in 3K plain weave, twill weave, matte, and glossy finishes.
- Customizable Specifications: Custom thicknesses, dimensions, patterns, and shapes are available.
- CNC Machining Support: Suitable for precision cutting, drilling, milling, and grooving.

Applications

1. Drones and UAV Components

Carbon fiber plates are widely used in drone frames, mounting plates, equipment supports, and structural components. Their lightweight construction and high stiffness help reduce overall aircraft weight while maintaining structural stability.

2. Robotics and Automation

Suitable for robotic frames, mounting brackets, end-effector plates, automation equipment, and precision mechanical structures. Carbon fiber panels can help reduce moving mass and support responsive mechanical movement.

3. Automotive and Transportation

Used in selected automotive components, lightweight panels, interior structures, equipment mounts, and customized vehicle parts where weight reduction and structural rigidity are important.

4. Industrial and Mechanical Equipment

Ideal for machine covers, structural panels, support plates, fixtures, equipment housings, and custom mechanical components. CNC machining enables precise dimensions and mounting-hole configurations.

5. Engineering and Prototyping

Suitable for engineering prototypes, laboratory equipment, product development, custom fabrication, and structural testing. The 600 × 600mm format offers a practical starting size for cutting smaller components.

6. Consumer Products and Custom Projects

The distinctive carbon fiber texture and premium surface finish make these sheets suitable for equipment panels, product enclosures, model components, sporting equipment, and other customized designs.

Single-Sided Carbon Fiber Plate Specification:
