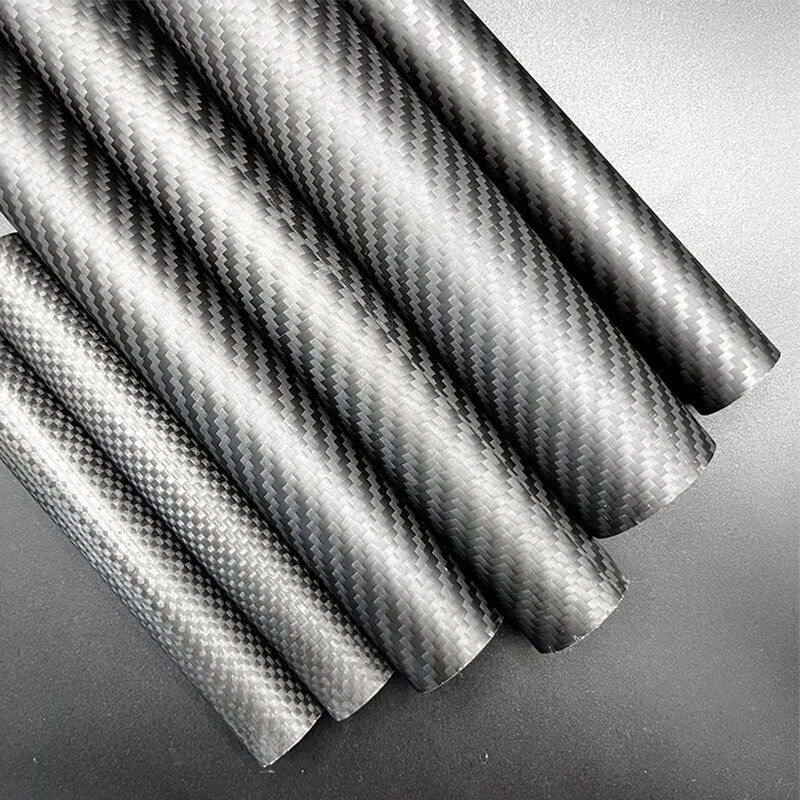

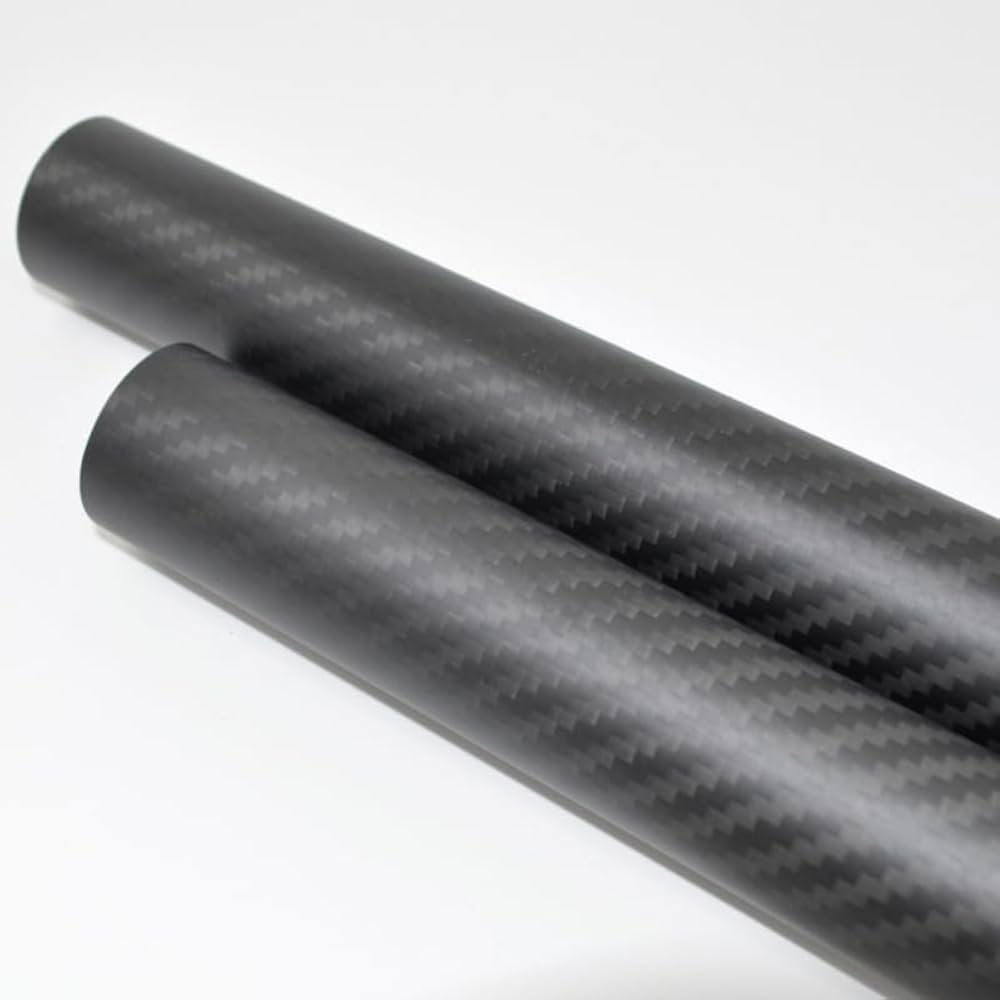

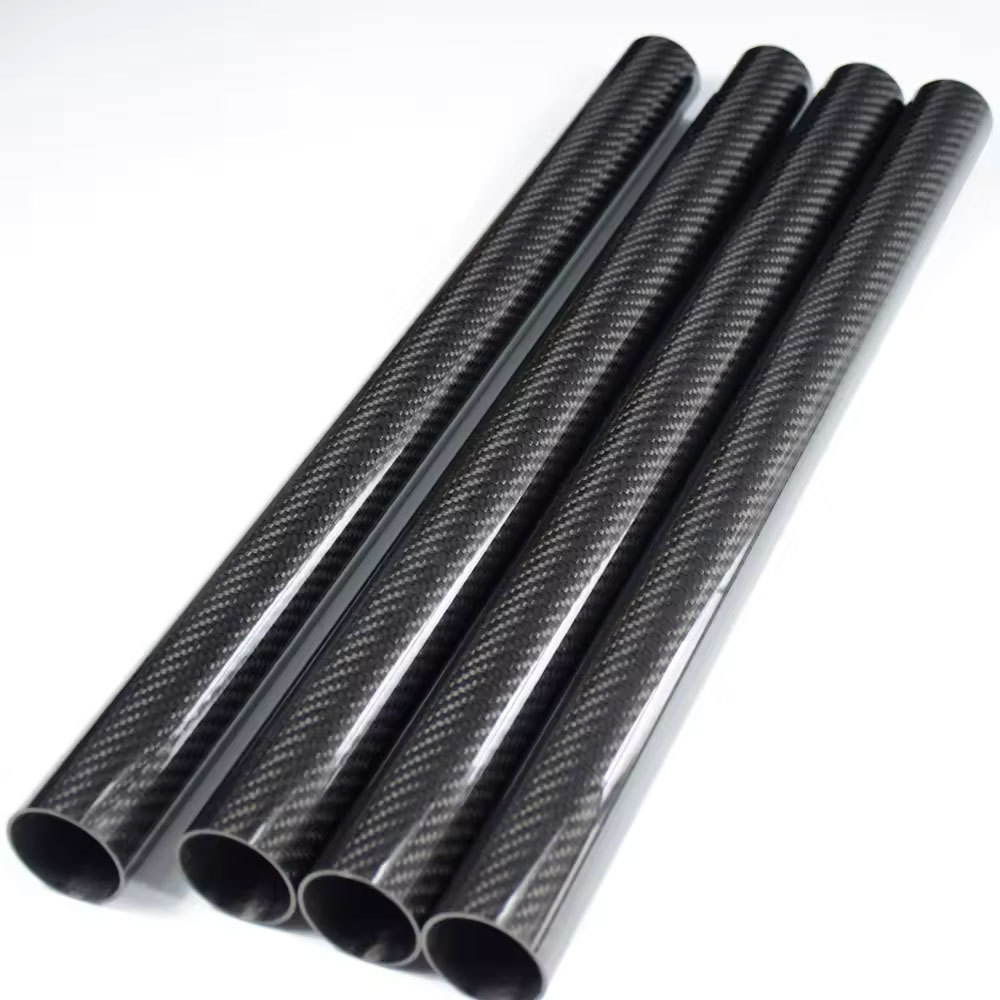

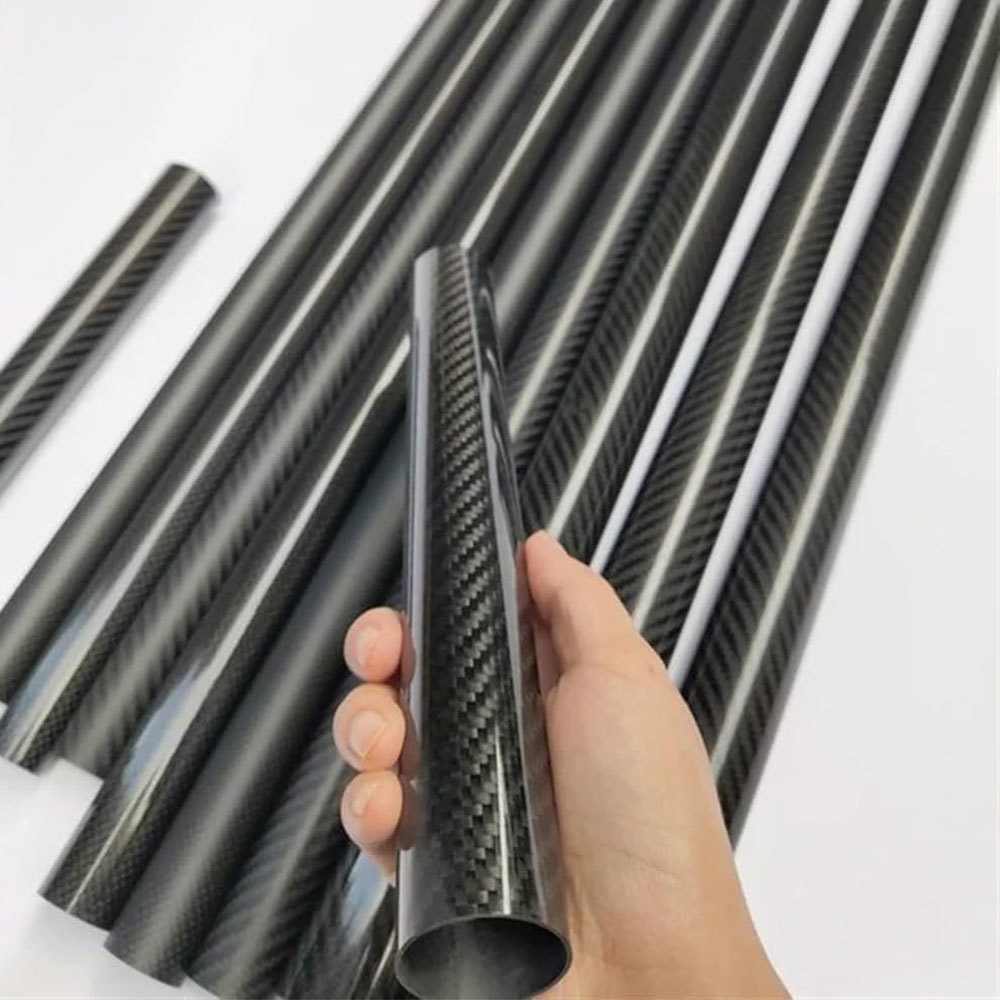

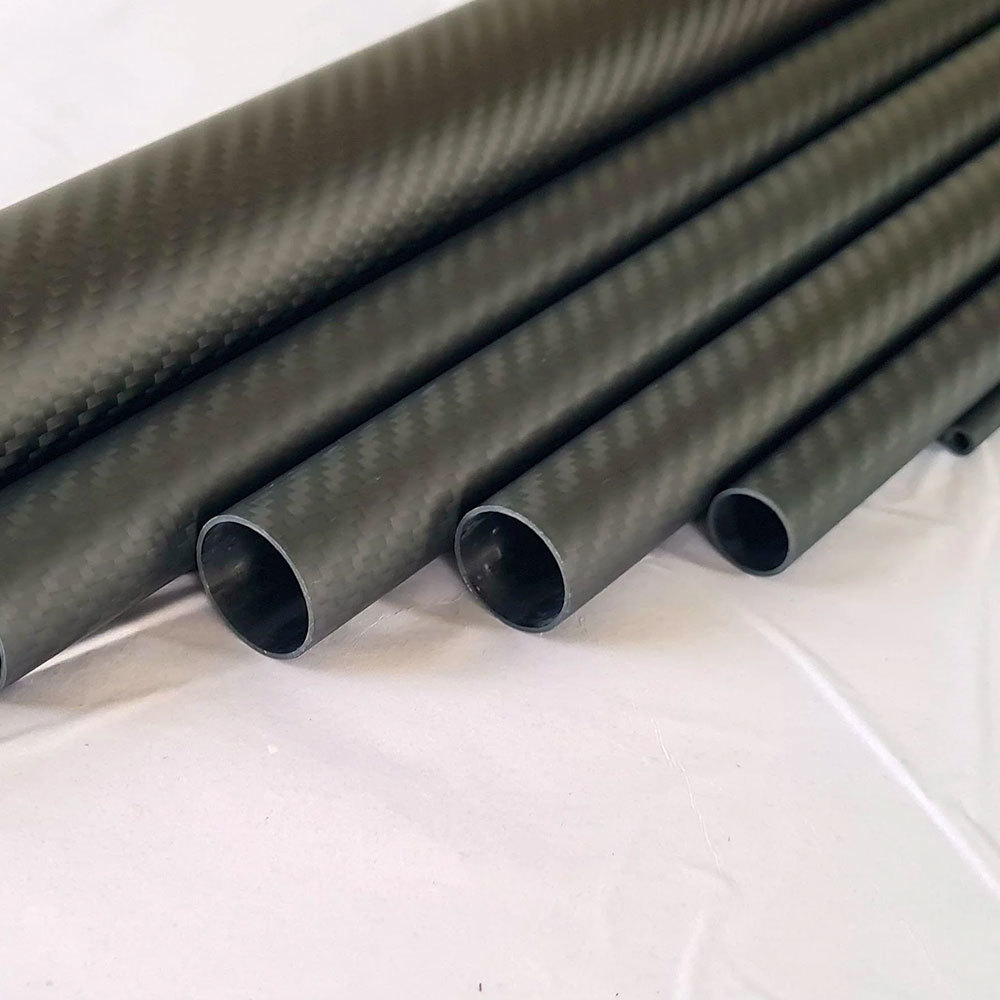

Roll Wrapped 3K Carbon Fiber Tubes | Lightweight Carbon Fiber Pipes

Product Description

Roll Wrapped 3K Carbon Fiber Tubes | Lightweight Carbon Fiber Pipes

Roll Wrapped 3K Carbon Fiber Tubes are high-performance composite tubes designed for applications where maximum strength, lightweight construction, and dimensional precision are essential. Manufactured using premium 3K woven carbon fiber fabric and aerospace-grade epoxy resin, these tubes are produced through an advanced roll-wrapping process that optimizes fiber orientation for superior mechanical performance.

Compared with conventional metal tubing, our carbon fiber tubes deliver an exceptional strength-to-weight ratio while reducing overall component weight by up to 70% compared to steel and approximately 40% compared to aluminum. Their excellent stiffness, fatigue resistance, and corrosion resistance make them ideal for demanding structural and engineering applications.

Each tube is carefully cured under controlled temperature and pressure to ensure consistent wall thickness, outstanding straightness, and a high-quality surface finish. Available in both glossy and matte finishes, our Roll Wrapped Carbon Fiber Tubes provide not only superior performance but also an attractive appearance suitable for premium products.

Whether you require standard sizes or fully customized specifications, we offer comprehensive OEM and ODM manufacturing services, including custom diameters, wall thicknesses, lengths, CNC machining, drilling, slotting, threaded ends, bonded inserts, and complete assembly solutions.

Features

• Manufactured from 100% premium 3K carbon fiber fabric
• Advanced roll-wrapped construction for enhanced structural strength
• Extremely lightweight with excellent load-bearing capacity
• High tensile, compressive, and flexural strength
• Outstanding stiffness and rigidity
• Excellent torsional resistance
• Superior fatigue resistance for long service life
• Corrosion, moisture, and chemical resistant
• Low coefficient of thermal expansion
• Excellent vibration damping properties
• Smooth inner and outer surfaces
• Available in matte, glossy, twill, plain weave, and custom finishes
• UV-resistant coating available for outdoor applications
• Suitable for high-performance structural components
• Custom sizes and precision machining services available

Specifications

• Material: 100% Carbon Fiber / Carbon Fiber Composite
• Fiber Type: 3K Twill Weave or Plain Weave
• Manufacturing Process: Roll Wrapped
• Resin System: High-performance Epoxy Resin
• Outer Diameter: 3 mm–500 mm (Custom Available)
• Wall Thickness: 0.5–20 mm (Custom Available)
• Length: Up to 3000 mm or Customized
• Surface Finish: Glossy, Matte, Sanded, or Painted
• Color: Black (Custom colors available)
• Tolerance: Precision manufactured according to customer requirements
