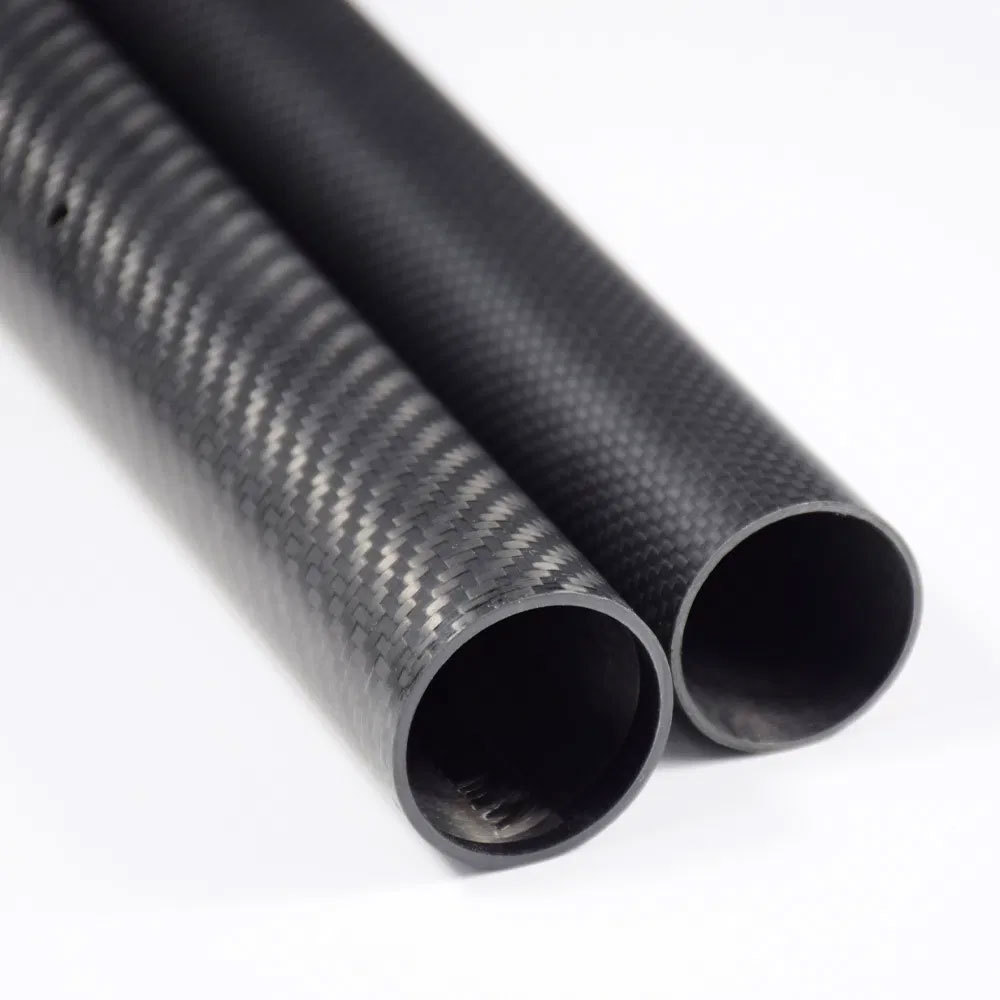

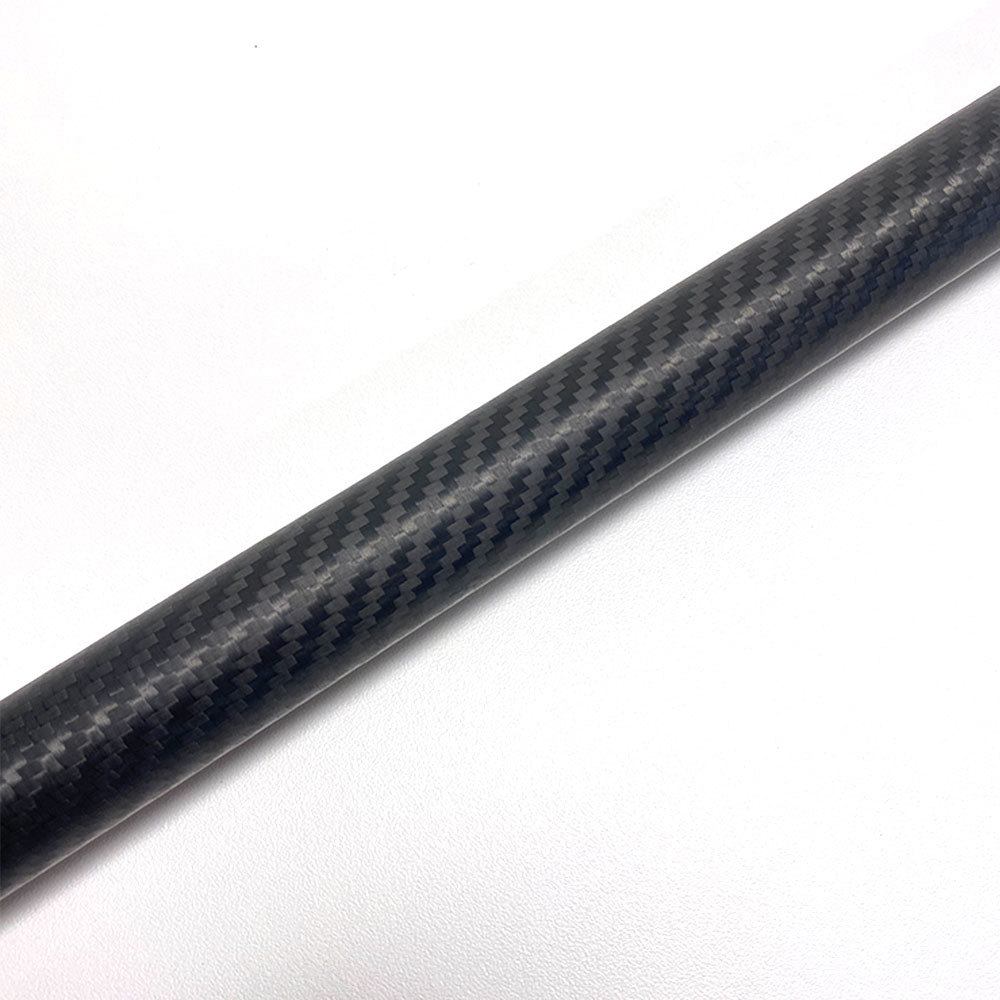

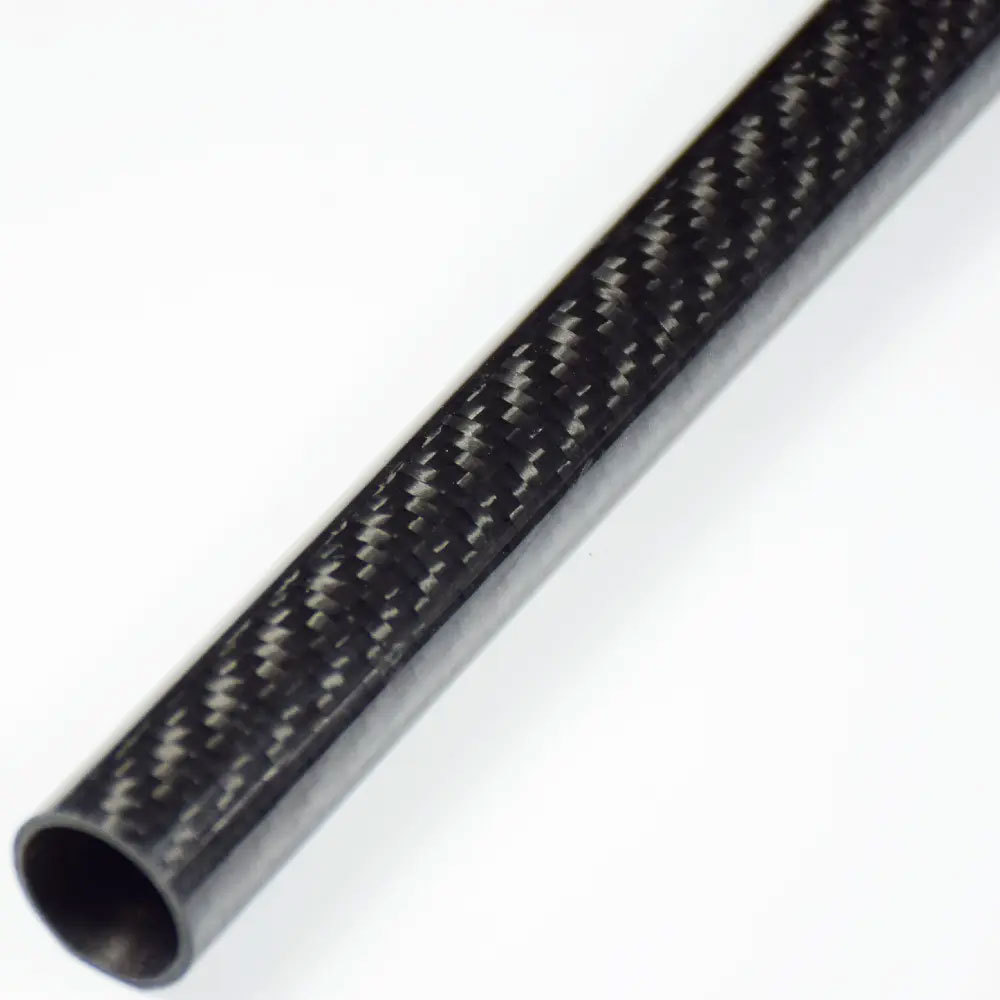

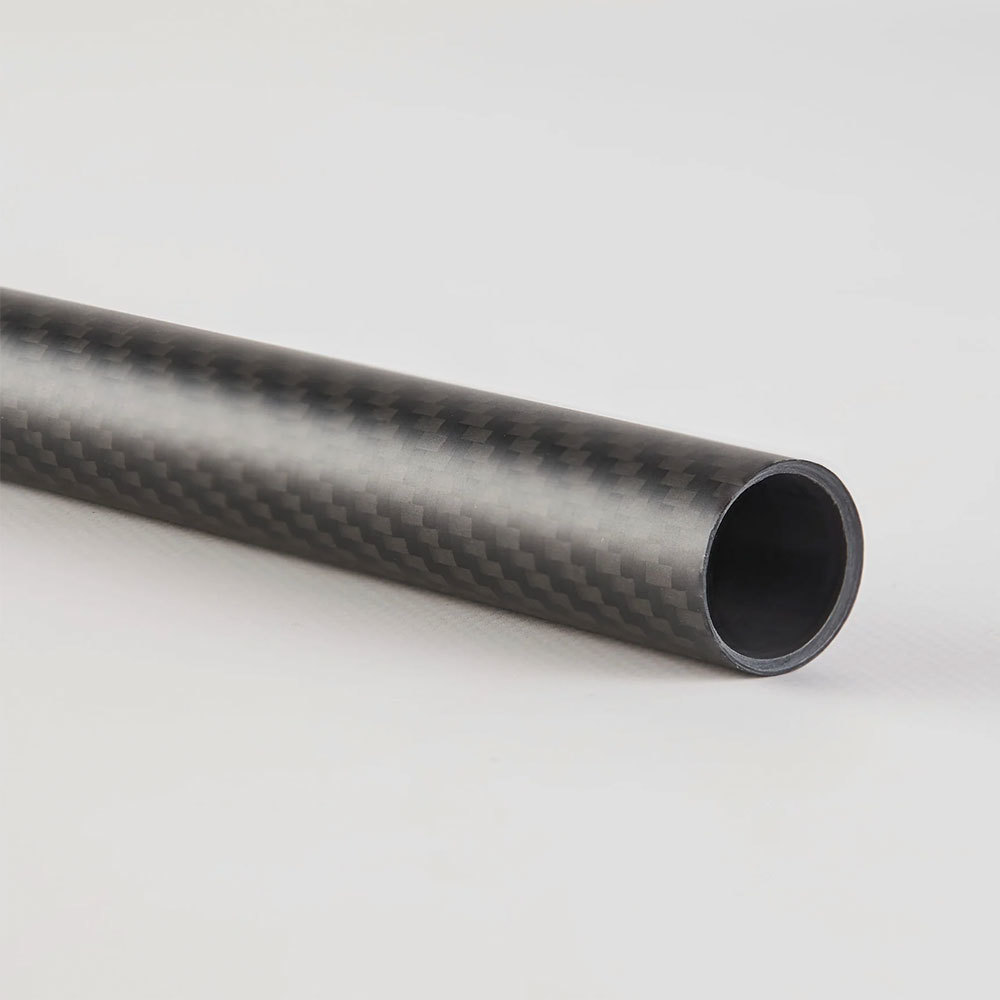

100MM OD x 96MM ID Carbon Fiber Tube 3K 500MM Long (Roll Wrapped) Carbon Pipe

Product Description

OD 100mm X ID 96mm X 500MM 100% Roll Wrapped Carbon Fiber Tube 3K /Tubing 100*96 3K Twill Matte

This 100MM OD x 96MM ID Carbon Fiber Tube is manufactured from premium 3K carbon fiber using a roll-wrapping process, providing exceptional strength, lightweight performance, and dimensional stability. With a 500MM length and precision construction, the tube offers excellent rigidity and durability for industrial, aerospace, robotics, drone, and engineering applications.

Compared with traditional metal tubes, the carbon fiber pipe is significantly lighter while maintaining high tensile strength and corrosion resistance. The 3K woven surface gives the tube a professional appearance and enhanced structural performance.

The roll-wrapped manufacturing method ensures optimized fiber orientation and improved mechanical properties, making the tube ideal for high-performance structural applications requiring strength and reduced weight.

Our tube is roll Carbon fiber tube, not a pultrusion tube. The roll tube has the longitude and weft yarn, but the pultrusion tube only has the longitude, not weft yarn, so the strength is not as well as roll tubes. Carbon fiber is very light weight, the strength is steel's 9 times, but the weight is about 1/3 of steel!

Features

• High strength and lightweight construction
• Premium 3K carbon fiber material
• Roll wrapped technology for superior rigidity
• Excellent corrosion and fatigue resistance
• Low thermal expansion
• Smooth twill surface finish
• High dimensional accuracy
• Suitable for structural and industrial applications

Specifications

• Product Name: 3K Carbon Fiber Tube
• Outer Diameter (OD): 100MM
• Inner Diameter (ID): 96MM
• Length: 500MM
• Wall Thickness: 2MM
• Material: 100% Carbon Fiber
• Process: Roll Wrapped
• Surface: 3K Twill Weave
• Finish: Matte / Glossy Optional
• Shape: Round Tube
