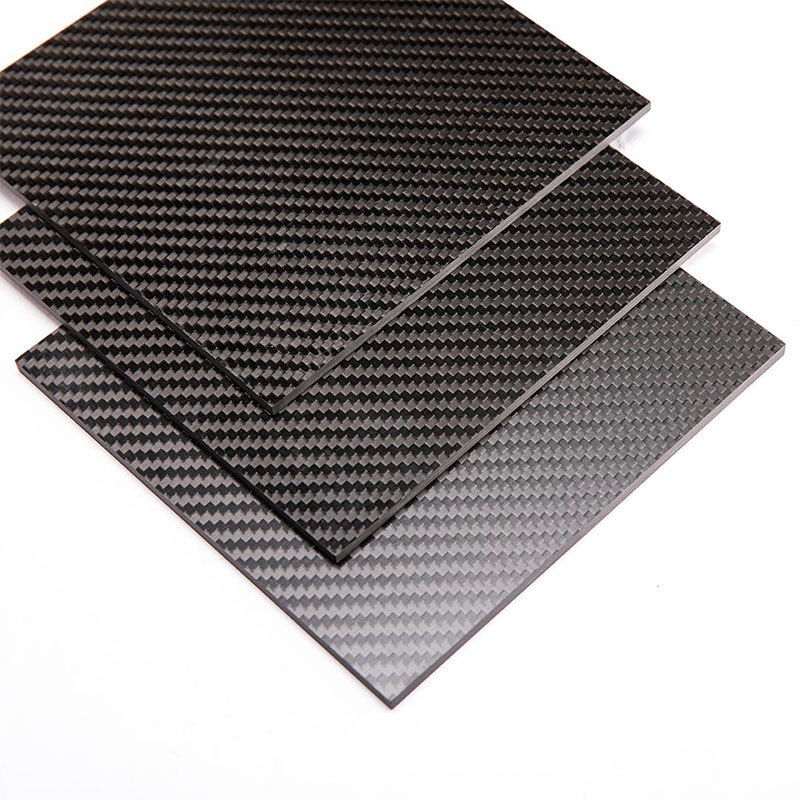

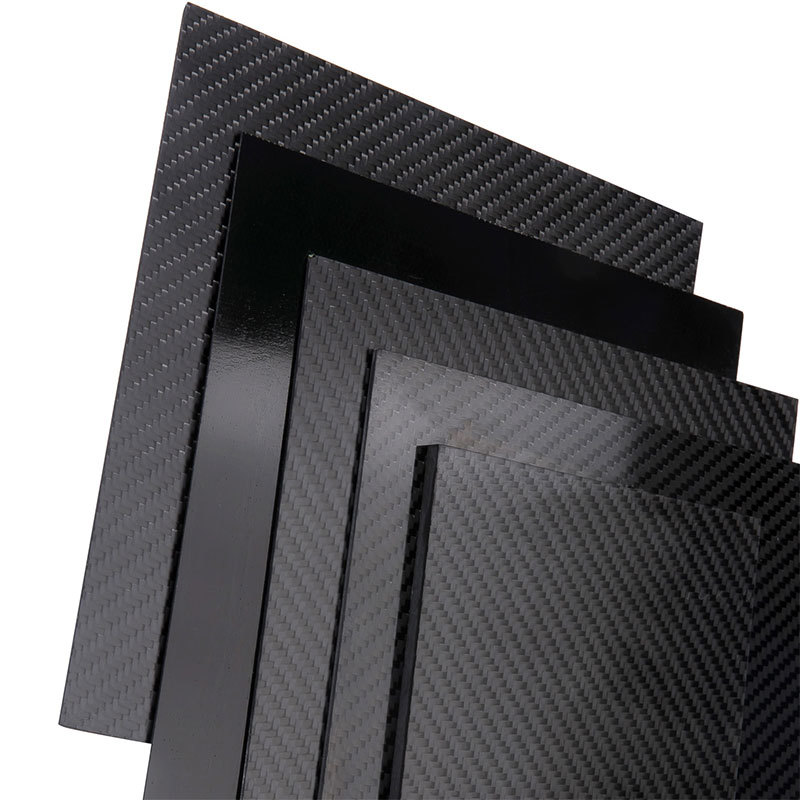

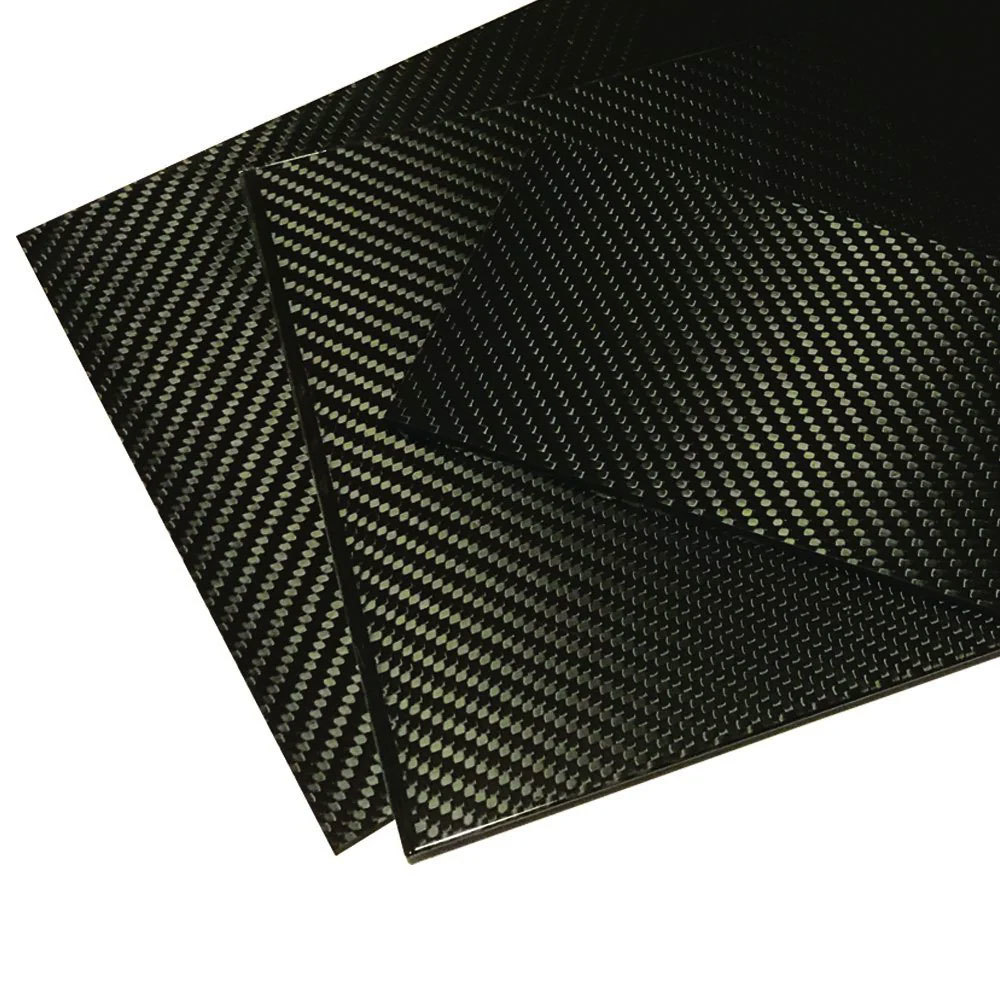

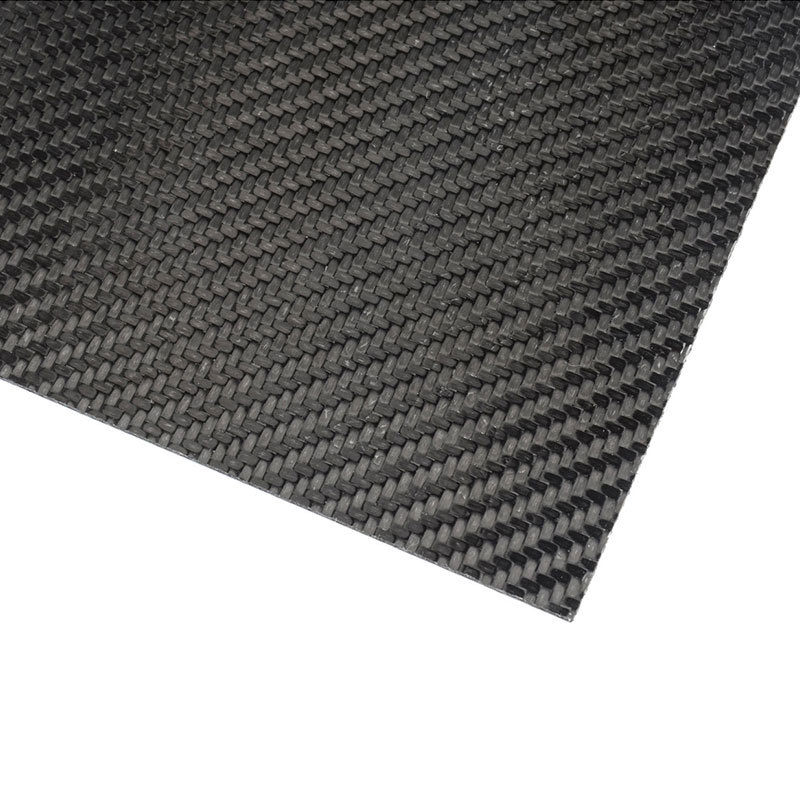

Structural Carbon Fiber Plate, Twill Weave, Thickness 3MM, 100mm*200mm*3mm

Product Description

Structural Carbon Fiber Plate, Twill Weave, Thickness 3MM,100mm*200mm*3mm

Structural Carbon Fiber Plates are high-performance composite laminates engineered for load-bearing and reinforcement applications. Manufactured using premium carbon fiber fabrics and high-strength epoxy resin systems, these plates provide exceptional stiffness, superior tensile strength, and outstanding fatigue resistance while maintaining significantly lower weight than steel or aluminum.

Designed for structural integrity and dimensional stability, carbon fiber plates offer minimal thermal expansion and excellent resistance to corrosion, chemicals, and environmental stress. Their high strength-to-weight ratio makes them ideal for industries requiring durable yet lightweight structural components.

Structural Carbon Fiber Plates are high-performance composite laminates specifically engineered for primary and secondary load-bearing applications. Manufactured through multi-layer carbon fiber layup combined with high-grade epoxy resin under controlled pressure and temperature, these plates deliver exceptional mechanical strength, superior stiffness, and long-term structural reliability.

Compared to aluminum and steel, structural carbon fiber plates provide up to 60–70% weight reduction while maintaining outstanding tensile and flexural performance. Their anisotropic fiber orientation allows engineers to tailor stiffness and strength according to specific load directions, making them ideal for structural reinforcement and precision mechanical assemblies.

These plates are widely used in aerospace structures, automotive chassis components, robotics frames, UAV platforms, medical devices, and high-performance industrial systems.

Key Features

• Dimension: Strong strength, high stiffness, light weight, perfect edge, durable, UV Resistance, and easy to work with; it has a long service life. It also has a perfect edge, and it is scratch-resistant. Without burrs, you do not need to worry about scratching your hands when using it.100mm*200mm/200mm*200mm/200mm*300mm, Thickness: 3mm.
• High-quality carbon fiber board: Made of pure carbon fiber material, without any fillers/composite layers. High-quality carbon fiber materials with a texture that is durable, light, and very strong.
• 3K Carbon Fiber Board: This 3k carbon fiber with 3000 filaments is strong, yet lightweight as it is filled in each tow or bundle.
• Easy to Cut: You can easily cut out the shape that you require without much effort, as the material is easy to work with yet very strong. Cut with precision and obtain fine, straight edges without burs with our carbon fiber flat sheets.
• Wide Application: Perfect for any application, including car exteriors and interiors surfaces, car door handles, cellphones, laptops, kayak paddles, pens, drone propellers, carbon fiber guitars, car gear, bike saddles, etc.

Applications

• Structural reinforcement panels
• Industrial machinery components
• Robotics and automation frames
• Automotive structural parts
• Aerospace interior structures
• Drone and UAV frames

Carbon Fiber Sheet Plate Specification:
