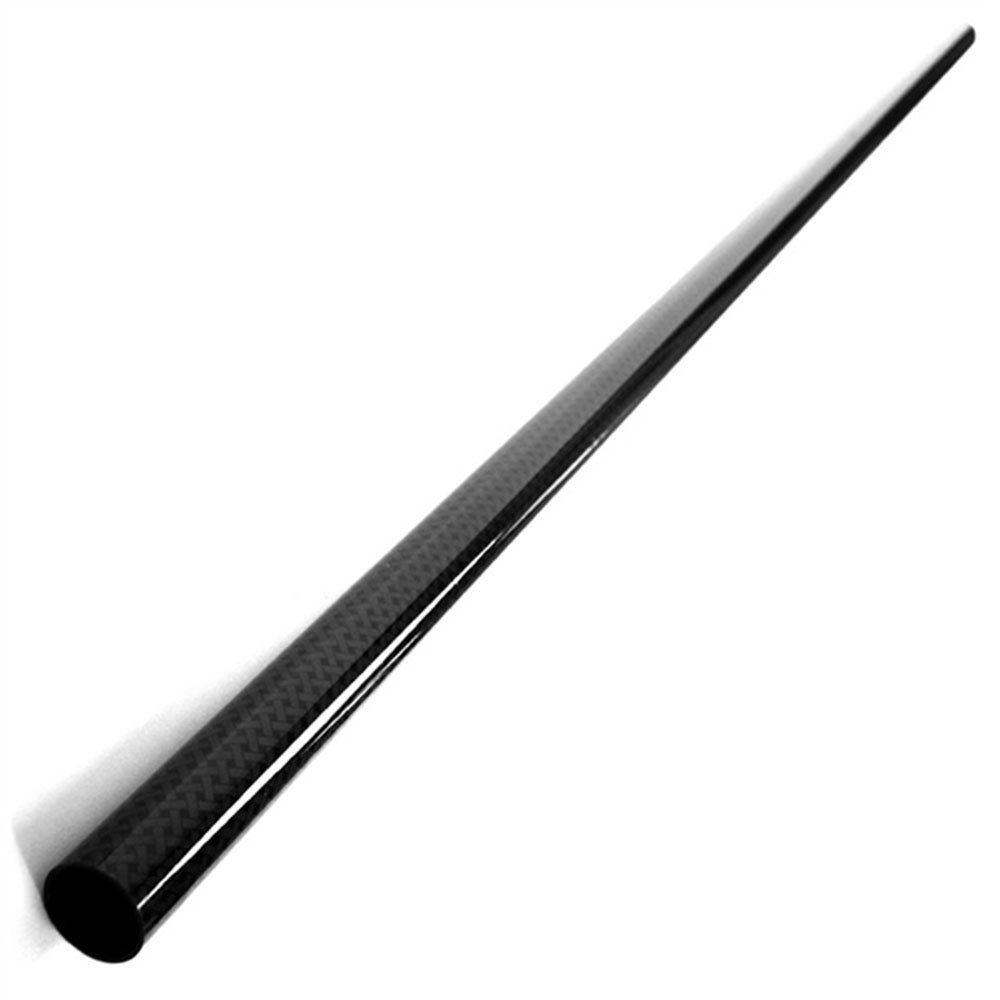

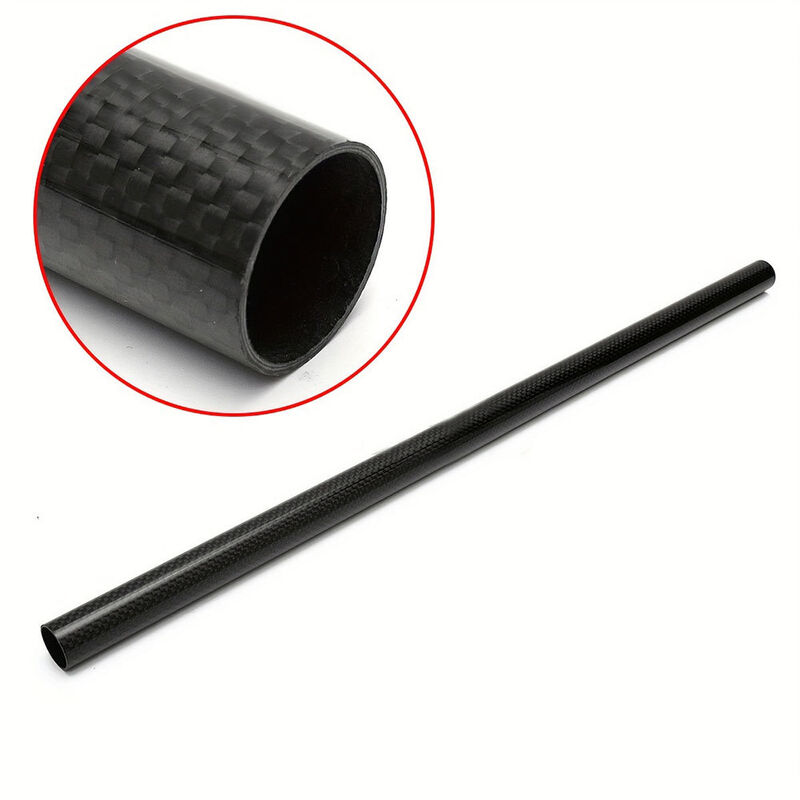

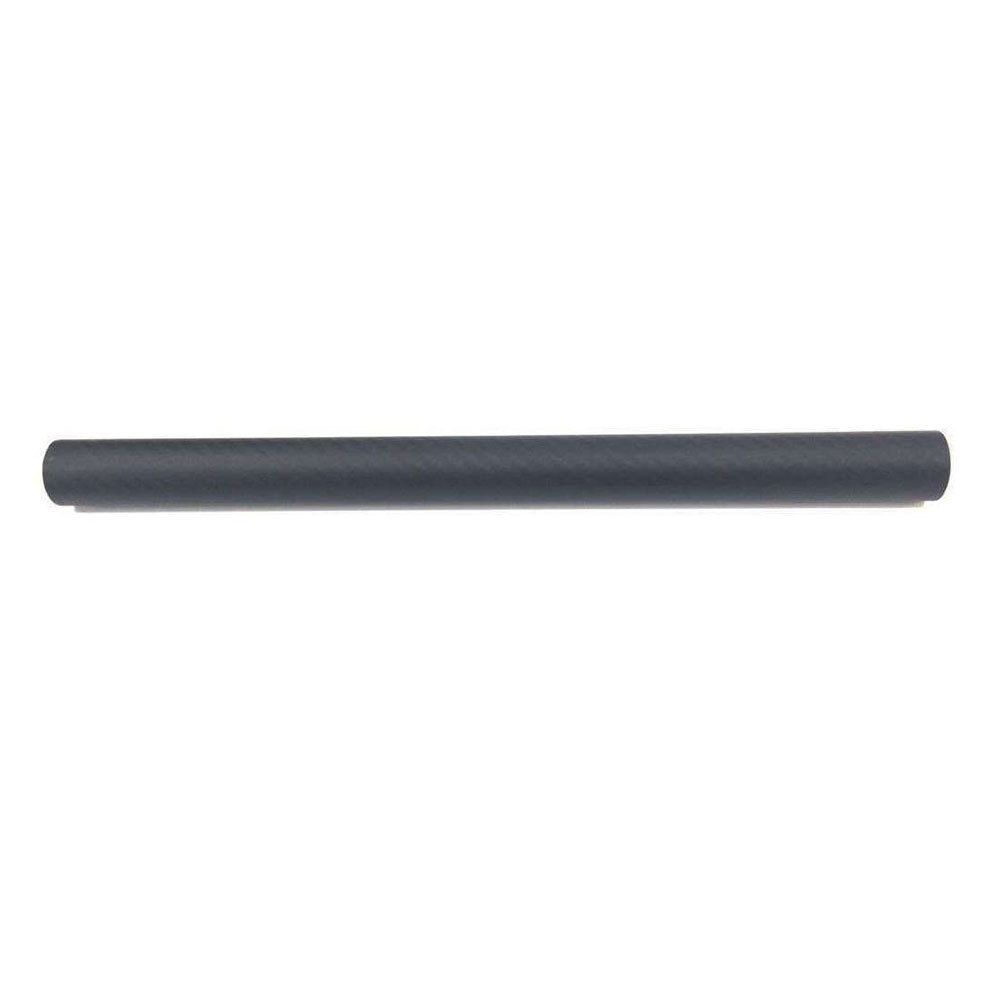

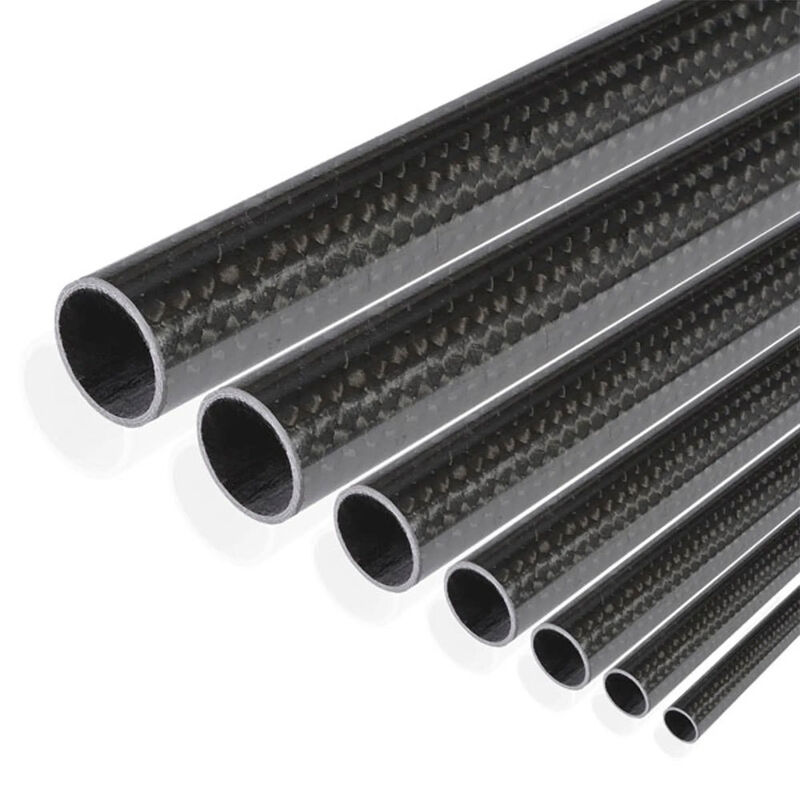

Corrosion Resistant Thin Wall Aerospace Grade Carbon Fiber Tube for High Performance Applications

The Thin Wall Carbon Fiber Tube is an advanced composite structural tube engineered to achieve maximum strength and stiffness with the lowest possible weight. By utilizing ultra-thin wall construction and optimized carbon fiber layups, this tube delivers exceptional mechanical efficiency, making it ideal for weight-critical and space-constrained applications.

Thin wall carbon fiber tubes are manufactured using precision-wrapped carbon fiber fabrics—woven and/or unidirectional—around high-accuracy mandrels. The laminate is cured under tightly controlled temperature and pressure conditions to ensure uniform resin distribution, minimal void content, and consistent wall thickness throughout the tube length.

Custom fiber orientations (0°, ±45°, 90°) can be engineered to optimize performance for axial loads, torsion, bending, or combined stresses, allowing the tube to outperform metal alternatives even at very low wall thicknesses.

Mechanical Performance Characteristics

1. Exceptional Strength-to-Weight Ratio: Achieves high tensile, compressive, and bending strength with minimal material usage
2. High Axial & Torsional Stiffness: Optimized layups reduce flex and twist in long or slender structures
3. Superior Fatigue Life: Maintains structural integrity under continuous vibration and cyclic loading
4. Vibration Damping: Naturally absorbs vibration better than aluminum or steel
5. Impact Energy Distribution: Carbon fiber structure disperses localized stress efficiently

Thermal & Environmental Performance

• Low Coefficient of Thermal Expansion: Maintains dimensional accuracy across temperature changes
• Heat Resistance: Performance dependent on resin system, suitable for elevated operating temperatures
• Corrosion-Free: Will not rust or oxidize
• Chemical Resistance: Resistant to oils, fuels, solvents, and moisture
• UV-Stable Finish Options: Surface coatings prevent fiber exposure and surface degradation

Surface Finish & Quality Control

• Surface Options: High-gloss, matte, or satin finish
• Precision Roundness & Straightness: Controlled mandrel tooling ensures tight tolerances
• Uniform Wall Thickness: Critical for thin wall applications requiring predictable load performance
• Clean Fiber Definition: Tight weave appearance for both functional and aesthetic uses

Available Specifications

• Outer Diameter: Custom sizes available
• Wall Thickness: Ultra-thin, precision-controlled (application dependent)
• Length: Standard production lengths or custom-cut sections
• Fiber Types: 3K, 6K, 12K woven fiber or unidirectional carbon fiber

Thin wall carbon fiber tubes are compatible with CNC machining, precision cutting, drilling, and bonding. Due to the reduced wall thickness, optimized fixturing and sharp carbide or diamond tooling are recommended to maintain edge quality and prevent delamination. Tubes bond exceptionally well with structural adhesives for lightweight assemblies.
