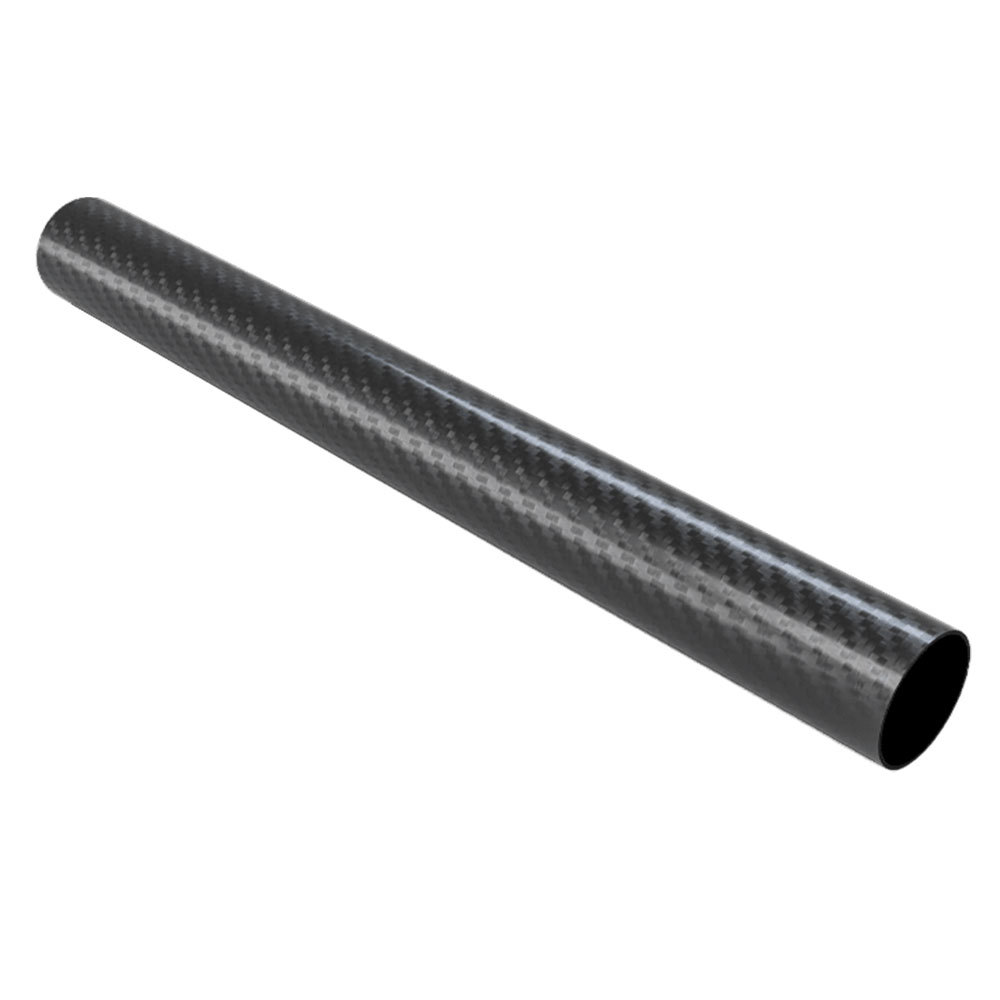

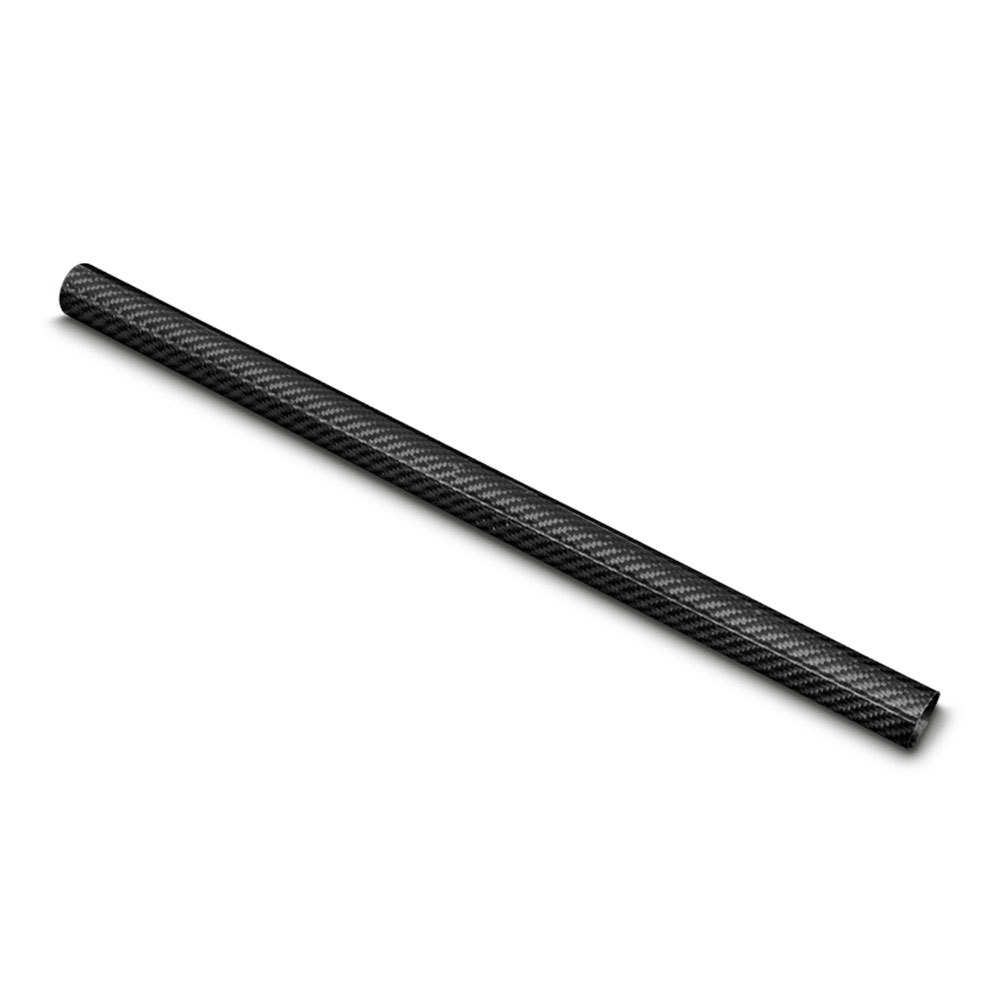

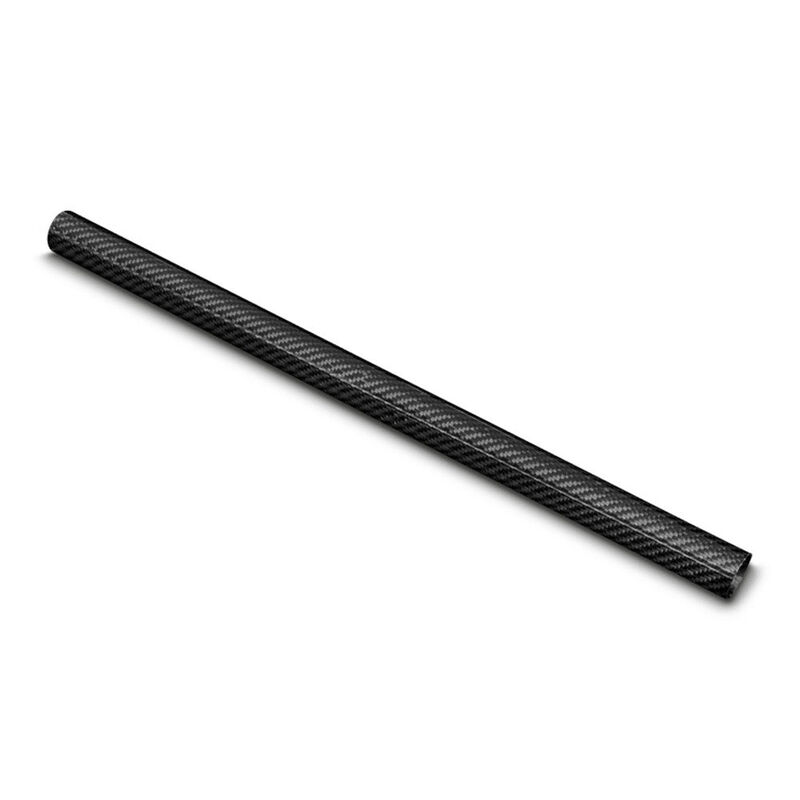

3K Matte Plain Weave Carbon Fiber Tube - Roll Wrapped Carbon Fiber Tube

Product Description

3K Matte Plain Weave Carbon Fiber Tube - Roll Wrapped Carbon Fiber Tube

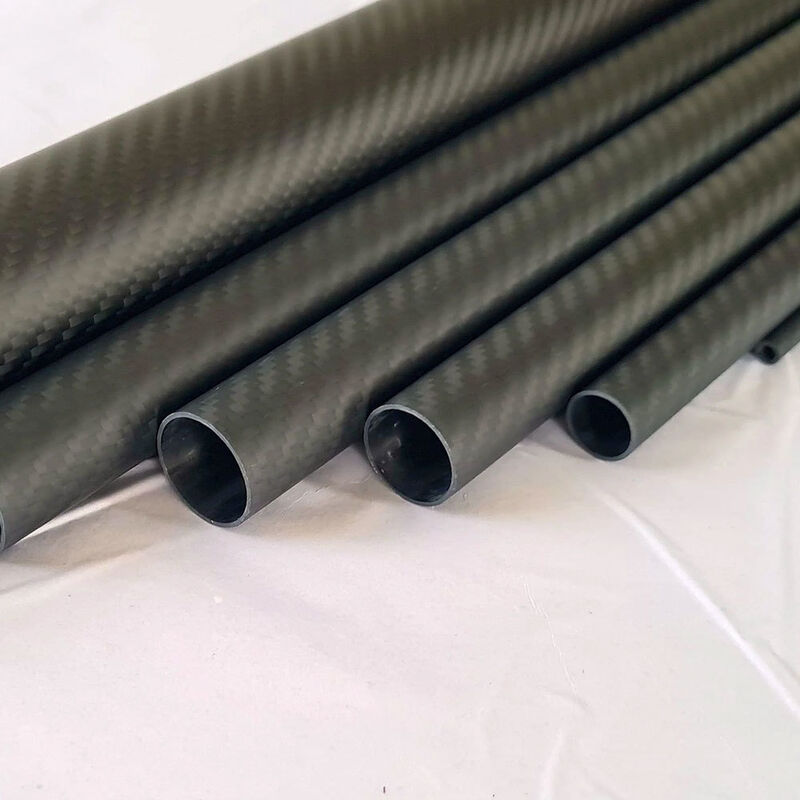

Matte Plain Weave Carbon Fiber Tube has an outermost layer of plain woven fabric, which gives the tube excellent machinability, being more fragmentation-resistant than regular UD finished carbon fiber structural tubing, improving processability and aesthetics.

Our Matte Plain Weave Carbon Fiber Tube is produced by roll wrapped process, which involves wrapping the carbon fiber unidirectional prepreg in various layers and directions on the mandrel, and then curing it under extreme heat and pressure.

We lay the carbon UD prepreg in the direction of 0/90 degrees, while the majority of the fibers are laid in the longitudinal direction. This construction offers a high stiffness-to-weight ratio tube with increased bending stiffness and axial strength, a high crush resistance, and strict diameter tolerances.

Based on our more than 10 years of experience in producing matte plain weave carbon fiber tube, we have summarized the strength characteristics unique to different directions of layers:

• Fibers in the 0 degree direction provide high bending strength and stiffness.
• Fibers in the 15-degree and 45degree direction provide the high torsional strength and stiffness
• Fibers in the 90-degree direction provide high crushing stiffness and overall strength.

With our rich experience, we can adjust the layers' direction in accordance with various customer requirements.

Cooperation Advantage

• Available size for free mold: Diameter 2mm---600mm, Max Length: 6000mm. (Pls send us your required size, we will check our mold size for you. The mold cost will be free if we have the exact mold with your required size, or a similar mold to yours.
• The R&D Department can design for free.
• Customization based on design
• Customization based on samples
• The testing room can detect performance indicators.
• Quality assurance of genuine raw materials
• 100% Inspection of the finished product before packing
• Fixed logistics guarantee

Quality Control

Runfeng CFRP take 100% inspection for orders before packing. We have different test items for different products, and we can also do individual testing according to customers' requirements. All orders will be packed and shipped only after passing inspection.

• Material Inspection
• OD, ID, Thickness Inspection
• Straightness Inspection
• Individual Inspection
