3K Plain / Twill Carbon Fiber Tube for Strength and Light Weight

Product Description

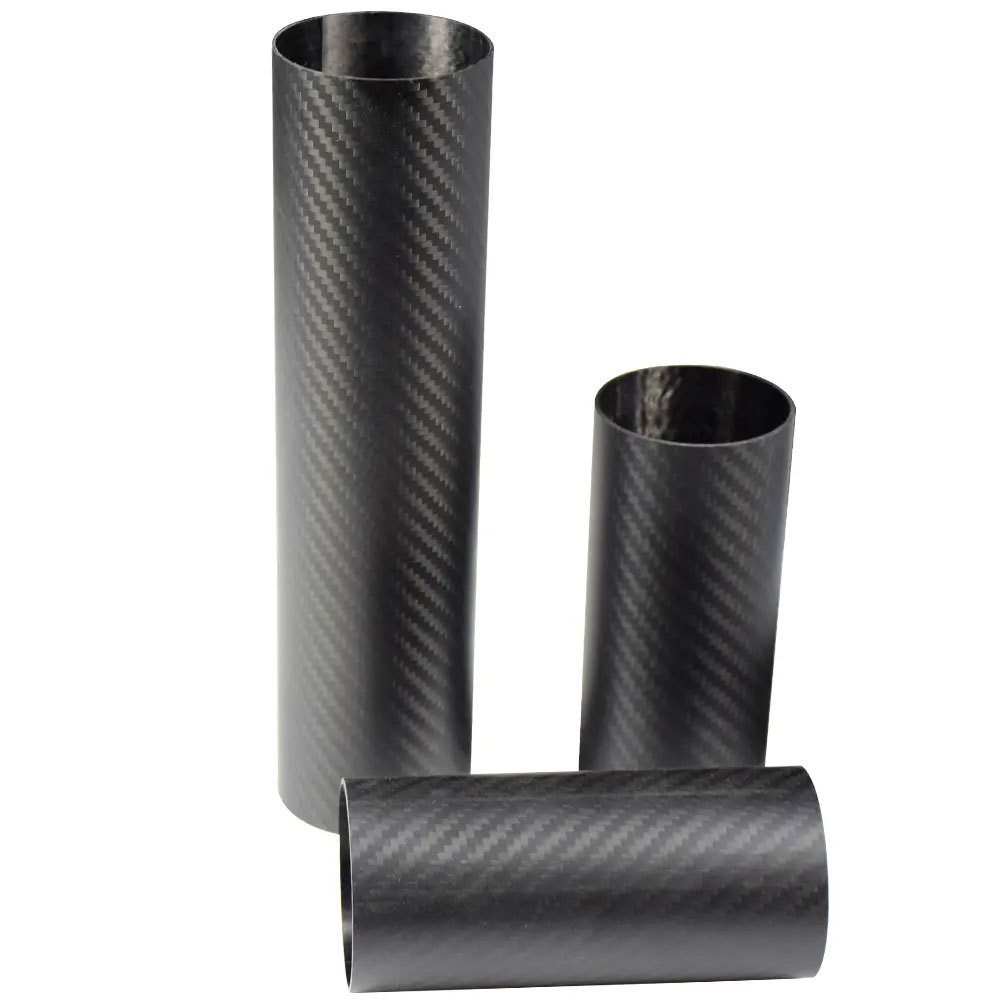

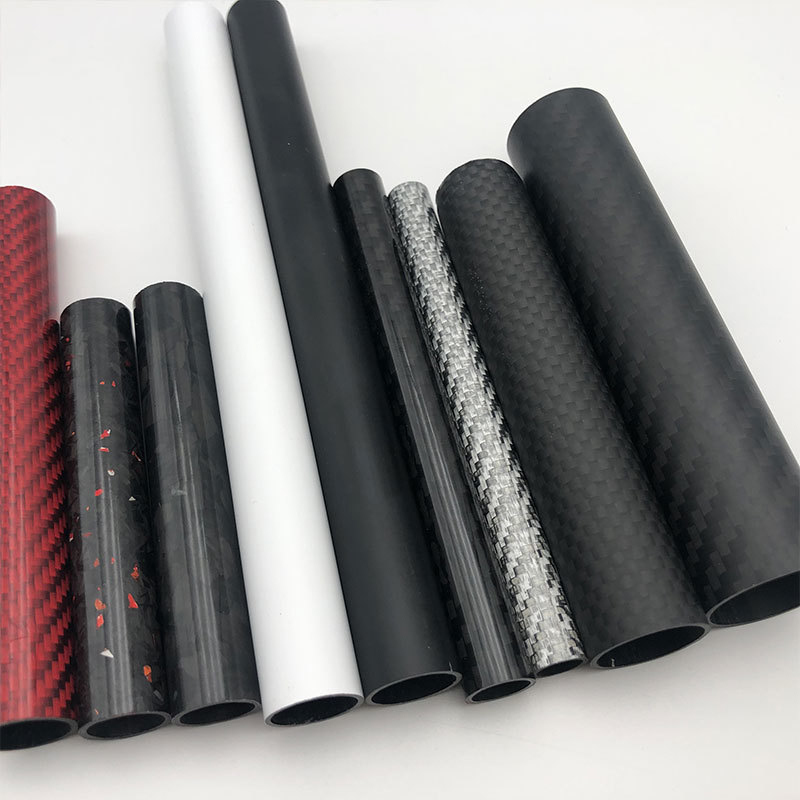

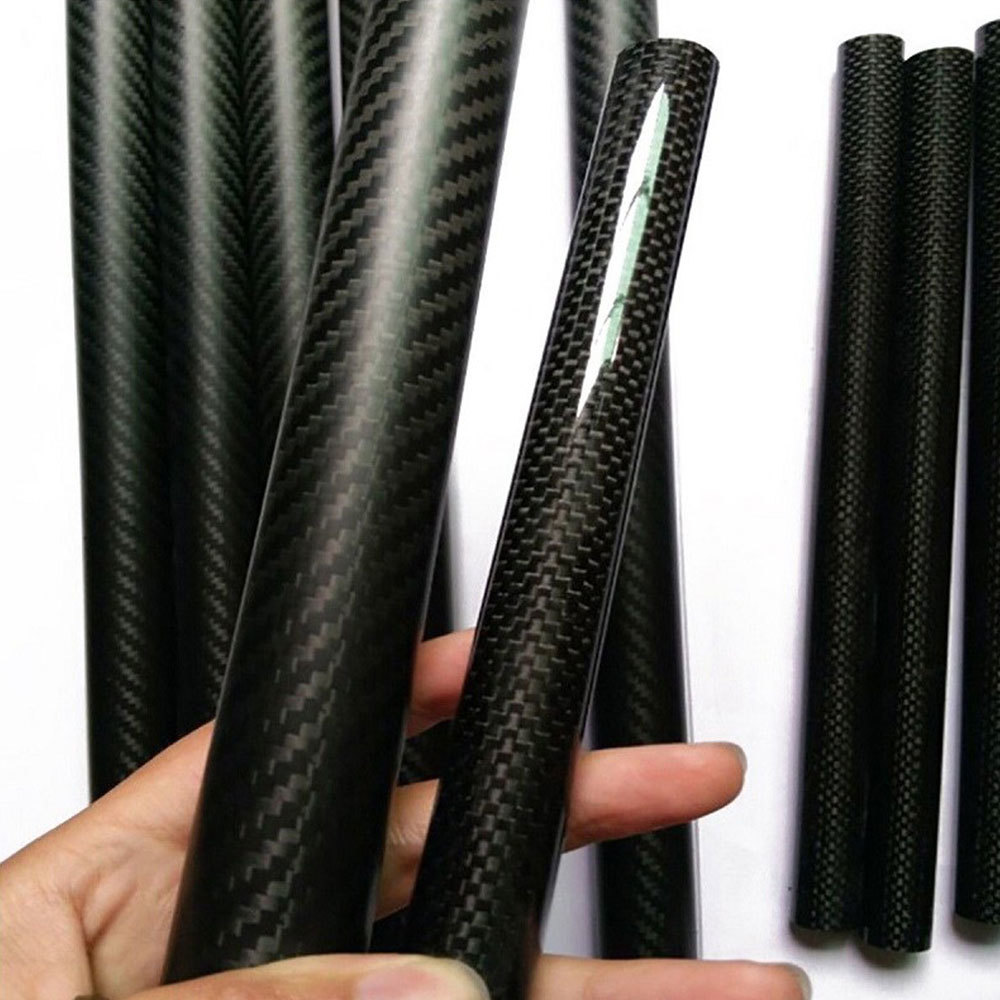

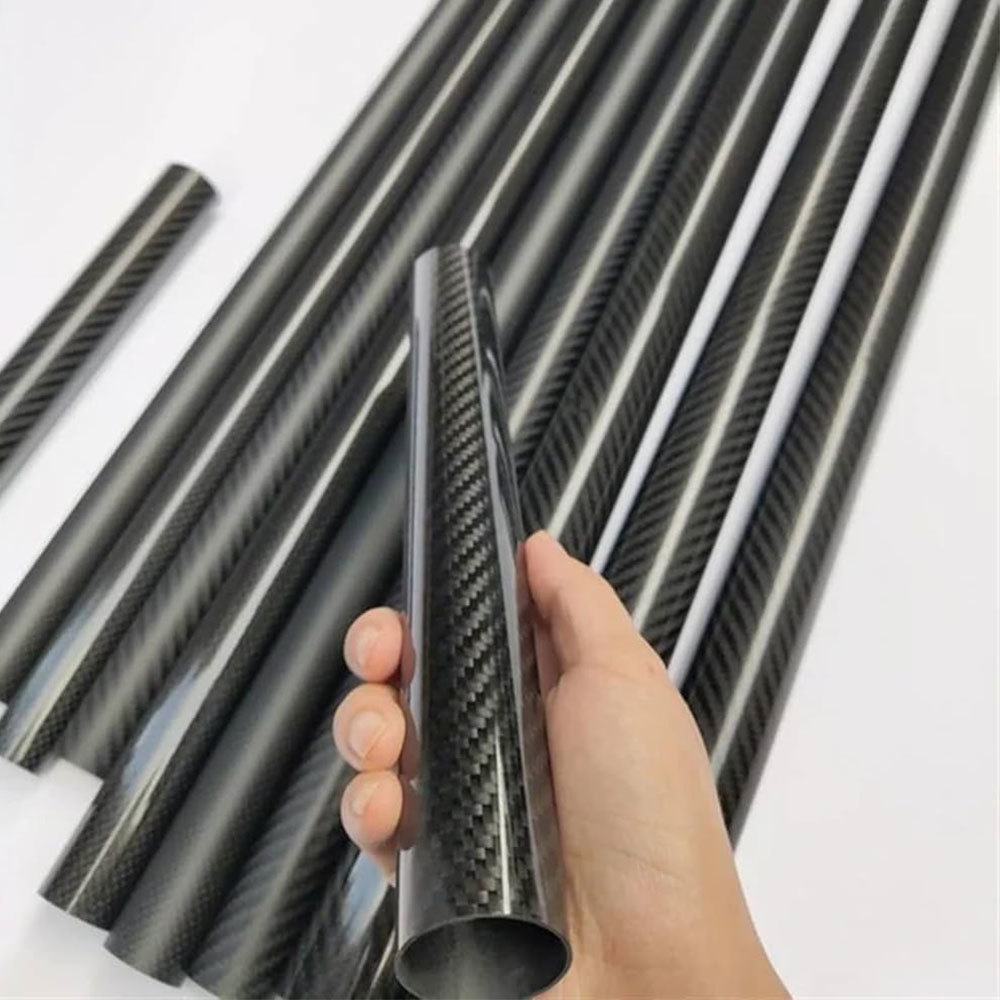

Stiff 100% 3K Carbon Fiber Tube - The Ultimate Solution for Strength and Stability

In industries where weight, strength, and rigidity must be perfectly balanced, stiff carbon fiber tubes have emerged as a top choice. From aerospace engineering to robotics, drones, and automotive applications, these tubes provide unmatched structural performance with minimal weight.

What is a Stiff Carbon Fiber Tube?

A stiff carbon fiber tube is a hollow cylindrical structure made from carbon fiber-reinforced polymer (CFRP), engineered specifically to resist flexing, deformation, and vibration under load. These tubes are typically manufactured using roll-wrapping, pultrusion, or filament winding methods, with fibers aligned in directions that maximize stiffness.

Key Properties and Advantages

1. High Stiffness-to-Weight Ratio: Carbon fiber has a modulus of elasticity significantly higher than aluminum, while being far lighter. This makes it ideal for applications that demand both rigidity and low mass.
2. Minimal Flex and Deflection: Stiff carbon fiber tubes hold their shape under pressure and movement, making them perfect for telescoping poles, robot arms, and precision instruments.
3. Durable and Fatigue Resistant: Carbon fiber resists cracks, corrosion, and fatigue better than metal, especially in harsh environments.
4. Vibration Dampening: The material naturally absorbs vibrations, reducing wear and noise in moving assemblies.
5. Thermal and Chemical Resistance: With excellent heat stability and chemical inertness, these tubes are perfect for use in outdoor, marine, and aerospace conditions.

Applications of Stiff Carbon Fiber Tubes

• Aerospace and UAVs: Structural components, antenna supports
• Robotics: Lightweight arms, frames, and joint extensions
• RC and FPV Drones: Motor mounts, booms, camera arms
• Telescopic Poles: Extended reach tools, inspection equipment
• Medical Devices: Surgical instruments and mobility aids
• Sports Equipment: Ski poles, bike frames, archery shafts

A stiff carbon fiber tube is not just a high-tech material—it’s a game-changer for industries that require precision, strength, and performance without compromise. Whether you're designing a drone frame, building a robotic prototype, or engineering a lightweight support arm, carbon fiber tubing is the smart choice.




Manufacturing Process

The manufacturing process involves several steps:


• Material Selection: High-quality yarns are carefully selected, considering their tensile strength, modulus, and other required properties.
• Prepreg Production: To create prepreg sheets, the selected yarns are impregnated with a thermoset resin, usually epoxy. These prepreg sheets offer precise control over fiber alignment and resin distribution.
• Layup and Curing: The prepreg sheets are cut into specific dimensions and stacked layer by layer in a mold, aligning the fibers according to the desired pattern. The assembly is then cured under heat and pressure, transforming the prepreg into a solid structure.
• Post-processing: Once cured, the tubes undergo various post-processing steps, such as sanding, trimming, and surface treatment, to achieve the desired final dimensions, smoothness, and appearance.

Unique Properties of 3K Carbon Fiber Tubes

3K carbon fiber tubes possess several unique properties that make them highly desirable in various applications:

• High Strength-to-Weight Ratio: The 3K carbon fiber's arrangement of 3,000 filaments in each tow provides exceptional strength while maintaining a lightweight profile. This property is crucial in industries where weight reduction is essential, such as the aerospace and automotive sectors.
• Excellent Stiffness: The aligned fibers provide high stiffness, ensuring minimal deflection under load. This property makes them ideal for applications that require rigidity and stability, such as robotics and industrial equipment.
• Corrosion and Fatigue Resistance: Carbon fiber composites, including 3K carbon fiber tubes, exhibit excellent resistance to corrosion and fatigue, making them suitable for outdoor and demanding environments.
