100% 3K Plain / Twill Weave Carbon Fiber Sheet Glossy / Matt Carbon Fiber Plate

Product Description

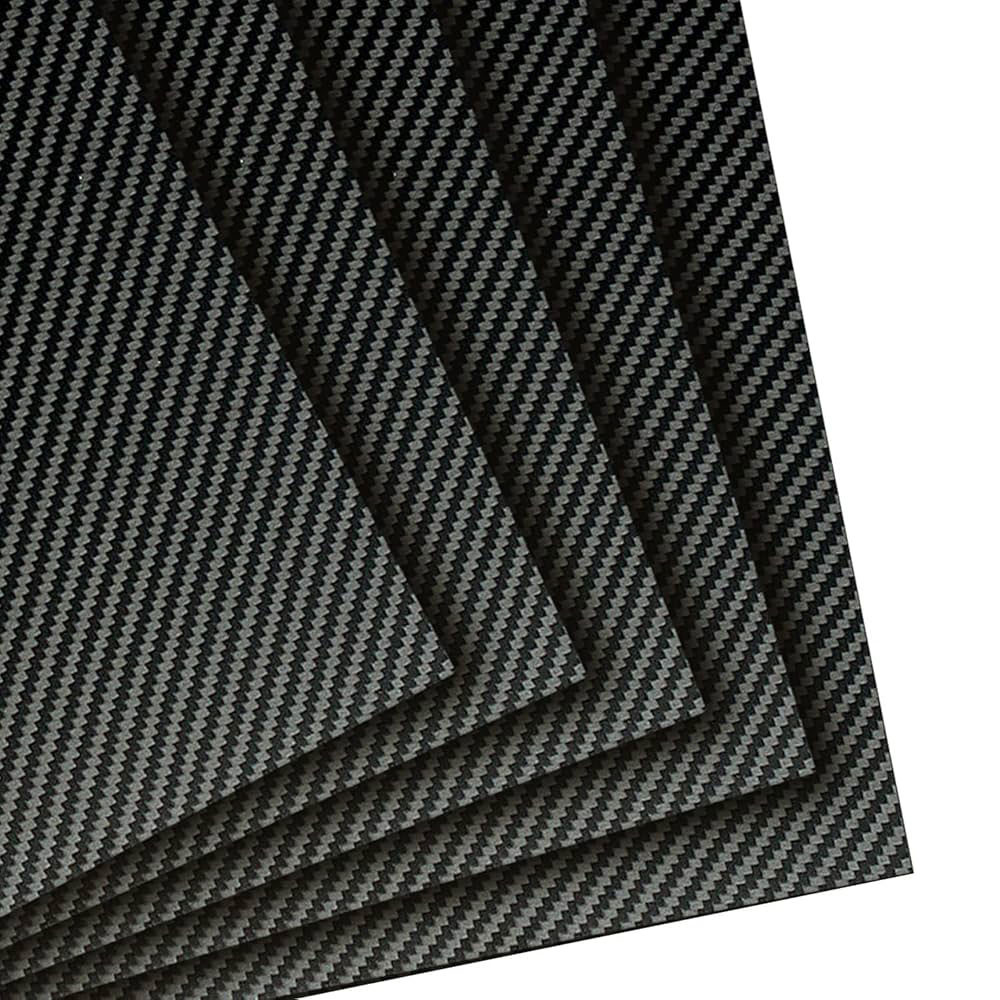

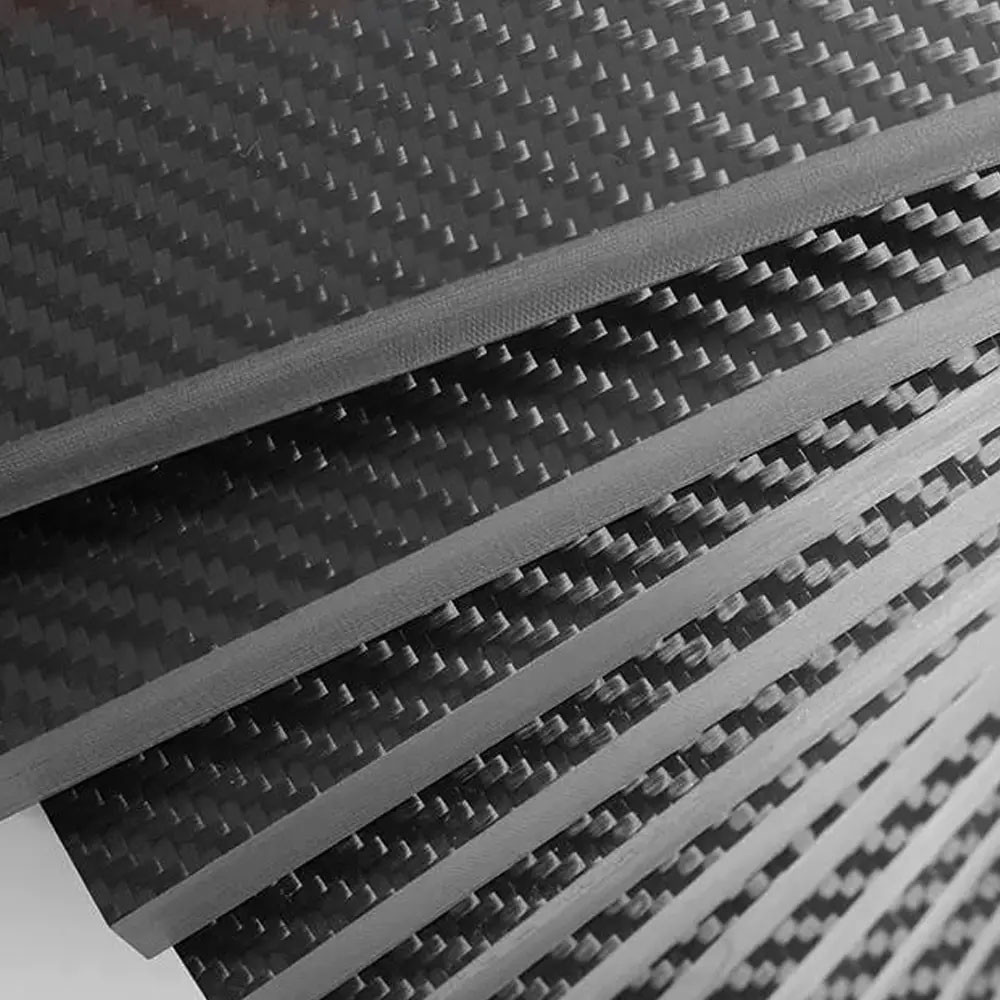

100% 3K Plain/Twill Weave Carbon Fiber Sheet, Glossy/Matt Carbon Fiber Plate

3k carbon fiber sheet has extremely high strength, light weight, with a shiny and clear appearance, widely used for model helicopter parts and the hobby market. It can be made into a pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm, and customized thicknesses and sizes are available. Stand for complete solution, we supply full-size to pre-cut panels, as well as CNC-machined parts to your specification.

Twill vs. Plain Weave Carbon Fiber Sheets: What’s the Difference?

Carbon fiber sheets are highly popular across aerospace, automotive, sports equipment, robotics, and industrial design industries due to their exceptional strength-to-weight ratio, rigidity, and sleek appearance. Among the most common styles of carbon fiber fabric used in sheet production are Twill Weave and Plain Weave. Understanding the differences between these two weaves can help you choose the right material for your specific application.

Plain Weave

Plain weave is the simplest and most tightly woven pattern. Each carbon fiber strand alternates over and under perpendicular strands in a 1x1 pattern. This results in a checkerboard-like appearance.

Features

• Excellent stability and uniform strength
• Slightly stiffer than twill
• Ideal for flat surfaces or structural applications

Twill Weave

Twill weave uses a 2x2 pattern where each fiber bundle crosses over two and under two perpendicular bundles. This creates a diagonal, more fluid-looking pattern.

Features

• More pliable and drapable than plain weave
• Slightly less stiff but easier to form over curves
• Often preferred in aesthetic applications

Carbon Fiber Sheet Plate Specification:

Carbon fiber sheet is one of the most versatile materials in the market today. It has many advantages over traditional materials such as metal or wood. It is lightweight, strong, durable and resistant to corrosion, heat and impact. It can also be molded into various shapes and sizes according to your needs.

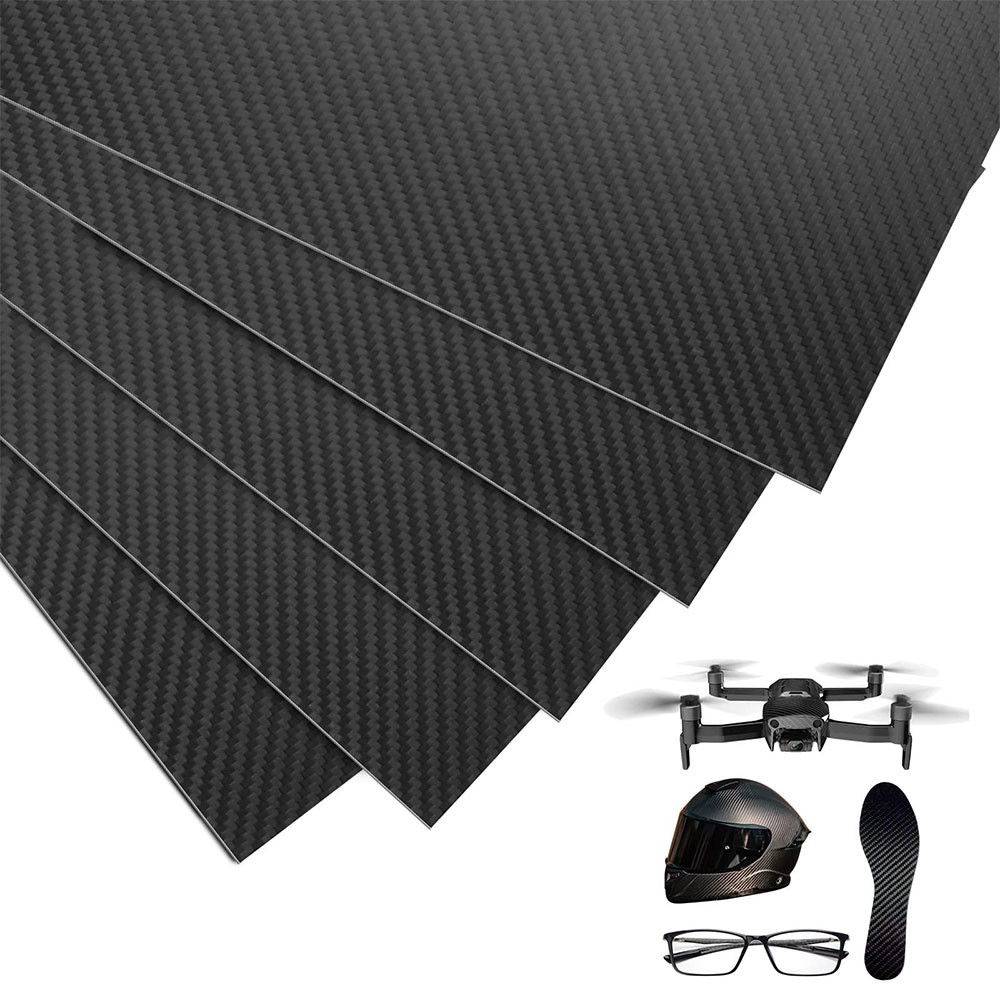

If you are looking for a way to improve your project performance, carbon fiber sheet might be the solution you need. Whether you are in aerospace, automotive, robotics or sports equipment industry, carbon fiber sheet can help you create products that are faster, safer, more efficient and more attractive.

Key Properties

• Lightweight: Up to 5x lighter than steel and 2x lighter than aluminum.
• High Strength & Stiffness: Excellent tensile strength and rigidity.
• Corrosion & Chemical Resistance: Durable in harsh environments.
• Thermal Stability: Low thermal expansion.
• Fatigue Resistance: Performs well under repeated stress.

Common Specifications

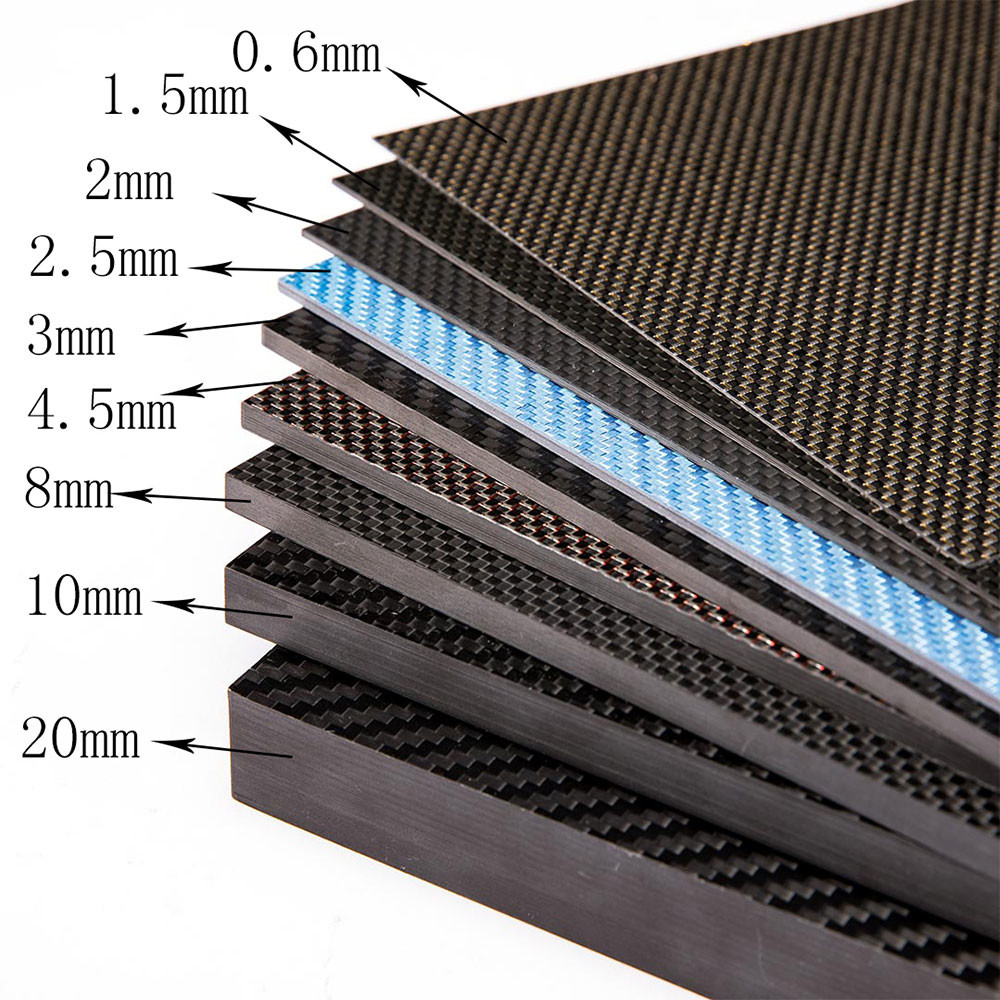

• Thickness: Ranges from 0.2 mm to 10 mm+.
• Surface Finish: Glossy, matte, twill weave, plain weave, UD (unidirectional).
• Standard Sizes: 200x300 mm, 400x500 mm, 500x1000 mm, custom sizes available.
• Fiber Orientation: Unidirectional or woven (e.g., 0°/90° or ±45°).
