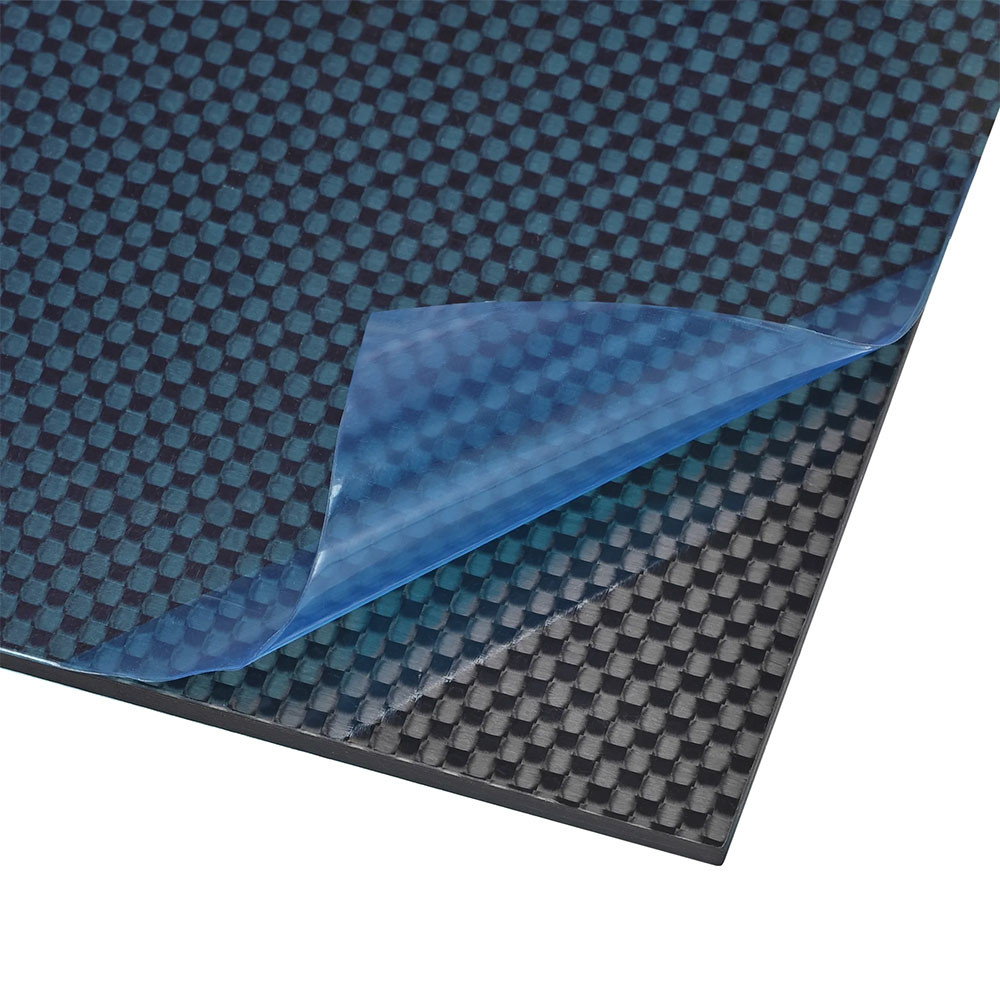

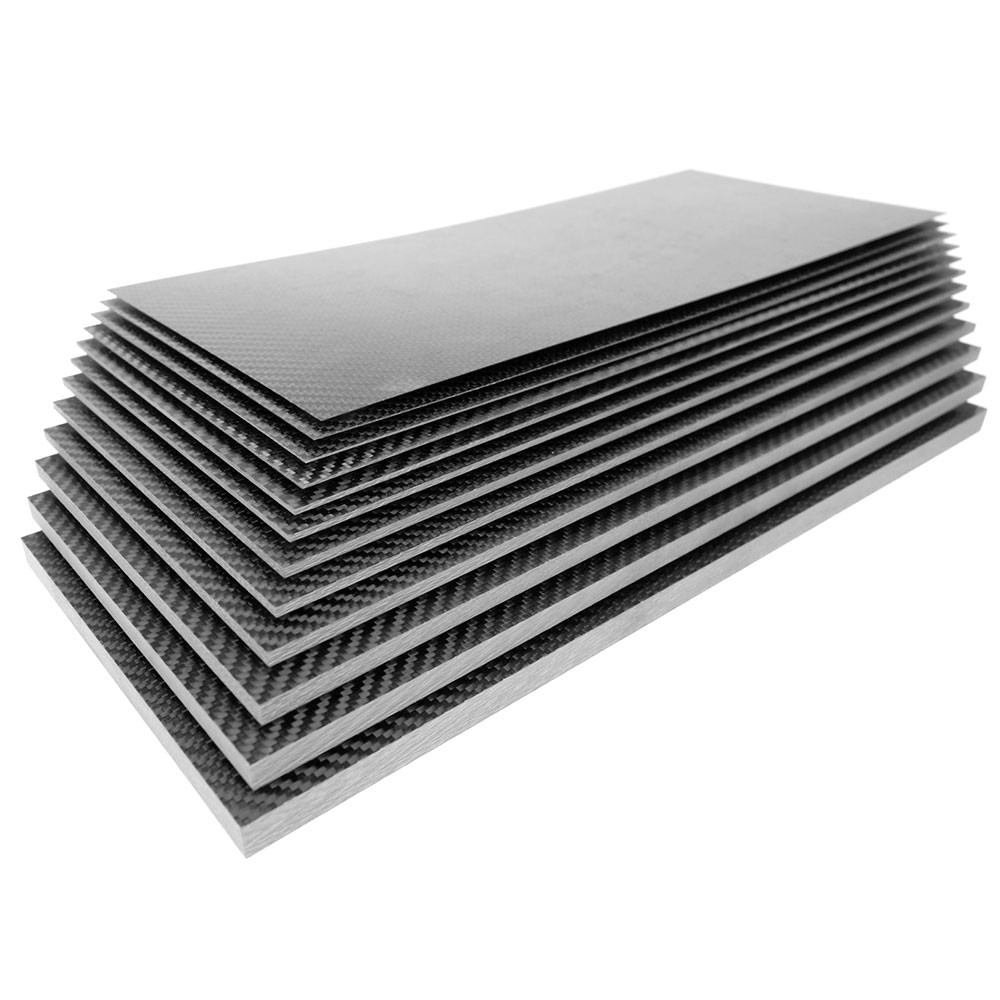

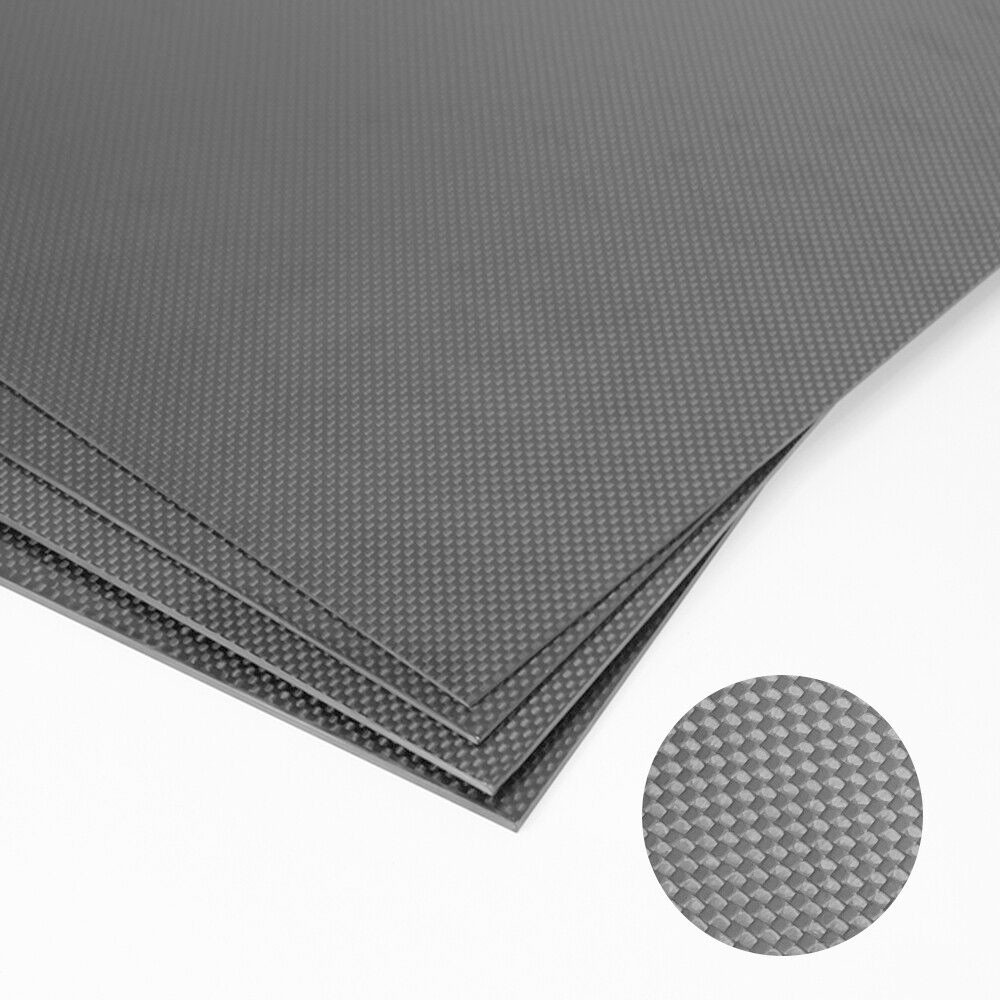

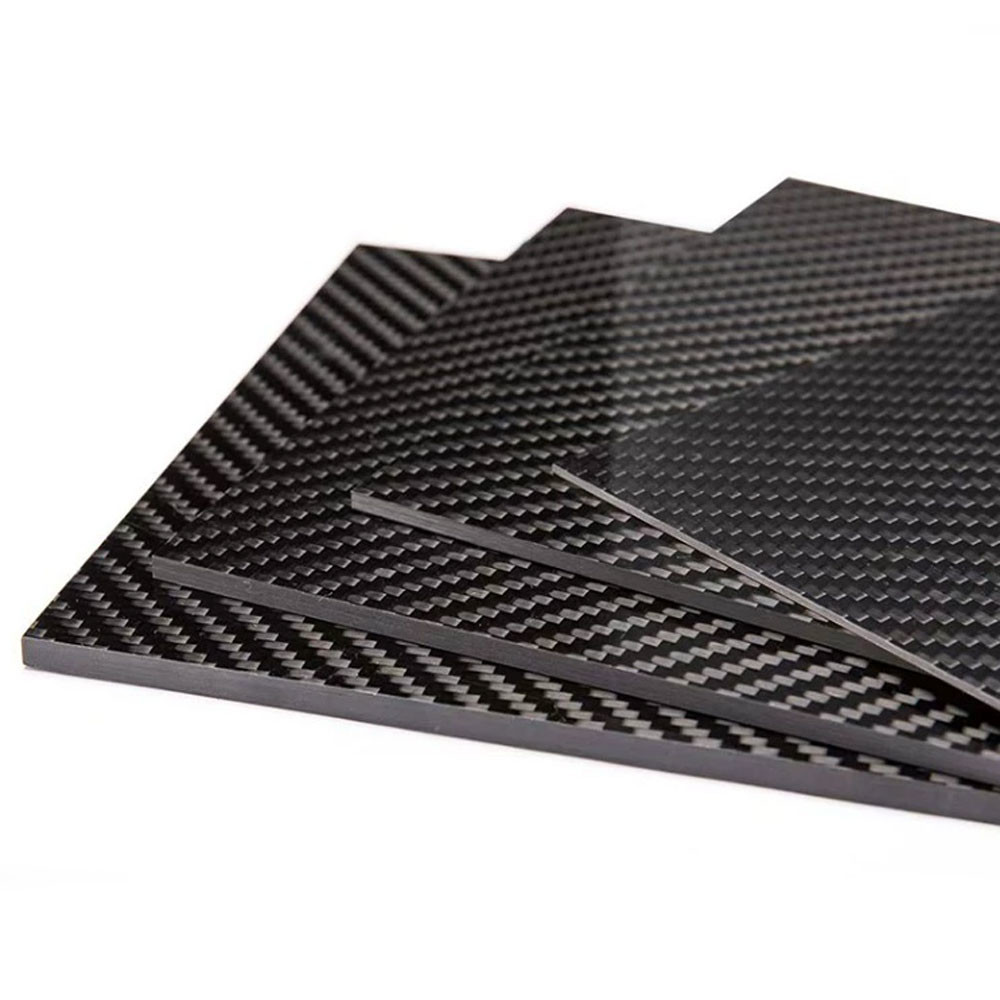

250 X 100 X1 MM 3K Real Carbon Fiber Board Plate Carbon Plate Twill Weave Panel Sheets

Product Description

250 X 100 X1 MM, 3K Real Carbon Fiber Board Plate Carbon Plate Twill Weave Panel Sheets

Carbon fiber is a strong, lightweight, and stiff material that is made from thin, strong crystalline filaments of carbon. It is made by heating and stretching strands of carbon until they become long, thin fibers, which are then woven or braided together to form a fabric. Carbon fiber materials are known for their high strength and low weight, and they are often used in a variety of applications where these properties are important, such as in the aerospace, marine, and automotive industries, as well as in sporting goods and other consumer products.

Carbon fiber can be used in many forms, including woven fabrics, braids, and unidirectional sheets. They are commonly combined with resins or metals to create composite materials that have even more desirable properties. Carbon fiber products are often used as a substitute for steel or other traditional materials to reduce weight and improve the performance of a structure or product.

High Gloss Twill Carbon Fiber Sheet is an outstanding decorative laminate with a deep, glossy, three-dimensional finish. It is constructed with layers of unidirectional carbon fiber prepreg laid up in a 0/90 degree orientation with a single layer of 2×2 twill carbon fiber prepreg on each of the outside surfaces. This type of construction produces a decorative laminate that has the classic carbon fiber look but with greater strength and stiffness than our Unidirectional Carbon Fiber Sheets.

The carbon fiber sheet is semi-flexible, yet remains stiff like cardstock. It can bend in only one direction at a time, making it suitable for either flat surfaces or pipes. Once cured, these sheets cannot be reshaped. Therefore, they will not lie flat on compound curves, convex or concave surfaces. One side features our recognized high gloss finish, while available options for the opposite side include a high gloss, matte, or adhesive-backed finish.

Our proprietary Autoclave curing process produces the most consistent and highest quality gloss carbon fiber sheets possible. Manufactured using 100% real carbon fiber fabric pre-impregnated with high-quality epoxy resin, these sheets are cured at high temperatures and pressure to ensure a strong, rigid product that cannot be re-shaped after curing. Unlike a wet layup, our Autoclave curing process consistently yields flat, lightweight sheets with minimal voids, waves, or buildups.

These 1st quality sheets are manufactured with a clear, resin-rich carbon fiber prepreg, which results in a smooth, low porosity laminate with a mirror-like finish. Our special blend of high-strength epoxy resin guarantees a durable, stronger, longer-lasting finish. The built-in UV inhibitor in the 2×2 twill prepreg resists UV rays in outdoor applications. There is no need for fillers, gel coats, or surface treatments to enhance the surface appearance of our sheets.

Carbon Fiber Sheet Plate Specification:
