High Quality 3K Twill Weave Carbon Fiber Plate: Lightweight And Durable

Product Description

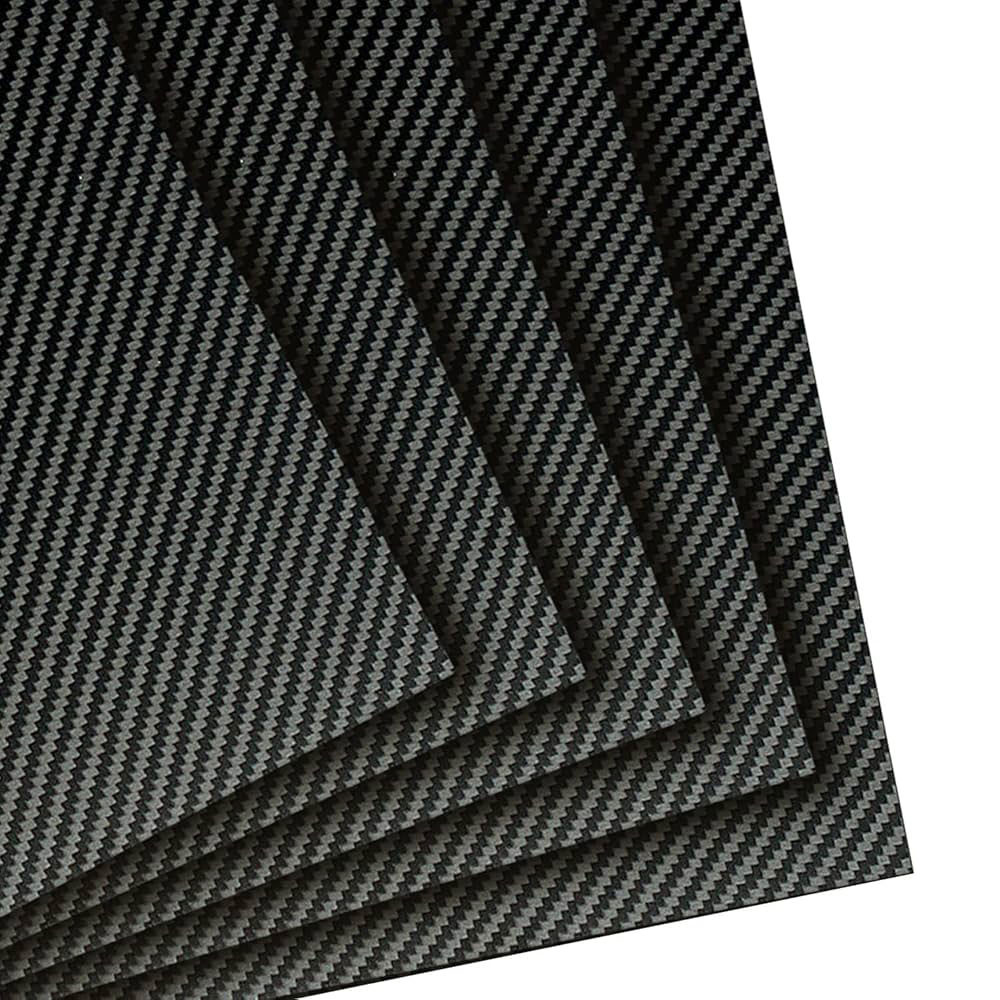

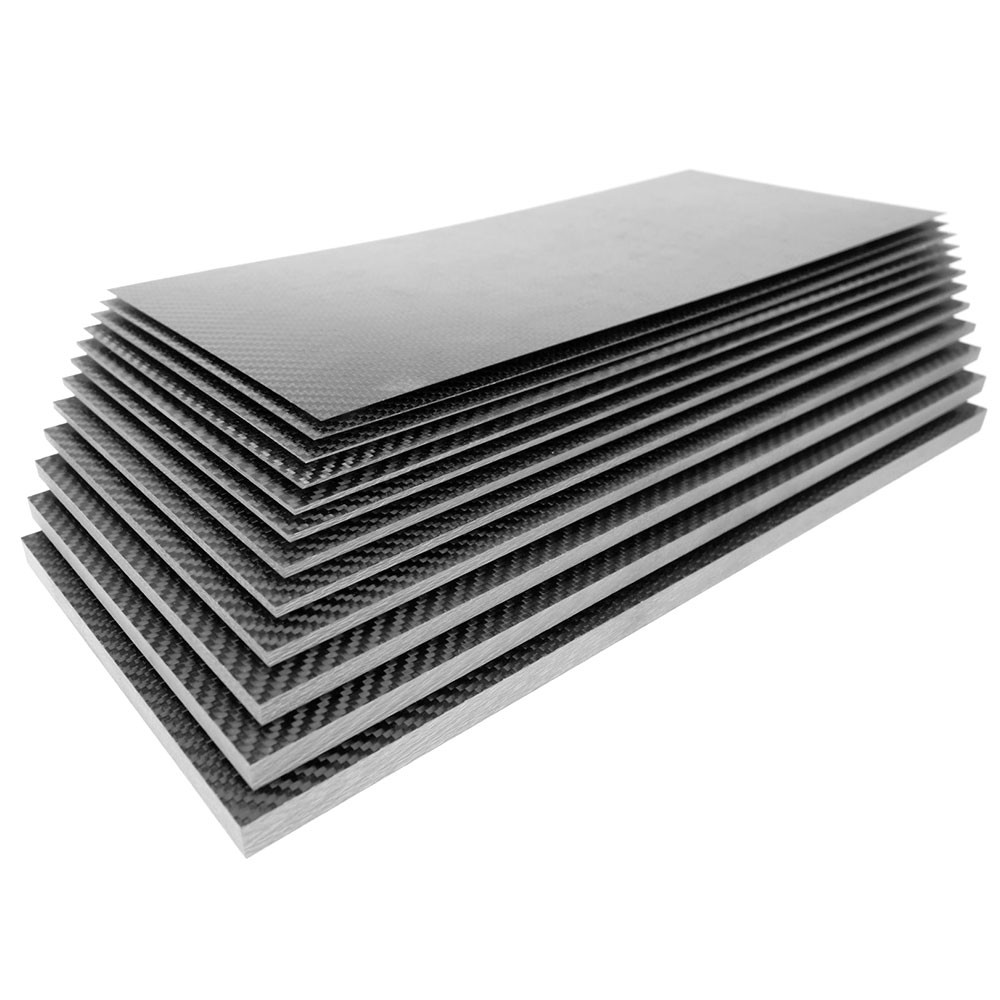

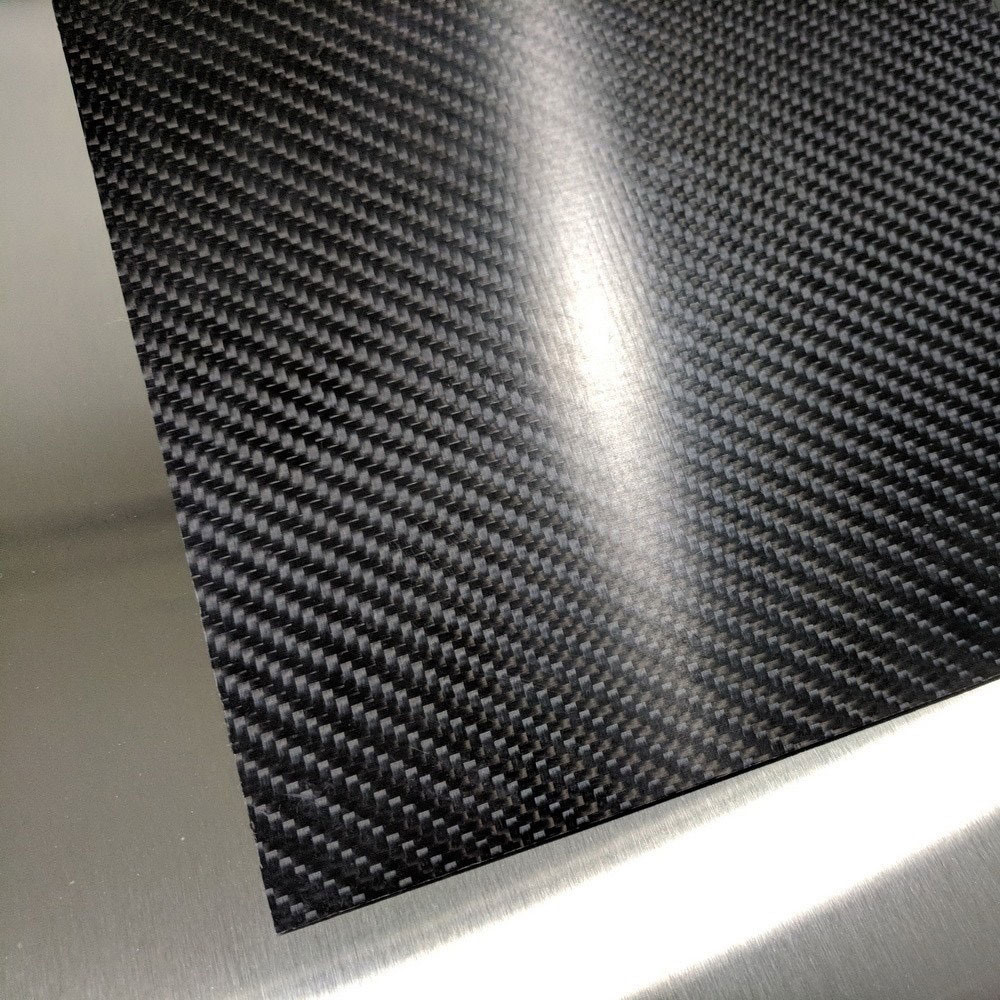

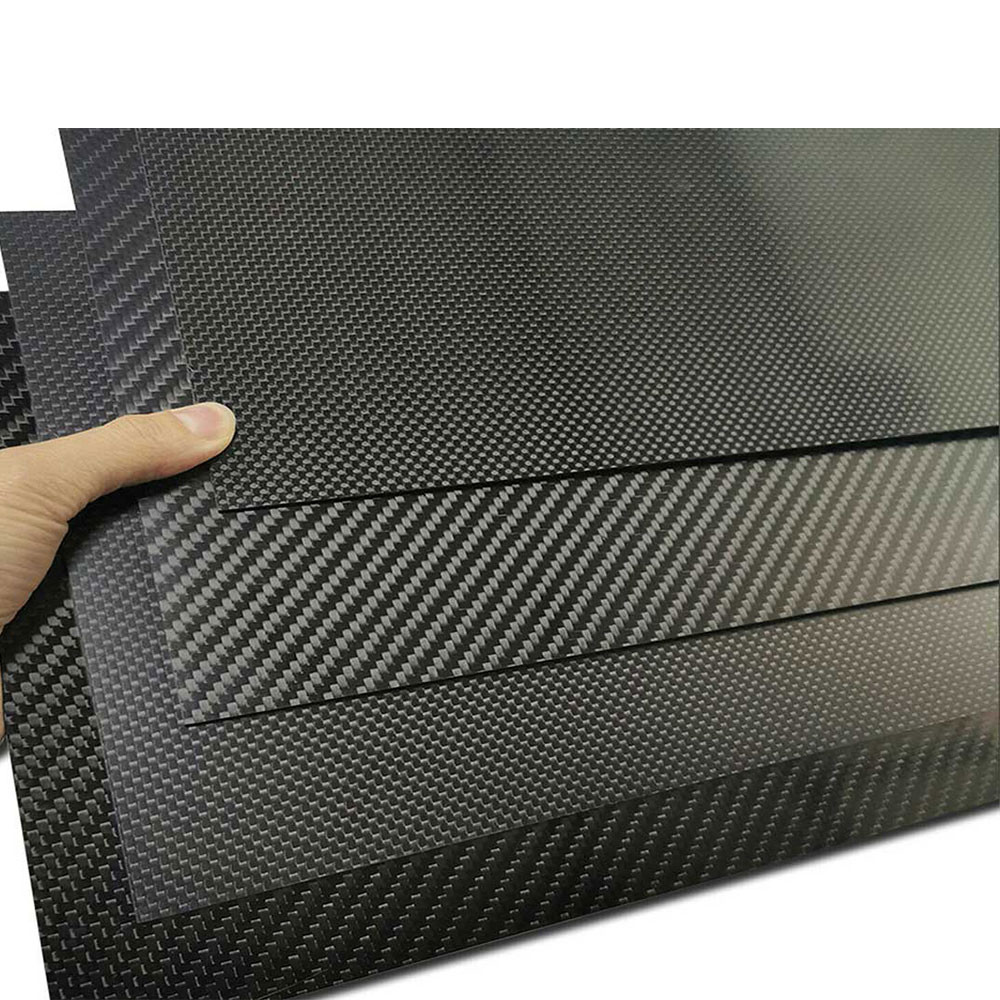

High-Quality 3K Twill Weave Carbon Fiber Plate: Lightweight and Durable

3K twill weave represents one of the most recognizable and versatile forms of carbon fiber reinforcement. Characterized by its distinctive diagonal pattern and excellent drapeability, this weave configuration offers unique advantages for both structural and aesthetic applications.

Our 3K twill weave carbon fiber sheets are designed for those who value high performance with sleek aesthetics. Crafted using resin-infused, void-free carbon fibers under strict FCM quality control, these sheets are a versatile and reliable solution for various industries. The 3K weave, featuring 200g/m² strands, provides an exceptional balance of lightweight strength and stiffness, making it perfect for demanding applications.

The smaller 3K fibers create a distinctive, fine twill pattern that stands out visually while maintaining exceptional functionality. Whether used in drones, medical devices, aviation, sporting goods, or art projects, our 3K carbon fiber sheets deliver premium quality, ease of use, and a stunning appearance that will elevate any project.

What Does "3K" Mean?

• 3K designation: Indicates 3,000 filaments per fiber tow
• Filament diameter: Typically 5-7 microns
• Tow width: Approximately 0.25-0.35 mm when flattened

Twill Weave Pattern Characteristics

• 2×2 weave pattern: Each tow passes over two, then under two adjacent tows
• 45° diagonal appearance: Creates the signature checkerboard visual effect
• Surface symmetry: Identical appearance on both faces

Key Structural Advantages

• Enhanced conformability: Superior drape for complex curves
• Impact resistance: Better than plain weave due to tow mobility
• Damage visibility: Cracks are less noticeable than in unidirectional laminates
• Surface finish: Excellent for visible cosmetic applications

The 3K twill weave carbon fiber plate remains the gold standard for applications demanding both performance and visual appeal. Its unique combination of mechanical properties, damage tolerance, and aesthetic qualities ensures continued dominance in visible composite applications across industries.

Carbon Fiber Sheet Plate Specification:
