Standard Modulus 100% 3K Roll Wrapped Carbon Fiber Tube UD Twill Or Plain

Product Description

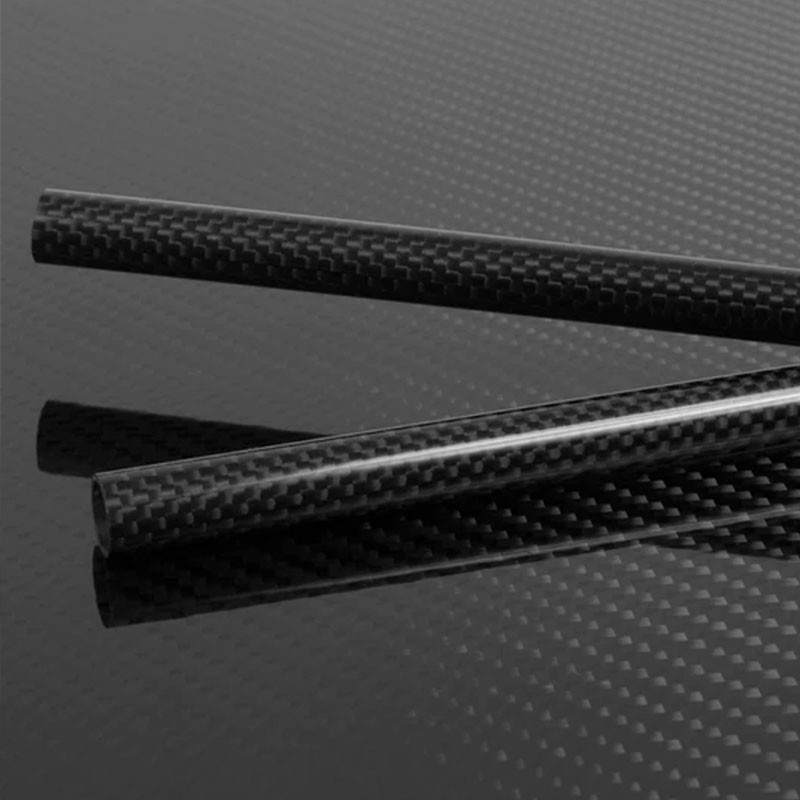

Standard Modulus 100% 3K Roll Wrapped Carbon Fiber Tube - UD, Twill or Plain

Lijin Composites customizes roll-wrapped carbon fiber tubes in a wide selection of lengths, diameters, thicknesses, and layup designs to meet specific application requirements.

• Material: Standard Modulus / Intermediate Modulus / High Modulus / Ultra High Modulus Carbon Fiber

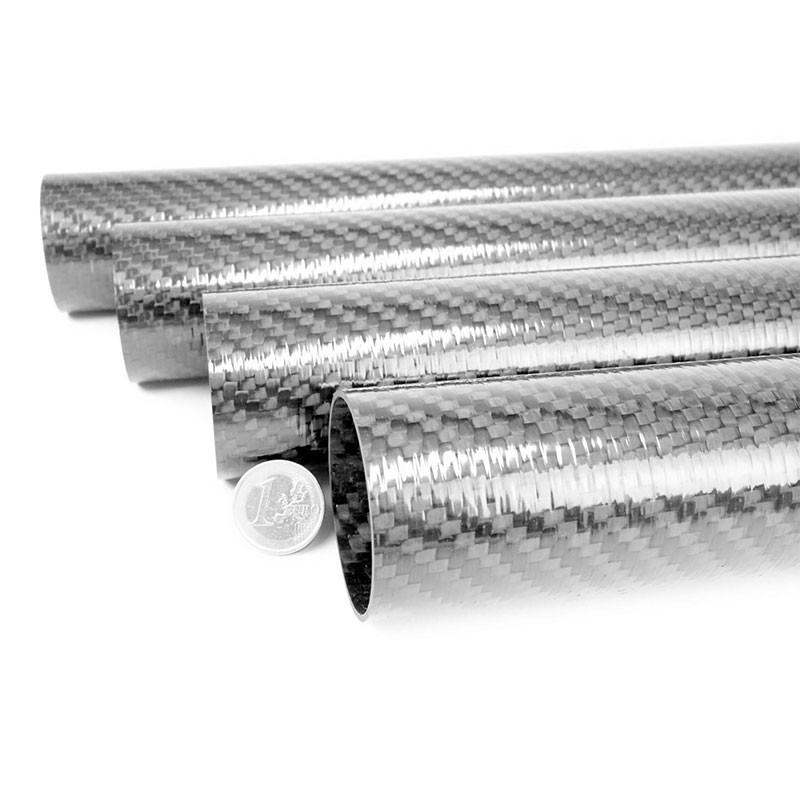

• Patterns: UD, Twill or Plain
• Diameters Range: 5 - 500 mm
• Wall Thickness: 0.6 - 50 mm
• Lengths: Up to 6000 mm
• OD Tolerances: Raw Tubing: ±0.1mm
• Polished Tubing: ±0.02mm ~ ±0.05mm, Painted Tubing: ±0.10mm

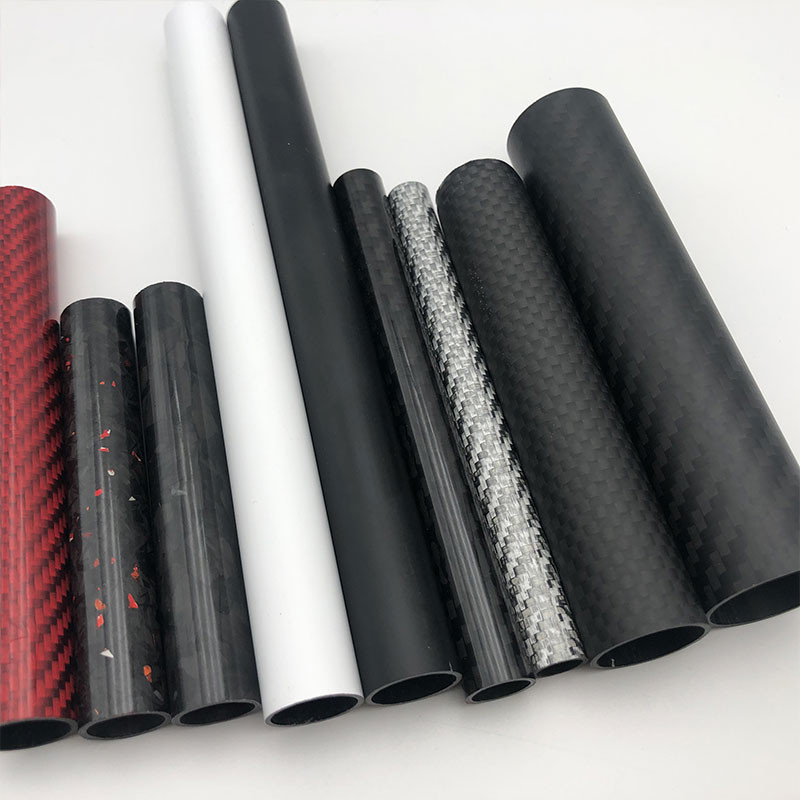

• Surface Finish: Raw, Polished, Glossy & Matte Clear Coated
• CNC Machining: Drilling, Cutting, Grinding, Slotting, Milling Holes
• Assembly and Bonding: we use the strongest adhesive and bonding tubes with aluminum or plastic parts, and assemble them as customers' requirements.

Roll-wrapped carbon fiber tube is made by roll swapping process, carbon fiber prepregs layers are wrapped around a mandrel and onto the wrapping machine, it will be automatically wrapped as a tube, then wrapped with a thin plastic film, after the part has cured, the mandrel is extracted and the plastic film is removed.

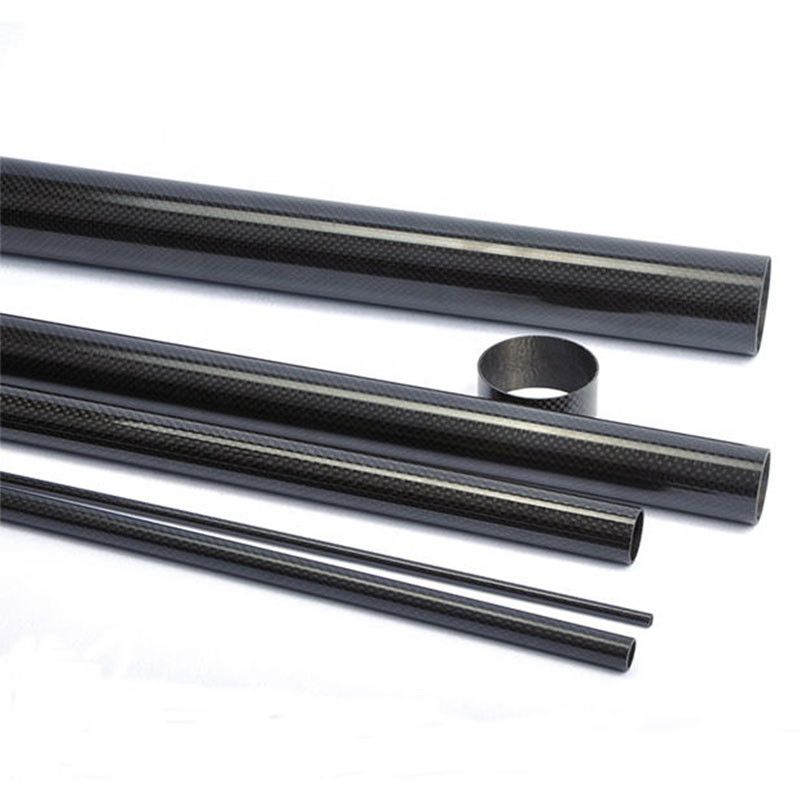

The sizes of roll-wrapped carbon fiber tubes can vary greatly, from small-diameter tubes to larger ones used in industrial applications. The length of the tube is typically limited by the size of the mandrel used in the manufacturing process.

Customize high performance roll wrapped carbon fiber tube

Specifications – We produce composite tubes of various dimensions for many applications. Diameter up to 500mm, and length up to 4m.

Maximum Strength and Stiffness – the use of prepreg materials and the ability to precisely control fiber orientation results in maximizing the performance of carbon fiber or composite tubes.

Roll-wrapped carbon fiber tubes offer a cost-effective solution for lightweight and high-performance structures, making them a popular choice in many industries. Roll-wrapped carbon fiber tubes are commonly used in industries such as robotics, UAV, sports goods, photography equipment, and automotive, where they offer high strength and stiffness, while still being lightweight.
