Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fiber Square Tubes Weight: 60g/m
Density: 1.5g/cm3 C Content (%): 100%
Material: 0-100% Carbon Fiber Volatil: Non-Volatile
Feature: Epoxy Resin Working Temperature: S Content (%):0.005%
Highlight:

3K Round Shaped Carbon Fiber Tube

,

Wrapping Carbon Fiber Tube

,

Multiple Layers Carbon Fiber Tube

Product Description

Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube



Carbon fibre tube manufactured using 3k plain weave style of Carbon Fibre Cloth Fabric. Plain weave carbon fibre fabric is the 2nd most commonly used type of carbon cloth. Instead of having the distinctive diagonal pattern of 2/2 twill, plain weave is woven over-one-under-one leaving it with a simple grid pattern appearance.



Our roll-wrapped carbon fiber tubes are manufactured by wrapping multiple layers of 12k UD and 3k twill/plain carbon fiber prepregs around a metal mold and then cured at high temperatures. The UD prepregs are used in core layers whereas the Twill/Plain is on the surface. Based on your requirements, we can also use Kevlar and glass fiber.



Available in matte and gloss finishings, these tubes are not only good-looking but also extremely stiff and strong. Such roll-wrapped tubes are available in round, square, rectangular, hexagon, and octagon shapes. All these tubes are custom-made based on the client’s requirements.



Common Applications of Carbon Fiber Tube

  • Aerospace beams and spars
  • Telescopes
  • Arrows
  • Robotics
  • Arrow Shafts
  • Bicycle frames
  • Kayak paddles
  • RC models
  • Yachts

Surface: twill plain forged/glossy/matte/50%glossy matte
Operating temperature: below 200 degrees
Strength: high pressure resistant/ high strength
Workmanship: roll wrapped
Size: Custom-length carbon fiber tube



We can customize a variety of styles of carbon fiber pipe, whether it is straight pipe/bend pipe/square pipe/triangle pipe/tube with telescopic rod/we can do it



Product Name

Carbon Fiber Tube

Material

100% Carbon Fiber

Color

Black or custom

Surface

Matt/Glossy

Size

Custom thickness and length

Fiber Specifications

1K/3K/12K

Weaving Style

Plain/Twill

Fiber Type

1. Carbon fiber+carbon fiber
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber





Application

1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific Apparatus
7. Medical device
8. Others

Our Product

Carbon fiber tube, carbon fiber plate, carbon fiber profiles.

Specification

5*4

6*4

6*5

7*4

7*5

7*6

8*6

9*7

9*8

10*8

10*9

12*6

12*8

12*9

12*10

12*11

13*10

13*11

14*8

14*10

14*11

14*12

14*13

15*10

15*11

15*12

15*13

15*14

16*8

16*10

16*11

16*12

16*13

16*14

16*15

17*7

17*13

17*14

17*15

18*10

18*11

18*12

18*14

18*15

18*17

19*11

19*13

19*14

19*16

19*17

20*12

20*14

20*16

20*18

22*16

22*18

22*20

23*14

23*19

23*21

24*16

24*18

24*20

24*22

25*13

25*15

23*19

25*20

25*21

25*22

25*23

26*23

26*24

26*25

28*24

28*25

28*26

29*26

29*27

30*22

30*23

30*25

30*26

30*27

30*28

31*30

32*30

35*30

35*31

35*33

36*33

36*34

37*29

37*33

37*34

38*35

40*38

42*40

43*41

50*46

50*47

50*48

Customized...

The above are our regular and popular sizes for carbon fiber tubes. If you cannot find the one you need, feel free to contact us. We are experienced in custom product design.

We have been a professional Chinese manufacturer of carbon fiber and also carbon fiber products for more than 10 years!



we produce all types of carbon fiber tubes, panels, bars, rods, CNC sheets Etc excellent properties include: corrosion resistance lightness good toughness If you want to order our products, please include ID, OD, length, dimensional tolerances, quantity, structural requirements, surface finish, surface pattern, material (if you know), temperature requirements, processing technology, etc. With these items as the starting point, we can usually very quickly put together a quotation to help you get your project from idea to reality.



LIJIN offers High-Quality Advanced Composite Solutions and Reliable Services, Complying with Customer Specifications as well as Various National and International Standards. We Provide Complete Solutions That Includes Conceptual Design, Prototype Development, Testing, Manufacturing, Logistic Support, Installation, And Comprehensive Sales Service.

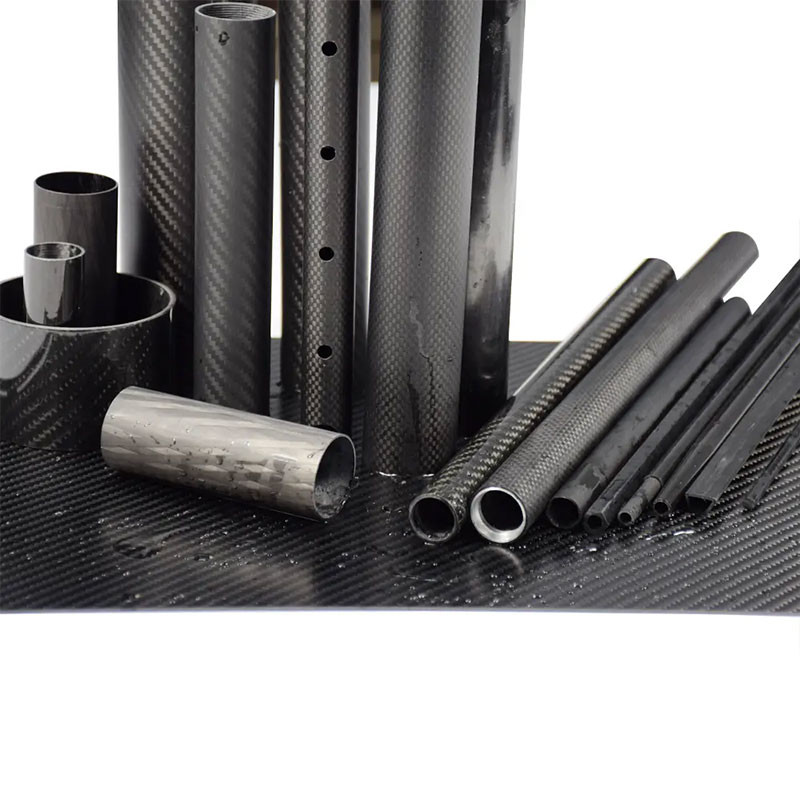

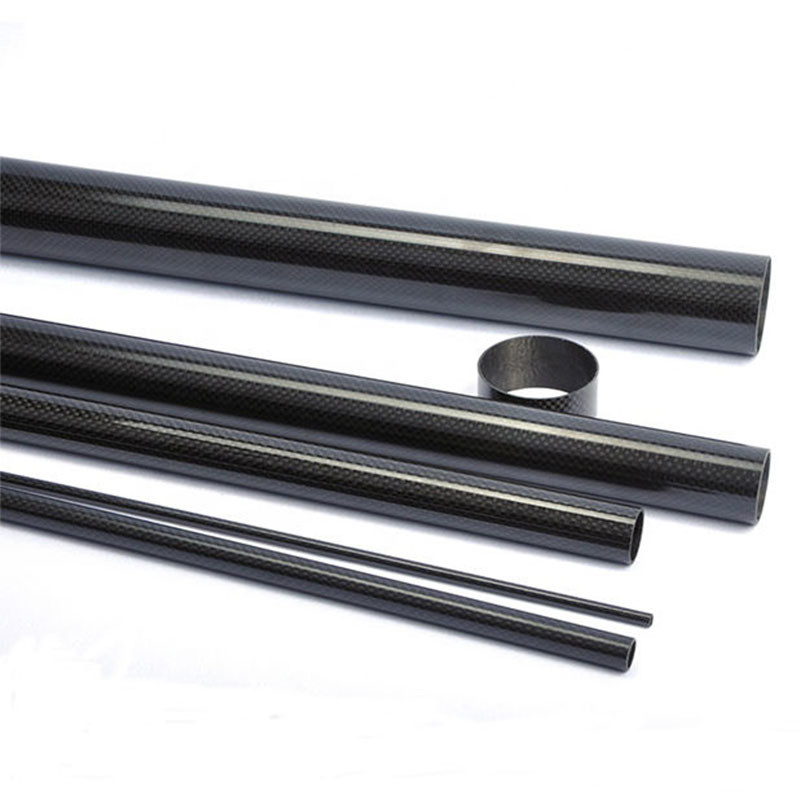

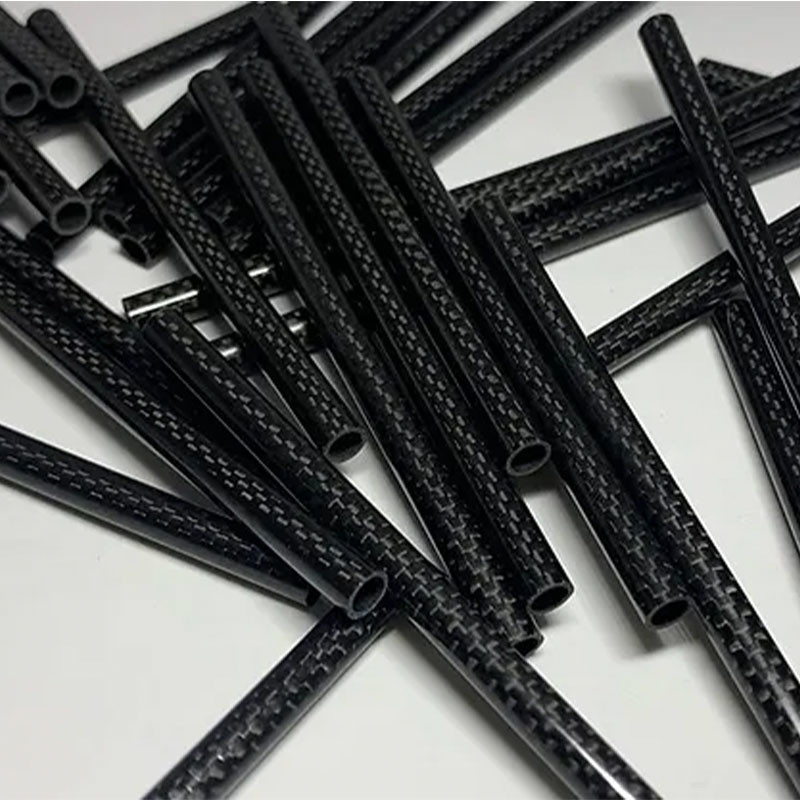

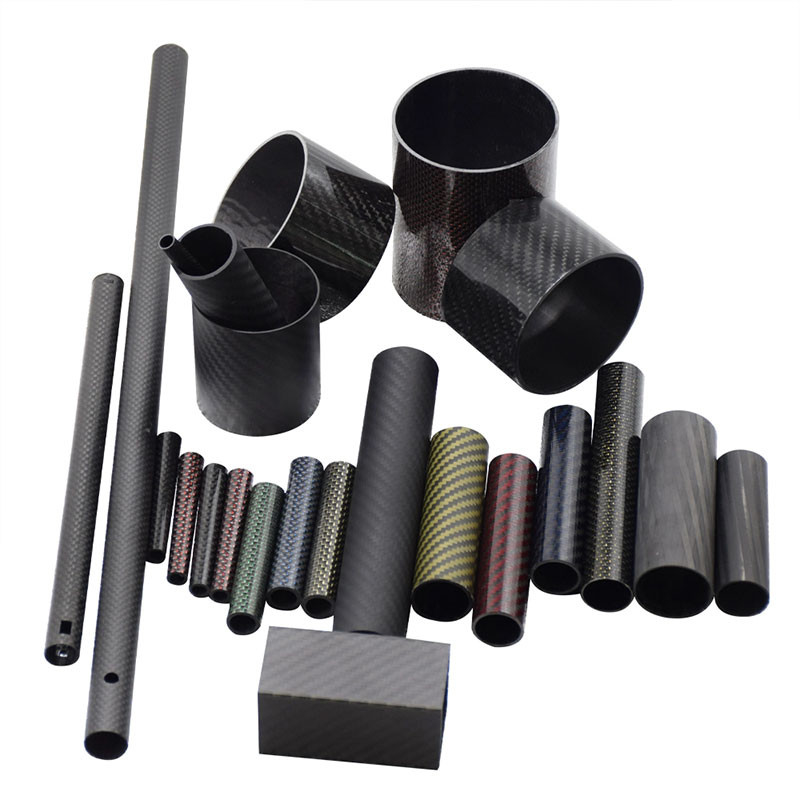

Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube 0Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube 1Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube 2Wrapping Multiple Layers 3K Round Shaped Roll Wrapped Carbon Fiber Tube 3
