High Strength Roll Wrapped Rectangular Carbon Fiber Tube 3K Matte Plain Weave Surface

Product Description

High Strength Roll Wrapped Rectangular Carbon Fiber Tube 3K Matte Plain Weave Surface

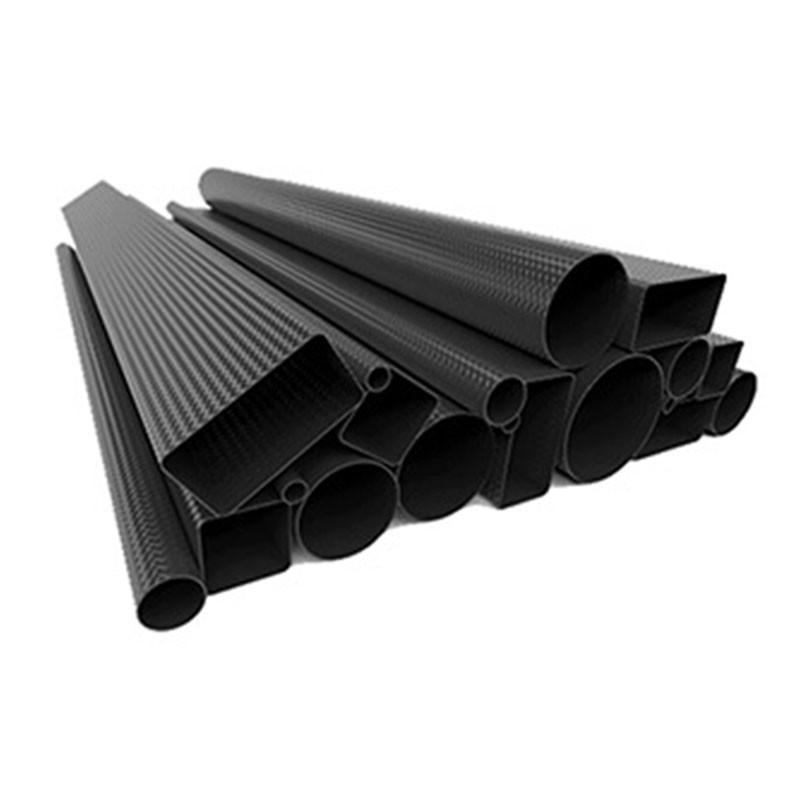

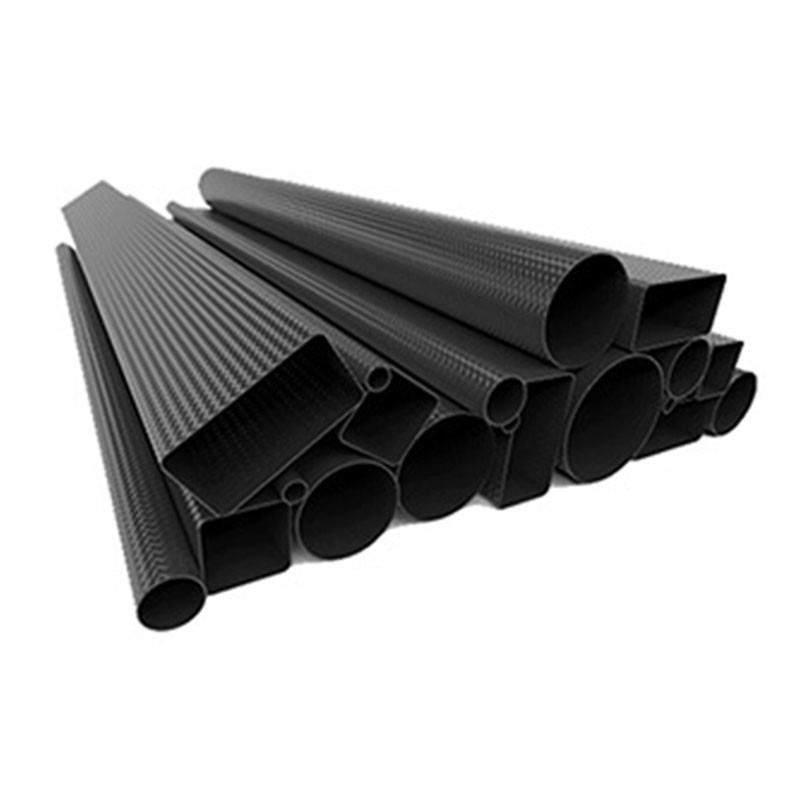

Carbon fiber tube, also known as carbon tube. The full carbon fiber tube is made of carbon fiber composite material pre-impregnated with styrene-based polyester resin and then heated and cured by roll wrap. In the manufacturing process, various shapes can be produced through different molds, such as carbon fiber round tubes of different specifications, full carbon fiber square pipes of different specifications, and carbon fiber rectangle poles of different.

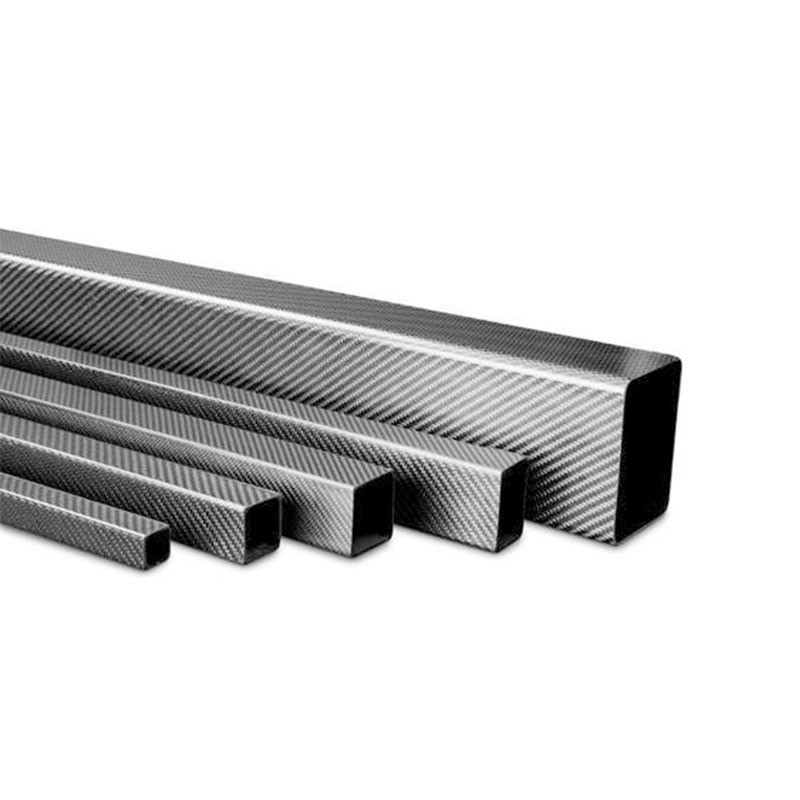

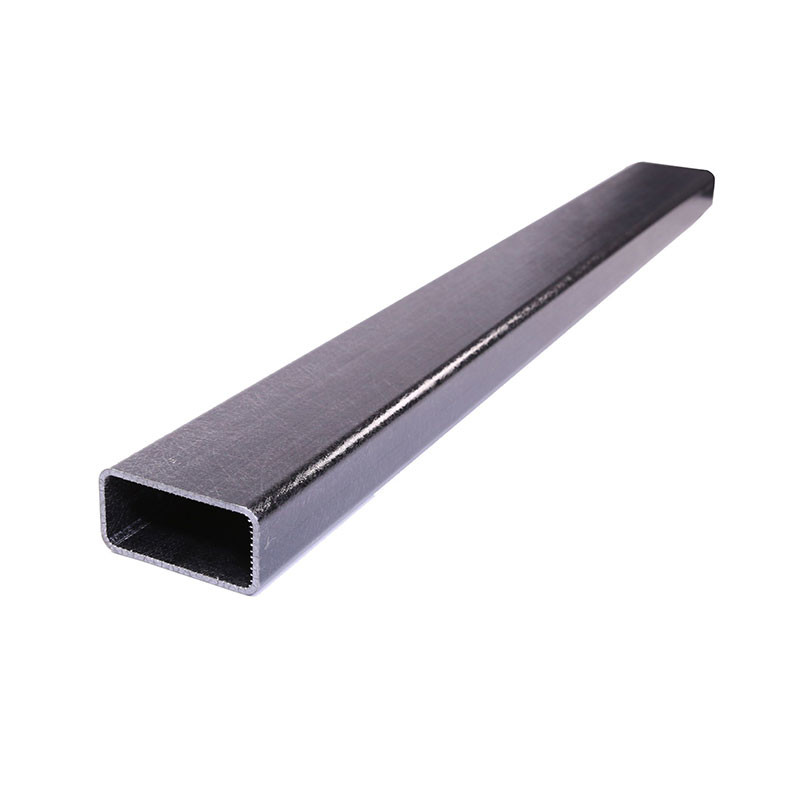

Rectangular carbon tubes are laminated from high-strength prepreg carbon fiber and epoxy resin. The carbon tubes have a twill weave outer layer. The carbon fibers are laminated in different directions. This ensures unique stiffness and strength as well as low weight. These rectangular tubes are far more resistant to bending than metal tubes.

Our traditional rectangular composite tubes suit a variety of applications that need flat sides and make a great addition to any project. These stiff, lightweight tubes have incredible axial stiffness and can be cut to specific lengths with a wide range of tolerances. For custom sizes and thicknesses, tell us more about your requirements.

These square tubes are characterized by exact inner and outer diameters. The square tubes are made of carbon fibers and epoxy resin. The surface shows a beautiful carbon visual structure. The carbon fibers are arranged at different angles, which gives the tube high stiffness and strength with minimal weight. The bending strength of these pipes is several times higher than that of metal pipes.

If you've got an idea for a rectangular carbon tube and know your specifications, choose your specs from the table below and send us a request for a quote. You can use the table to browse through internal diameters, outer diameters, wall thickness, price, and weight. Typical uses include Linear guides, measurement beams, spars and beams, UAV components, interior design, automation equipment, CNC cuttings, laser cutters and sporting equipment.

About our products

Wall thickness will depend on individual requirements.
The outer corner radius will increase with wall thickness. inner radius defined by specific tooling or custom radius can be achieved if required.
Standard walls range from 1.4 - 6.0mm; a price range per meter is shown for those thicknesses.
Wall thicknesses of about 6.0mm or as thin as 0.5mm, or alternative laminate and carbon fiber orientations can be custom-ordered.

All materials of our carbon tube are the same and it can be any shape. Unlike round carbon fiber tubes, Braided Carbon Fiber Rectangular Tubes need to open 2 molds to keep high precision. Or, the inner shape will be very rough. Customize 3k carbon fiber composite tubes need to pay the mold fee. There are many sizes in our stock. If you don't want to pay the mold fee, you can choose our stock size. What size do we have? Please contact our sales team to get the detailed size.
