High Strength Carbon Composite Carbon Fiber Board / Plate / Sheet Customized Dimension

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product: Carbon Fiber Board Material: Carbon Fiber And Resin.
Surface: Glossy Or Matte Finish, Plain Or Twill Weave Pattern Application: UAV, Medical Industry, Auto Parts, Sports Facility, Aerospace Industry
Thickness: 0.2-60MM Specification: Customized
Color: Black Design File: STP, STEP, DWG, DXF, AI, PDF
Highlight:

Customized Dimension Carbon Fiber Plate

,

High Strength Carbon Fiber Plate

,

Carbon Composite Carbon Fiber Plate

Product Description

High Strength Carbon Composite Carbon Fiber Board/Plate/Sheet - Customized Dimension



3k carbon fiber sheet has extremely high strength, is lightweight, with a shiny and clear appearance, widely used for model helicopter parts and the hobby market. It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm, and customized thicknesses and sizes are available. Stand for a complete solution, we supply full size to pre-cut panels, as well as CNC machined parts to your specification.



Our standard carbon fiber plates are made from top-quality carbon fiber materials using advanced autoclave processing techniques. They are available in glossy or matte finishes and consist of multiple layers of carbon fiber fabric. These layers are cured under high temperatures and pressure to ensure excellent strength and durability.



The structural design of the high-modulus carbon fiber sheets not only makes them lightweight and strong but also provides excellent corrosion resistance, making them suitable for various harsh environments. We offer a variety of specifications and customization services to meet the needs of industries such as aerospace, automotive manufacturing, consumer electronics, medical equipment, sports equipment, and construction materials. With our expertise and extensive experience in the field of carbon fiber composites, our products will bring significant competitive advantages and innovative potential to your projects.



Technical Specifications

  • Material: Full carbon fiber
  • Size: Common dimensions include 400x500mm, 500x600mm, 600x600mm, 1000x1000mm, and larger sheets up to 6000x6000mm.
  • Thickness: Available from 0.2mm to 50mm and beyond.
  • Weight: With specific weights depending on the thickness and size. For instance, a 0.2mm thick 400x500mm sheet weighs around kg, while a 6mm thick sheet can weigh approximately kg.
  • Density: 1.6g/cm³
  • Tensile Strength: 3500 MPa



Carbon Fiber Sheet Plate Specification



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



The difference between general carbon fiber sheet plates and quasi-isotropic CF plates



Fiber orientation factors into the strength and stiffness. There are 2 approaches to laminate design for carbon fiber composite panels, the laminates of which are angularly oriented to yield different structural properties. 0/90 degree layup and a quasi-isotropic layup.



General CF plates



Normally, our carbon fiber flat sheet was laid at 0°/90° orientation. When using only 0-degree and 90-degree layers, the resulting laminate is weaker along the 45-degree diagonal. This weakness leads to higher deflections in off-axis bending and tension, up to 50% higher compared to quasi-isotropic carbon fiber sheets. However, for the majority of typical applications, 0º/90º sheets can still perform effectively.



Quasi-Isotropic Carbon Fiber Plate



Carbon fiber prepreg fabric was layed at 0°/90°/45°. If stiffness along the 45-degree axis is required, quasi-isotropic carbon fiber sheets have superior performance.

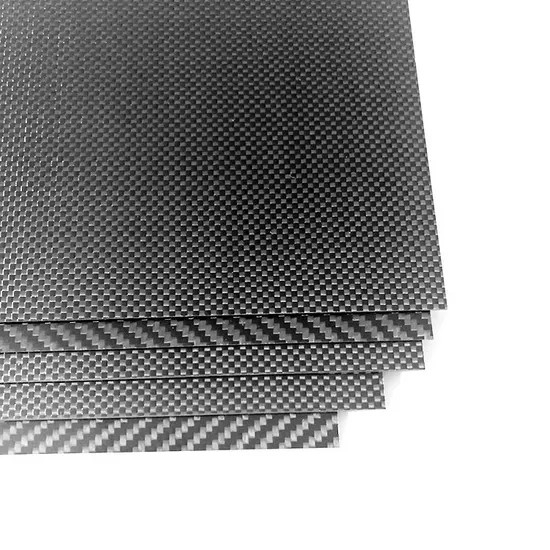

High Strength Carbon Composite Carbon Fiber Board / Plate / Sheet  Customized Dimension 0

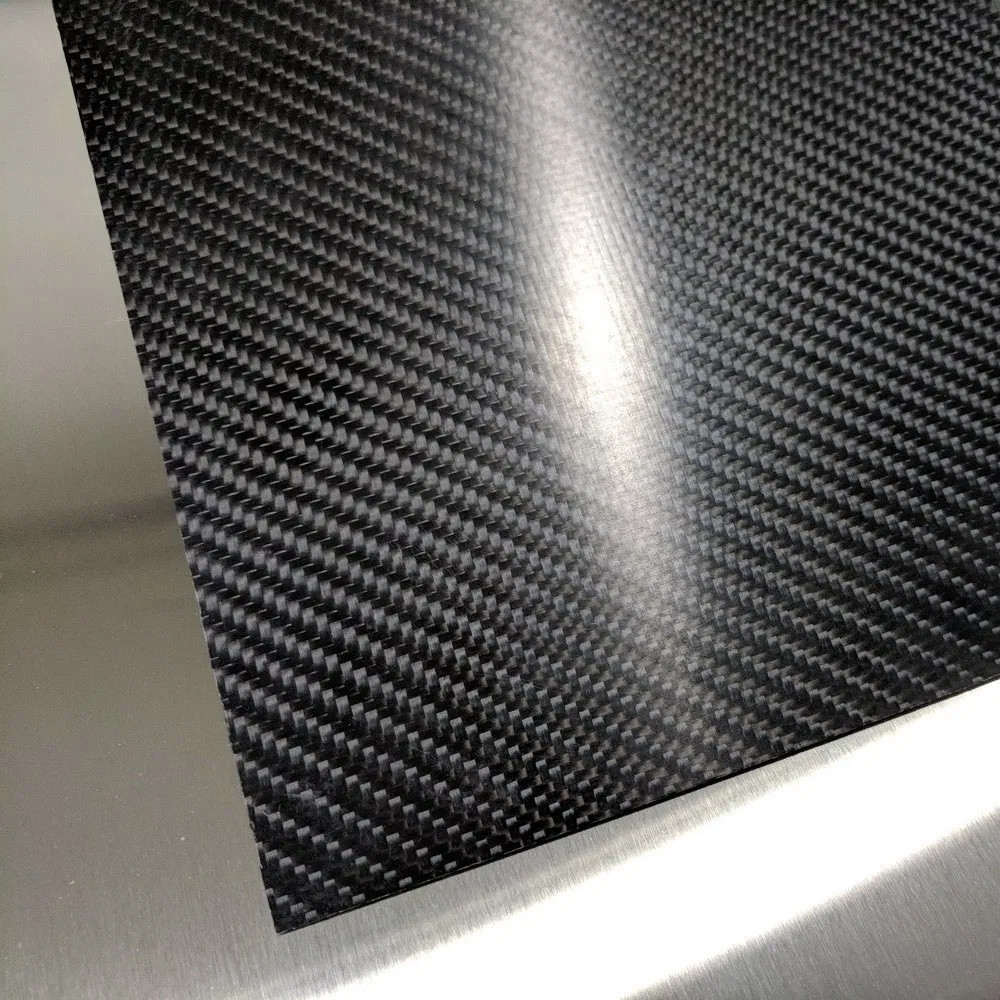

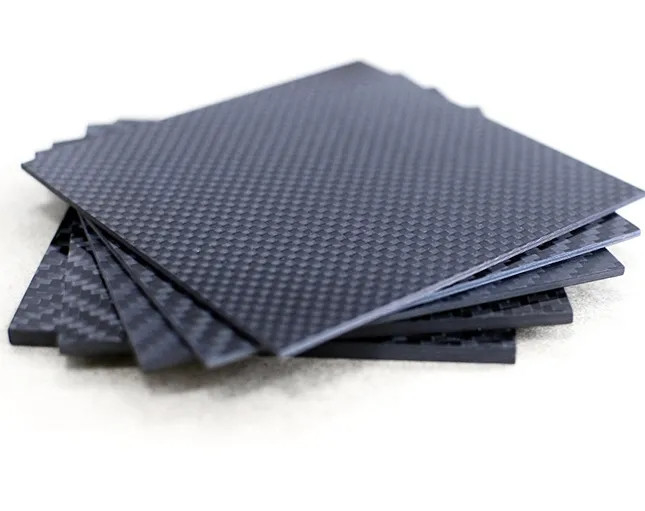

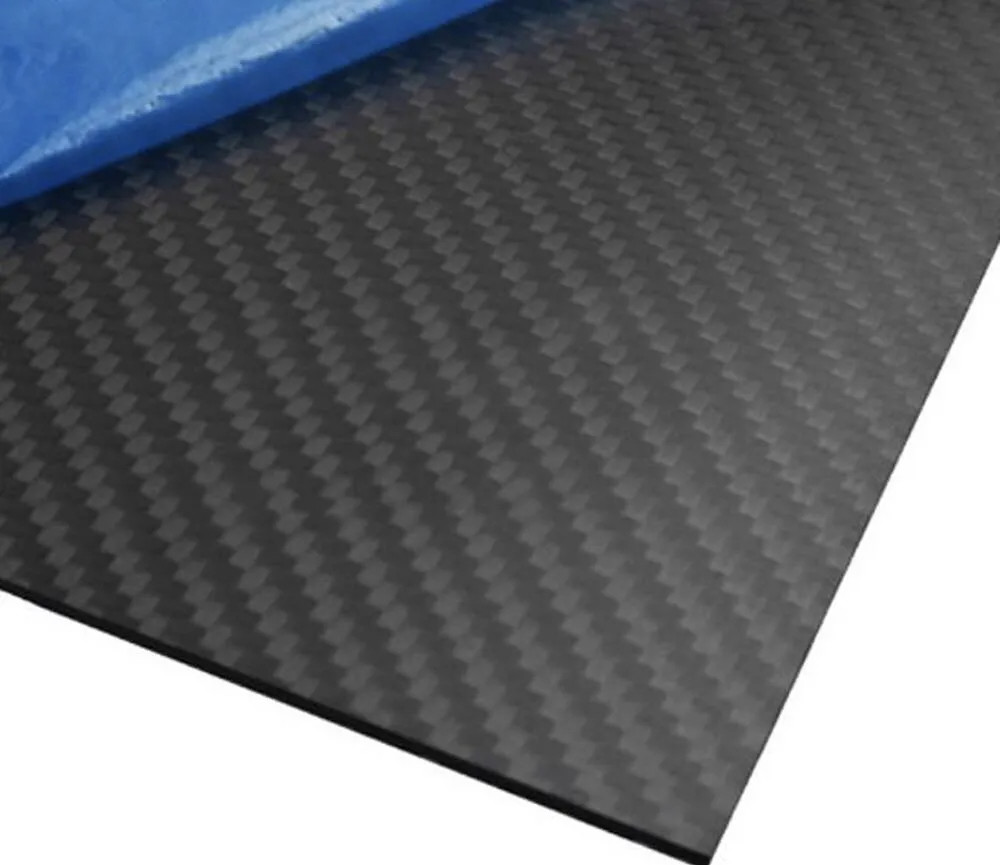

High Strength Carbon Composite Carbon Fiber Board / Plate / Sheet  Customized Dimension 1High Strength Carbon Composite Carbon Fiber Board / Plate / Sheet  Customized Dimension 2High Strength Carbon Composite Carbon Fiber Board / Plate / Sheet  Customized Dimension 3
