Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product: Carbon Fiber Sheet Product Type: Carbon Fiber Board/ Panels
Material: 100% Pure Carbon Fiber Finish: 3K Twill Matte Finish
Surface: Glossy/ Matte/ 50% Glossy Weave: 3K Twill Weave / Plain Weave
Item Form: Sheet Advantage: Higher Strength Light Weight
Highlight:

3K Twill Carbon Fiber Sheet

,

100% Carbon Fiber Sheet

,

Good Stability Carbon Fiber Sheet

Product Description

Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish



All our laminated carbon fiber sheets are produced using the heat press method. We only use high-strength carbon fiber prepregs to produce these sheets and they are available in various sizes and thicknesses.

  • Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, 5mm, 8mm, 20mm, 50mm etc.
  • Standard Size: 400x500mm, 500x500mm, 500x600, 1000x1000 mm etc
  • Largest size possible: 3000mm X 8000mm
  • Skin Layer: 3k carbon fabric
  • Core layers:12k UD carbon fabric, Fiberglass fabric, Kevlar fabric
  • Surface Weave: Plain/Twill
  • Surface Finishing: Matte/Gloss

Typical uses for carbon fiber sheets include Robotics, RC models, UAVs, aerospace, motorsports, marine applications, musical instruments, etc. We also offer CNC service.



Weave Options for Carbon Fiber Sheets and Plates



LIJIN works with customers to optimize carbon fiber sheets and plates to maximize the benefits of carbon fiber composite material properties. For example, all-woven carbon fiber plates (all plain weave or twill, for example) provide excellent machinability and greater damage tolerance. Also, all-woven carbon fiber means that the weave pattern will always be present, even on edges and 3-dimensional sculpted surfaces. This type of composite is often used for the best aesthetics and design flexibility for heavily machined parts.



By incorporating uni-directional carbon fiber into the laminate, the stiffness and strength of the carbon fiber plate can be tailored to match the applied loading constraints. For example, if the component is primarily used in bending about a single axis, aligning additional uni carbon fiber in one direction will often result in a much lighter part. Likewise, if the part is primarily in torsion or has off-axis bending, then fibers can be oriented at +/- 45 degrees, which maximizes the torsional rigidity.



Surface Finish Options and Applied Designs



LIJIN offers several different surface finish options for carbon fiber sheets. These include matte/satin finish, sanded finish, and gloss. All of our finishes are applied after molding is complete. As a result, our matte and gloss finishes are much more durable than “off-the-tool” thin gloss finishes, often typical of vacuum-bagged carbon fiber sheets.



Carbon Fiber Sheet Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory

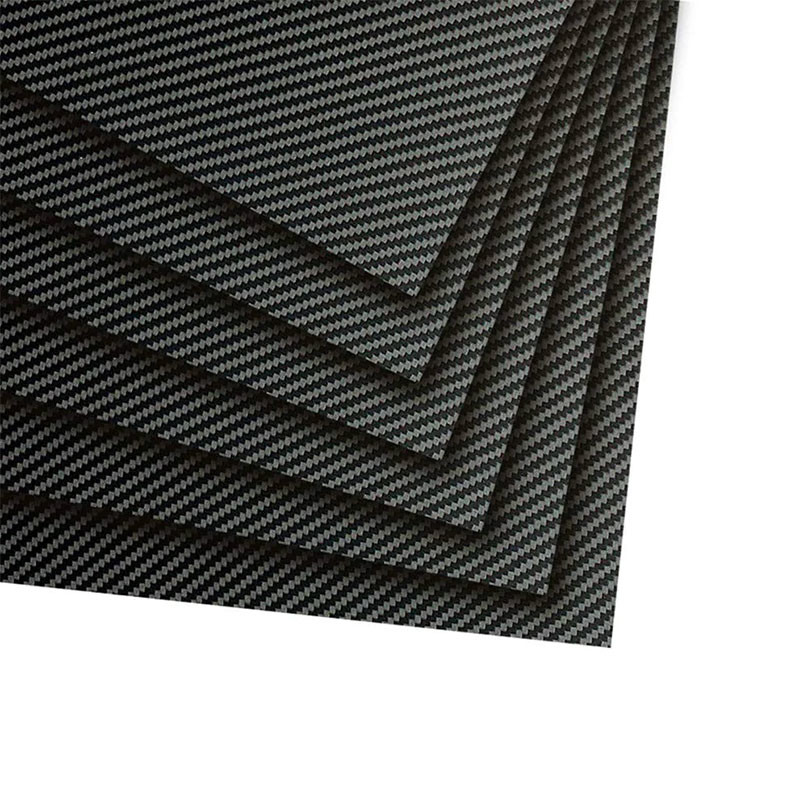

Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish 0

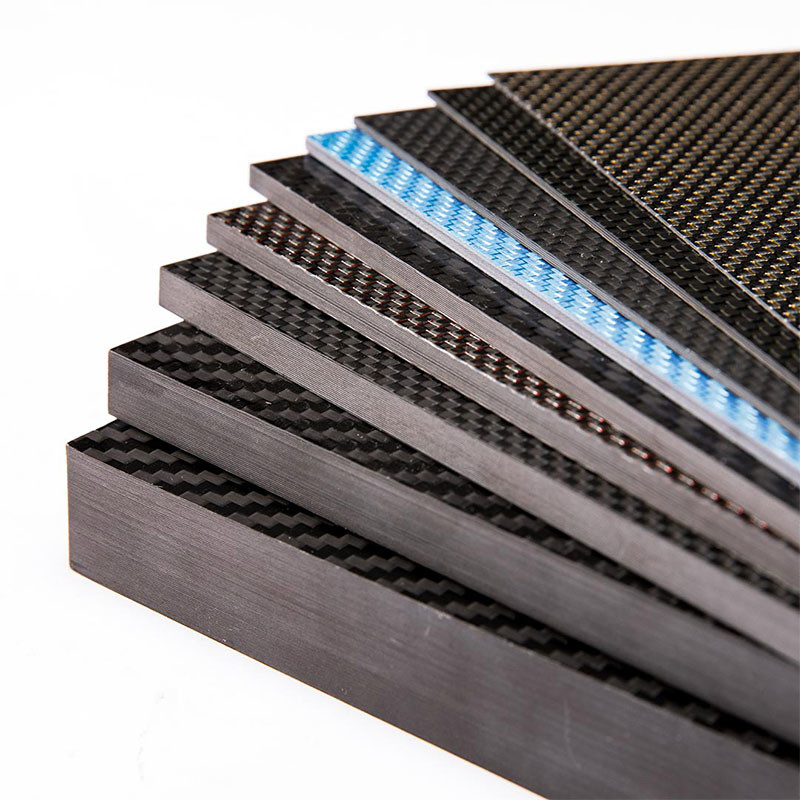

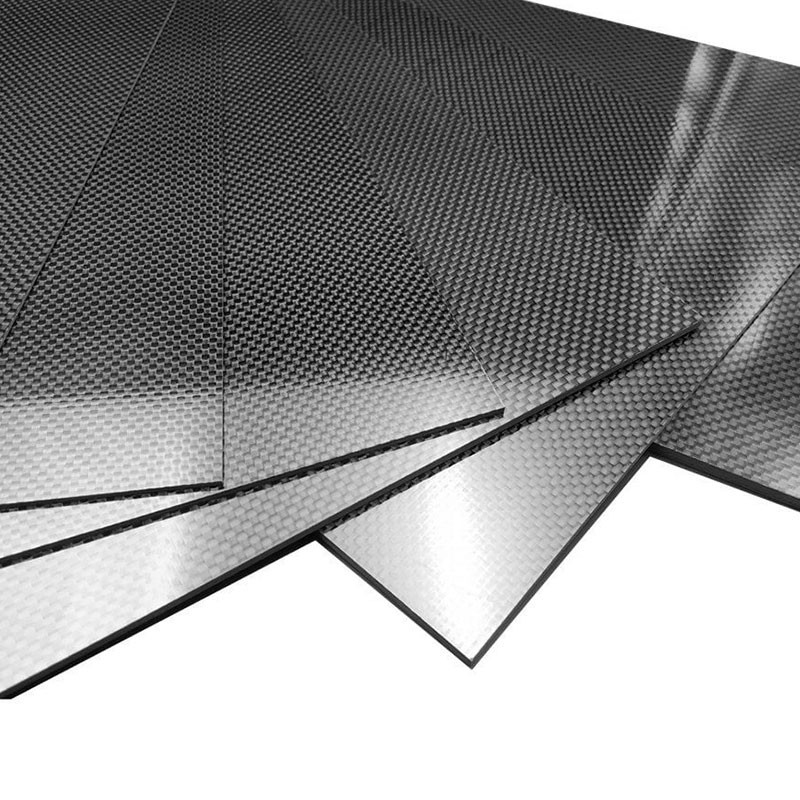

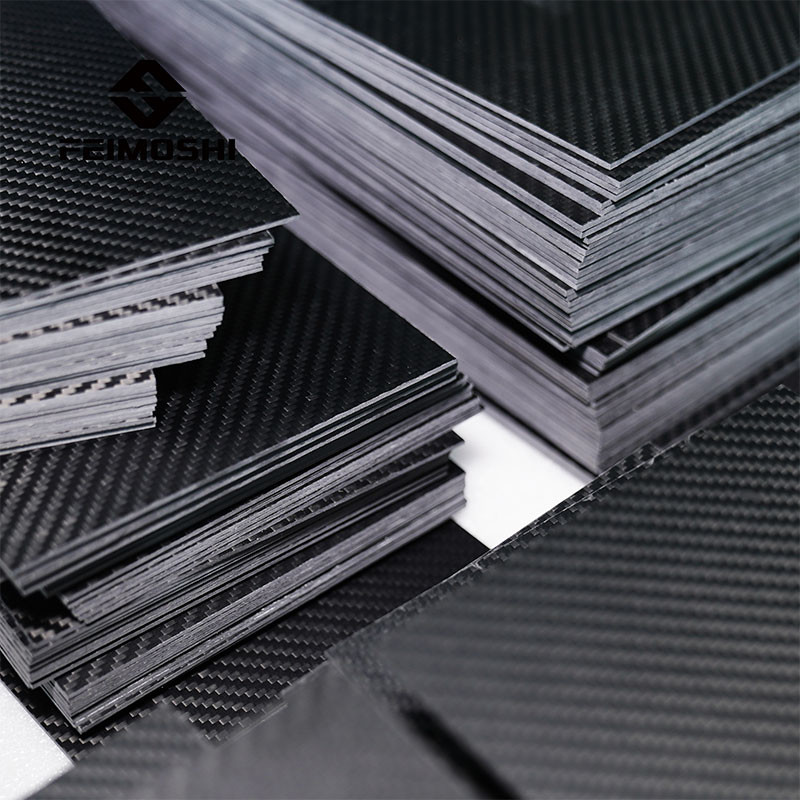

Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish 1Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish 2Good Stability 100% Carbon Fiber Sheet Laminate Plate Panel 3K Twill Matte Finish 3
