3K Real Carbon Fiber Board Plate Sheet Panel 0.2-2mm Thickness Black 400mmx250mm

Product Description

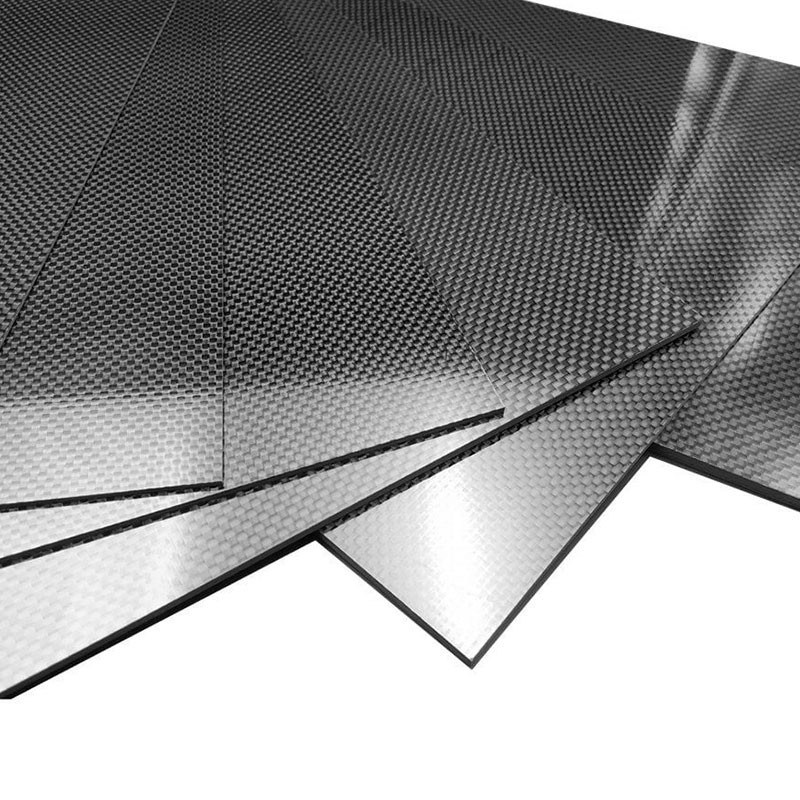

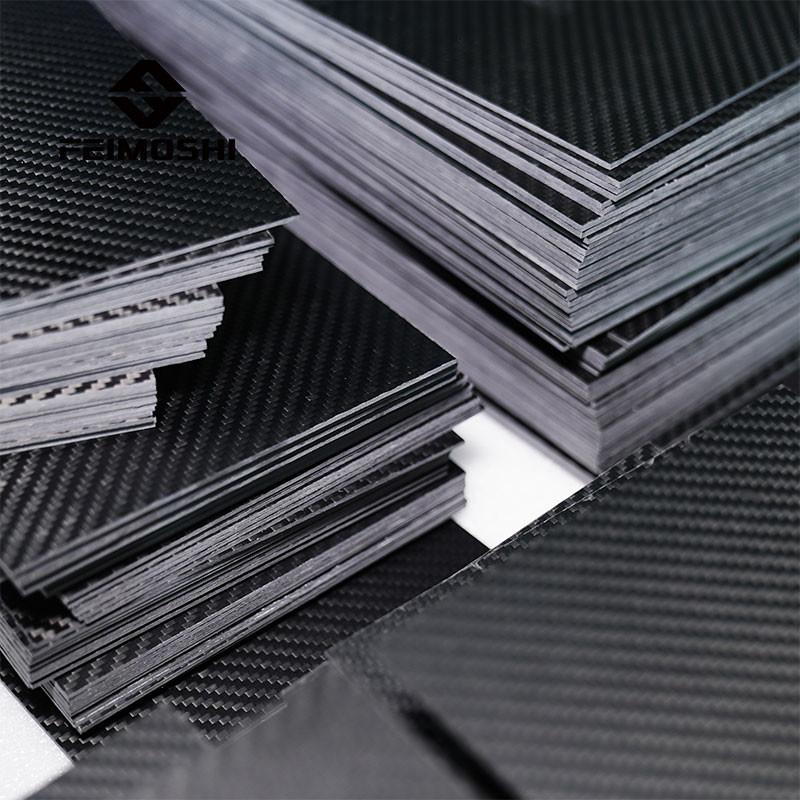

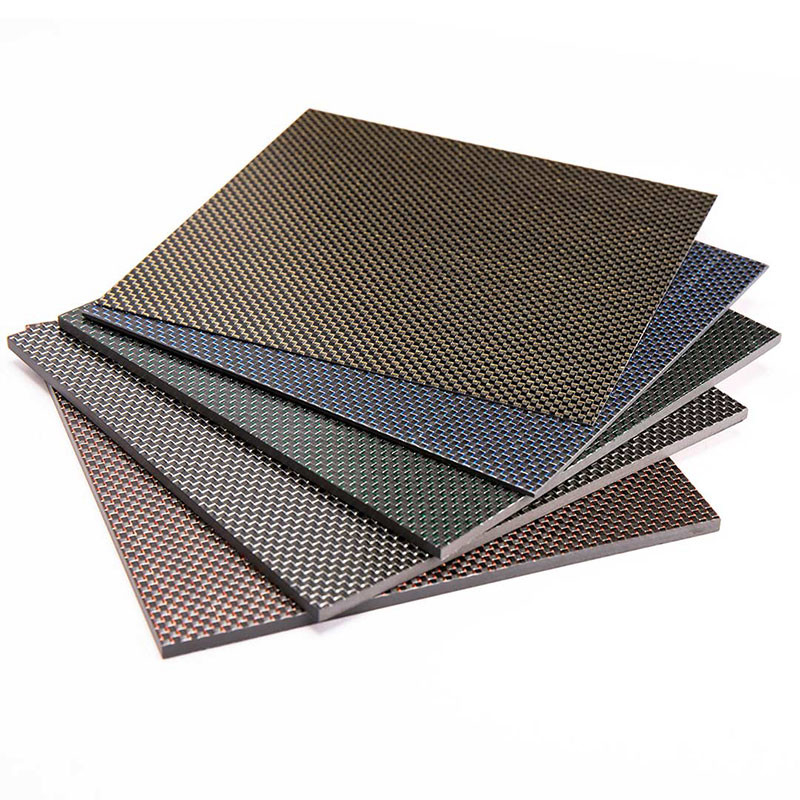

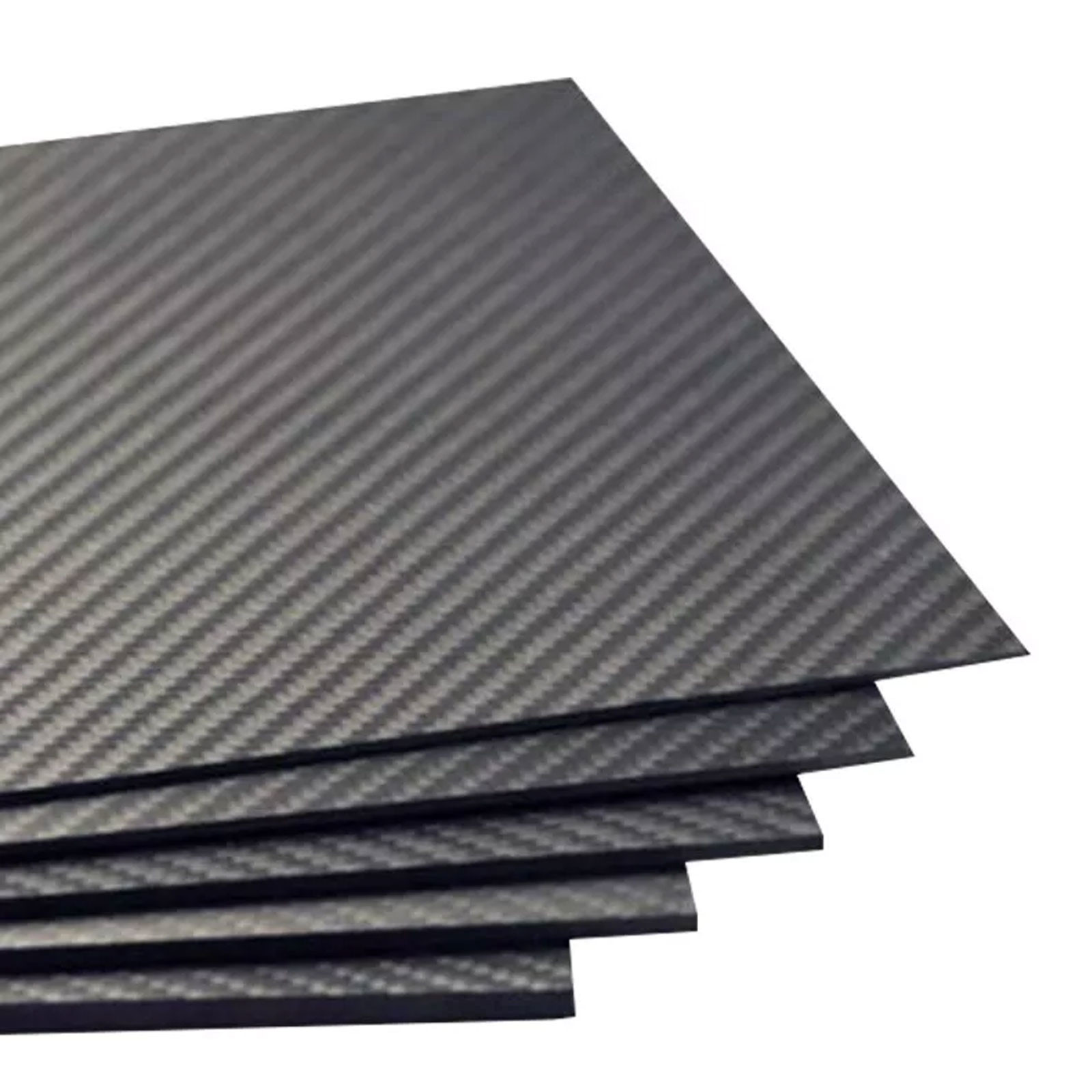

3K Real Carbon Fiber Board Plate Sheet Panel 0.2-2mm Thickness Black 400mmx250mm

Our carbon fiber boards and tubes are made from 100% real carbon fiber fabric and epoxy resins which imported from Japan. Our main products: are carbon fiber sheets, carbon fiber tubes, custom carbon fiber products, and carbon fiber CNC cutting. Best quality and cheap price carbon fiber products for you.

Product Description

1. Carbon fiber boards are 100% pure carbon fiber
2. Carbon board made of carbon fiber fabric and epoxy resins.
3. The finish could be made Glossy and Matte.
4. The weave could be made Plain or Twill.
5. Lightweight, high strength
6. Size: 500*400mm
7. Normal thickness 0.5-5mm, customized thickness Max to 30mm.
8. Make sure stable and precise dimensions, cut should be done by CNC machine.

Product Features

• Surface density: 1800g/m2
• Resin content: 42%
• Fiber content: 1050g/m2
• Fiber volume content: ≥65%
• Thickness: 0.2-60±0.05mm
• Tensile strength: 2950/N/mm2
• Modulus of elasticity: 185000N/mm

Carbon Fiber Board Applications

1. Carbon fiber sheet is widely used in FPV racing and UAV racing.
2. Cell phones, and portable computers.
3. Automated machine arms and robotics
4. High-end sports equipment and surface decoration
5. Medical device

These carbon fibre sheets from LIJIN are the preferred replacement for heavy metallic materials in applications where strong but lightweight components are required, such as in aerospace, automotive and railway settings. The sheets are rigid and able to withstand heavy loads and even sudden impact without bending or buckling.

Their carbon fibre material is produced by combining polymer fibres such as polyacrylonitrile with an epoxy resin matrix system. This process gives the sheets two sides: one resin-rich side that's smooth and glossy and a reverse side with twill fabric weave detail, giving them a sleek appearance that modern furniture designers love. They have a density of just 1.6 g/cm³ and can withstand operating temperatures of +80°C.

While there are plenty of industrial uses for carbon fibre, the superior performance of the material has allowed for use in consumer goods like phone cases, state-of-the-art speaker cabinets and motorcycle conversion kits.

Carbon Fiber Sheet Plate Specification:
