Carbon Fiber Tube Manufacturer Roll Wrapped and Filament Winding Process

Product Description

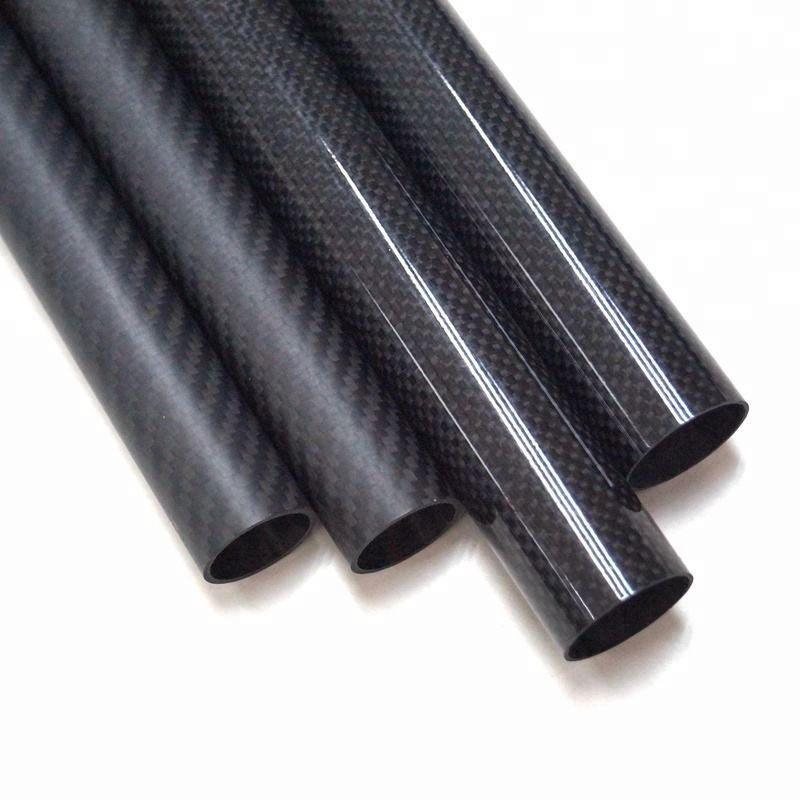

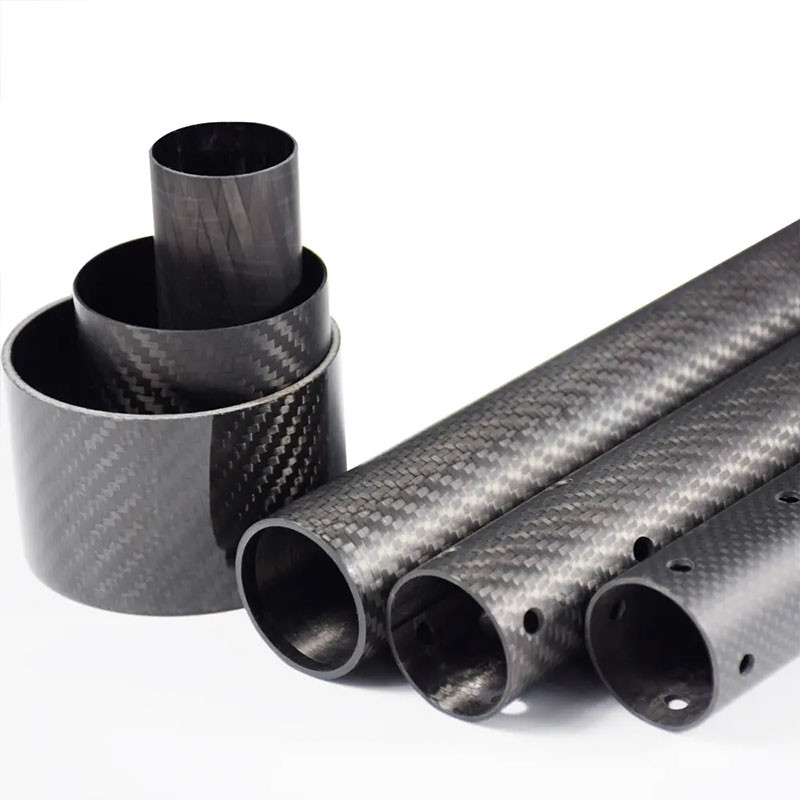

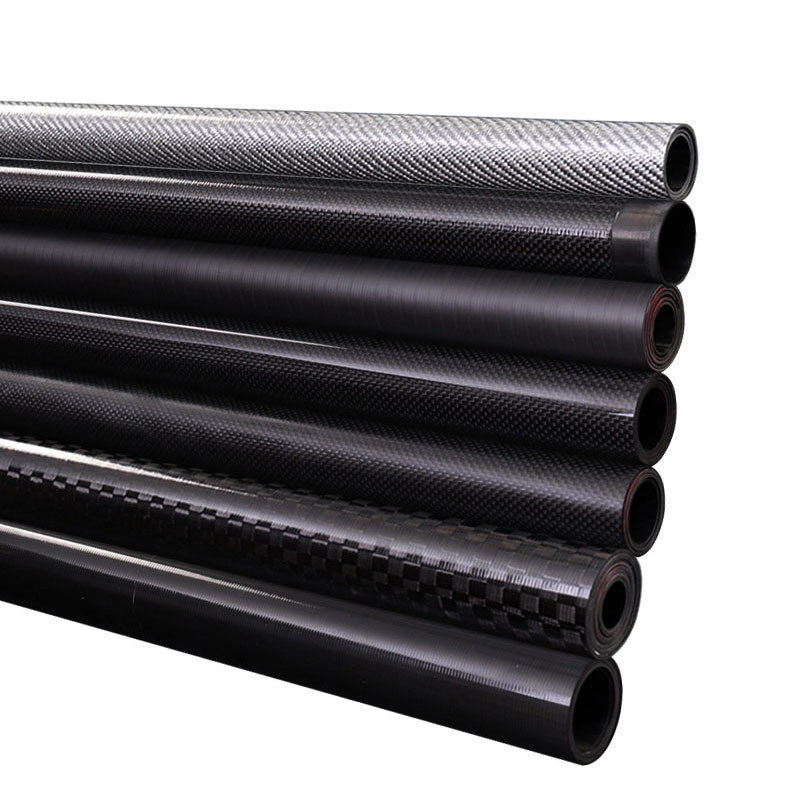

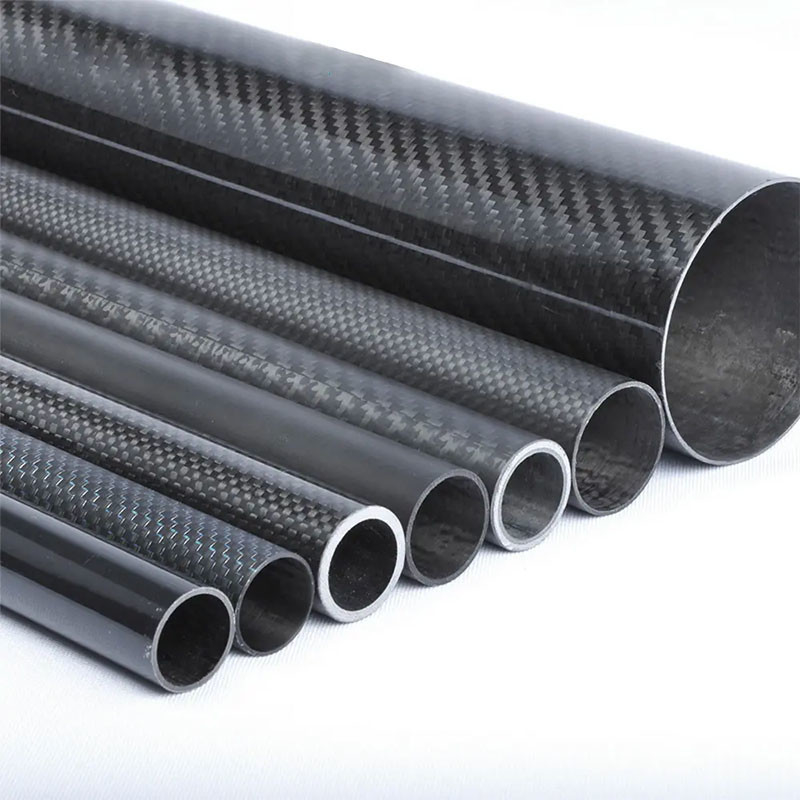

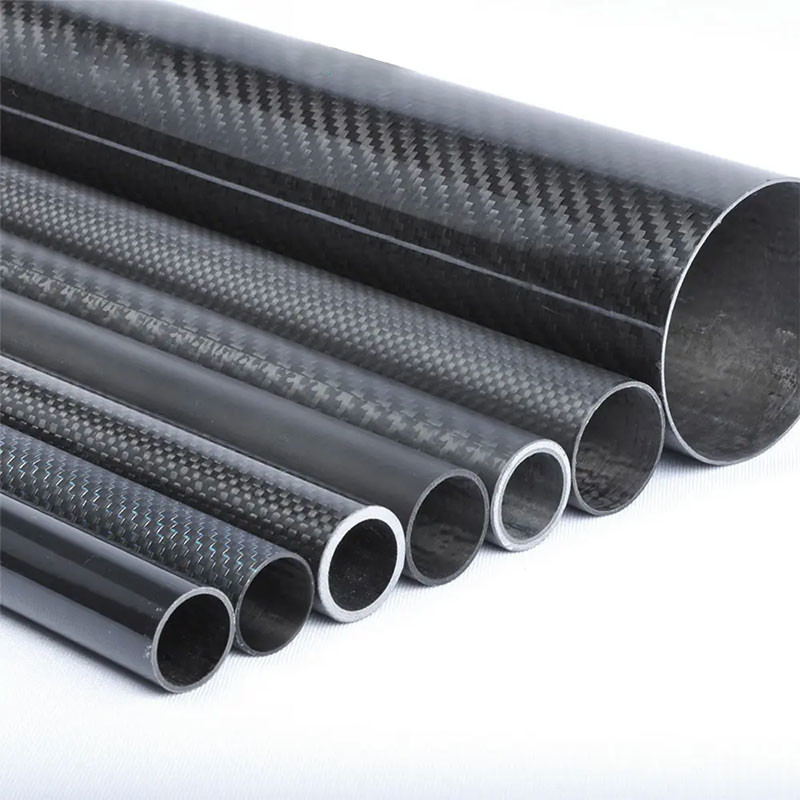

Carbon Fiber Tube Manufacturer - Roll Wrapped and Filament Winding Process

LIJIN is proud to offer carbon fiber tubes, a revolutionary material known for its exceptional properties that significantly outperform traditional steel and aluminium. These tubes boast a remarkable strength-to-weight ratio, making them 6-12 times stronger than steel while being significantly lighter (less than 1/4th the density). This unique combination of strength and lightweight characteristics makes them ideal for demanding applications across a wide range of industries.

Where it's Been Used

LIJIN’s carbon fiber tubes excel in diverse applications due to their exceptional strength-to-weight ratio, corrosion resistance, and fatigue resistance.

• Robotics & UAVs: Lightweight drone arms, landing gear, etc.
• Industrial Automation: Telescopic manipulators for precise movement.
• Metrology: High-precision measuring equipment due to dimensional stability.
• Photography & Surveying: Stable and portable tripods.
• High-Performance Vehicles: Drive axles for weight reduction and strength.
• Cleaning: Long, durable cleaning poles.
• Industrial Machinery: Strong, stiff, and fatigue-resistant components.
• Sports Goods: Golf shafts, fishing rods, and more.
• Boats & Yachts: High-performance masts for superior strength and stiffness.

LIJIN’s carbon fiber tubes boast exceptional properties that outperform traditional materials:

• Unparalleled Strength-to-Weight Ratio: 6-12 times stronger than steel yet remarkably lightweight (less than 1/4th the density).
• Superior Tensile Strength: Withstands high pulling forces without compromising integrity.
• Corrosion & Shock Resistance: Resists rust, degradation, and impact for long-lasting performance.
• High Toughness & Modulus: Delivers exceptional rigidity and dimensional stability under load.
• Fatigue Resistance: Maintains strength and durability even under repeated stress.
• We manufacture high-quality carbon fiber tubes using Roll wrapped and Filament winding process

Roll Wrapped

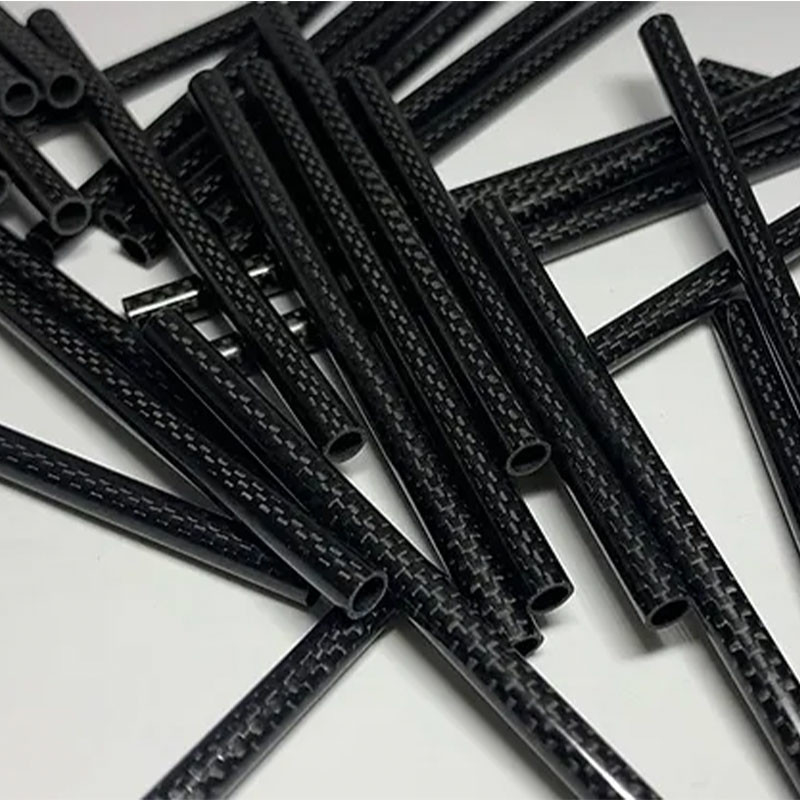

Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics.

• Ideal for small to medium diameter tubes (8mm – 100mm) and lengths up to 1.5 meters.
• Applications: Robotics, telescoping poles, rollers, UAV components.
• Fabric Options: 3K carbon fiber twill & plain weave.
• Finish Options: Glossy, Matte, or Sanded.
• Benefits: Highest bending stiffness and lowest weight for optimal performance in applications demanding rigidity and minimal weight.

Filament Winding

Filament winding is a composite manufacturing process in which continuous fibers or rovings are applied to a shape, known as a mandrel, to create a composite part.

• Suitable for a wider range of sizes, lengths, and finishes.
• Applications: Pressure vessels, drive shafts, and various industrial components.
• Benefits: Excellent for handling torsional stress due to the winding angle customization.
