10mm Carbon Fiber Sheet High Strength Carbon Sheet | LIJIN Carbon Fiber Board

Product Description

10mm Carbon Fiber Sheet High Strength Carbon Sheet | LIJIN Carbon Fiber Board

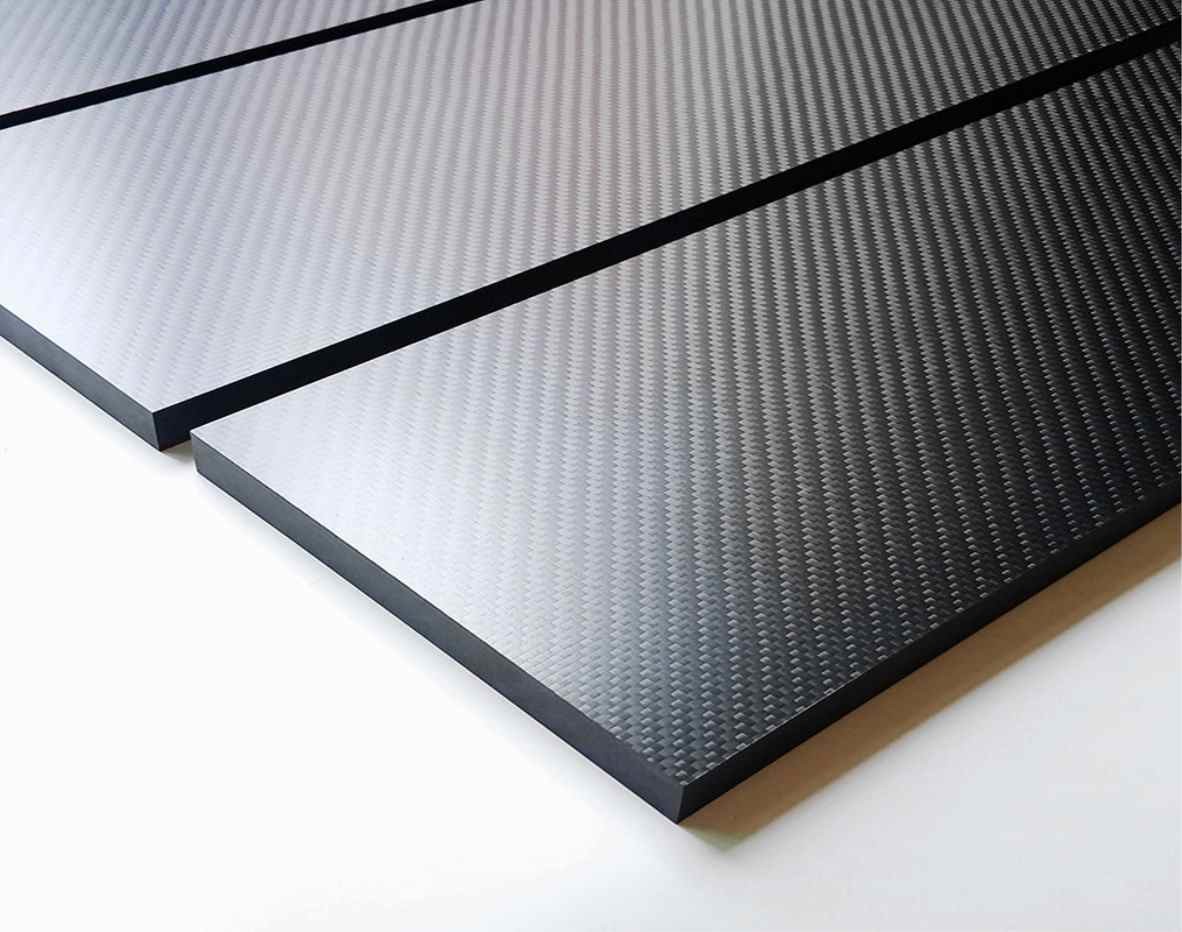

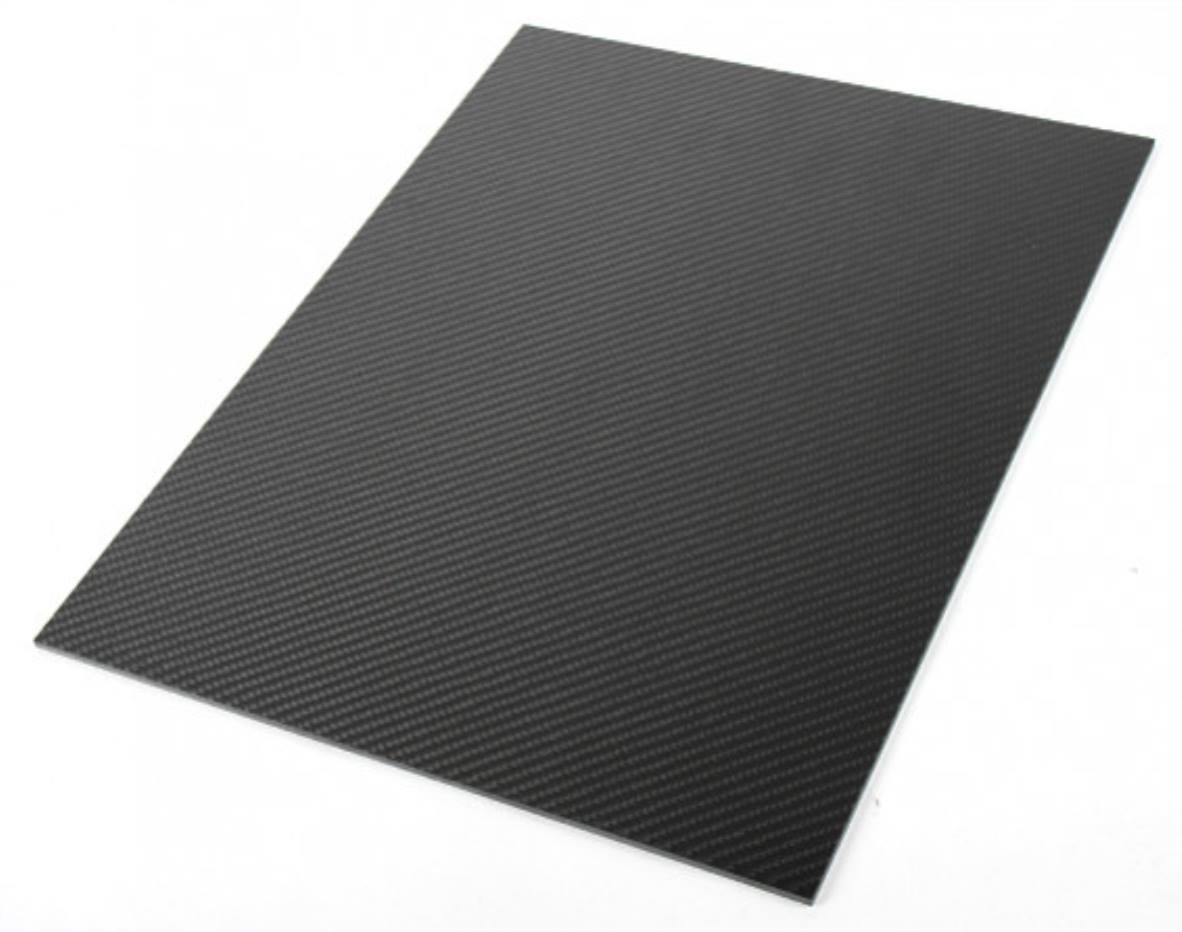

Our high-strength 10 mm / 0.394 inch (±0.1 mm tolerance) carbon fiber sheet is manufactured using real carbon fibre reinforcement and epoxy resins. If you want to know the price of a 10mm carbon fiber plate, please contact us.

Carbon fiber is usually combined with other materials to form a composite. When combined with epoxy resins and wound or molded it forms a carbon-fiber-reinforced polymer (often referred to as carbon fiber) which has a very high strength-to-weight ratio, and is extremely rigid although somewhat brittle, usually call that is CFRP.

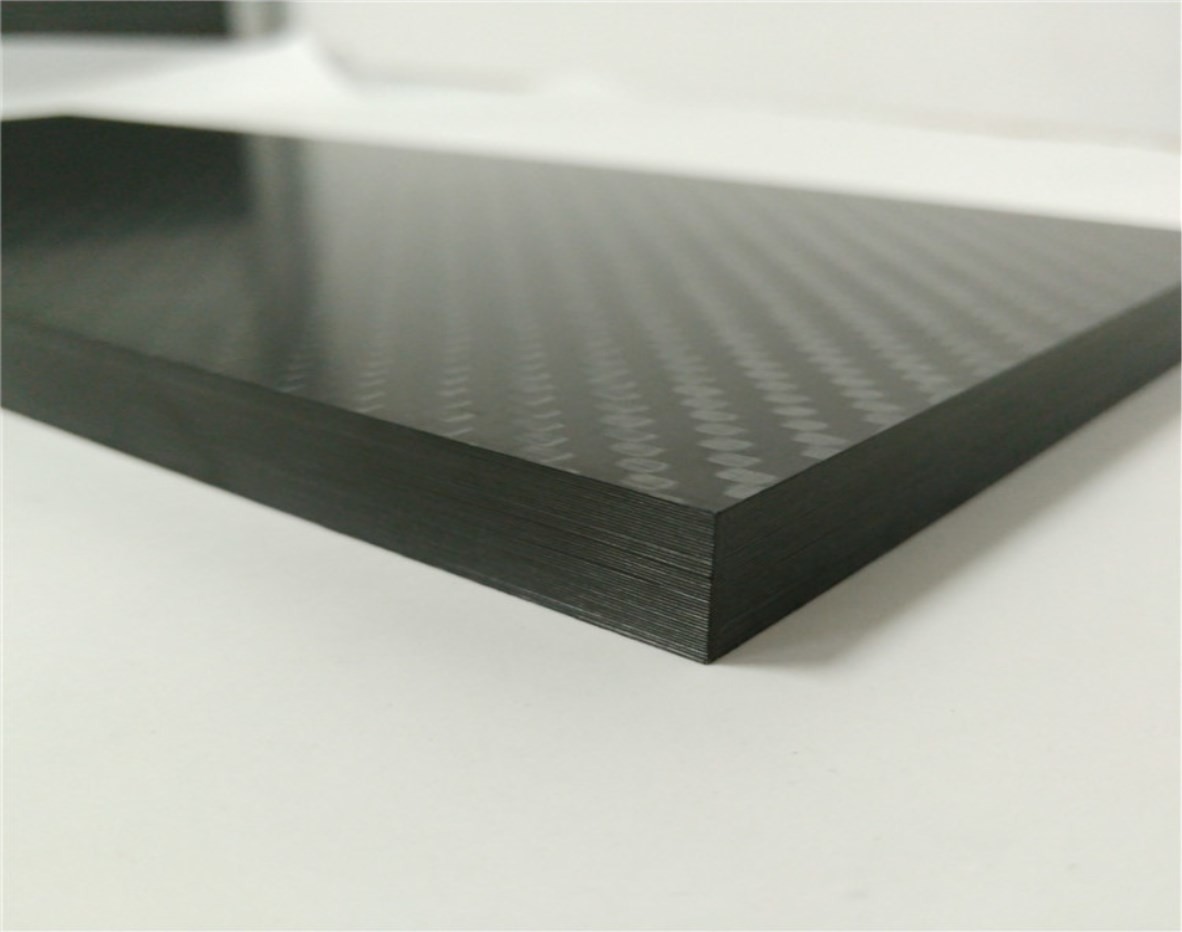

10mm (0.394”) thickness carbon fiber sheet is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under high pressure at high temperature, making them the high strength and flat. Inside without any filling materials, The surface material is 2 x 2 3K tow (3,000 filaments) twill or plain weave carbon fiber fabric.

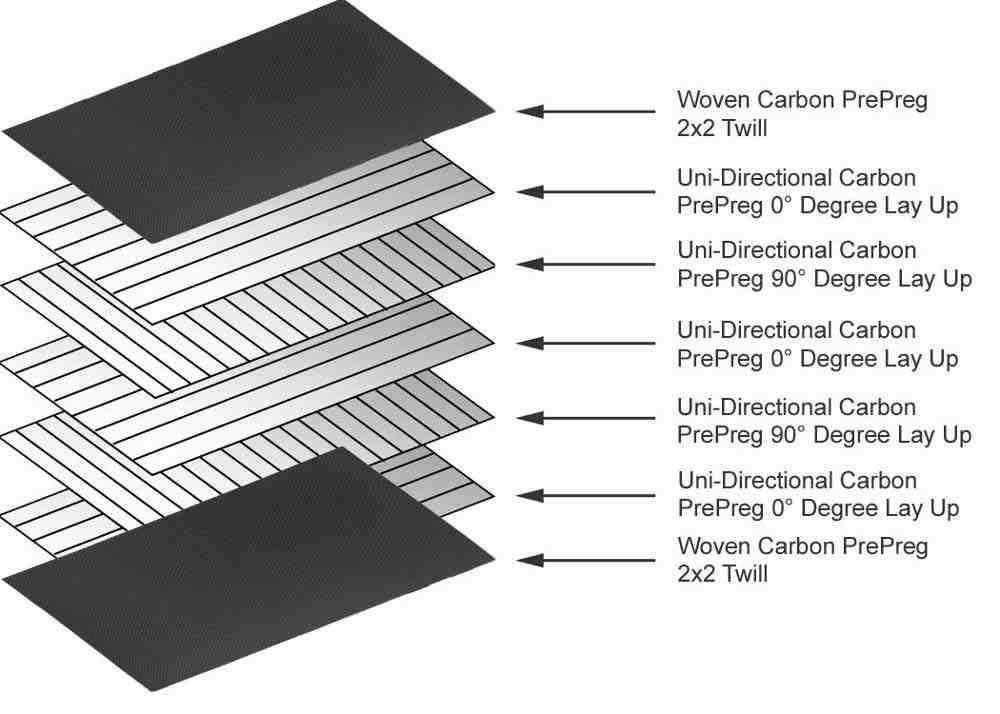

For creating a more uniform distribution of strength, all our laminated sheets are manufactured using both layers of 0°/90° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Our carbon fiber sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.

Product Features

1. The material is pure carbon fiber without any filling materials.
2. Dimension: standard size or custom size
3. Thickness: 10mm / 0.394 inch (±0.1 mm tolerance)
4. Surface: 3K, Twill or plain, Matt or gloss surface
5. High strength to weight ratio
6. High Thermal Conductivity in some forms
7. Low coefficient of thermal expansion
8. Electrical Conductivity

Application: Our 10mm carbon fiber sheet is ideal for

1. Custom carbon fiber products.
2. R/C equipment, robots.
3. Cutting carbon fiber parts.
4. High-end sports equipment and surface decoration.
5. Industrial applications.

Carbon Fiber Sheet Plate Specification:
