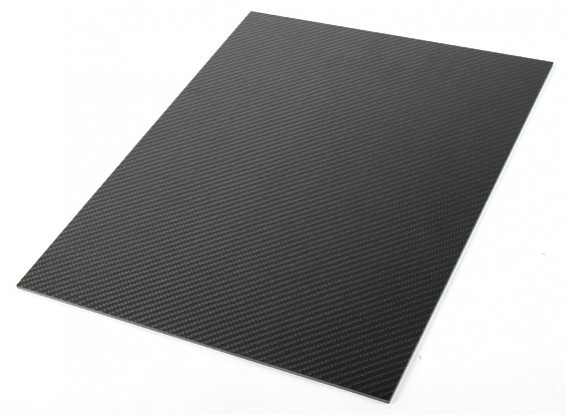

High Strength 4mm x 300mm x 400mm Carbon Fiber Composite Panel 2×2 Twill

Product Description

High Strength 4mm x 300mm x 400mm Carbon Fiber Composite Panel 2×2 Twill

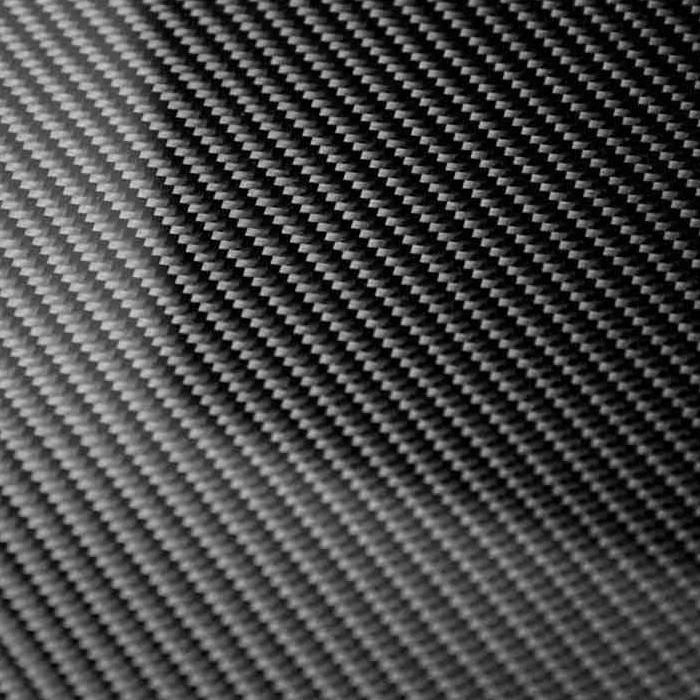

This panel has a 2×2 twill weave pattern, one of the most common weave patterns in many markets. The finished side of the panel has a classic 2×2 twill, 3K woven carbon fiber appearance and is nearly pinhole-free with a high-gloss finish. The panel’s backside showcases a matte textured ‘peel ply’ finish suitable for secondary bonding, if necessary.

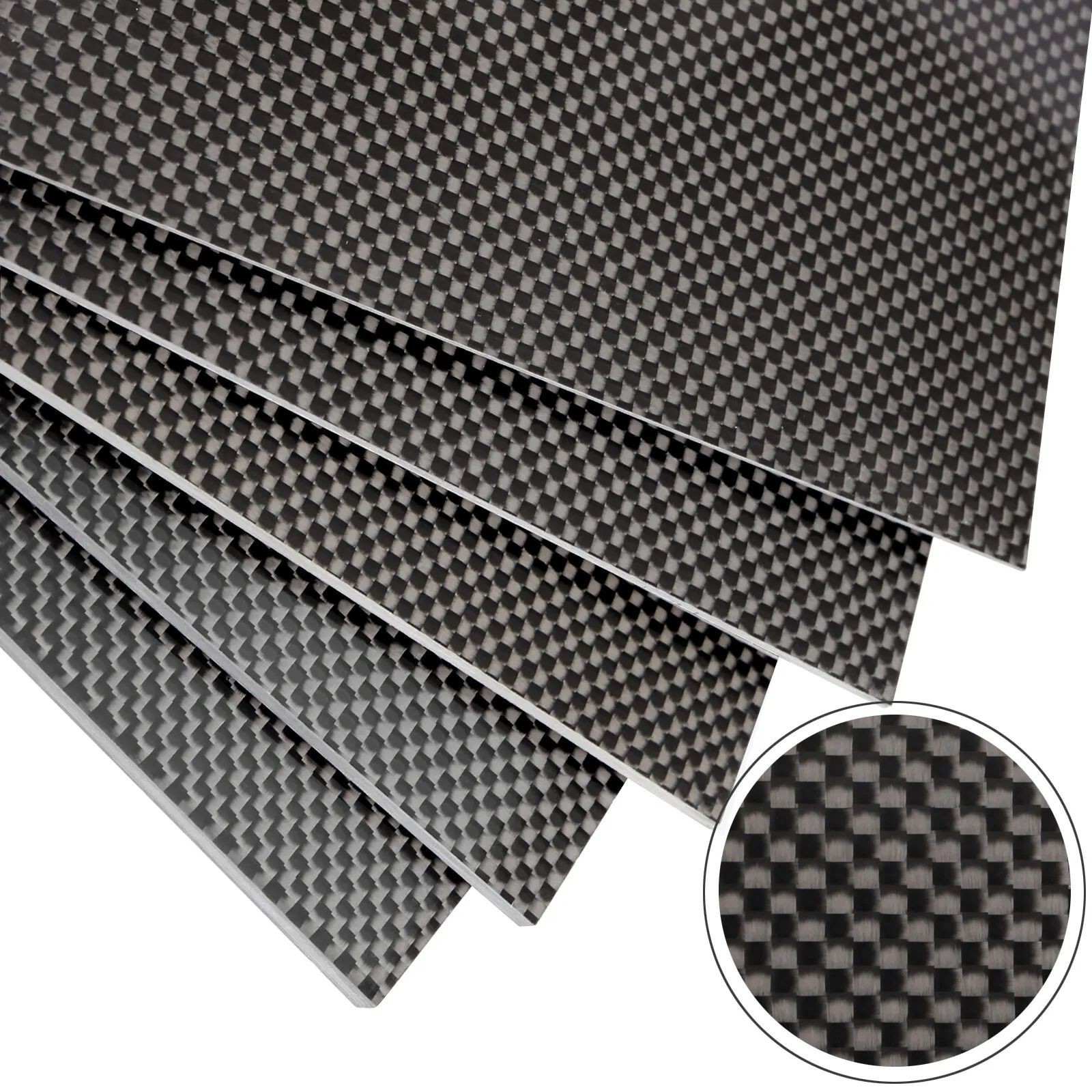

These high-quality carbon fiber sheets come in various sizes, made from 100%, 3K plain weave, carbon fiber, and finished with a matt surface on both sides. Unlike many low-cost carbon sheets that are made by pressing two outer skins of carbon fiber over a carbon and resin core, these plates are made with layered sheets of carbon fiber and resin, making them the same strength all the way through.

Our high-strength vacuum-infused composite panels are manufactured using 100% carbon fiber reinforced with a near-clear epoxy resin matrix. All composite stacks are laid by hand to ensure maximum homogenization of fiber alignment. Stacks are then vacuum-infused and cured under pressure greater than 28 inches of mercury. The tool is then elevated to an optimal temperature to produce a near-perfect composite panel with high-grade mechanical properties and a class-A surface finish.

Carbon Fiber Composite Panels offer maximum tensile and bending stiffness along a single axis. They are manufactured by laying unidirectional carbon fiber prepreg so that all the carbon fibers run in the zero direction or parallel to the length of the part. This construction method makes our Carbon Fiber Unidirectional Sheets ideal as a flat material option for structural applications where minimum weight is essential or to add stiffness to almost any material such as fiberglass, foam, or balsa wood.

Carbon Fiber Sheet Plate Specification:
