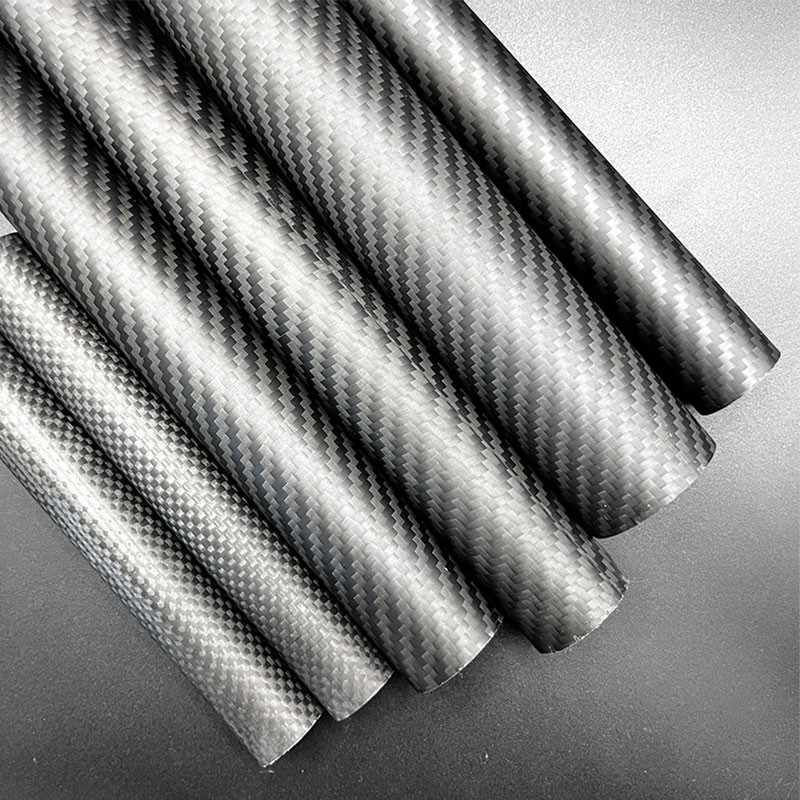

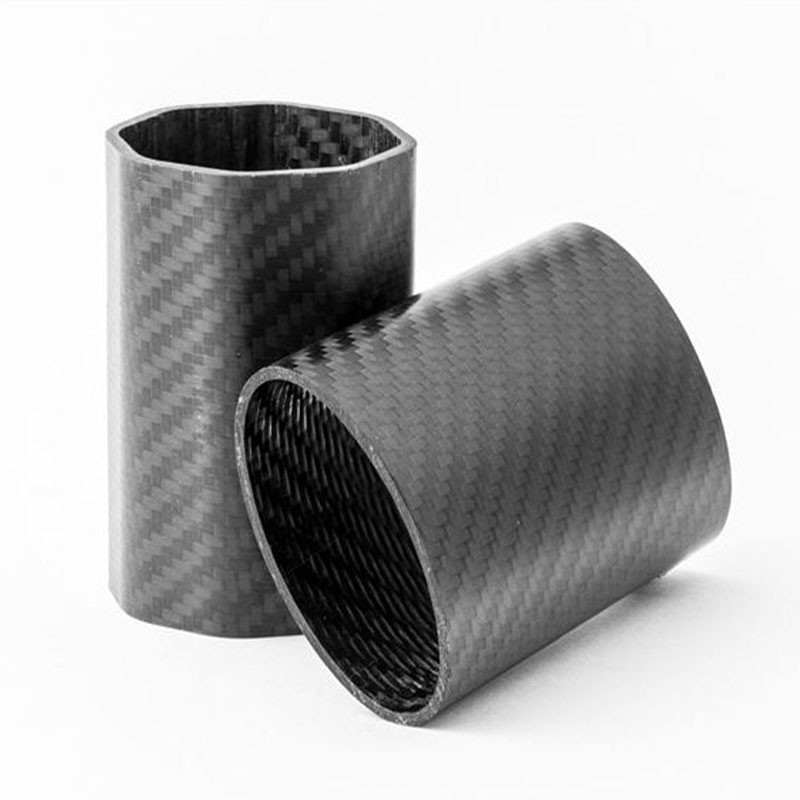

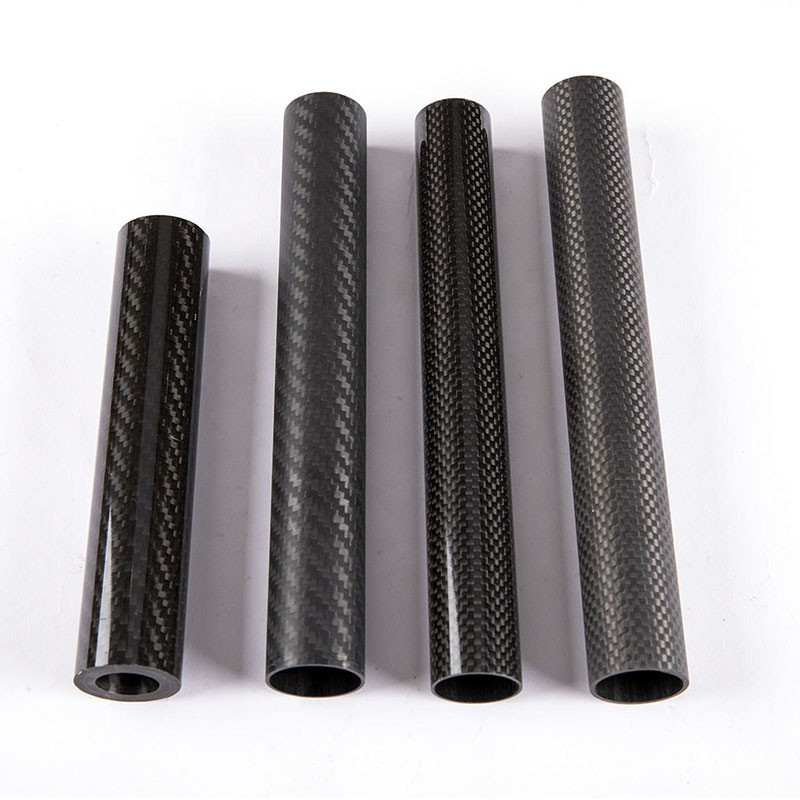

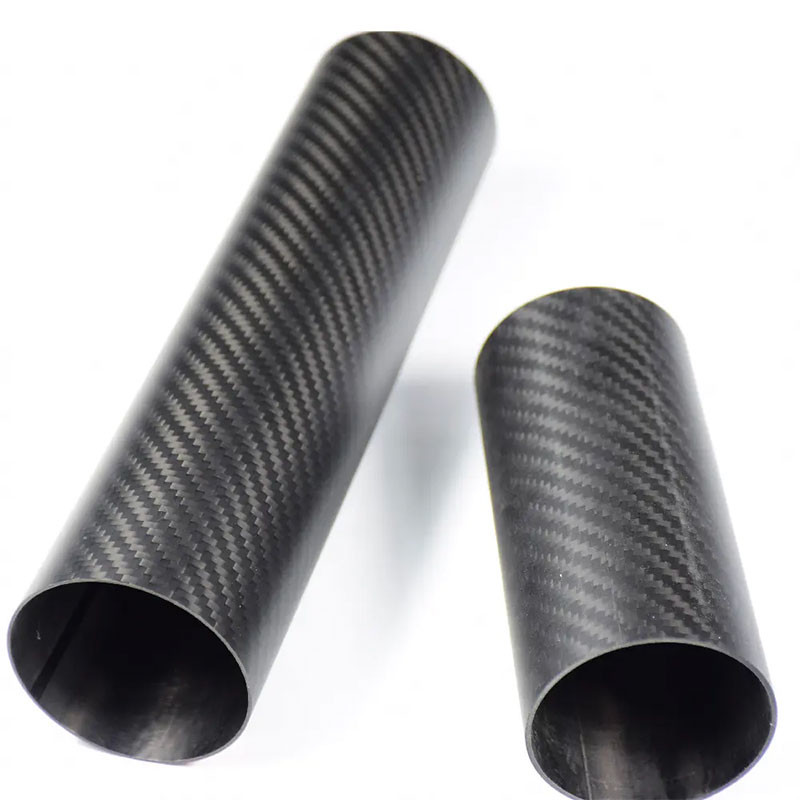

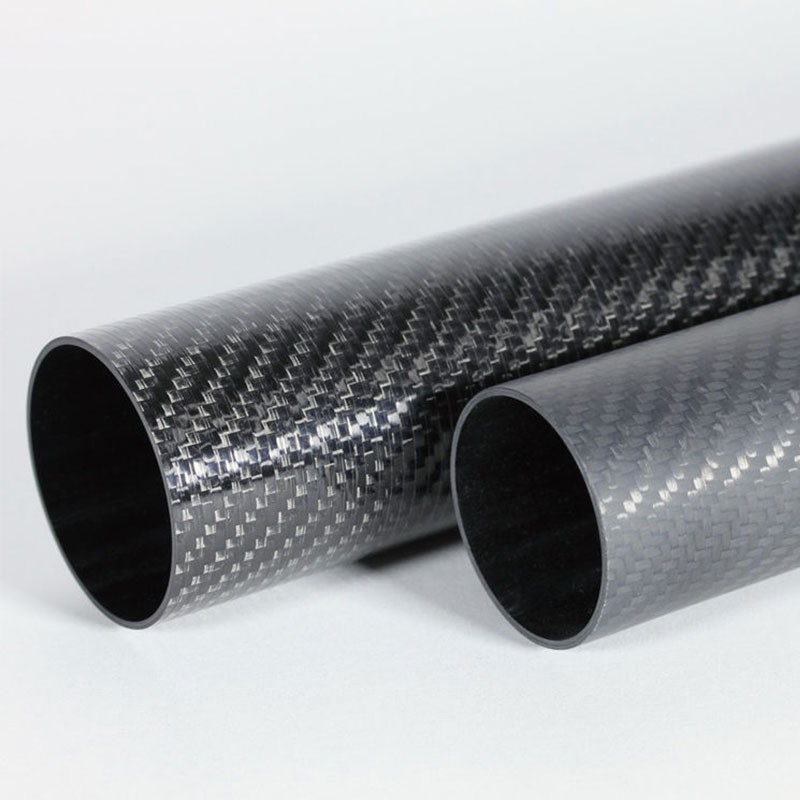

Full Carbon Fiber Matte Pipes 100% Carbon Fiber Tube Pipe Customize Sizes

Product Description

Full Carbon Fiber Matte Pipes 100% Carbon Fiber Tube Pipe Customize Sizes

1. Length & Diameter

Our roll-wrapped carbon fiber tubes are crafted from multiple layers of UD (unidirectional) carbon fiber in the middle, and 3K weave carbon fiber fabric for the outside, which are rolled onto the axial mold. Hence, the thickness of the carbon fiber tube is determined by the quantity of layers of the inner unidirectional carbon fiber. So any thickness, diameter, and length can be customized according to your requirements.

• Outer Diameter (OD): 1.8mm (min.) - 300mm (max.)
• Inner Diameter (ID): 1mm (min.) - 280mm (max.)
• Length: 50mm (min.) - 4000mm (max.)

2. Weave

You can choose from several weave options for the outermost layer to meet your mechanical requirements while also giving the carbon fiber tubes an attractive appearance.

• Twill Weave
• Plain Weave
• UD (Unidirectional)

3. Surface Finishing

It also comes in various finishes, including glossy and matte. Glossy carbon fiber has a smooth, reflective surface, adding a sleek and shiny appearance. Matte carbon fiber has a non-reflective surface with a softer, subdued finish.

• Glossy
• Semi-Matte
• Matte

4. Carbon Fiber Tows

K” represents one thousand and is used to indicate the number of fibers in each bundle. The larger the number, the wider the bundle, which also results in differences in appearance.

• 1K
• 3K (Most Common)
• 6K
• 12K

Service

• Customization – Prepreg plies can readily be added or subtracted allowing the tube to be customized with different wall thicknesses
• Sample Acceptable – Because each tube is made one at a time, small production runs are available.
• CNC Machining — cutting according to your CAD drawing
• Print Logo – according to the AI file
• One- Stop Procurement – a whole industry chain of carbon fiber composite products
