High Pressure Resistance Flexibility Pultruded Round Carbon Fiber Tubes
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Pay |
| Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 1500pcs month |
| Place of Origin: | China | Brand Name: | Tanku |
|---|---|---|---|
| Certification: | SGS, ROHS | Model Number: | OEM |
|
Detail Information |
|||
| Product Name: | 3K Carbon Fiber Tubes | Material Description: | 100% Toray Carbon Fiber |
|---|---|---|---|
| Production Process: | Roll- Wrapped | Surface: | Plain / Twill Weave, Black Surface |
| Shape: | Round, Square Or Customized | Material Finish: | 1.5g/cm^3 |
| Glass Transition Temperature: | 130℃ | Fibre Orientation: | 0, 90 |
| Applications: | Automotive, Construction, Sporting Goods, Etc. | ||
Product Description

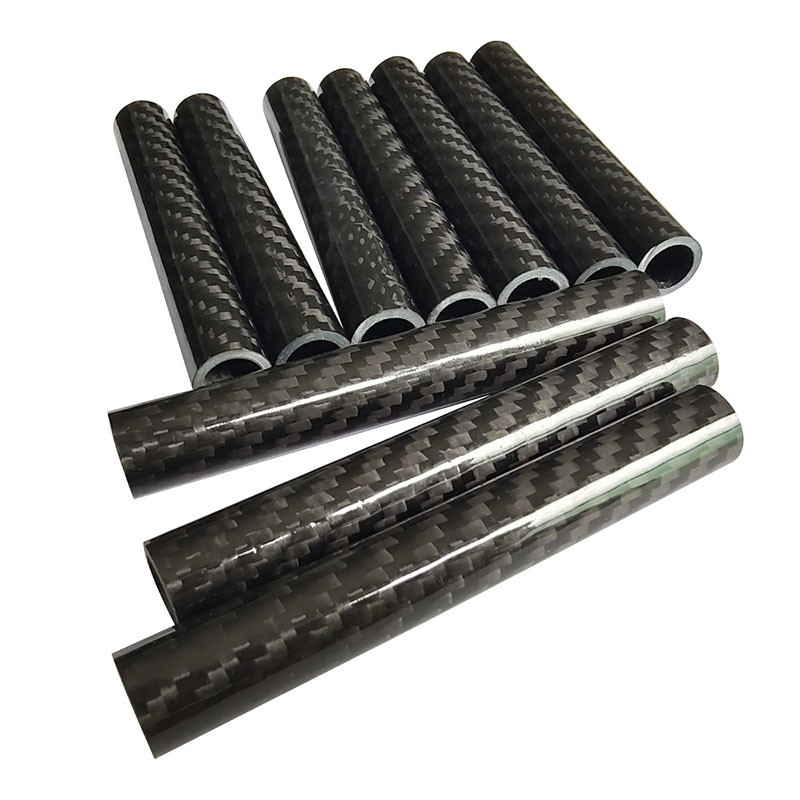

UV Resistant Lightweight Roll Wrapped Prepreg 100% 3K Carbon Fiber Tubes
Roll-wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available.
3K carbon fiber tubes are specialized components made from carbon fiber fabric with a 3K weave. The "3K" designation refers to the number of carbon filaments in each tow (bundle), with "3K" indicating 3,000 filaments per tow. These tubes are known for their balance of strength, stiffness, and aesthetic appeal, making them ideal for various high-performance applications.
Key Features
Carbon Fiber Tubes FAQ
How is the diameter of your tubes measured?
Except for pultruded tubes (diameter measured from outside), all Carbon Light tube diameters are measured from the inside of the tube (ID). To determine the approximate outside diameter, add 2x the wall thickness to the ID measurement.
What finish options do you offer for your tubes?
Finish options include gloss, natural, textured, and tooled, depending on tube type. Please see each tube type for finish options. We also offer a sanded finish upon request. Contact us for more details.
Do you offer custom cutting of your carbon fiber tubes?
Yes! We can custom-cut our carbon fiber tubes to your specified length. Contact us for details.
| Material | 3K Carbon Fiber Tube |
| Shape | Round/Oval |
| Technology | Roll-wrapped or pultrusion |
| Dimension | The existing inner diameter of the mold is 4mm-50mm with a length of 1m. |
| Customizable size: The maximum diameter can be 200mm, the longest can be 3m. | |
| Surface | Black glossy/matte surface/painted |
| Glossy 3k weave/matte 3k weave | |
| Color metal wire weave | |
| Feature | lightweight, high strength |
| Working Temperature | Usually, -30-120 degrees, if special requirement, please let us know. |
| Place Of Origin | China |
| Function | Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products |
| Tolerance | Diameter Tolerance: +/-0.1mm |
| Length Tolerance | +/-1mm |
Performance
Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 5mm 3K Carbon Fibre tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.
