High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Features: High Strength/Light Weight/Corrosion Resistance/High Temperature Resistance/Non-conductive Product Name: Carbon Fiber Flat Sheet
Material: Carbon Fiber Pre-Preg With Epoxy Resin Surface Treatment: Glossy Or Matte Finish
Carbon Fiber Strength: T300/T700 Standard Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Surface Texture: Plain/Twill/Satin Weave Shape: Custom Made(please Offer Us CAD Drawing If It Is Special Shape)
High Light:

High Strength Carbon Sheets

,

3K Carbon Fiber Flat Sheet

,

High Strength Carbon Fiber Flat Sheet

Product Description

High-Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet



Bidirectional carbon fiber fabric is a term often used to refer to a type of carbon fiber fabric that has fibers oriented in two main directions: the warp and weft directions. The bidirectional nature of the fabric provides balanced strength and stiffness in both the warp and weft directions. This makes it ideal for applications where equal strength is required in multiple directions.



Plain weave and twill weave are two common patterns used in the manufacturing of carbon fiber fabric. Plain weave carbon fiber fabric is made by interlacing carbon fibers in a simple over-under pattern, forming a grid-like structure. Twill weave carbon fiber fabric is made by interlacing carbon fibers in a diagonal pattern, creating a distinctive "twill line" appearance. The choice between the weaving of the fabric depends on specific requirements, such as strength, weight, surface finish, durability, and visual appearance.



Lightweight, high modulus, corrosion resistance. Application in aerospace, industrial accessories, aerospace models, and others. Source factory direct sales, from carbon fiber prepreg to carbon fiber products of the entire chain of manufacturing, support customization, and provide cost-effective services.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?



At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.



2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?



Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.



3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?



We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.



4. Are carbon fiber sheets of the quasi-isotropic type available?



We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.



5. What is the thermal resistance of carbon fiber sheets?



Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.



6. How can I cut carbon fiber sheets in my workshop?



The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.



7. Can carbon fiber sheets be painted?



Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.

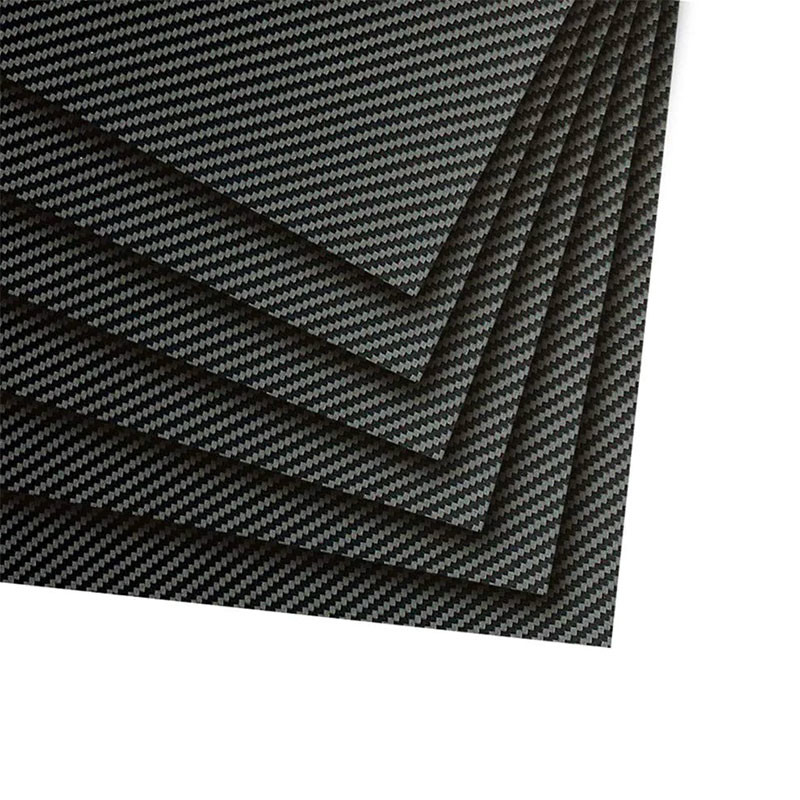

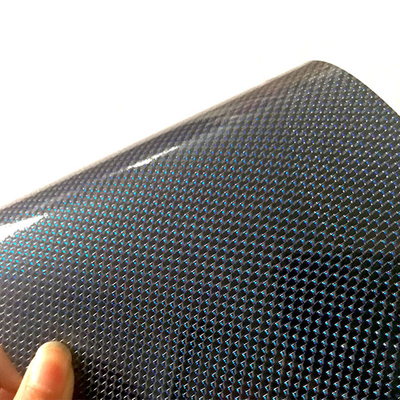

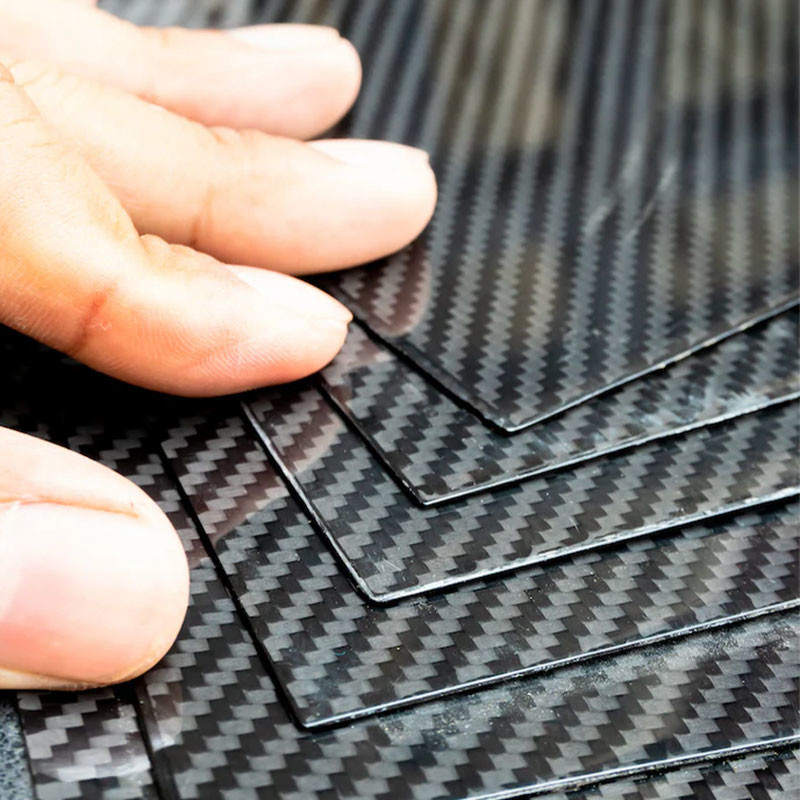

High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 0High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 1High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 2

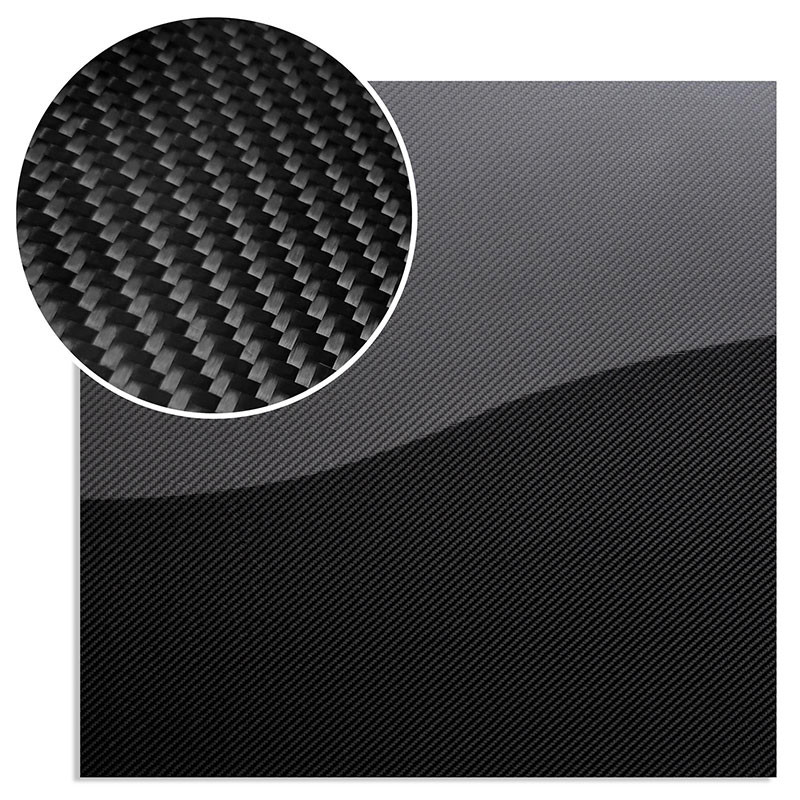

High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 3

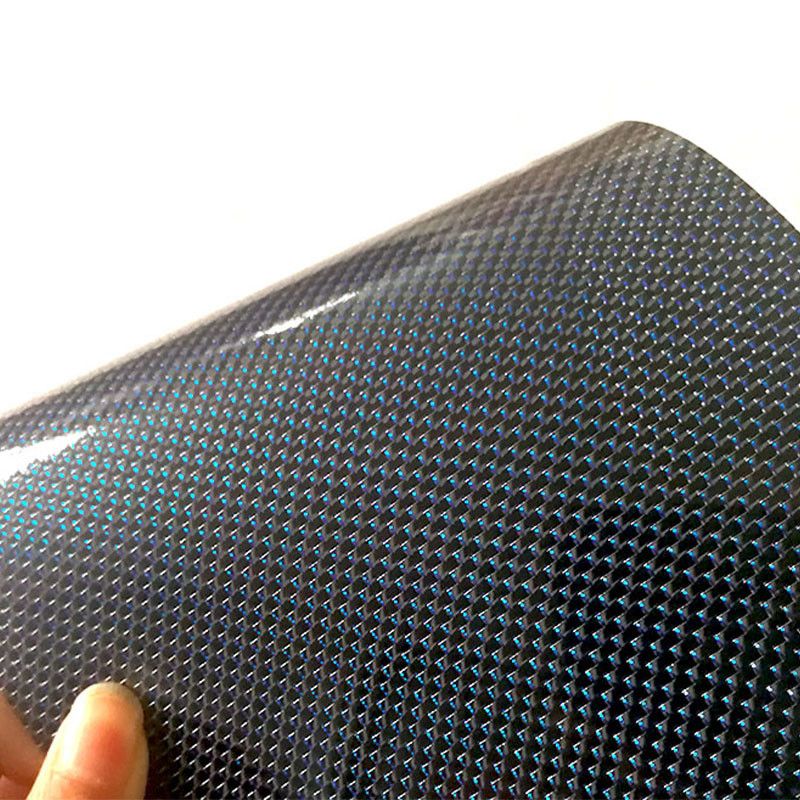

High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 4High Strength Carbon Sheets Manufacturers Selling 3K Carbon Fiber Flat Sheet 5
