Carbon Fiber Sheet Plate – Twill Weave – 10mm Thick – 300mm x 300mm

Product Description

Carbon Fiber Sheet Plate – Twill Weave – 10mm Thick – 300mm x 300mm

LIJIN standard sheets are manufactured using a 0/90 layup schedule, where fibers alternate in the 0 and 90-degree directions. This balance of fiber directions provides a good balance of cost and mechanical properties and is suited for most applications.

All LIJIN Materials sheets are manufactured in a hot press, yielding an extremely low void fraction.

Typical applications for these plates include Drones, Industrial Robotics, Automotive and Marine Dash Panels, Cosmetic Covers, Scientific Equipment, and more.

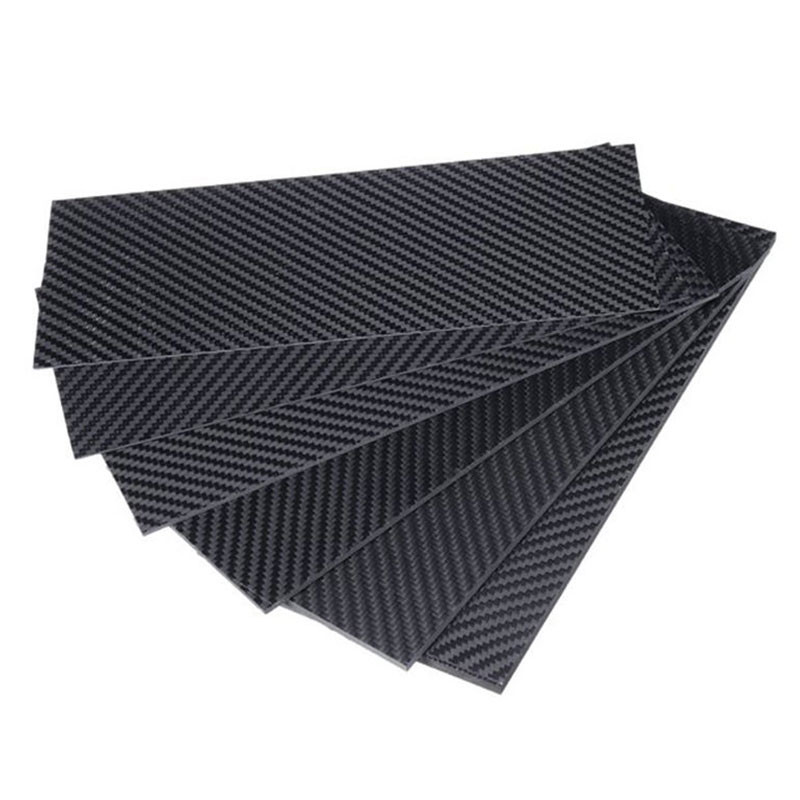

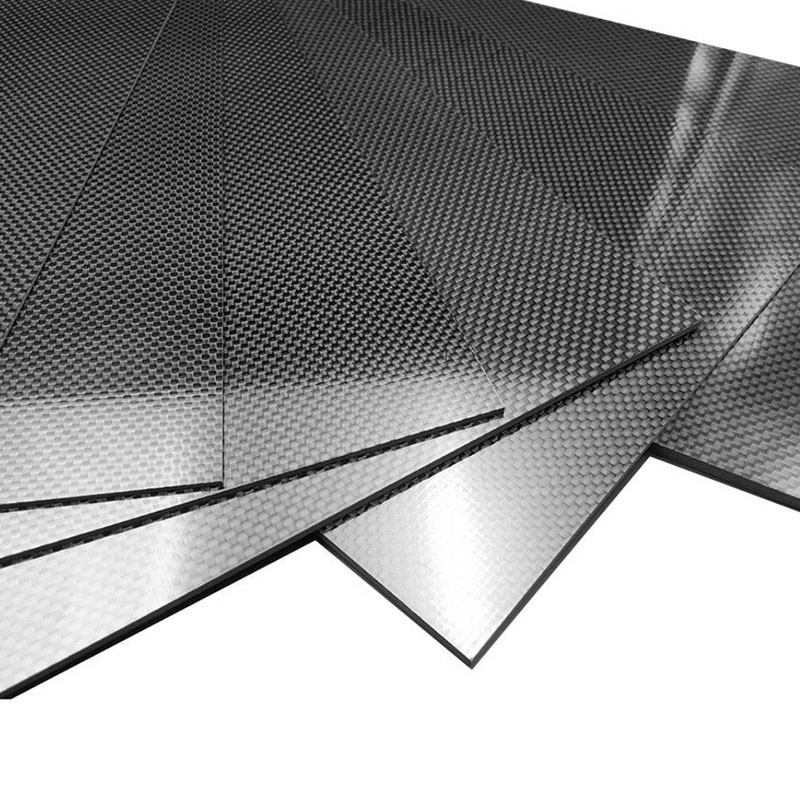

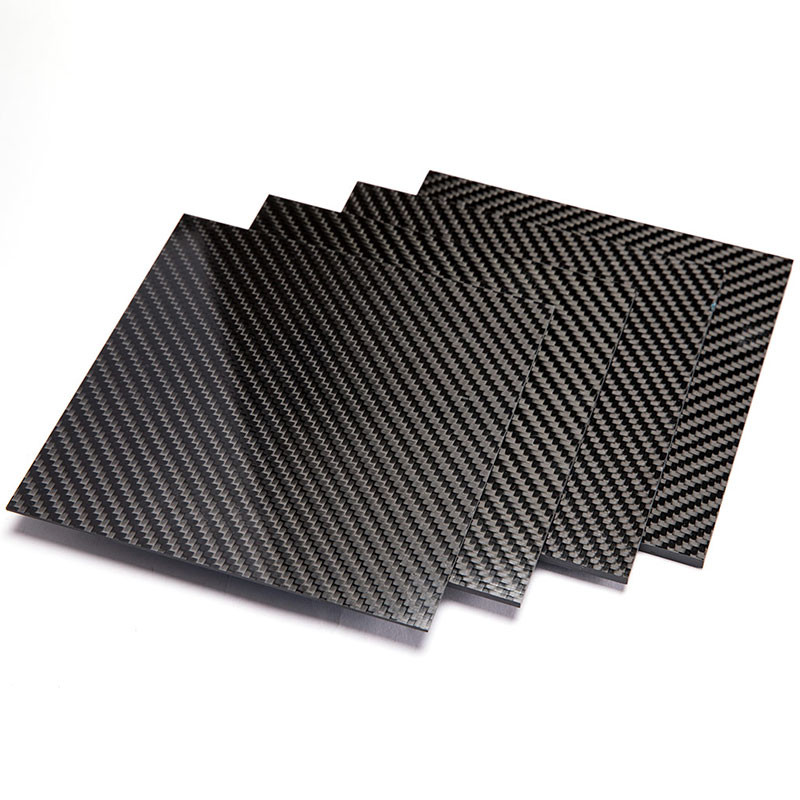

This panel has a 2×2 twill weave pattern, one of the most common weave patterns in many markets. The finished side of the panel has a classic 2×2 twill, 3K woven carbon fiber appearance and is nearly pinhole-free with a high-gloss finish. The panel’s backside showcases a matte textured ‘peel ply’ finish suitable for secondary bonding, if necessary.

Our high-strength vacuum-infused composite panels are manufactured using 100% carbon fiber reinforced with a near-clear epoxy resin matrix. All composite stacks are laid by hand to ensure maximum homogenization of fiber alignment. Stacks are then vacuum-infused and cured under pressure greater than 28 inches of mercury. The tool is then elevated to an optimal temperature to produce a near-perfect composite panel with high-grade mechanical properties and a class-A surface finish.

Carbon Fiber Sheet Plate Specification:
