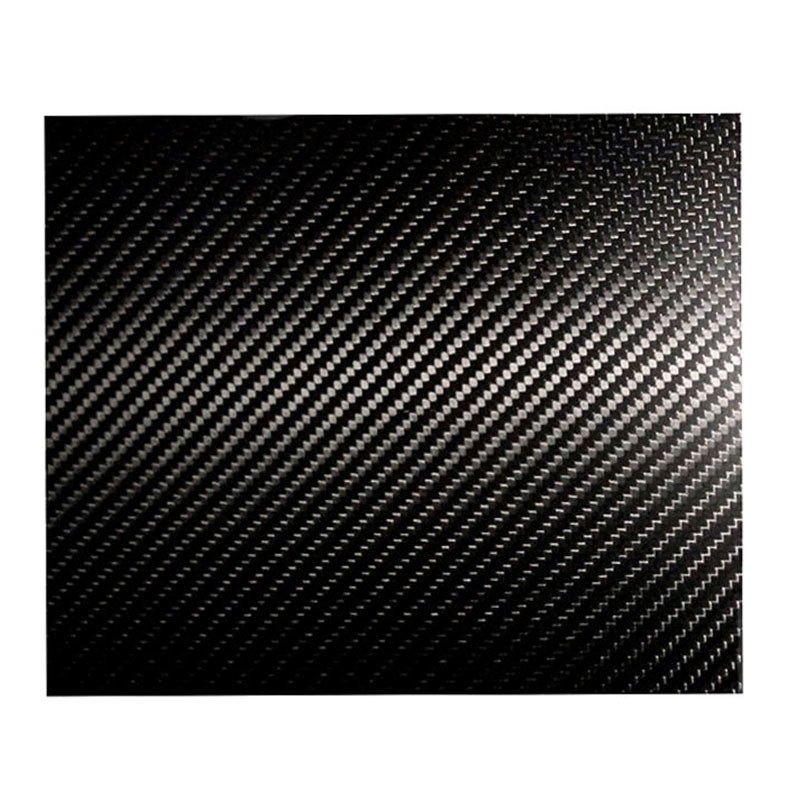

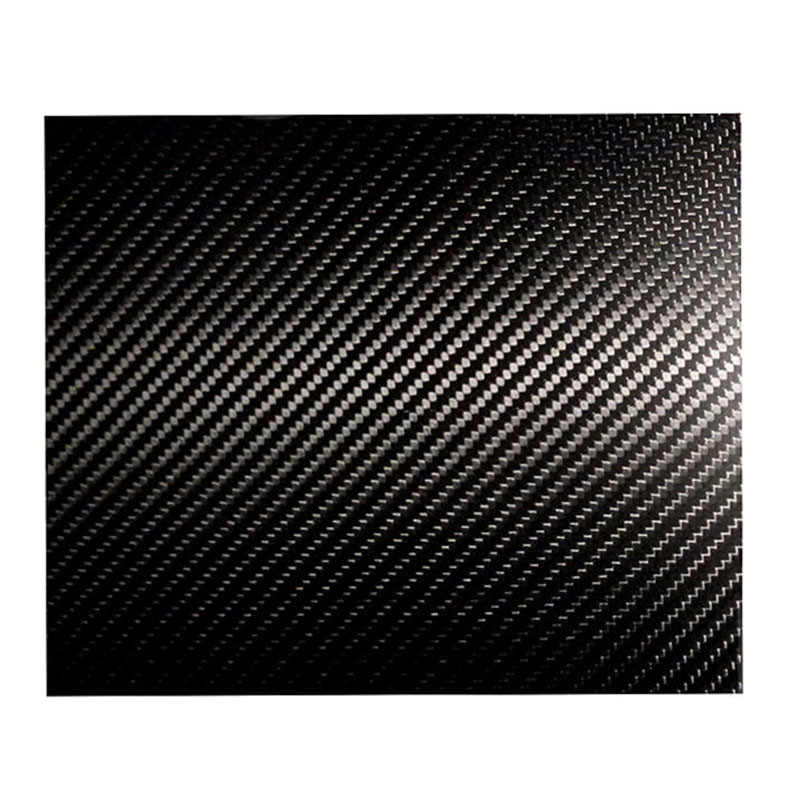

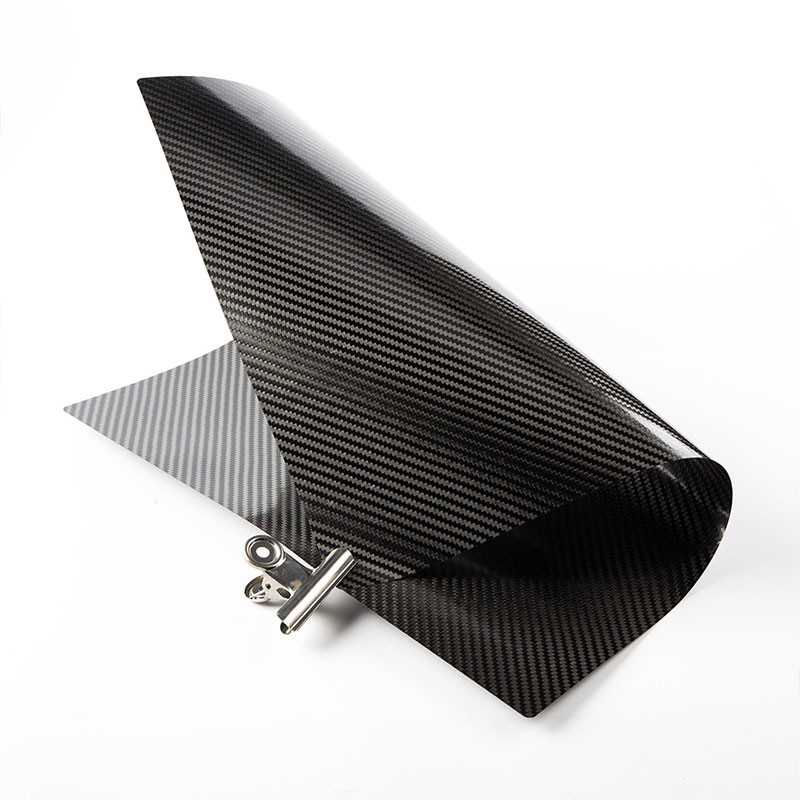

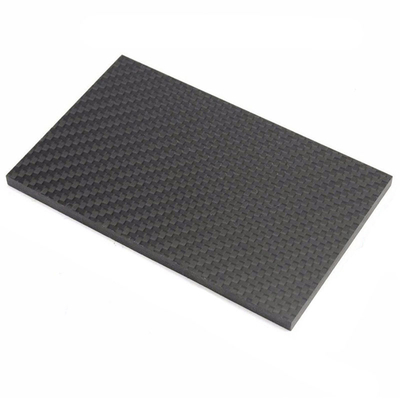

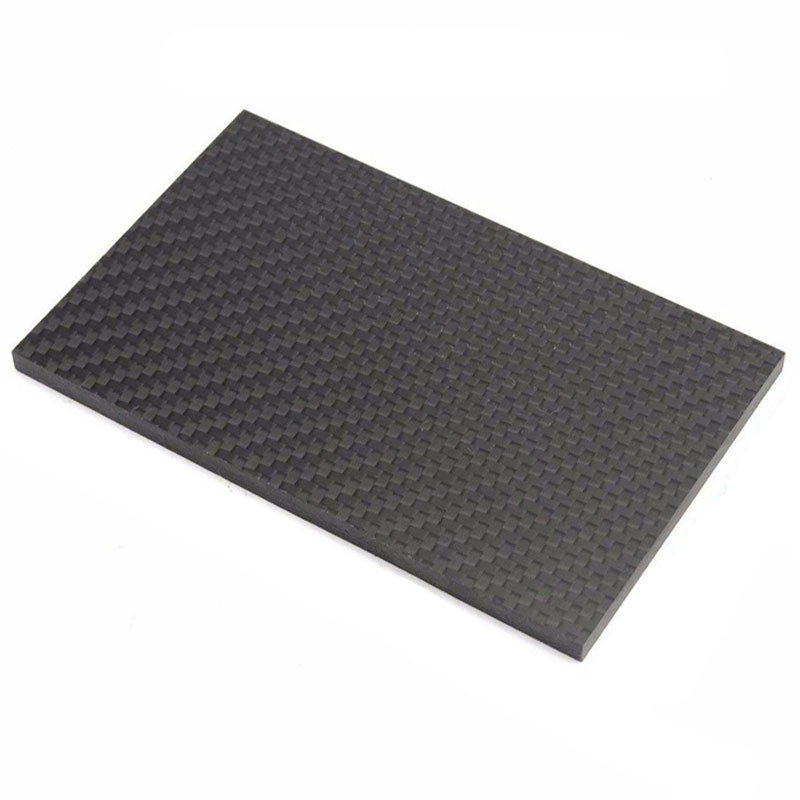

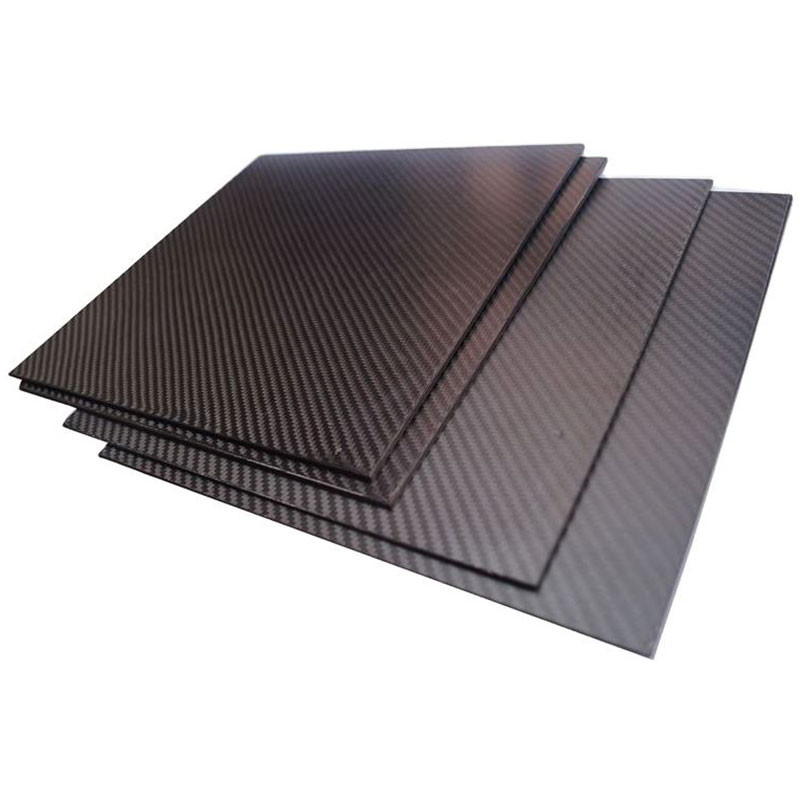

CNC Cutting 100% Carbon Fiber Plates for Drone Cut Matt Finish 3K CFRP Plate

Product Description

CNC Cutting 100% Carbon Fiber Plates for Drone Cut Matt Finish 3K CFRP Plate

Carbon fiber plates are flat, rigid structures made from layers of carbon fiber-reinforced polymer. These plates are known for their high strength-to-weight ratio, stiffness, and resistance to corrosion and fatigue.

Carbon fiber plates are commonly used in various industries, including aerospace, automotive, marine, and sports equipment, where lightweight and high-strength materials are required. They are used in a wide range of applications, including structural components, panels, brackets, and other parts where high strength, stiffness, and low weight are critical.

The manufacturing process of carbon fiber plates involves laying up layers of carbon fiber fabric and impregnating them with resin. The composite material is then cured under heat and pressure to form a solid plate. The number and orientation of the carbon fiber layers can be adjusted to achieve the desired strength and stiffness properties.

Application:

1. UAV, RC Toy model, Aeromodelling, Helicopter Model
2. Electrical products
3. Shipbuilding
4. Space aviation defense
5. Automobile parts

Carbon fiber plates offer several key features that make them popular in various industries:

• High Strength-to-Weight Ratio: Carbon fiber plates are incredibly strong for their weight, making them ideal for applications where high strength and low weight are critical.
• Stiffness: Carbon fiber plates are also very stiff, which means they maintain their shape and resist deformation under load.
• Corrosion Resistance: Carbon fiber is inherently resistant to corrosion, making it suitable for use in harsh environments.
• Fatigue Resistance: Carbon fiber plates have excellent fatigue resistance, meaning they can withstand repeated loading and unloading cycles without failure.
• Customizable: The properties of carbon fiber plates can be customized by adjusting the number and orientation of the carbon fiber layers, allowing for tailored solutions for specific applications.
• Aesthetic Appeal: Carbon fiber plates have a distinct, high-tech appearance that can enhance the visual appeal of products.
• Versatility: Carbon fiber plates can be used in a wide range of applications, including aerospace, automotive, marine, and sports equipment, due to their combination of properties.

Overall, carbon fiber plates are a versatile and high-performance material that is well-suited for a variety of demanding applications.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
