Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Carbon Fiber Plate Material: Carbon Fiber Pre-Preg With Epoxy Resin
Surface: 3K, Twill Or Plain, Matt Or Gloss Surface Ply Orientation: Woven 0/90 And ±45
Thickness: 0.1-60.0mm Weight: 1.5g/cm3
Weave: 3K Plain / 3K Twill / Unidirection Use: Blanket, Industry, UAV, Accessories, Outdoor, Car
High Light:

Single Sided 3K Carbon Fiber Plate

,

3K Glossy Surface Carbon Fiber Sheet

,

Epoxy Resins Carbon Fiber Board

Product Description

Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate - Wide Application



High quality carbon fiber sheet made from carbon fiber and epoxy resins. The sheet is made from 100% carbon fiber (aka full carbon), recommended in particular for construction purposes where high bending strength and stiffness is crucial.



Advantages:

  • Sheet made with advanced infusion technology (in vacuum) that ensures stiffness improved by approximately 30% compared to manually produced sheets.
  • Made from high quality 100% carbon fiber.
  • Mirror-like perfect gloss of top layer.
  • Extraordinary appearance, without any defects related to air micro bubbles (pinholes) – very common in the case of manually produced sheets.
  • Low weight – only ~ 7.3 kg (17.84 lb).
  • The sheet is cured in production at 50 °C to improve bending strength, stiffness and thermal resistance up to 70 °C.
  • Cut to dimensions with CNC machining center – which ensures stable and precise dimensions.
  • Easily cutting with traditional tools such as a scroll saw, blade or grinder.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?



At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.



2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?



Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.



3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?



We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.



4. Are carbon fiber sheets of the quasi-isotropic type available?



We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.



5. What is the thermal resistance of carbon fiber sheets?



Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.



6. How can I cut carbon fiber sheets in my workshop?



The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.



7. Can carbon fiber sheets be painted?



Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.

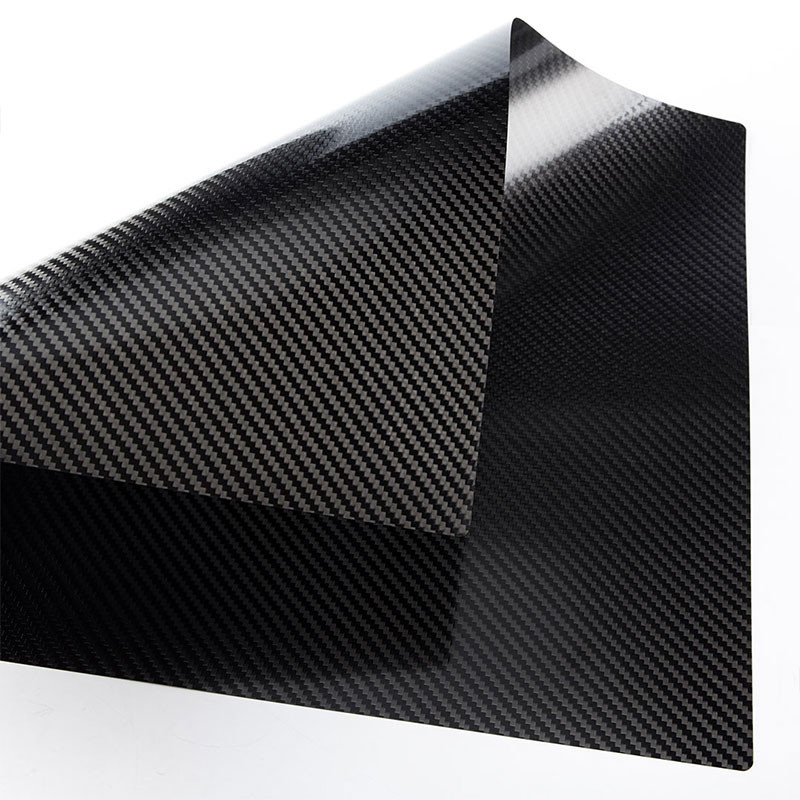

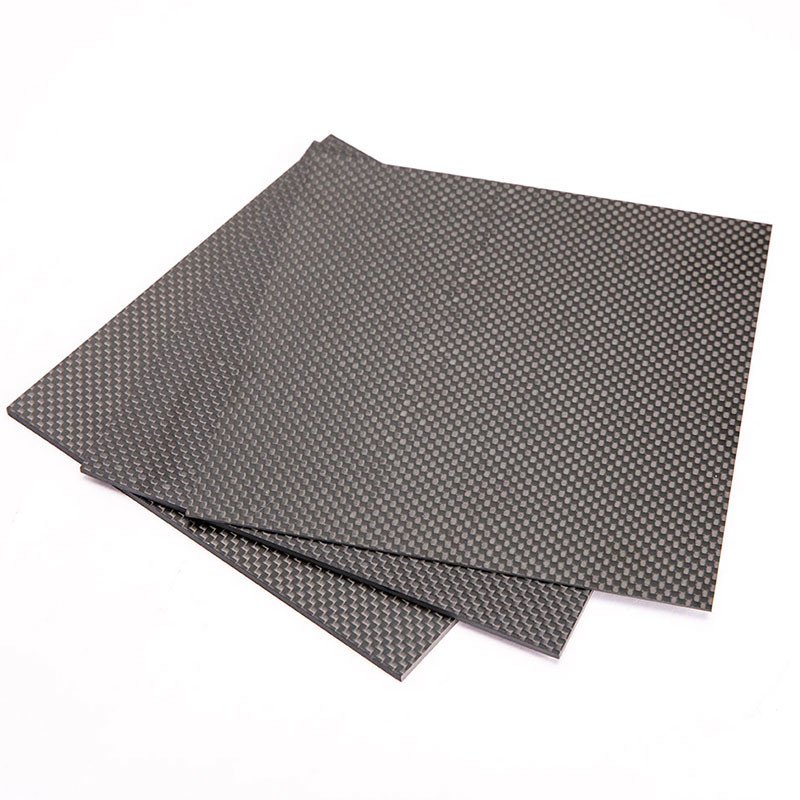

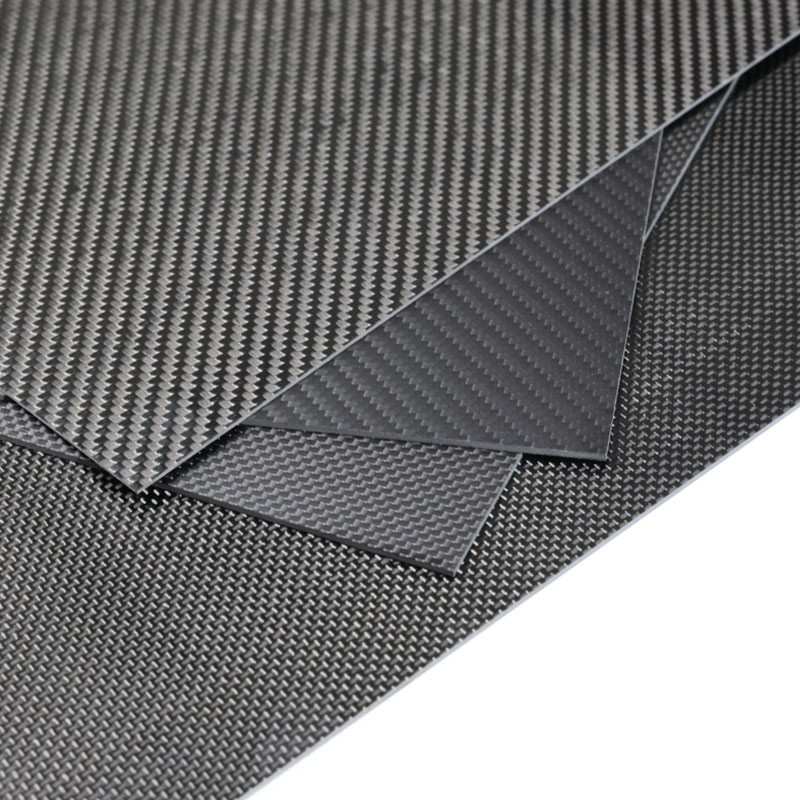

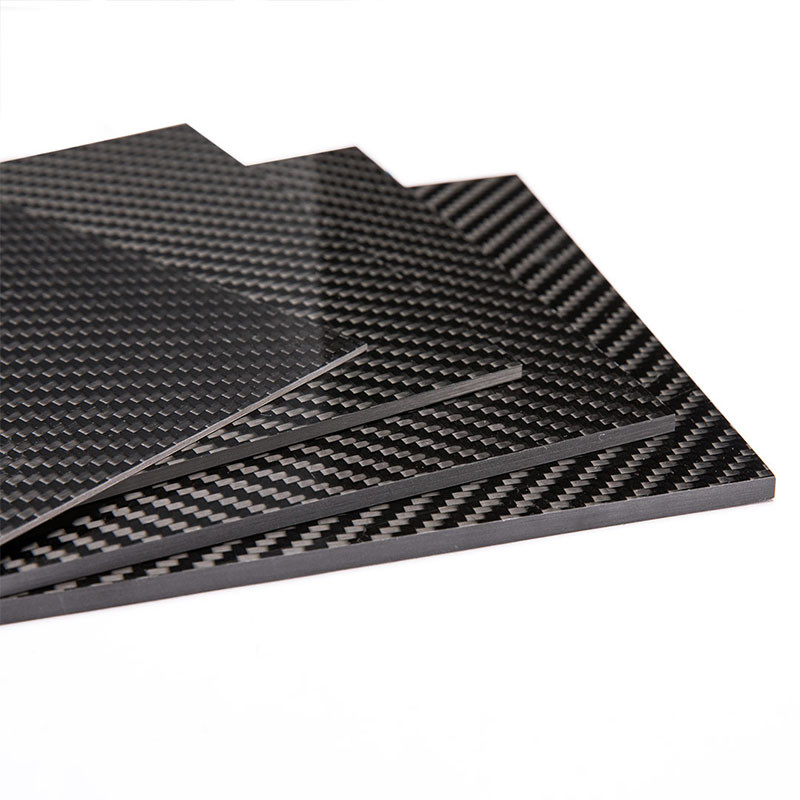

Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 0Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 1Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 2

Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 3

Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 4Epoxy Resins 100% 3K Glossy Surface Carbon Fiber Plate Wide Application 5
