100% 3K High Strength Carbon Fiber Sheets Extremely Strong And Durable

Product Description

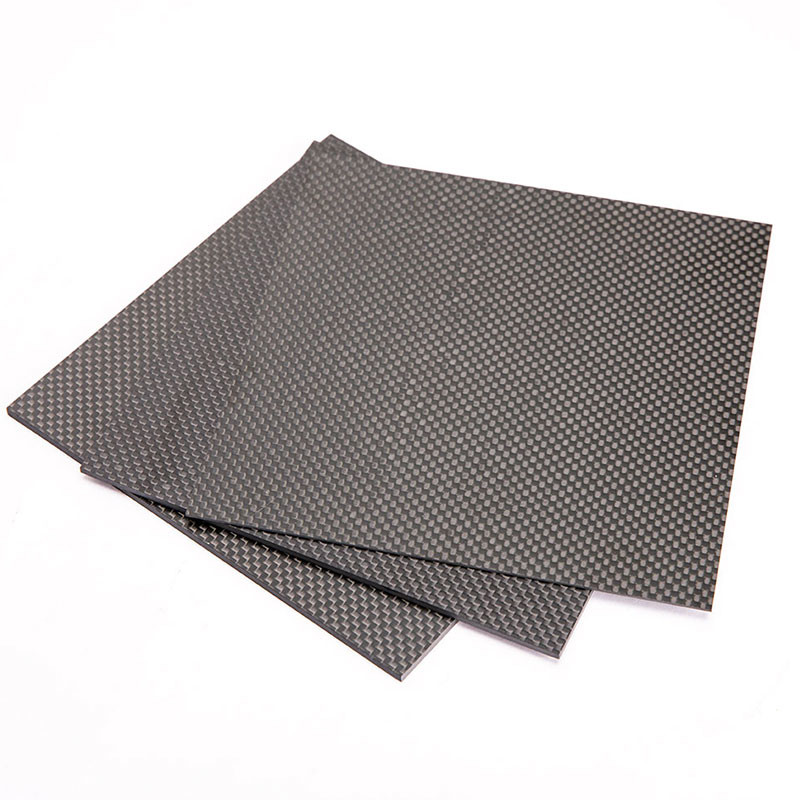

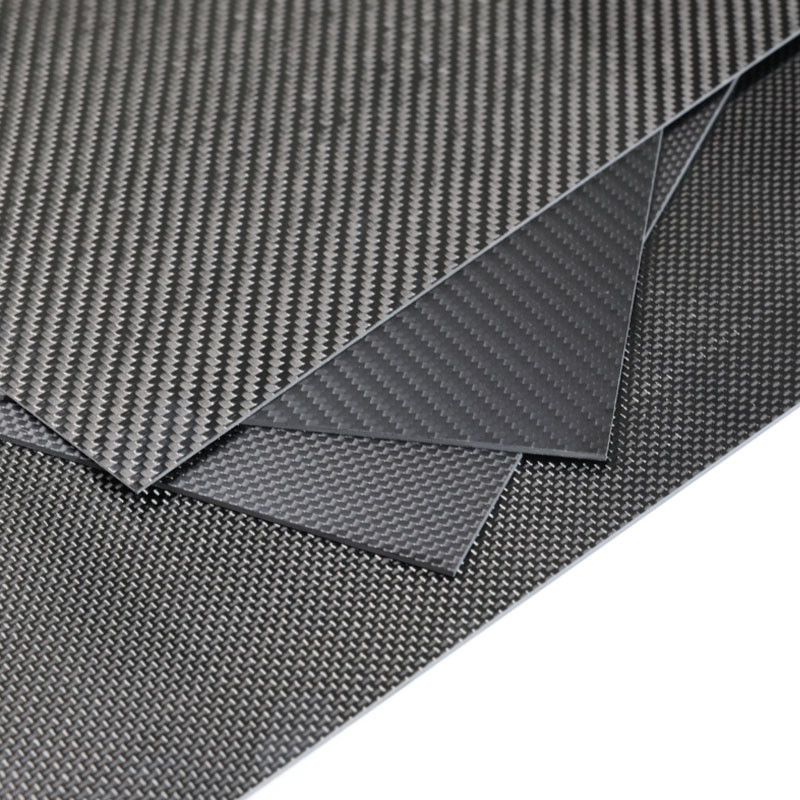

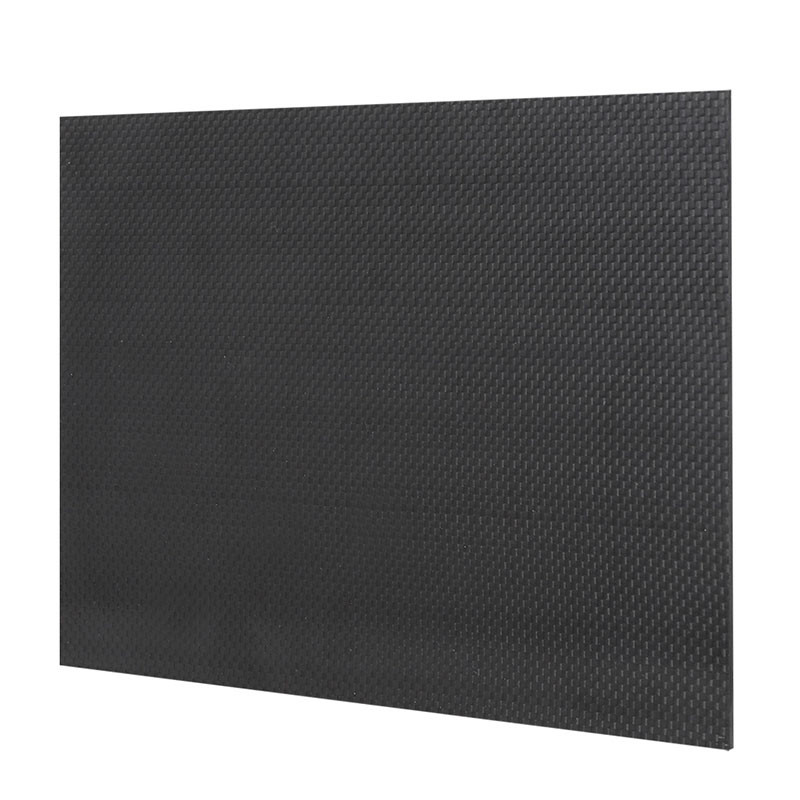

Extremely Strong and Durable 100% 3K High Strength Carbon Fiber Sheets

High-strength carbon sheets are laminated using industrial T700 fibers and produced in the Netherlands. The combination of uni-directional and twill fabrics ensures a high-strength performance of the carbon fiber sheets. The strength of the carbon plates is evenly distributed 50/50 in both the longitudinal and transverse directions. The surface is a silk gloss and 3K twill fabric. The carbon material is chemically resistant, doesn’t rust, is dimensionally stable, and is nearly insensitive to shrinkage and expansion.

Key Characteristics:

• Carbon Fiber: Carbon fiber itself is a high-strength material made from carbon atoms bonded together in a crystal alignment. It is known for its outstanding strength-to-weight ratio, making it stronger than many traditional materials while being significantly lighter.
• Composite Structure: Carbon fiber sheets are often composite materials, consisting of layers of carbon fiber fabric (woven in patterns such as plain weave, twill weave, or others) combined with a resin matrix. The combination of the fibers and resin enhances the overall strength and stiffness of the material.
• High Modulus of Elasticity: High-strength carbon fiber sheets typically have a high modulus of elasticity, indicating their ability to resist deformation under stress. This characteristic contributes to their stiffness and structural integrity.
• Tensile Strength: Tensile strength refers to a material's ability to withstand stretching or pulling forces without breaking. High-strength carbon fiber sheets exhibit impressive tensile strength, making them suitable for applications where forces act in tension.
• Impact Resistance: While carbon fiber is known for its strength, the specific composite structure can influence impact resistance. Some high-strength carbon fiber sheets are designed to provide good impact resistance in addition to high tensile strength.
• Applications: High-strength carbon fiber sheets find applications in various industries, including aerospace, automotive, marine, sports and recreation, robotics, and industrial equipment. They are used to create lightweight yet robust components.
• Customization: These sheets are often available in various thicknesses and sizes, allowing for customization based on specific project requirements. The ability to cut or shape these sheets adds to their versatility.
• Quality and Manufacturing: The quality of high-strength carbon fiber sheets can vary based on the manufacturing process, the quality of materials used, and the specific resin matrix employed. High-quality manufacturing processes result in more reliable and consistent performance.
• Surface Finish: Depending on the application and aesthetic preferences, high-strength carbon fiber sheets may have different surface finishes, such as matte or glossy.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
