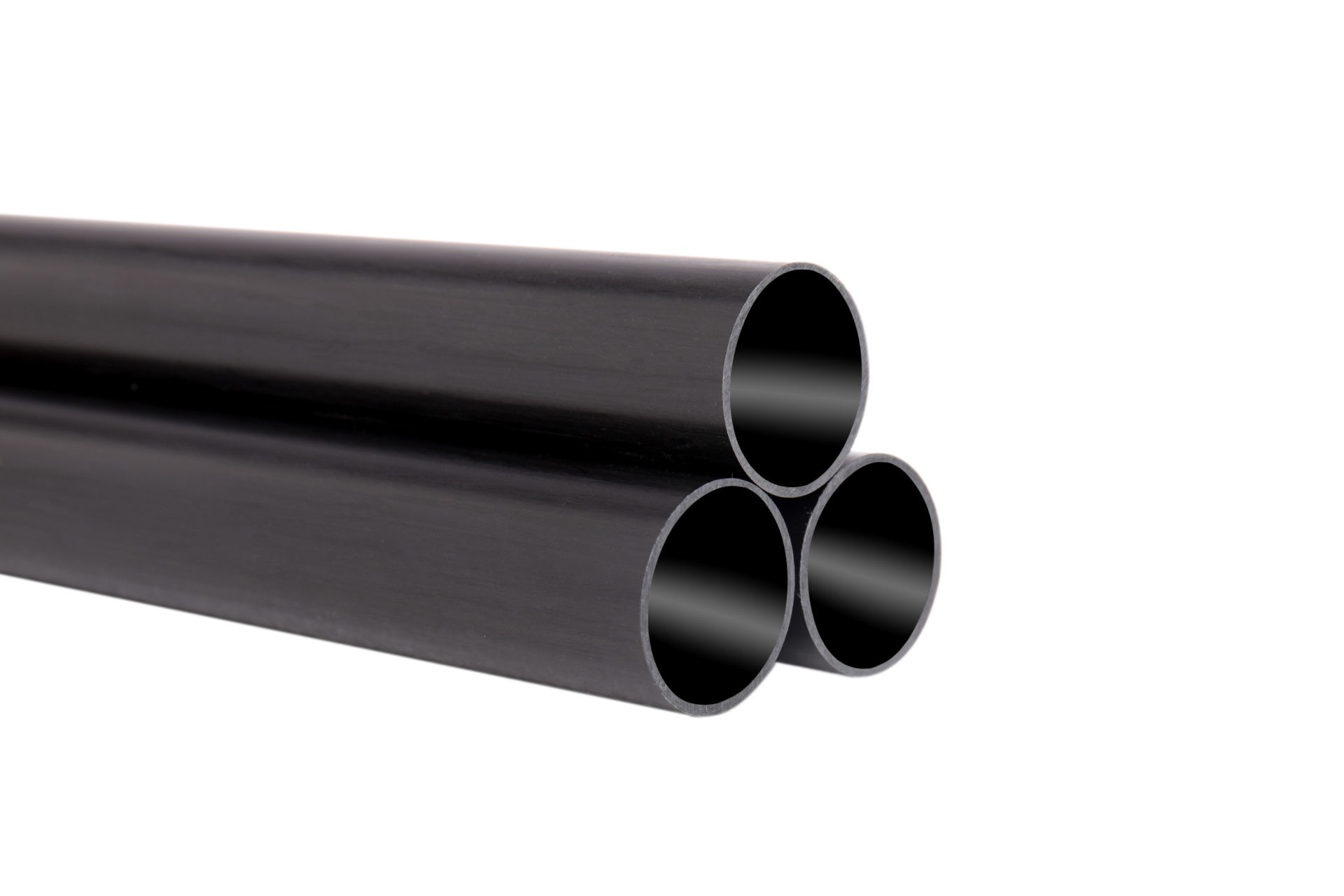

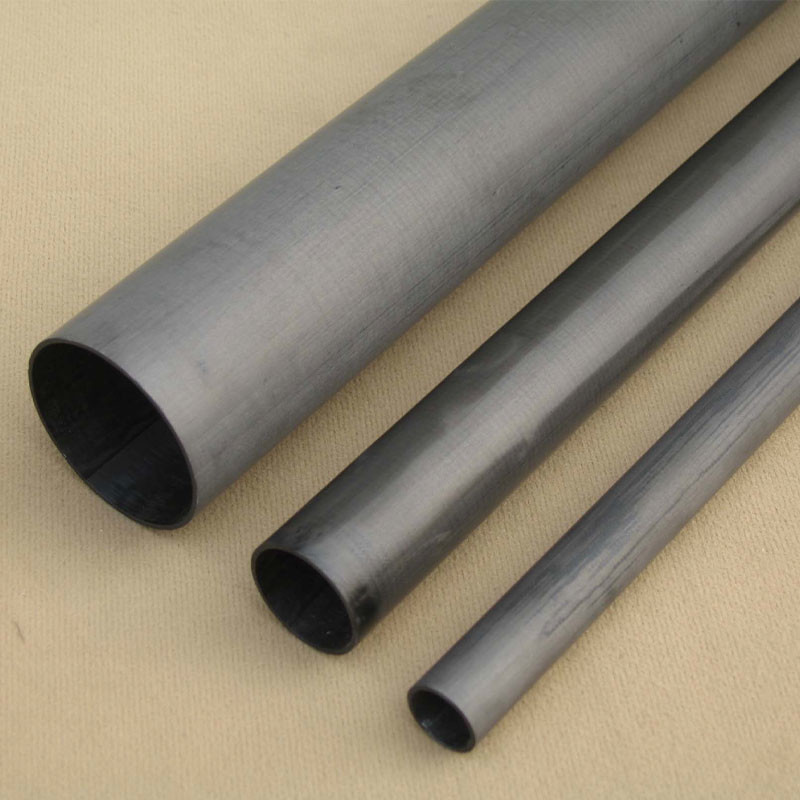

3K Twill Carbon Fiber Pultruded Tube Custom 30mm 40mm 50mm 60mm

Product Description

High Quality Carbon Fibre Pultruded Tube Custom 30mm 40mm 50mm 60mm

Pultruded carbon tubes are created by pulling linearly-oriented carbon fibers through a resin bath and then a series of tooling to create the specified inner and outer diameters of the tube. The carbon tube is then heated to cure it. Carbon tubes are especially stiff longitudinally, due to the unidirectional orientation of the fibers.

What is pultruded carbon fiber?

Our Carbon Fiber Pultruded Tubes are manufactured by pulling continuous carbon fibers combined with a resin matrix through a heated steel forming die. This process is referred to as pultrusion and is used for producing continuous lengths of composite materials with constant cross-sections.

What is the strength of carbon fiber pultrusion?

Tensile Strength: 250 ksi | 1.72 GPa. Tensile Modulus: 20 msi | 138 GPa. Ultimate Shear Strength: 6.0 ksi | 41.3 Mpa.

How do you safely cut carbon fiber tubes?

When cutting composites, it is ideal to use a diamond coated abrasive cut-off blade rather than a toothed blade. Teeth can catch the fibers and tear the material resulting in splintering or delamination. Thicker tubes may generate enough heat to re-activate the epoxy causing the blade to “gum-up”.

Can carbon fiber tube be threaded?

The Threaded Tube Insert component is used to attach additional parts to the truss structure off the end of a tube. The tube end insert is bonded securely into the end of a carbon fiber tube and provides a means to thread bolts or other parts with mating threads into the tube ends.

Are carbon fiber tubes strong?

Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight.
