High Strength Durable Light 3K Carbon Fiber Board Composite Sheet 500mmx500mm
Contact Person : Terry.Chang, Grace Gu
Phone Number : +86-13681832139
WhatsApp : +8619537611058
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Normal Corrugated Carton Packing for International Shipment | Delivery Time : | 7 working days after receiving Order Payment |
Payment Terms : | T/T, PayPal,Western Union , L/C | Supply Ability : | 1500pcs month |
Place of Origin: | China | Brand Name: | Tanku |
---|---|---|---|
Certification: | SGS, ROHS | Model Number: | TM_340mm_410mm_2.5mm |
Detail Information |
|||
Features: | Strength And Light Weight | Product: | Carbon Fiber Panels |
---|---|---|---|
Thickness: | 0.5mm-4mm | Material: | 3K Carbon Fiber |
Surface: | Glossy/Matte | Weave: | Twill/Plain |
Tensile Strength: | 3200Mpa | Product Type: | Carbon Fiber Board/ Panels |
High Light: | Plain Matte Carbon Fiber Plate,Forged Composite Carbon Fiber Panels,3mm Carbon Fiber Panels |
Product Description
Forged Composite Carbon Fiber Panels in Custom Sizes Such As 1mm, 2mm, 3mm, 4mm, Etc.
Carbon fiber sheets possess excellent thermal and electrical conductivity properties. They have low thermal expansion coefficients, making them suitable for applications where dimensional stability is crucial, such as in satellites or high-precision instruments. Additionally, their electrical conductivity allows for the effective dissipation of electrical charges, making them useful in various electronic and electrical applications.
While carbon fiber sheets offer numerous advantages, they can be expensive compared to traditional materials, which can limit their widespread use in certain industries. Manufacturing carbon fiber sheets also requires specialized expertise and equipment.
Carbon fiber sheets continue to revolutionize industries that demand high-performance materials. Their exceptional strength, lightweight nature, corrosion resistance, and thermal/electrical properties make them invaluable in applications ranging from aerospace and automotive to sports and construction. As technology advances, carbon fiber sheets are likely to find even more diverse and innovative applications, driving further development and refinement of this remarkable material.

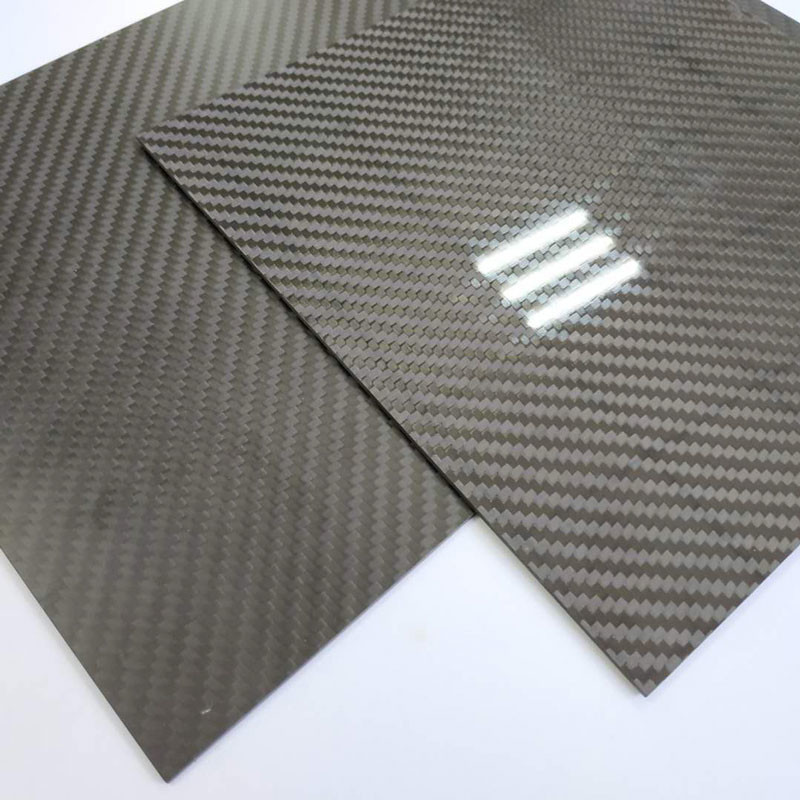

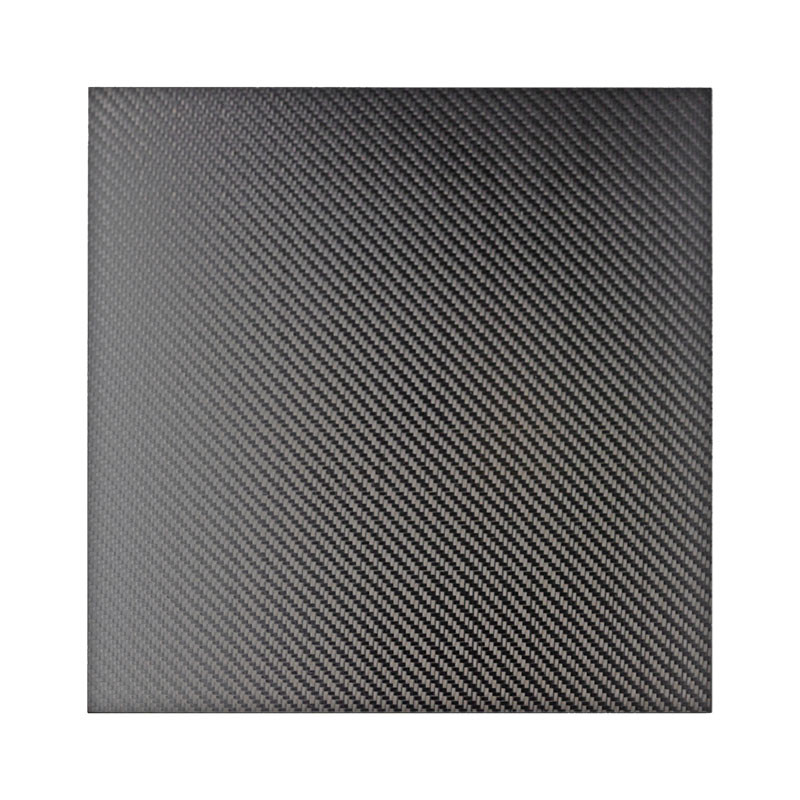

This panel has a 2×2 twill weave pattern, one of the most common weave patterns in many markets. The finished side of the panel has a classic 2×2 twill, 3K woven carbon fiber appearance and is nearly pinhole-free with a high-gloss finish. The panel’s backside showcases a matte textured ‘peel ply’ finish suitable for secondary bonding, if necessary.
Our high-strength vacuum-infused composite panels are manufactured using 100% carbon fiber reinforced with a near-clear epoxy resin matrix. All composite stacks are laid by hand to ensure maximum homogenization of fiber alignment. Stacks are then vacuum-infused and cured under pressure greater than 28 inches of mercury. The tool is then elevated to an optimal temperature to produce a near-perfect composite panel with high-grade mechanical properties and a class-A surface finish.
Carbon Fiber Sheet Plate Specification:
Item Name |
Thickness |
Length & Width |
Weave |
Finish |
SKU Code |
N.W. |
Regular MOQ |
1st Order MOQ |
Ship From |
05005060, Full CF Plate, Plain Weave,6K, Matte, TT |
5 |
500mm*600mm |
Twill |
Glossy |
TG05005060PLTFCF3KTT |
2.48 |
5 |
1 |
China factory |
04005060, Full CF Plate, Plain Weave,5K, Matte, TT |
4 |
500mm*600mm |
Twill |
Glossy |
TG04005060PLTFCF3KTT |
1.94 |
5 |
1 |
China factory |
03005060, Full CF Plate, Plain Weave,4K, Matte, TT |
3 |
500mm*600mm |
Twill |
Glossy |
TG03005060PLTFCF3KTT |
1.46 |
5 |
1 |
China factory |
02505060, Full CF Plate, Plain Weave,3K, Matte, TT |
2.5 |
500mm*600mm |
Twill |
Glossy |
TG02505060PLTFCF3KTT |
0 |
5 |
1 |
China factory |
02005060, Full CF Plate, Plain Weave,3K, Matte, TT |
2 |
500mm*600mm |
Twill |
Glossy |
TG02005060PLTFCF3KTT |
0.96 |
5 |
1 |
China factory |
01505060, Full CF Plate, Plain Weave,3K, Matte, TT |
1.5 |
500mm*600mm |
Twill |
Glossy |
TG01505060PLTFCF3KTT |
0.73 |
5 |
1 |
China factory |
01005060, Full CF Plate, Plain Weave,3K, Matte, TT |
1 |
500mm*600mm |
Twill |
Glossy |
TG01005060PLTFCF3KTT |
0.53 |
5 |
1 |
China factory |
