12K High Strength Carbon Fiber Board Sheet Plate 3mm Thickness

Product Description

New Design Plate 3mm Sheet 12K High Strength Carbon Fiber Board with Great Price

Our carbon fiber sheets are made of 100% real carbon fiber without any filling materials, The sheets have our durable matte mirror finish and twill weave on both sides. The finish is perfect for high-end decorative applications and cutting carbon fiber products. We do not make fake carbon fiber sheets.

Their inner are constructed using layers of unidirectional carbon fiber prepreg layed up in a 0/90 degree orientation with a single layer of 2x2 3K twill weave carbon fiber cloth on two sides surfaces. Our flat carbon fiber plates have the most beautiful surface, the best quality, and a competitive price.

• Color: Black
• Weave: Twill Weave
• Material: Real Carbon Fiber
• Surface Treatment: 3K Glossy or Matte Surface

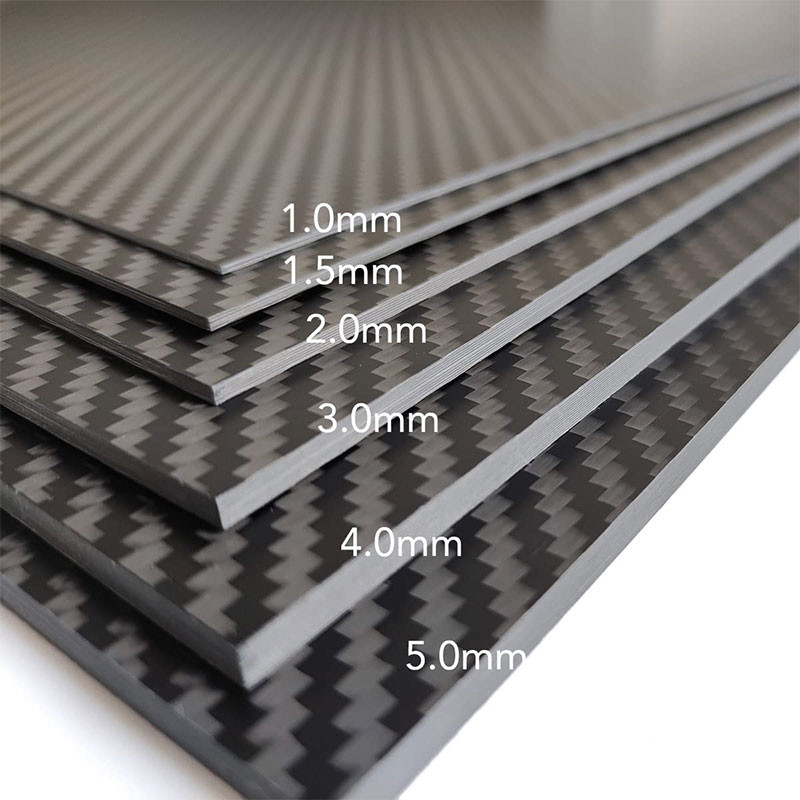

• Thickness: 0.5 / 1 / 2 / 3 / 4 / 5mm – 15mm

Product Features

1. 100% high-quality pure carbon fibre (aka full carbon).
2. Pin-hole-free high-gloss cosmetic surface.
3. Flat, textured bonding surface on the reverse.
4. Wide range of thicknesses and sheet sizes available.
5. Offer CNC cutting service according to your design drawings, Cut to dimensions with a CNC machining center – which ensures stable and precise dimensions.

Application

Our carbon fiber sheet standard size is 400 x 500 mm, 500 x 500 mm, and 500*600mm, also custom carbon plate sizes fit your projects, max size of 1000x1000mm. If you want to cut some carbon fiber parts or products, we suggest you choose our standard size 400 x 500 mm, it's more economical, Or the LIJIN team offers CNC cutting service according to your design drawings.

Carbon fiber sheets are suitable for a huge range of structural and cosmetic applications within motorsport, racing car chassis and parts, marine, light aircraft, shop-fitting, exhibitions, automation, medical, scientific, and many more. We currently supply specialist carbon fiber sheets and cut-to drone frames, money clips, key chains, sim racing steering wheels, business cards, and many famous brand carbon fiber parts.

Our sophisticated manufacturing process and facilities mean that Jinjiuyi team can produce carbon fiber or composite sheets to almost any specification. Good news for you, we support custom carbon fiber sheets for small runs and offer reasonable prices for CNC cutting/machining service with fast delivery.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

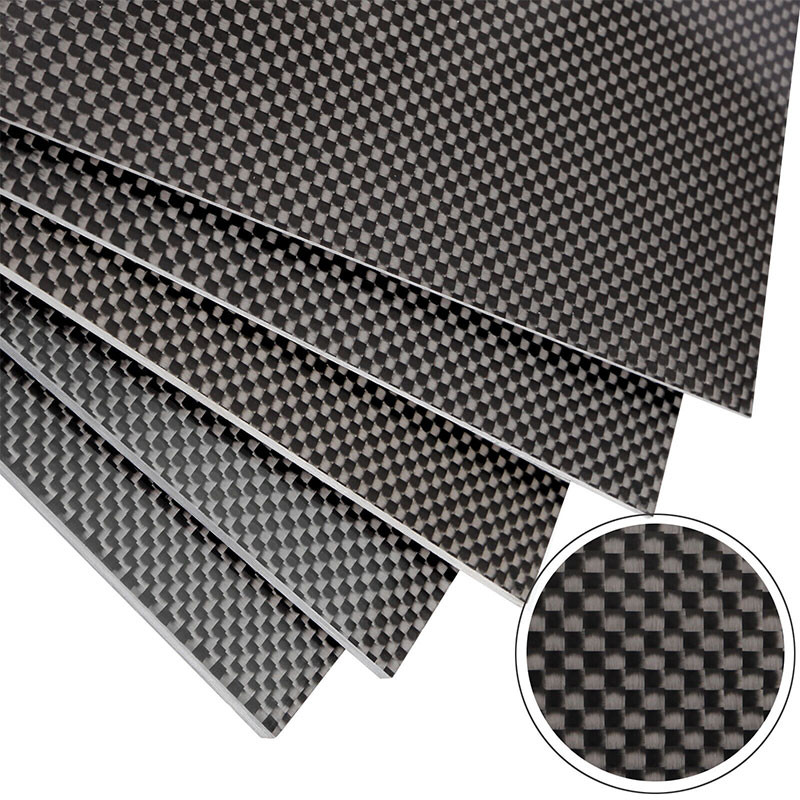

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
