Industrial 100% 3K Carbon Fiber Roll Wrap Tube High Pressure Resistance

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fibre Roll Wrap Tube Pattern: 3K
Weight: 60g/m Density: 1.5g/cm3
C Content (%): 100% Usage: Industrial, Aerospace, Etc.
Working Temperature: 200 Degree Surface: Crude, Smooth, Polished, High Glossy
High Light:

Carbon Fiber Tube High Pressure Resistant

,

Roll Wrap 6mm Carbon Fiber Tube

,

Industrial 100% 3K Carbon Fiber Tube

Product Description

High Pressure Resistance Industrial 100% 3K Carbon Fibre Roll Wrap Tube



A Carbon Fiber Roll-Wrapped Tube is a cylindrical structure made using a roll-wrapping process with carbon fiber material. This manufacturing technique involves wrapping continuous strands of carbon fiber around a mandrel or core in a helical pattern, often with an epoxy resin matrix. The result is a tube with specific properties that make it suitable for various applications.



Roll wrapping carbon fiber tubes is the process we use for composite tubes that are smaller and shorter in length. LIJIN utilizes prepreg materials, including carbon fiber, fiberglass, kevlar, flax, and hybrids when roll-wrapping tubes. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as telescoping poles, automation robotics, idler rollers, and UAV components.



This carbon fiber tube uses high high-strength unidirectional T-700 equivalent carbon fiber core with an epoxy resin system to ensure a strong rigid tube that will meet your needs. In addition to this high-strength uni core this tube is finished with a beautiful 2×2 twill weave carbon fiber and then given a gloss finish. Due to raw material constraints, it is hard to create pipes exactly at a specific measurement unless they are built over-sized and machined down so that is why our pipes may be a few thousandths off from the ideal measurement we are trying to match.



Tubes are made with epoxy resin systems which have virtually zero water absorption making them more suitable for marine-based use than lower-quality tubing made with vinylester or polyester resin systems.



We have in-house paint facilities and are able to finish tubes with UV-stable paint systems, protecting the tubing against inevitable long exposure to the elements.



Product Name

Carbon Fiber Tube

Material

100% Carbon Fiber

Color

Black or custom

Surface

Matt/Glossy

Size

Custom thickness and length

Fiber Specifications

1K/3K/12K

Weaving Style

Plain/Twill

Fiber Type

1. Carbon fiber+carbon fiber
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber





Application

1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific Apparatus
7. Medical device
8. Others

Our Product

Carbon fiber tube, carbon fiber plate, carbon fiber profiles.

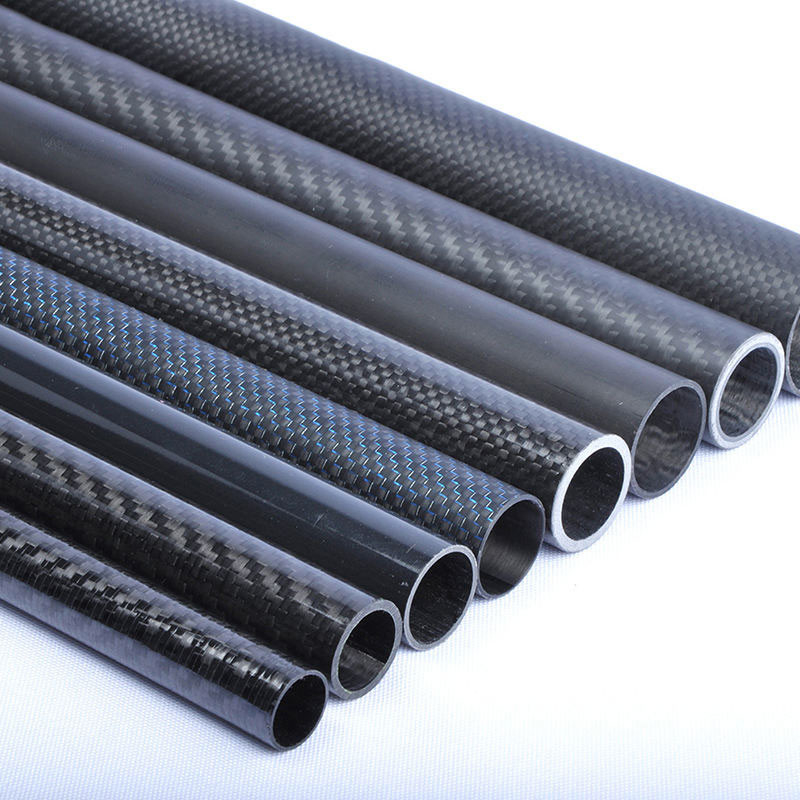

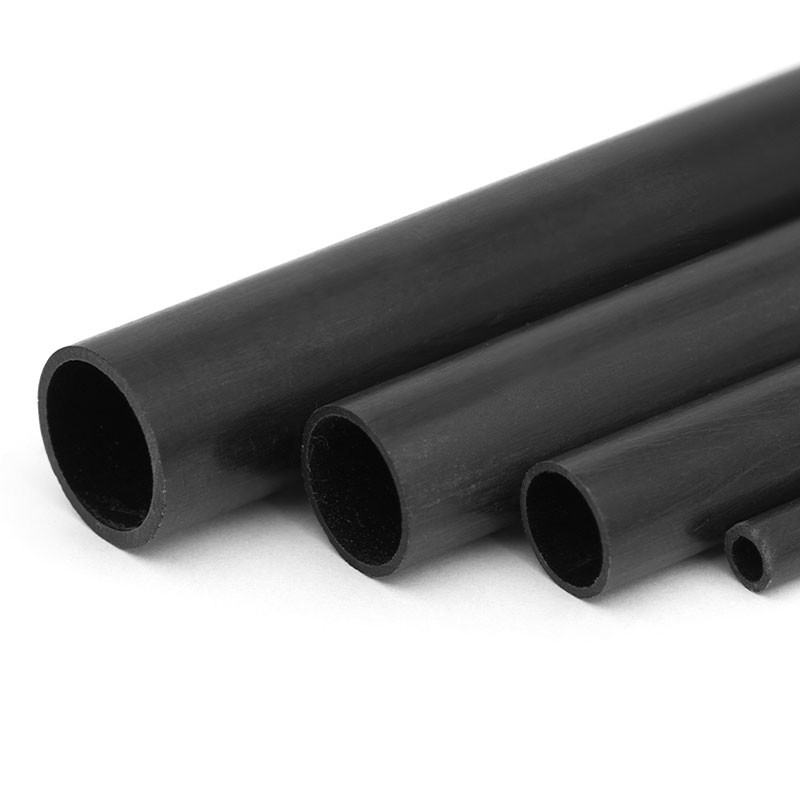

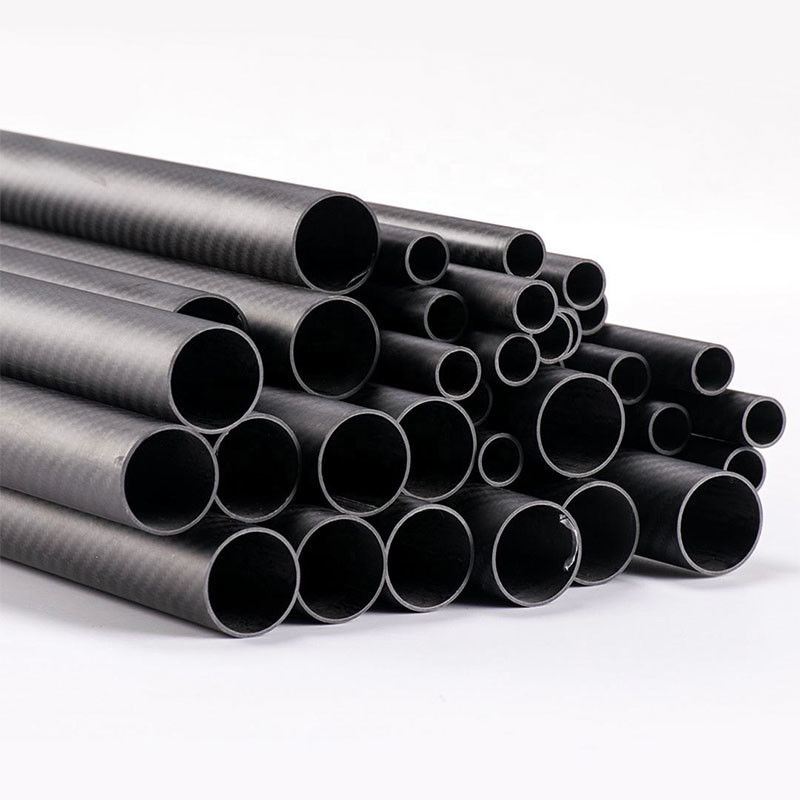

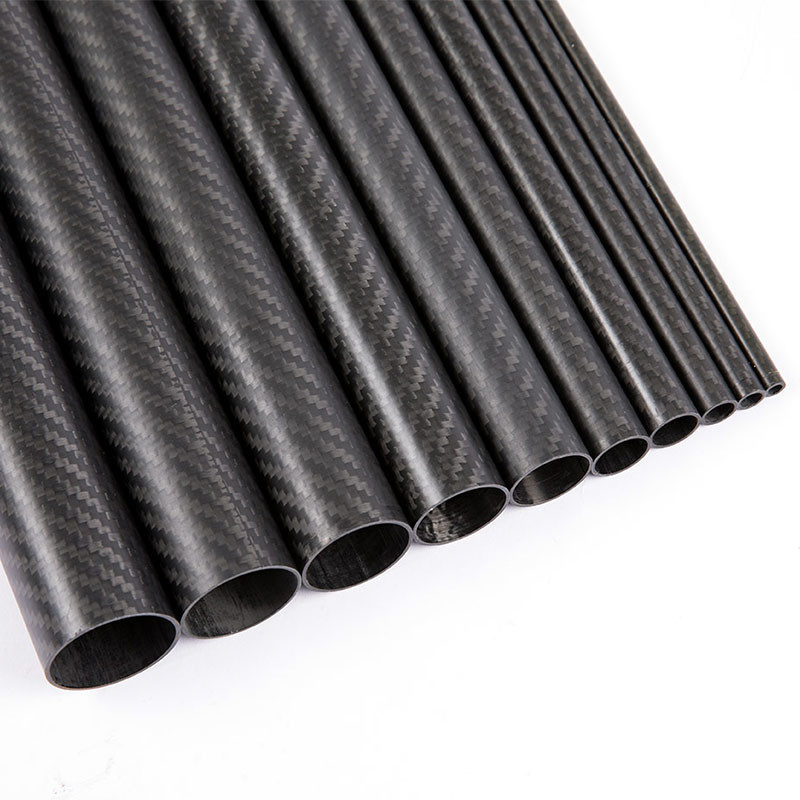

Industrial 100% 3K Carbon Fiber Roll Wrap Tube High Pressure Resistance 0Industrial 100% 3K Carbon Fiber Roll Wrap Tube High Pressure Resistance 1Industrial 100% 3K Carbon Fiber Roll Wrap Tube High Pressure Resistance 2Industrial 100% 3K Carbon Fiber Roll Wrap Tube High Pressure Resistance 3
