Product Description

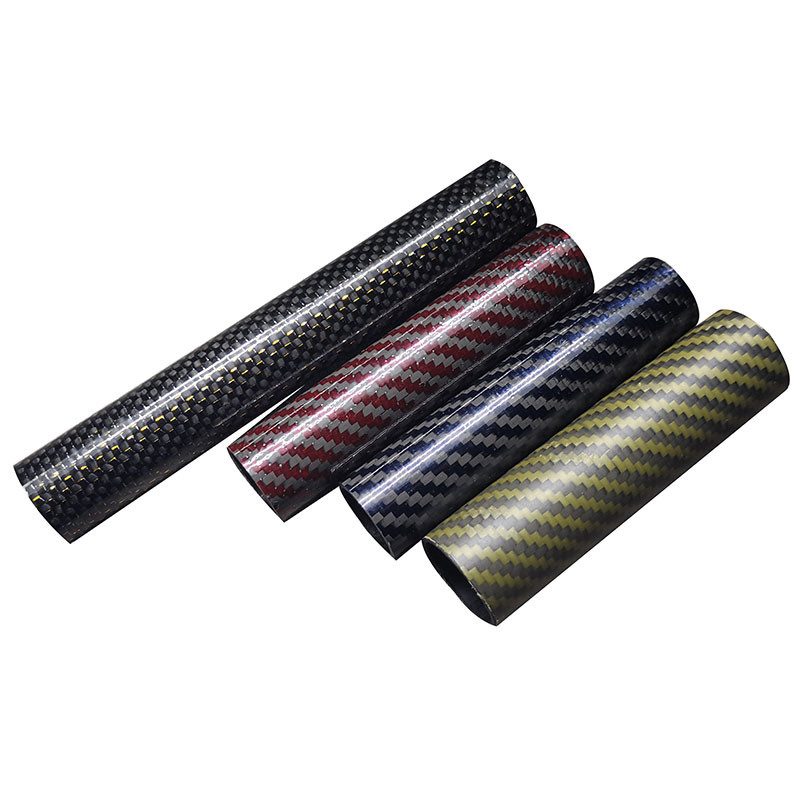

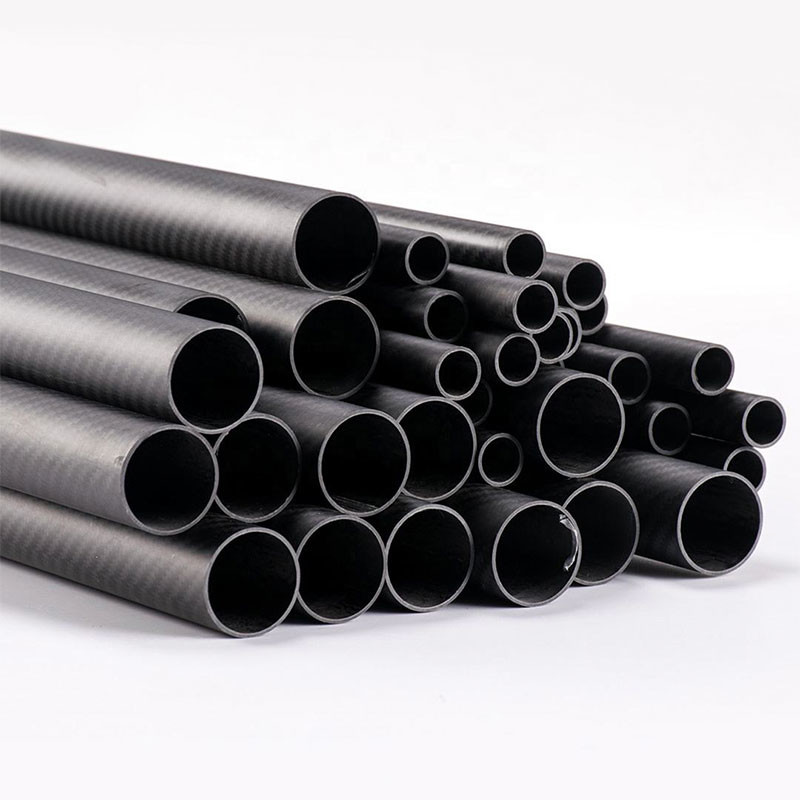

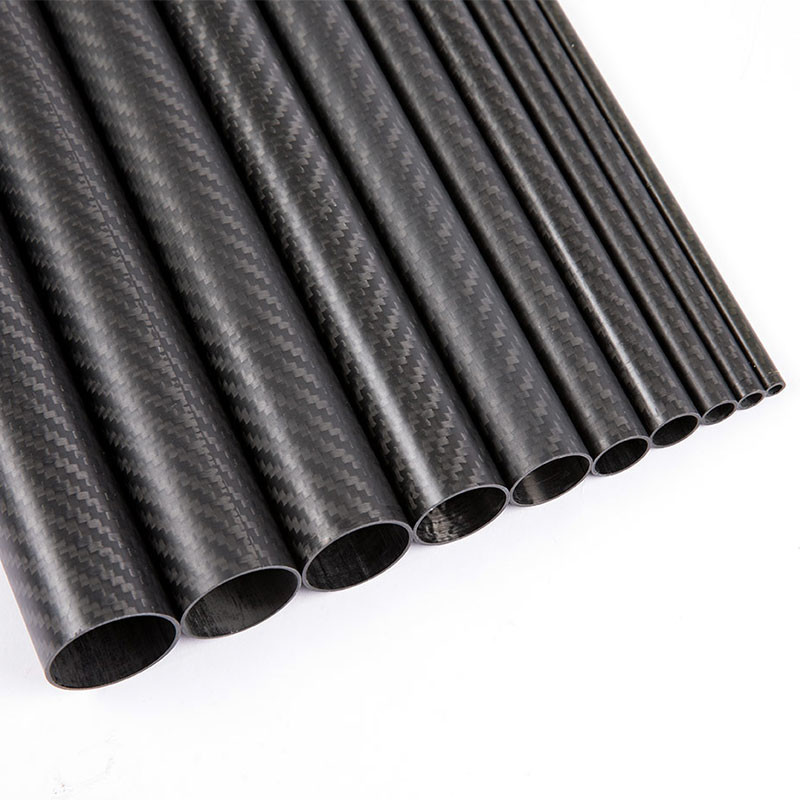

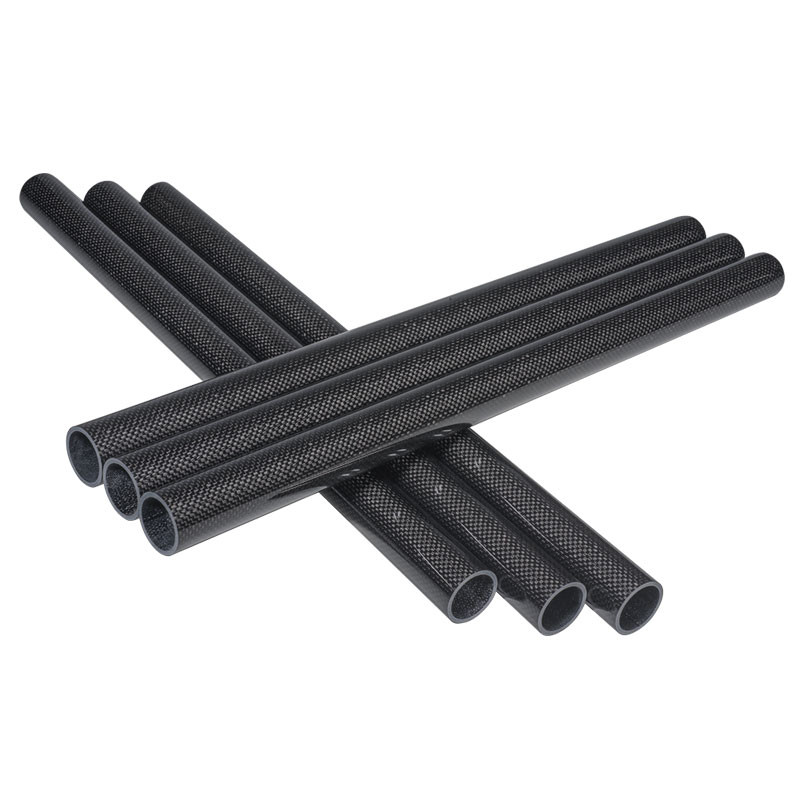

High Quality 100% Customized Size Carbon Fiber Round Tubes
A custom carbon fiber tube is a specialized, made-to-order tube or cylindrical structure created from carbon fiber-reinforced composites to meet specific requirements and specifications. These tubes are tailored to suit the unique needs of individual projects or applications and are used across a wide range of industries, including aerospace, automotive, marine, robotics, sports, and many others.
Our carbon fiber tubes are all manufactured by our own production workshops, the performance, and quality under our control. They are ideal for automation robotics, telescoping poles, and FPV frames, because of their lightweight and high strength. Roll-wrapped carbon fiber tubes including twill weave or plain weave for outer fabrics, unidirectional for the inside fabric. Additionally, glossy and smooth sanded finishes are all available. The inside diameter ranges from 6-60 mm, the length is normally 1000 mm. Generally, we offer black carbon tubes, if you have a demand for color tubes, it'll cost more time.
Feature
1. Made of high modulus 100% carbon fiber imported from Japan with epoxy resin
2. Great replacement for the low-grade aluminum wing tubes
3. Weights only 1/5 of steel and 5 times stronger than steel
4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance
5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion
| Name |
Carbon Fiber Round Tube/Square Carbon Fiber Tube |
| Feature |
1. Made of high modulus 100% carbon fiber imported from Japan with epoxy resin
2. Great replacement for the low-grade aluminum wing tubes
3. Weights only 1/5 of steel and 5 times stronger than steel
4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance
5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion
|
| Specification |
Pattern |
Twill, Plain |
| Surface |
Glossy, Matte |
| Line |
3K Or UD |
| Color |
Black, Gold, Silver, Red, Bue, Gree(Or With Color Silk) |
| Material |
Japan Toray Carbon Fiber Fabric+Resin |
| Carbon Content |
68% |
| Size |
Type |
ID |
Wall thickness |
Length |
| Round Tube |
6-60 mm |
0.5,0.75,1/1.5,2,3,4 mm |
1000,1200,1500 mm |
| Square Tube |
8-38 mm |
2,3 mm |
500,600,780 mm |
| Application |
1. Aerospace, Helicopters Model Drone, UAV, FPV, RC Model Parts
2. Manufacture Fixtures And Tooling, Industrial Automation
3. Sports Equipment, Musical Instruments, Medical Device
4. Building Construction Repair And Strengthening
5. Car Interior Decoration Parts, Art Products
6. Others
|
| Packing |
3 layers of protective packaging: plastic film, bubble wrap, carton
(Normal size: 0.1 * 0.1 * 1 meter(width*height*length)
|
Standard Modulus Carbon Fiber Tubing (SM)
This is the most common grade of carbon fiber used for our carbon fiber tubes. Standard modulus offers excellent strength and stiffness. It is 1.5X stiffer than aluminum and is the most economical grade.
Intermediate Modulus Carbon Fiber Tubing (IM)
This grade of tubing offers enhanced stiffness over standard modulus carbon fiber tubing with the same or better strength. Intermediate modulus is approximately two times stiffer than aluminum tubing.
High Modulus Carbon Fiber Tubing (HM)
At three times stiffer than aluminum (or equivalent to steel stiffness), this grade of tubing has very similar strength to standard modulus carbon fiber tubing. It is an excellent choice for demanding, weight sensitive applications.
Ultra-High Modulus Carbon Fiber Tubing (UHM)
Incredible stiffness at four-five times that of aluminum or 1.5 times that of steel. Ultra-high modulus has lower strength and is not recommended for high stress applications.
