100% High Strength High Gloss Carbon Fiber Panel Corrosion Resistance

Product Description

100% High-Strength High-Gloss Carbon Fibre Panel - Corrosion Resistance

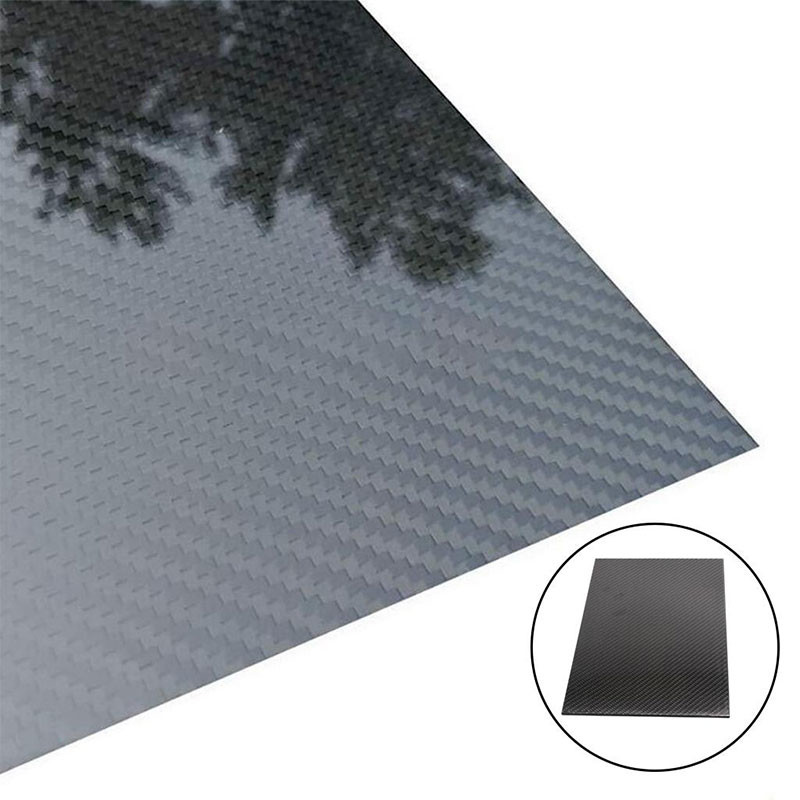

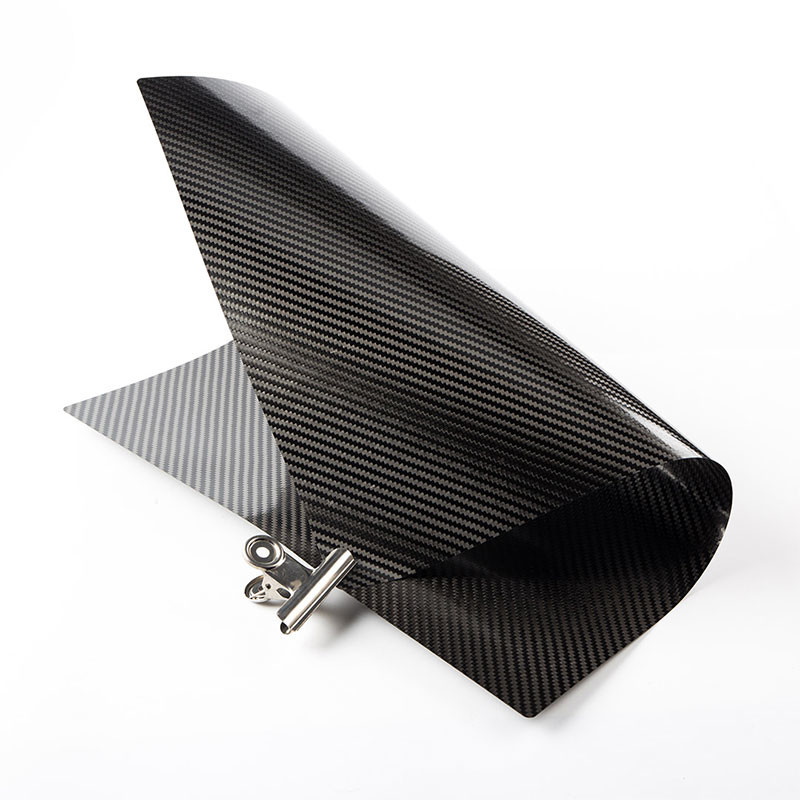

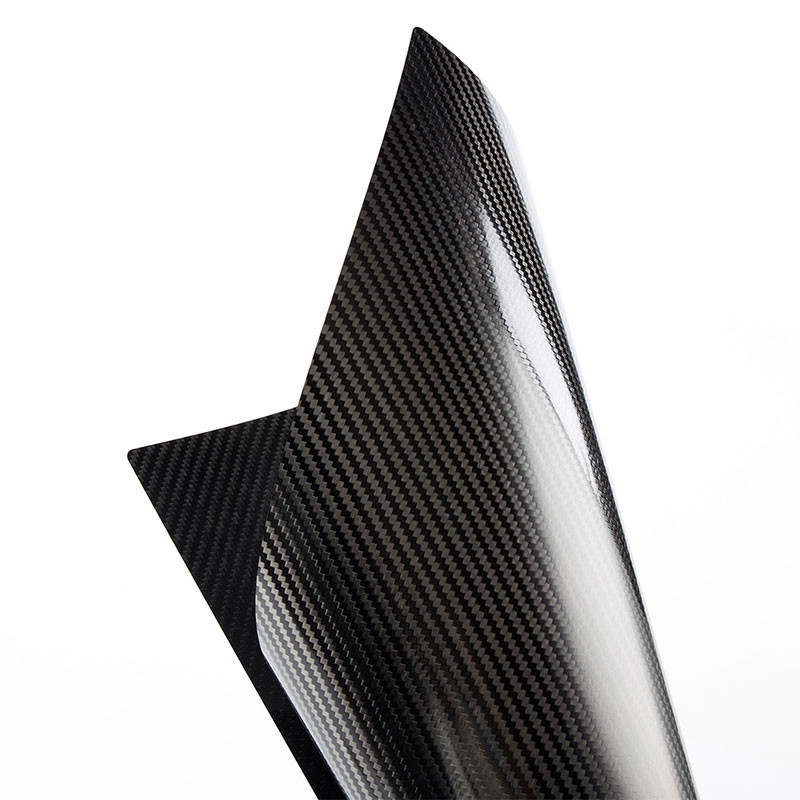

LIJIN carbon fibre sheets are manufactured using 100% high-strength carbon fibre reinforcement and epoxy, cured under a strictly controlled process to produce the highest standard of carbon fibre sheet. Enhanced Composites Carbon fibre plates are suitable for fully structural applications whilst also having a class-A (cosmetic), pinhole-free finish on both sides.

Both surfaces of the sheet use a high-quality 1×1 plain carbon fibre, 3k woven carbon fibre fabric with a gloss finish. After the curing process and before cutting or stocking, the sheets are coated in a high-quality protective film on both sides to ensure they remain in pristine condition.

Typical Uses

• Motorsport / marine / light aircraft
• Engineering / automation
• Displays / exhibitions / shop-fitting
• Cabinets / enclosures / high-end audio
• Further processing into sandwich panels

Advantages

• Pin-hole free high-gloss cosmetic surface
• 100% high-strength carbon fibre reinforcement throughout

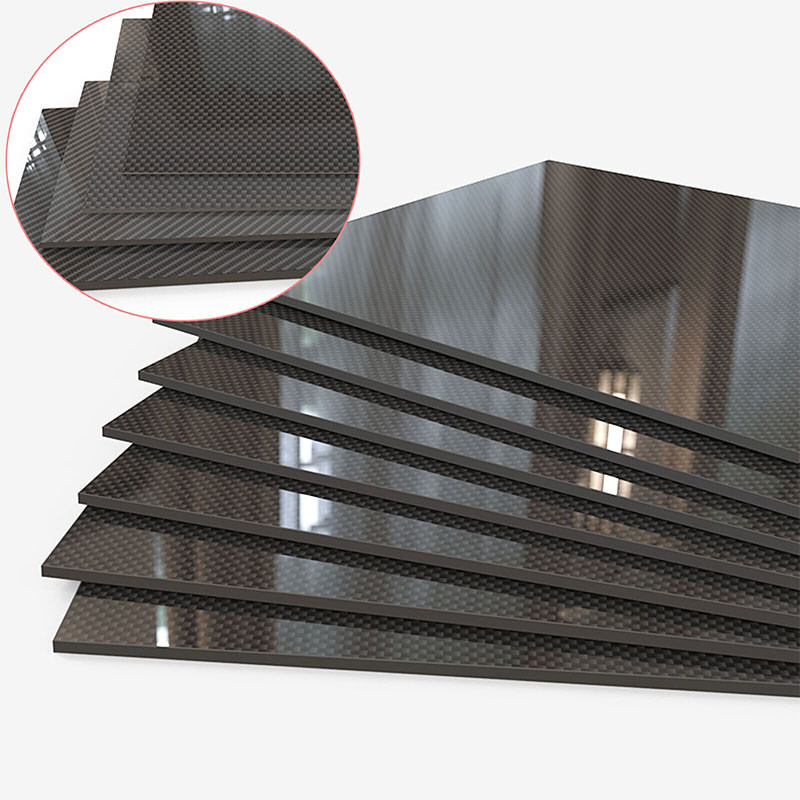

• A wide range of thicknesses and sheet sizes are available

To create a more uniform distribution of strength, all Enhanced Composites sheets are manufactured using layers of 0°/90° and 45°/-45° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Carbon fibre sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.

All panels are made with a high-performance epoxy resin that offers excellent mechanical functions, clarity and improved UV stability, however, we recommend a UV-stable coat to prolong the grade A finish. An elevated post-cure temperature is applied to increase the mechanical strength of the panel, resulting in a higher Tg and enhancing the inter-laminar sheer strength.

Single-Sided Carbon Fiber Plate Specification:
