Round Carbon Fiber Tube 2 Mm Thickness 1000 Mm Length

Product Description

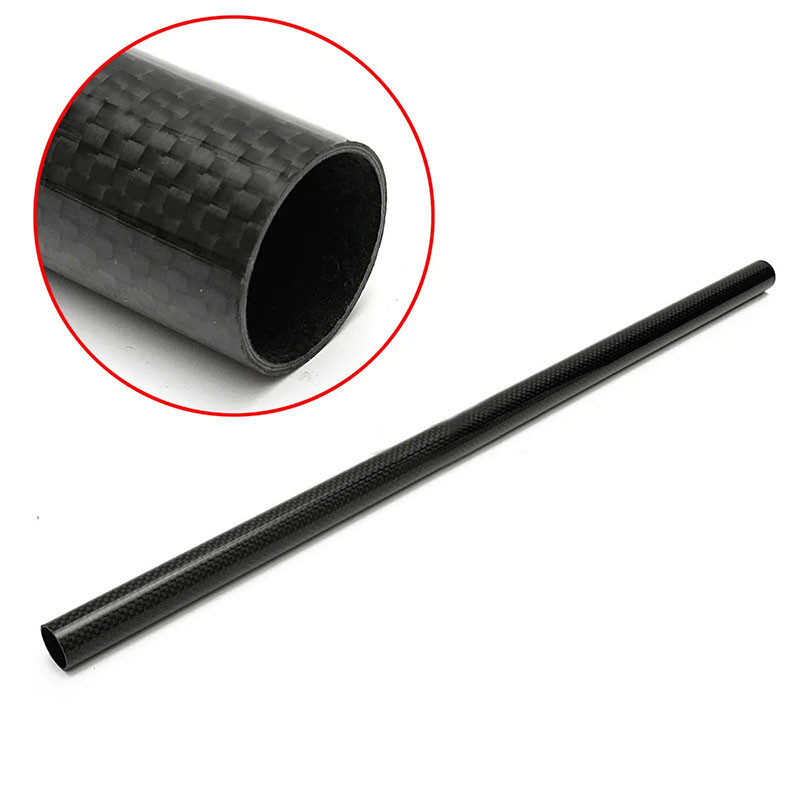

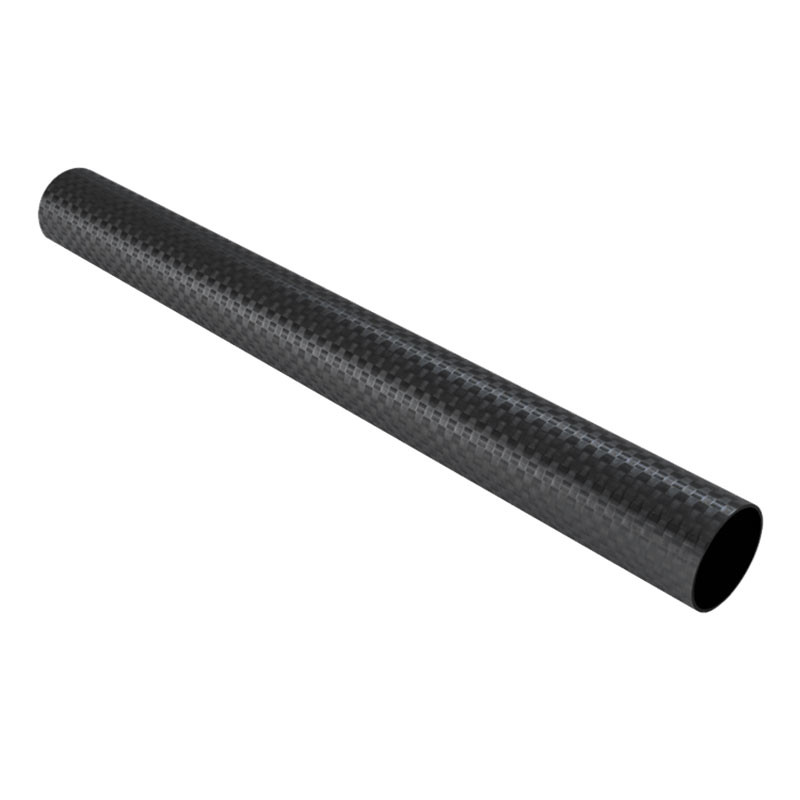

Round Carbon Fibre Tube, ext. ∅ 32 mm, int. ∅ 28 mm, 2 mm thickness (1000 mm length)

Round carbon fibre tubes are manufactured by using the pultrusion technique in which the high-performance carbon fibres are all orientated parallel to the longitudinal axis (unidirectional) and internally reinforced with more unidirectional carbon fibres laminated by using pull winding technology to achieve greater resistance to bending and torsion.

his type of profile has high specific mechanical resistance (related to its weight), lightness, rigidity, great resistance to fatigue and vibrations, resistance to oxidation and corrosion, and low coefficient of thermal expansion, and durability.

Pultrusion is a technique of continuous production of linear profiles with a constant section. This process has many similarities to extrusion, the main difference is in the feeding system: in extrusion, the material is pushed through the matrix (mold), and in pultrusion, it is extracted from the matrix. This procedure does not allow variations in shape, sections, or curves. Products that can be obtained by this process can have sections or thicknesses of up to approximately 15mm, with epoxy resins and up to 70mm with polyester resins.

Products made with this technology have excellent tensile strength characteristics due to the linear orientation of the fibers in the direction of the axis of the profile; if it is also necessary to have a good transversal resistance, a woven fabric is used as a backing in specific quantities and weights.

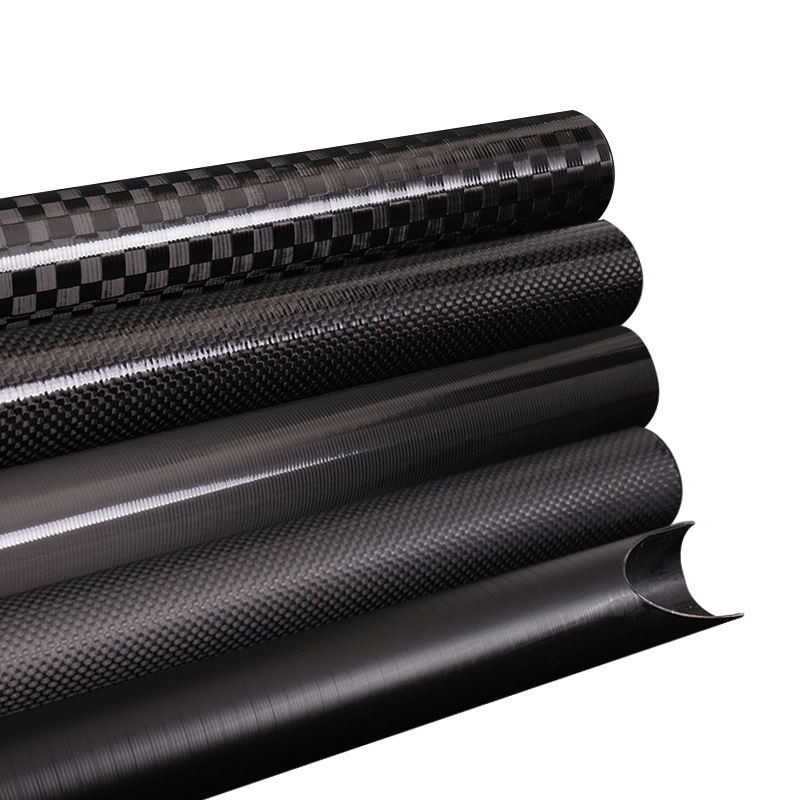

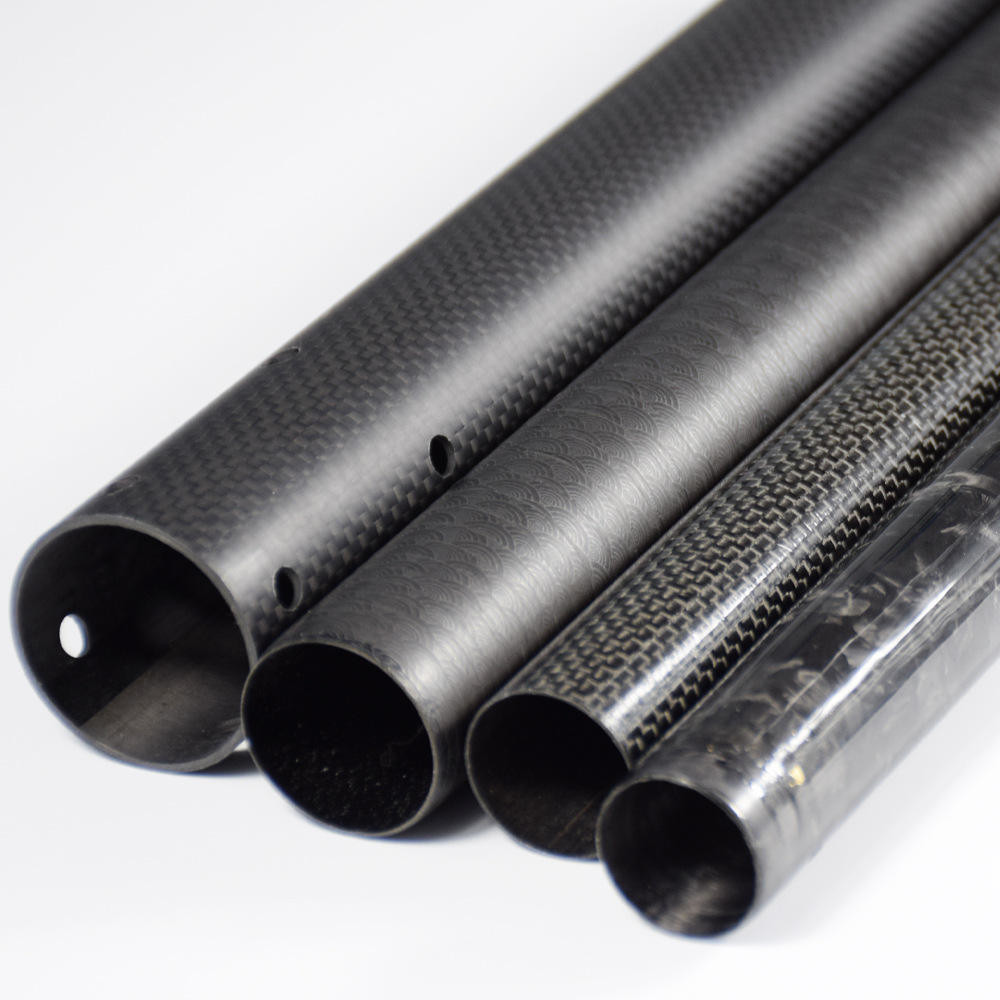

Roll Wrapped Carbon Fibre Tubes offer a wide range of features that make them highly desirable and superior to other materials. Some of the key features of Roll Wrapped Carbon Fibre Tubes are:

• High Strength-to-Weight Ratio: Roll Wrapped Carbon Fibre Tubes have an incredibly high strength-to-weight ratio, meaning they are much stronger than traditional materials while also being lighter in weight.
• High Tensile Strength: These tubes have high tensile strength, meaning they can resist being pulled apart. As a result, they are ideal for applications requiring load-bearing structures and components.
• Excellent Fatigue Resistance: Roll Wrapped Carbon Fibre Tubes are designed to withstand cyclic loading, which means they have excellent fatigue resistance. They can endure a high number of cyclic loads without structural degradation or failure.
• Corrosion Resistance: Carbon fibre is naturally resistant to corrosion, making Roll Wrapped Carbon Fibre Tubes ideal for harsh environments like marine and outdoor applications.
• Durable and Long-Lasting: Roll Wrapped Carbon Fibre Tubes have good durability and can last for many years, even in harsh environments.
• Thermal Stability: Carbon fiber composite material has excellent thermal stability, which means it can operate in extreme temperature ranges without any loss of structural properties.
• Design Flexibility: Roll Wrapped Carbon Fibre Tubes have a high degree of design flexibility. They can be produced in a wide range of shapes, and sizes and with a variety of layups and ply orientations, which means they can be optimized for specific applications.

Overall, the combination of these features makes Wrapped Carbon Fibre Tubes an excellent choice for a wide range of applications, including aerospace, automotive, marine, sporting, and industrial uses.
