3K Twill Roll Wrapped Matte Finish Carbon Fiber Plate 0.3mm 0.5mm 1mm 2mm 3mm

Product Description

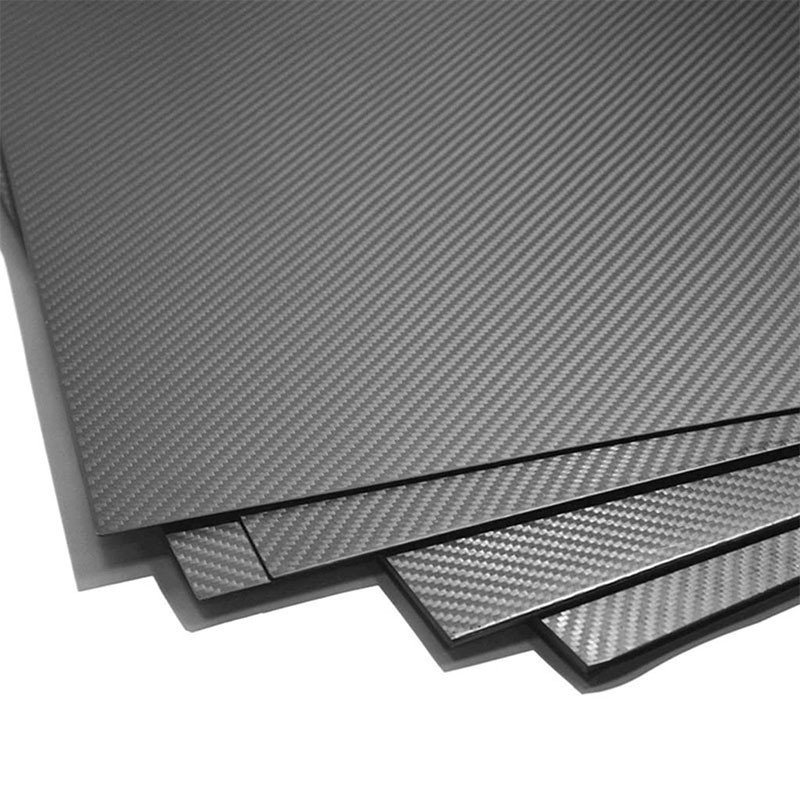

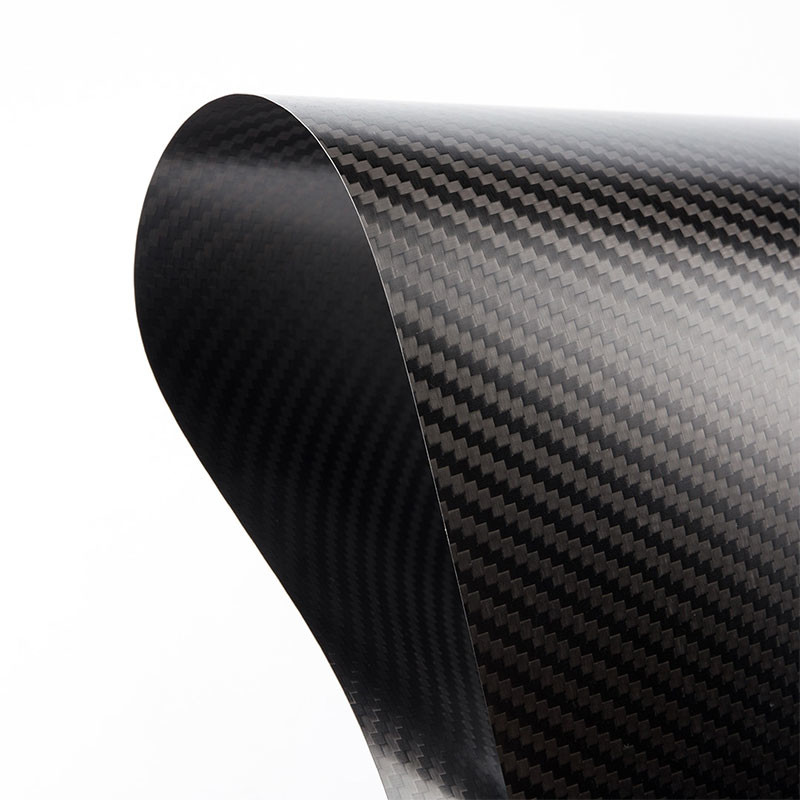

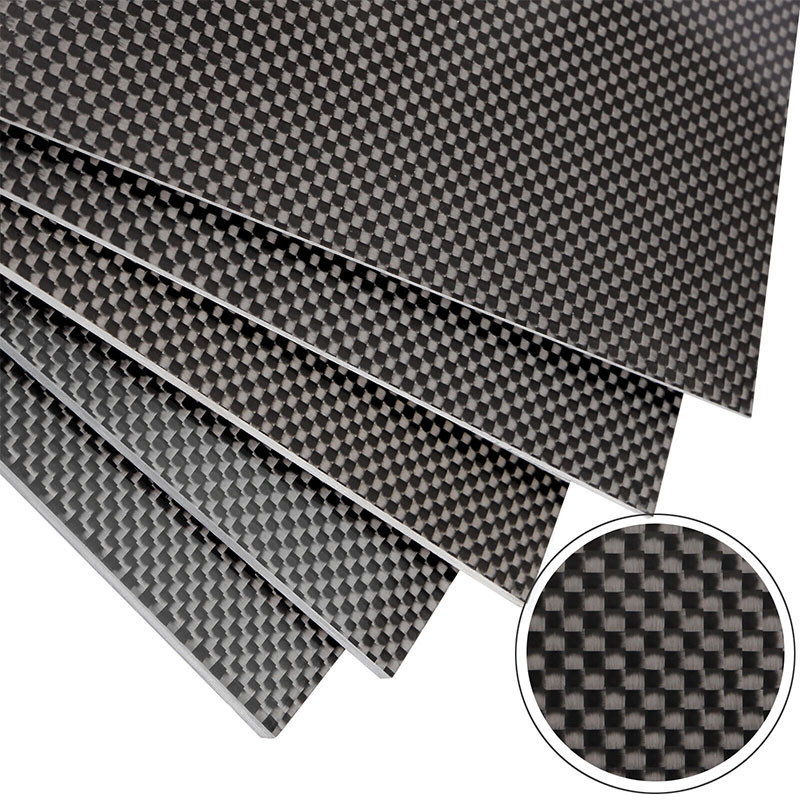

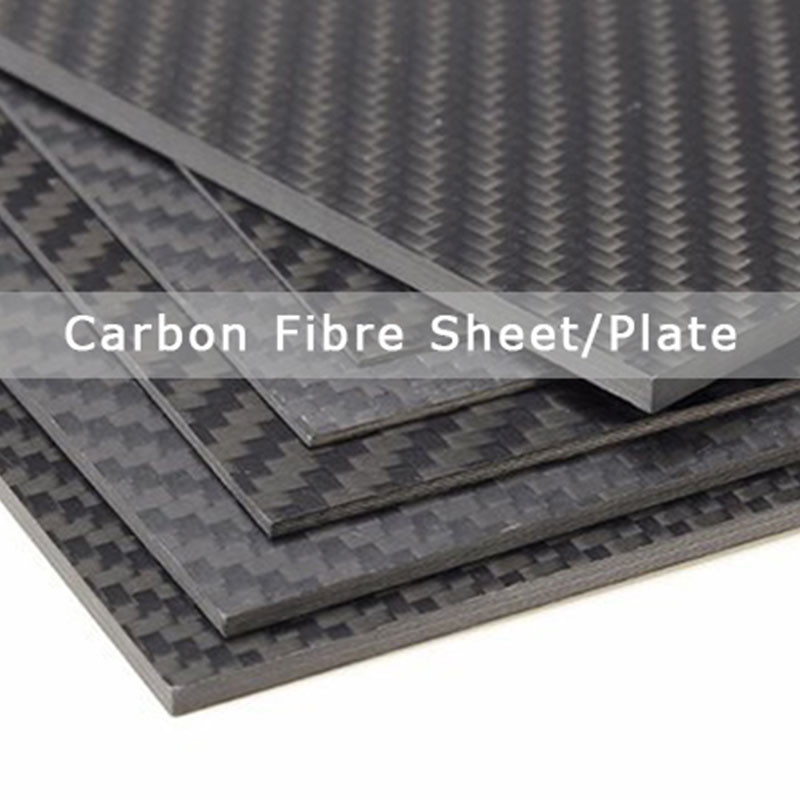

High Quality 3K Twill Roll Wrapped Matte Finish Carbon Fiber Plate

Carbon fiber panels or carbon fiber panels are manufactured using 100% carbon fiber reinforcement and epoxy resin. Surface can choose will/plain, matte/Gloss. Does not contain any fiberglass components. It is especially suitable for FPV frames, helicopters, and RC aircraft. We are able to make carbon fiber CNC cut parts for RC helicopters, RC cars, UAV racks, drone racks, multi-helicopter racks, camera gimbal, or other products to your specifications. The factory uses imported Japanese Toray or Taiwan Taili non-carbon fiber cloth to make carbon fiber board/carbon fiber board.

Features:

• Reinforcing materials for C/C composites.
• High strength, lightweight, using imported raw materials from Taiwan and Japan.
• High-temperature filter material for corrosive liquids.
• Conductive materials, electrodes, and antistatic properties.

Application:

Carbon fiber board is widely used in surface decoration of various metal accessories, leather goods, pens, notebooks, jewelry, furniture, etc.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
