100% 3K Twill Matte Carbon Fiber Plate High Modulus Corrosion Resistance

Product Description

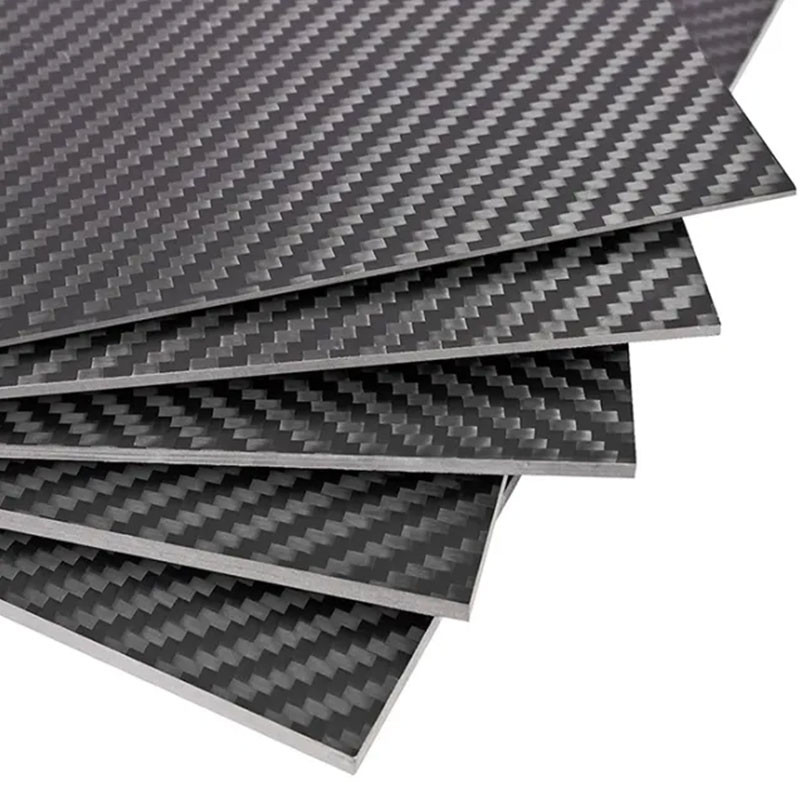

High Modulus Corrosion Resistance 100% 3K Twill Matte Carbon Fiber Plate

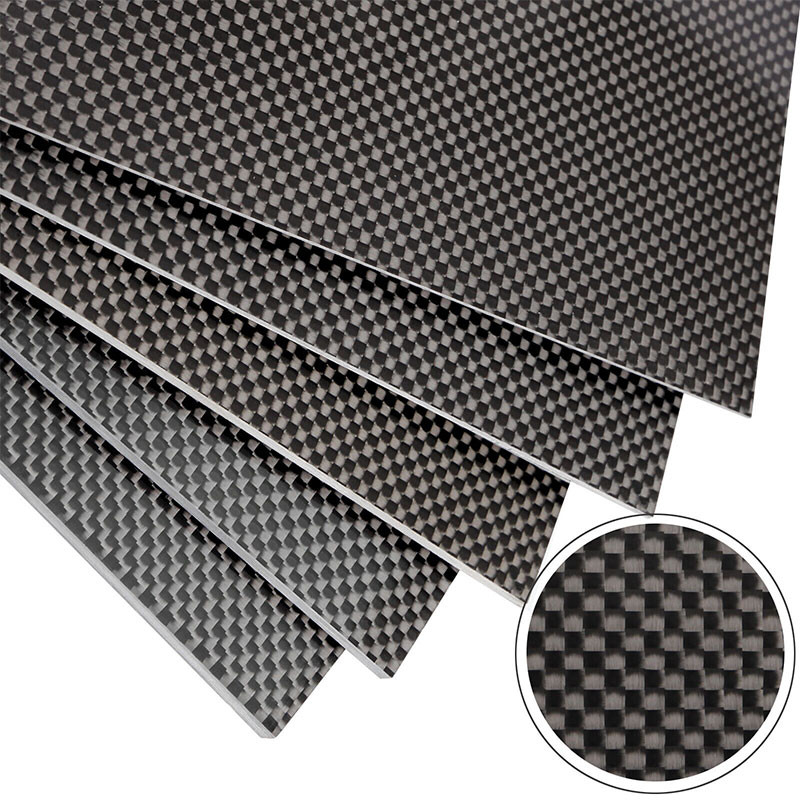

We manufacture a large range of high-quality Twill & Plain Weave 100% Carbon fiber Sheets, hand finished with either a Gloss or Matte finish on one side only.

Feature:
1. Made of high-quality carbon fiber material, it is very strong, lightweight, durable, and has a long service life.
2. Convenient construction and construction quality, the material is not pretreated and the processing is convenient.
3. Good corrosion resistance, it can corrode acid, alkali, salt, and atmospheric environment without regular maintenance.
4. Lightweight and flexible, the strength of carbon fiber is only 1/5 of the mass. It has high resistance and can be rolled up.
5. High efficiency, tensile strength is several times that of ordinary steel, its elastic modulus is better than steel, and it has excellent creep resistance and impact resistance.

Specification:

• Condition: 100% Brand New
• Item Type: Carbon Fiber Plate
• Material: Carbon Fiber
• Surface Treatment: Twill Matte
• Product Size: Approx. 230x170x0.5mm, 230x170x1.0mm, 230x170x1.5mm, 230x170x2.0mm, 230x170x3.0mm, 200x300x0.5mm, 200x300x1.0mm, 200x300x1.5mm, 200x300x2.0mm, 200x300x3.0mm (optional)
• Length (mm/in) Width (mm/in) Thickness (mm/in) 230mm / 9.1in 170mm / 6.7in 0.5mm / 0.02in 230mm / 9.1in 170mm / 6.7in 1.0mm / 0.04in 230mm / 9.1in 170mm / 6.7in 1.5mm / 0.06in 230mm / 9.1in 170mm / 6.7in 2.0mm / 0.08in 230mm / 9.1in 170mm / 6.7in 3.0mm / 0.12in 300mm / 11.8in 200mm / 7.9in 0.5mm / 0.02in 300mm / 11.8in 200mm / 7.9in 1.0mm / 0.04in 300mm / 11.8in 200mm / 7.9in 1.5mm / 0.06in 300mm / 11.8in 200mm / 7.9in 2.0mm / 0.08in 300mm / 11.8in 200mm / 7.9in 3.0mm / 0.12in Weight: Approx. 38g-300g / 1.3oz-10.6oz

Single-Sided Carbon Fiber Plate Specification:

Technical Details

Quasi-Isotropic Layup

To create a more uniform distribution of strength, all our sheets are manufactured using both layers of 0°/90° and 45°/-45° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Carbon fibre sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.

Laminate Composition

The matrix used is a high-performance epoxy resin that offers excellent mechanicals, clarity, and improved UV stability. The high-temperature cure maximizes the mechanical strength properties and results in a Tg (glass transition) of 80°C.

To achieve maximum stability and flatness in the sheets, we used 'balanced' laminates for all sheet thicknesses. This means that the fibre type, weight, and weave are symmetrical from the front to the back ply.

How to Cut and Shape

This carbon fibre sheet can easily be cut and finished to a high standard using simple workshop tools. Cutting and finishing carbon fibre can also be perfectly safe if you follow some basic safety precautions.

FAQ:

1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.

2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.

3. What about the terms of payment?

T/T, L/C, Western union, etc

4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.

5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.

6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples
