3K Roll Wrapped Carbon Fiber Pipe / Tube Twill Matte Finish 30 X 28 X 1000mm

Product Description

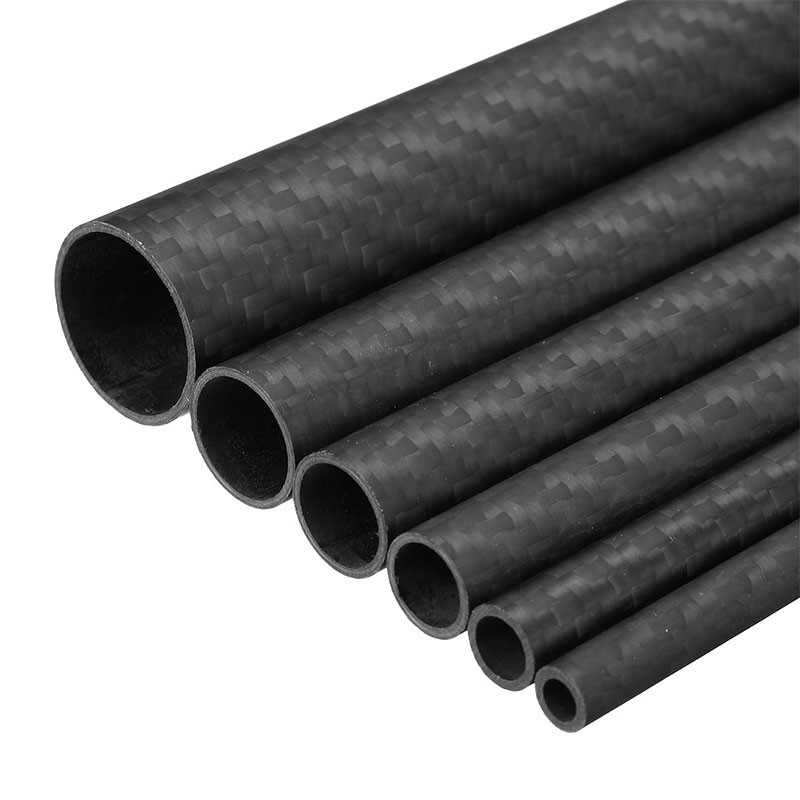

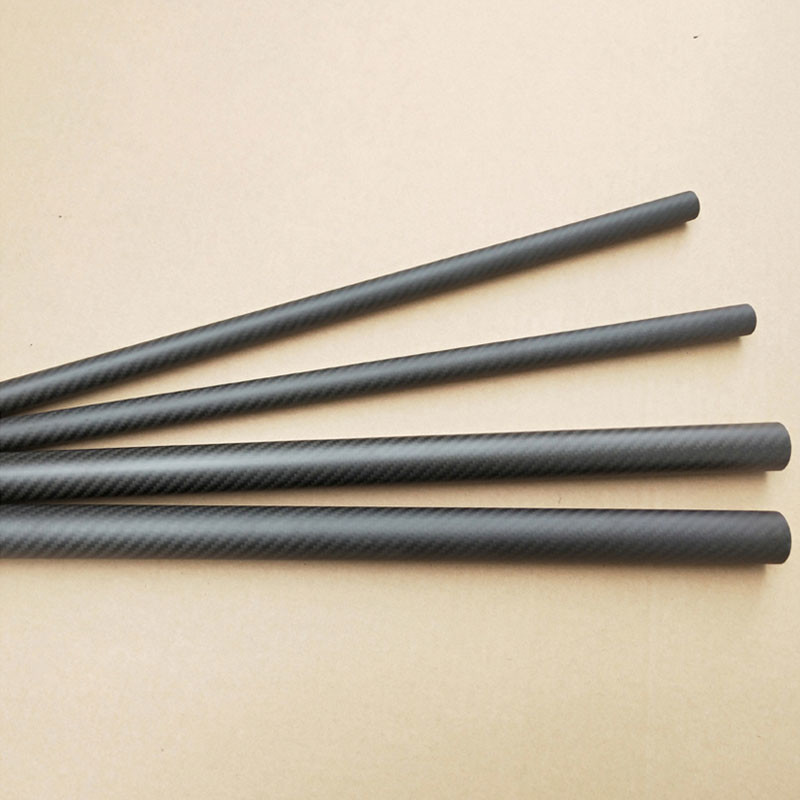

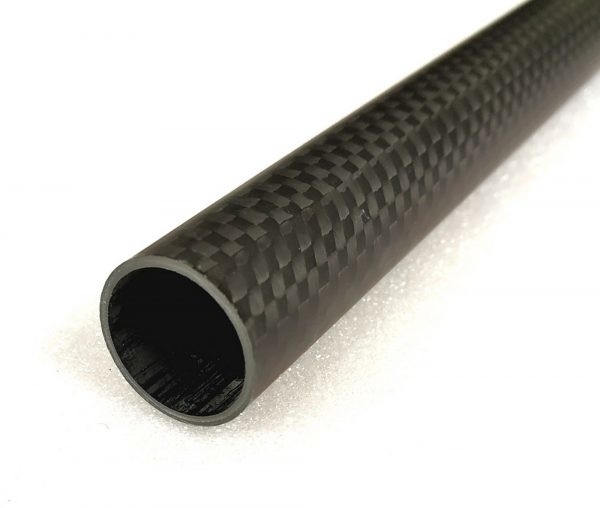

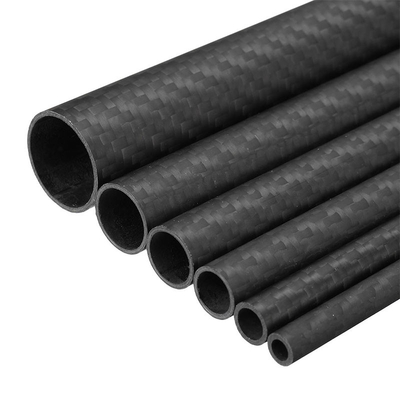

30x28x1000mm 3K Carbon Fibre Pipe / Fibre Tube 3K Roll Wrapped

The New High-Performance carbon fibre tubes are our range of 3K Woven Finish tubes which have a stunning high-gloss / Matte woven carbon fibre finish to complement their incredible strength. With the classic appearance of 2/2 twill carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.

This tube is ideally suited to a wide range of applications such as radio-controlled models (RC Planes), UAVs, Drones, Multicopters, recreational equipment, sporting goods, robotics, and photography/video equipment (tripods, etc.).

Different from Pultruded carbon fiber tubes, a roll-wrapped tube is lighter in weight, stiffer, and stronger. It is widely used for many projects in sports, RC, robots, etc. by hobbyists for surface protection. 3K Carbon fiber tube with high strength, stiffness, and excellent load-bearing performance.

This 3K Woven Finish tube is manufactured from alternating layers of unidirectional prepreg carbon fibre for maximum strength with the final layer swapped for 2/2 twill, 3K woven carbon fibre so that the tube has the classic appearance of woven carbon fibre. This means that although the tubes are designed for demanding mechanical applications, they also look fantastic, adding a cutting-edge carbon fibre appearance to any application.

SPECIFICATIONS:

Outer Diameter: 30MM | Inner Diameter: 28MM
Wall Thickness: 1MM
Length: 1000MM
Weight: — g
Material: 3K Roll Wrapped Carbon Fiber Twill Matte Finish

WHY COMPOSITES?

The majority of our clients move from the use of metal to composites to help them achieve a specific need.

1. To help them reduce the weight of a particular component

The ‘specific strength’ of an object is defined as the strength of the material it is constructed from, divided by its weight. In this calculation, by substituting a composite for a metal the weight of the material reduces significantly. In turn, this means that the composites’ strength-to-weight ratio is vastly higher than metal alternatives. This unique benefit has enabled our clients to replace many aluminum and metal parts with composite alternatives.

2. To reduce corrosion on an item

While metal is a very durable and hardwearing material, it isn’t impervious to the effects of the elements – air, water, ice, sand, and other elements can all contribute to corrosion in metal components – reducing their effectiveness and lifespan over time. In environments labeled as ‘normal’ and ‘aggressive’, composites have been proven to offer a much higher level of resistance to this naturally occurring corrosion – increasing the lifespan of components. This improved level of resistance is what makes composite such an attractive material for marine and aerospace applications.

3. Increased resistance to repetitive strain

Over time – all materials are subject to strain and deformation. Where metals and materials like aluminum can end up becoming permanently stretched or distorted, Composites are able be designed to experience extensive deformation without taking a permanent set. This ability to deal with repetitive strain over prolonged periods of time has seen the materials extensively used in the manufacture of aerospace wings and other components.

4. Low CTE (coefficient of thermal expansion)

When materials are subjected to heat, the fibers within them expand increasing the size of a component and potentially its effectiveness. The coefficient of thermal expansion refers to the rate at which the size of the material changes in relation to this temperature change. When working with composites, this CTE is significantly less than seen in metals, with carbon being the most effective material with a CTE close to zero. The replacement of materials like INVAR (an Iron / Nickel alloy) with composites is a good example of how our products have been deployed in the field of metrology.

5. X-ray Transparency

As a material, Carbon fiber is actually transparent to x-rays making it a material of interest to many sectors but most notably the medical sector.

Talk to our team of composites experts today to discuss your requirements with us in detail!
