Round 3K Carbon Fiber Tube Twill Weave Pattern Matte Finish

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Features: Lightweight, High Strength Product Name: Carbon Fiber Tube
Material Description: 100% Toray Carbon Fiber Pattern: Twill, Plain
Shape: Round, Oval Or Custom Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Density: 1.5g/cm^3
Fibre Orientation: 0, 90 Logo: Available
Port: Shanghai
High Light:

Matte Finish Carbon Fiber Tube

,

Carbon Fiber Pipe Lightweight 13mm

,

Twill Weave Pattern Carbon Fiber Tubing

Product Description

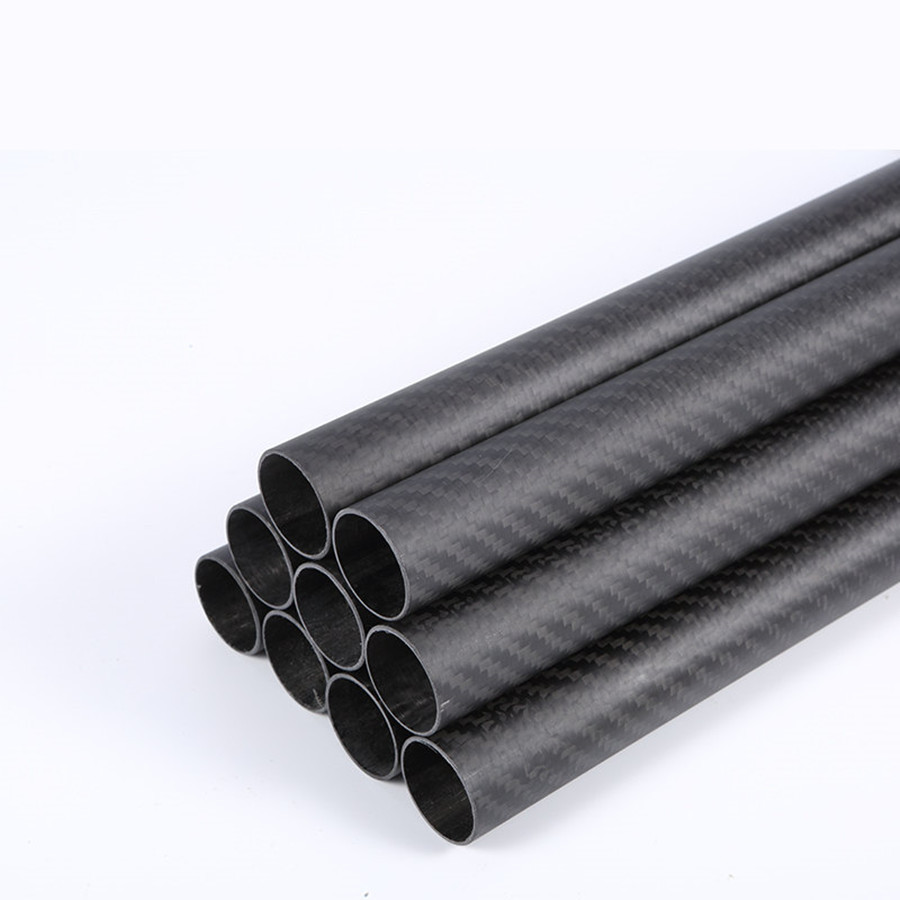

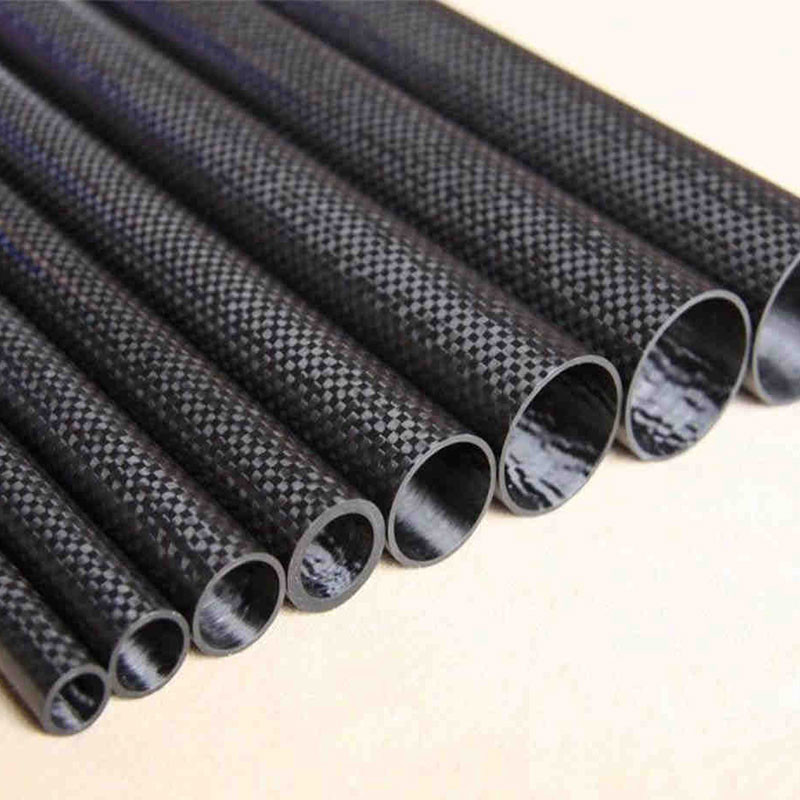

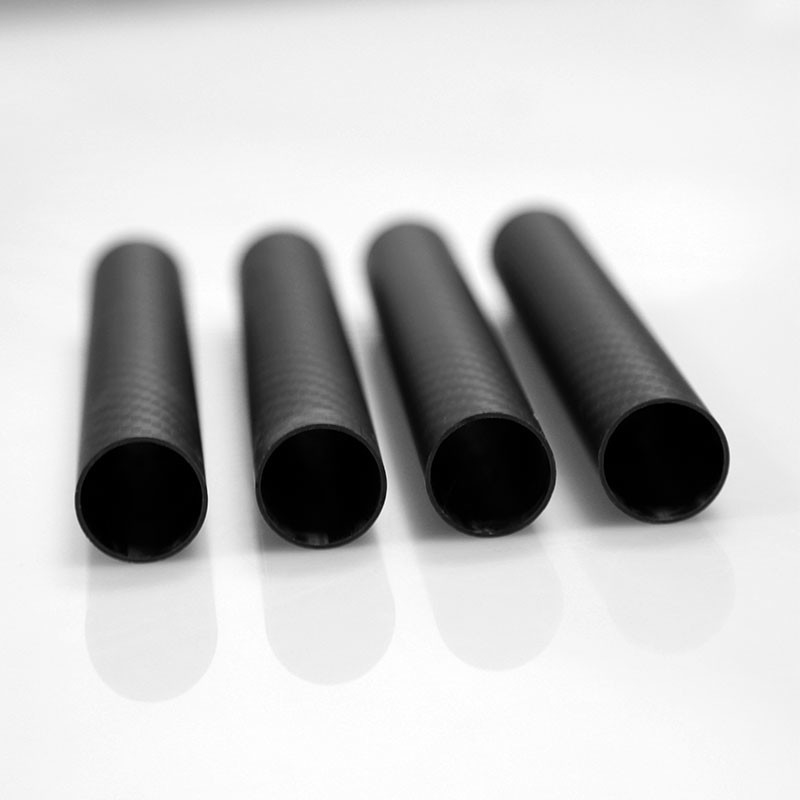

Carbon Fiber Tube - 3K Twill Weave Pattern, Matte Finish [Nominal - 1In OD, 13/]


Our Roll wrapped carbon fibre tubes are manufactured by wrapping multiple layers of 12k UD and 3k twill carbon fibre prepregs around a metal mould and then cured at high temperature. The UD prepregs are used in core layers whereas the twill is on the surface.



High strength&lightweight: higher strength than aluminum alloy or steel tube, but much lighter. Also Corrosion, water, heat, and fatigue resistance. The carbon tube is made of pure 3K carbon fiber material. matte finish is great for surface coating and adhesive bonding applications. And they can be cut to any length with an abrasive chop saw.



Widely used in RC models, agricultural equipment, fishing equipment, machinery, automobile, sports equipment, kite, handicraft, tent, windmills, umbrellas, decorating parts and so on.



Description:

  • [ACTUAL DIMENSIONS- 25mm OD, 21mm ID, 1250mm Length, 2mm Wall Thickness] [NOMINAL DIMENSIONS- 1in OD, 13/16in ID, 49.2in Length, 1/16in Wall Thickness]
  • Cut to length with an abrasive chop saw. Manufactured with a 3K twill weave which is the optimum weave for carbon fiber tubing to maximize strength and formability. The matte finish is great for surface coating and adhesive bonding applications.
  • Extremely lightweight and high-strength composite alternative to aluminum or steel tubing with a much higher rigidity, which will minimize flexing under load and offer the stiffest structure possible. It is the ideal choice for your application.
  • Carbon fiber composite tubing is used in various high-performance applications like, RC aircraft, drones, helicopters and quadcopters, sports equipment, robotics, lightweight framing and frames.
  • It is incredibly lightweight, allowing it to be used in highly portable applications where weight is a premium. Corrosion, water, heat, and fatigue resistance that is great for outdoor applications and wet environments.

Common Applications of Carbon Fiber tube

  • Aerospace beam and spars
  • Telescopes
  • Arrows
  • Robotics
  • Arrow Shafts
  • Bicycle frames
  • Kayak paddles
  • RC models
  • Yachts
Material 3K Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
