Corrosion Resistance 3K Full Carbon Fiber Sheet Twill Weave Matte Surface

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Features: Resistance To Ultraviolet Light Product Name: Carbon Fiber Laminate Sheet Panel
Weave: Twill Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Weave Style Of Cosmetic Side: 4x4 Twill Resin Content: 42%
Fiber Content: 1050g/m2 OEM Service: Accecpt
High Light:

3K Full Carbon Fiber Sheet

,

Corrosion Resistance Matte Carbon Fiber Plate

,

4x4 Twill Carbon Fiber Sheet

Product Description

Corrosion Resistance 3K Full Carbon Fiber Sheet (Twill Weave, Matte Surface)



Carbon fiber is usually combined with other materials to form a composite. When combined with epoxy resins and wound or molded it forms carbon-fiber-reinforced polymer (often referred to as carbon fiber) which has a very high strength-to-weight ratio, and is extremely rigid although somewhat brittle.



The carbon fiber sheet is manufactured using 100% carbon fibre reinforcement and epoxy resin matrix, cured under high pressure at high temperature, making them the high strength and flat. Inside without any filling materials, The surface material is 2 x 2 3K tow (3,000 filaments) Twill or Plain Weave carbon fiber fabric.



These high-quality carbon fiber sheets plate come in various sizes, made from 100%, 3K plain weave, carbon fiber and finished with a matt surface on both sides. Unlike many low-cost carbon sheets that are made by pressing two outer skins of carbon fiber over a carbon and resin core, these plates are made with layered sheets of carbon fiber and resin, making them the same strength all the way through.



Quasi-Isotropic Layup



For creating a more uniform distribution of strength, all our laminated sheets are manufactured using both layers of 0°/90° oriented reinforcement in what is known as quasi-isotropic fibre orientation. Our carbon fiber sheets using this layup technique offer improved stiffness across their diagonal axis and significantly improved torsional stiffness.



Our high-strength carbon fibre panels thickness is available 0.5mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm thicknesses, up to 25mm.

Our carbon fiber plating standard size: is 400*500mm, 500*500mm, 500*600mm, or cut to any dimensions.



Whether you’re making your own drone frames, car chassis, firewalls, bulkheads or any other custom designs that require high strength, lightweight material, these quality carbon fiber sheets are more than up to the task.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



FAQ:



1. Are you a factory or a trading?

We are a factory, with more than 16 years experience in composite products. We are one of the top manufacturers of carbon fiber tubes in China.



2. Can you send us a sample to check?

Yes, we can send you a free sample to check. You can pay the freight costs. When you place an order, we will return the freight cost to you.



3. What about the terms of payment?

T/T, L/C, Western union, etc



4. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry.



5. What’s the difference between Chengcheng and other factories?

We have our own technology and research team. Our products strictly follow the quality control system in the composite products field.



6. Do you provide OEM service

Yes. OEM is welcome. We can make molds according to customers’ drawings and samples

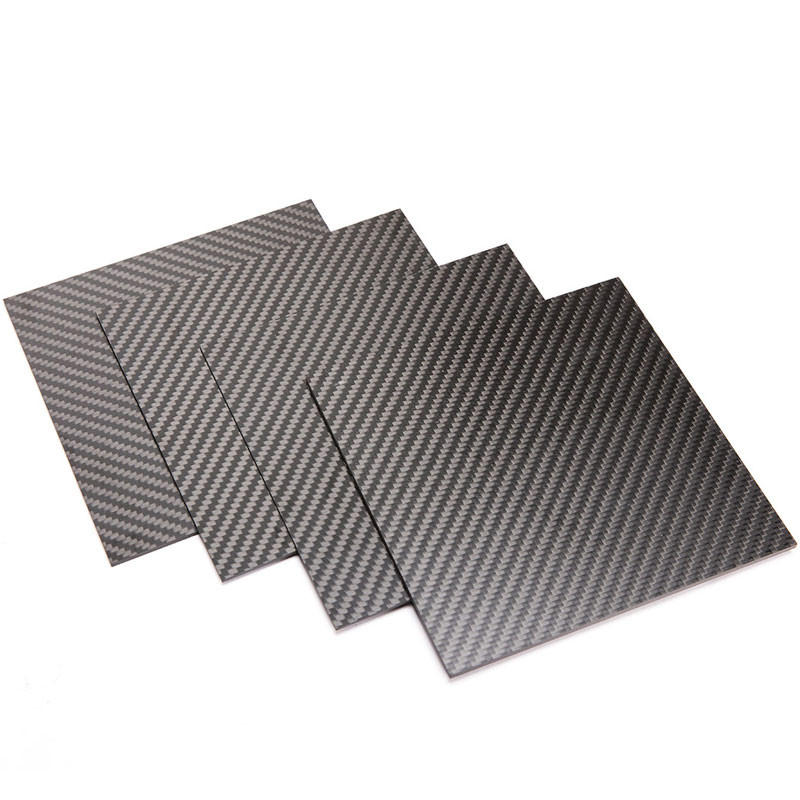

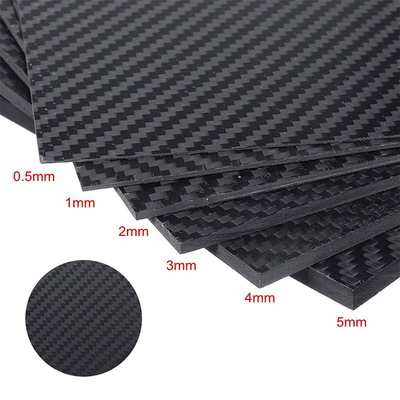

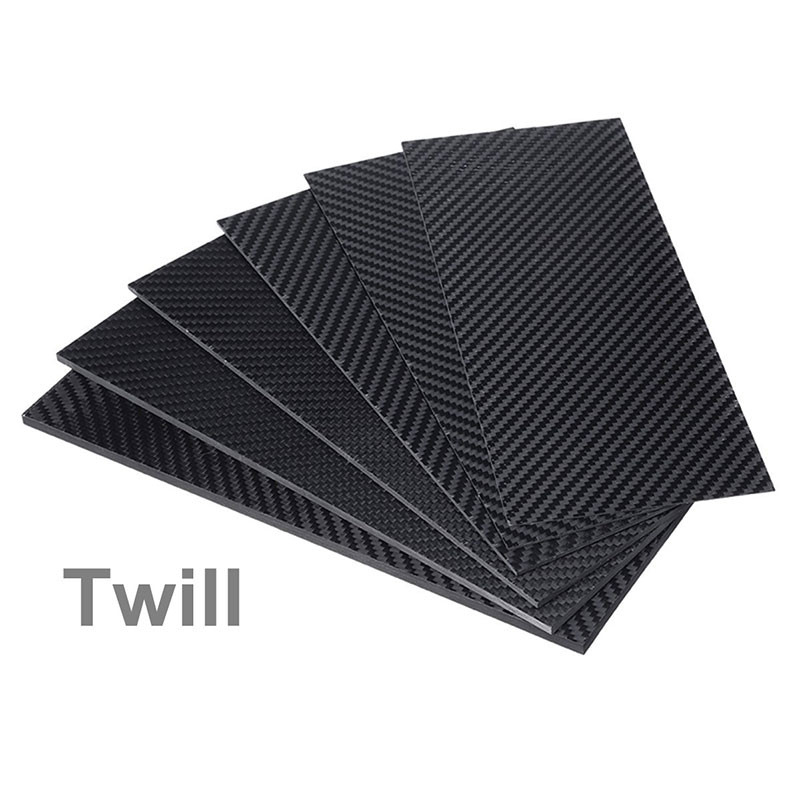

Corrosion Resistance 3K Full Carbon Fiber Sheet Twill Weave Matte Surface 0Corrosion Resistance 3K Full Carbon Fiber Sheet Twill Weave Matte Surface 1Corrosion Resistance 3K Full Carbon Fiber Sheet Twill Weave Matte Surface 2
