Plain / Twill 3K Carbon Fiber Tubing Poles Strong Corrosion Resistance

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: 3K Carbon Fiber Tubing Poles Material: 100% Carbon Fiber
Surface: Matt/Glossy Size: Custom Thickness And Length
Fiber Specifications: 1K/3K/12K Weaving Style: Plain/Twill
Application: Cleaning Equipment, Automation Robotics, Telescoping Poles, Etc. We Supply: Eco-Friendly Products, OEM Products, ODM Products, Etc.
High Light:

3K Carbon Fiber Tubing


Corrosion Resistant Carbon Fiber Tubing


Twill Carbon Fiber Poles

Product Description

Strong Corrosion Resistance Good Durability 3K Carbon Fiber Tubing Poles


Carbon tubes (full name carbon fiber reinforced thermoplastic tubes) are the solution for challenges where lowest weight with highest strength and/or stiffness are required. Carbon fibers have grown in popularity for numerous applications over recent years. The perfect combination of strong and lightweight carbon fibers in a protective thermoplastic resin, is a solution that fits in a sustainable world. Not only because of the durability of this material but most importantly because the material can be reused and recycled.



  • Lightweight (4 times lower than steel)
  • High strength - moderate stiffness
  • Corrosion and chemical resistant (low maintenance)
  • Excellent impact energy absorption
  • High fatigue resistance


  • Beats high performance alloys
  • Machinable like metal
  • Clean production process (no emissions or water consumption)
  • Technology with high quality and short process cycle
  • Flexible in diameter, length, wall thickness and reinforcement direction
  • Short delivery time

Main Performance:

1. Lightweight. Super low density, only about 1.5 g/cm³.
(fiberglass 1.95,aluminum 2.7 and steel 7.85) less than 1/5 of steel.
2. Super strength. About 5 times of steel.
3. High modulus
4. Corrosion-resistant. Anti-acid,anti-alkali.
5. Never rust. Which is more excellent than stainless steel.
6. UV-resistant
7. Durable. With a long lifetime.
8. Radiation-resistant
9. X-ray transparency
10. Super high temperature-resistant
11. Pretty weak thermal conductivity
12. Superior dimensional stability
13. Supremely high rigidity
14. Eco-friendly


Product Name 3K Carbon Fiber Tubing Poles
Material 100% Carbon Fiber
Color Black or custom
Surface Matt/Glossy
Size Custom thickness and length
Fiber Specifications 1K/3K/12K
Weaving Style Plain/Twill
Fiber Type 1. Carbon fiber+carbon fiber
2. Carbon fiber+ glass fiber
3. Carbon fiber+aramid fiber
Application 1. Aerospace, RC model parts Helicopters Model
2. Manufacture fixtures and tooling
3. Industrial automation and robotics
4. Sports equipment
5. Musical instruments
6. Scientific apparatus
7. Medical device
8. Others
Our Product Carbon fiber tube, carbon fiber plate, carbon fiber profiles.


What are carbon fiber tubes made of?


Large diameter carbon fiber tubes are typically constructed using rolled bi-directional woven carbon fiber. By combining the right fiber, fiber orientation, and fabrication process, carbon fiber tubes can be created with the proper characteristics for any application.


How strong is carbon fiber pipe?


Strength, Stiffness, and Comparisons With Other Materials


The modulus of carbon fiber is typically 33 msi (228 GPa) and its ultimate tensile strength is typically 500 ksi (3.5 Gpa).

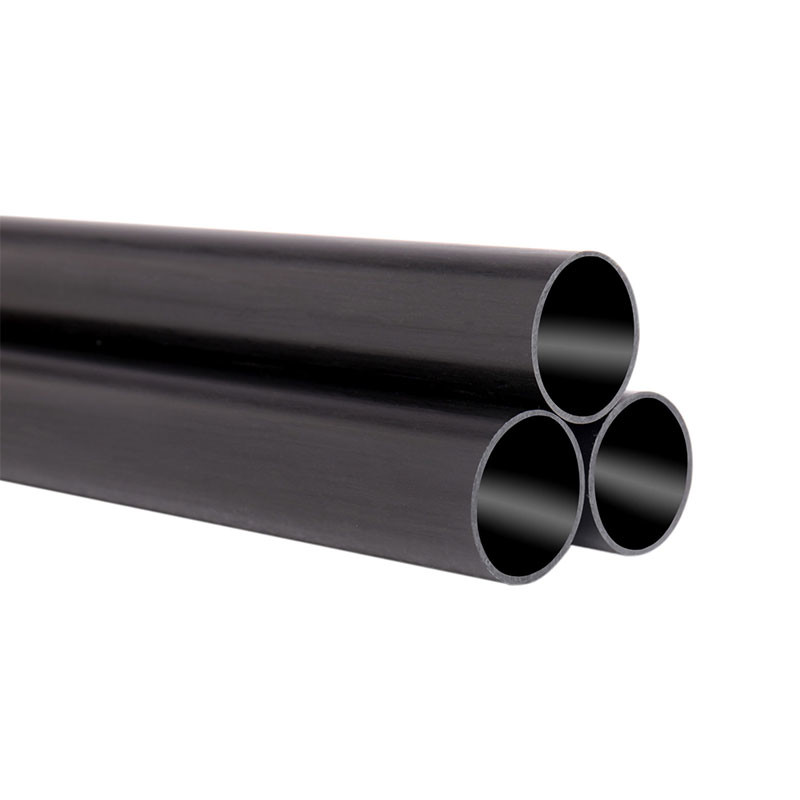

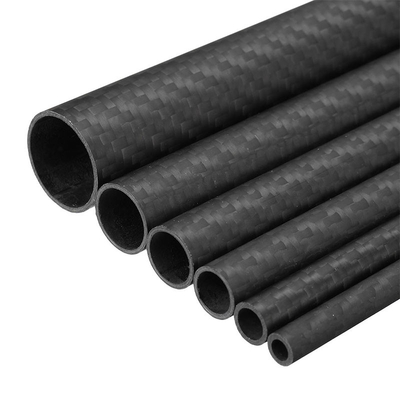

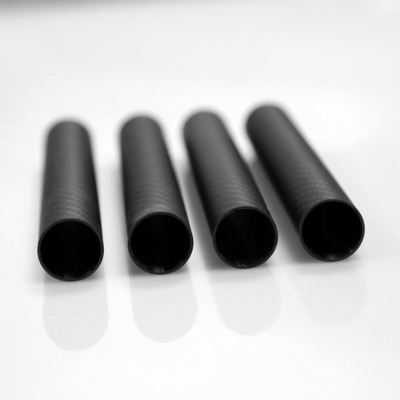

Plain / Twill 3K Carbon Fiber Tubing Poles Strong Corrosion Resistance 0Plain / Twill 3K Carbon Fiber Tubing Poles Strong Corrosion Resistance 1Plain / Twill 3K Carbon Fiber Tubing Poles Strong Corrosion Resistance 2
