Glossy Round Carbon Fiber Tube Unidirectional Roll Wrapped Machinability

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Roll Wrapped Carbon Fibre Tube Material Description: 100% Toray Carbon Fiber
Pattern: Twill, Plain Density: 1.5g/cm^3
Length Tolerance: +/-1mm Fibre Orientation: 0, 90
Finish: Unidirectional, Twill Weave, Plain Weave Modulus: Standard Modulus, Intermediate Modulus, High Modulus
High Light:

Unidirectional Roll Wrapped Carbon Fiber Tube


Glossy Round Carbon Fiber Tube


Roll Wrapped Carbon Fiber Pole

Product Description

Great Strength & Superior Machinability Roll Wrapped Carbon Fibre Tube

Roll wrapping carbon fiber tubes is the process we use for composite tubes that are smaller and shorter in length. Rock West Composites utilize prepreg materials, including carbon fiber, fiberglass, kevlar, flax, and hybrids when roll wrapping tubes. This manufacturing process is primarily used for producing small to medium diameter tubes of 0.250" through 12.0" diameter and lengths up to 8' long. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as telescoping poles, automation robotics, idler rollers, and UAV components.



Carbon fibre tube can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminium or steel tube can be much stronger and lighter. Roll-wrapped carbon fibre tubes offer superior strength in general use to ‘pultruded’ tubes (which have all their fibres running in exactly the same direction.


The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.

Carbon Fibre Properties

  • Elastic module (E): 234 GPa
  • Tensile strength: 4.830 MPa
  • Density: 1,80 g/cm3

Other Characteristics

  • Carbon fibre content by volume (Vf): 68%
  • Glass transition temperature (Tg), ISO 11357-2 DSC: 140 ºC
  • Recommended Start Temperature : -30 ºC a + 100 ºC
  • Resin type: epoxi
Material Round Carbon Fibre Tube
Shape Round/oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm

1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.

2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.

3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.

5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.

6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.

7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.

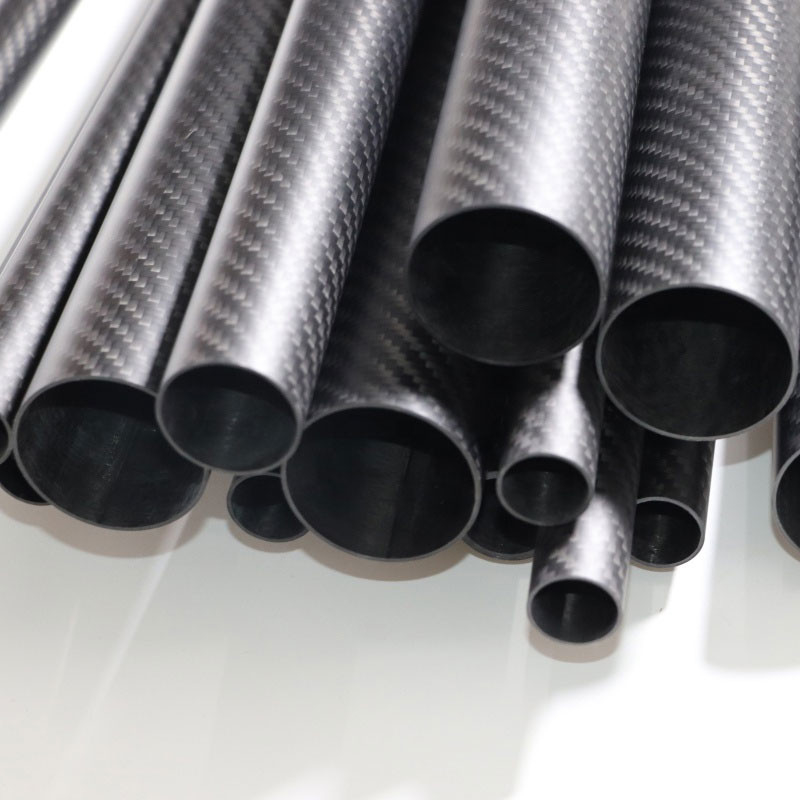

Glossy Round Carbon Fiber Tube Unidirectional Roll Wrapped Machinability 0Glossy Round Carbon Fiber Tube Unidirectional Roll Wrapped Machinability 1Glossy Round Carbon Fiber Tube Unidirectional Roll Wrapped Machinability 2
