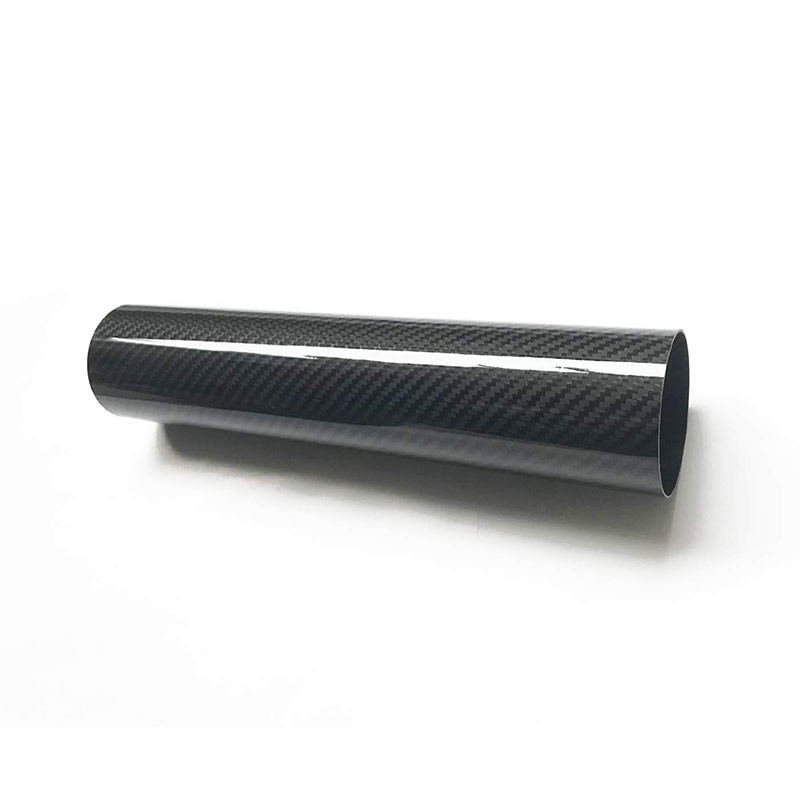

Epoxy Round 3K Carbon Fiber Tube Roll Wrapped For Marine

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fibre Tube Material Description: 100% Toray Carbon Fiber
Colour: Black Pattern: Twill, Plain
Shape: Round/Oval Resin Matrix: Epoxy
Density: 1.5g/cm^3 Fibre Orientation: 0, 90
Applications: Automotive, Construction, Sporting Goods, Etc.
High Light:

Round Carbon Fiber Tube 3K


Epoxy Roll Wrapped Carbon Fiber Tube


Marine Carbon Fiber Rod

Product Description

Unrivalled Range of High Quality Roll-Wrapped Carbon Fibre Tube


Carbon Fibre Tubes


LIJIN produces a range of parallel and tapered tubing manufactured from pre-preg carbon fiber, glass fibre or carbon and glass mix.

Carbon composites offer common benefits of strength, lightness, stiffness, resilience and chemical and corrosion resistance, making them ideal for many performance-based applications. Shop from round, oval, square, rectangle, aerofoil and telescopic tubes or ask us about a custom solution.


Our roll-wrapped prepreg carbon fibre composite tubes are ideal for applications that need the highest strength and stiffness along with lowest weight. Typical industries that use carbon composites are marine, robotics, aerospace, automotive, medical and UAV/film.


Our range includes both roll-wrapped carbon fibre tubes an pultruded carbon fibre tubes. Roll-wrapped carbon fibre tubes tend to be the larger diameters and - because of their alternating layers of reinforcement - produce a more resilient tube, especially to crush and twist forces. Pultruded tubes tend to be in the smaller diameters and provide the maximum possible longitudinal strength but at the expense of being more vulnerable to crushing or torsional fracture.


Roll-wrapped carbon fibre tubes are manufactured by wrapping multiple layers of prepreg carbon fibre reinforcement around a metal mandrel which is wrapped with shrink tape and cured at high temperature. Because the reinforcement is wrapped in layers around the mandrel, it is possible to alternate the alignment of the carbon fibre between layers, enabling roll wrapped tubes to have longitudinal stiffness down their length, as well as strength in the 'hoop' direction, making them more resilient to crush, burst and torsional fracture.


Material CF 3K Carbon Fiber Pipe
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm




Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 5mm 3K Carbon Fibre tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.

Epoxy Round 3K Carbon Fiber Tube Roll Wrapped For Marine 0Epoxy Round 3K Carbon Fiber Tube Roll Wrapped For Marine 1Epoxy Round 3K Carbon Fiber Tube Roll Wrapped For Marine 2
