3K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: 2mm Carbon Fiber Plate Weave: Twill
Material: 3K Matte Finish Carbon Fiber Thickness: 0.3mm, 0.5mm, 1mm, 2mm, 3mm, Etc.
Tolerance: ±0.1mm Surface: Plain Glossy, Plain Matte, Twill Glossy, Twill Matte
Standard Size: 400*500mm, 500*500mm, 500*600mm, Etc. Port: Shanghai
High Light:

Carbon Fiber Sheet 3K Matte Finish

,

Laminate Construction Carbon Fiber Plate

,

High Modulus Carbon Fiber Plate 2mm

Product Description

High Modulus Laminate Construction 2mm Carbon Fiber Plate



Feather-light and granite-strong, carbon fiber is one of the most versatile materials available. We help manufacturers big and small harness their strength and flexibility. Discover how our flawless carbon fiber can elevate your product’s performance and style.



To ensure maximum structural integrity and flatness throughout all our panels, we produce ‘balanced’ laminates for all panel thicknesses and sizes. This means that the fiber type, weight, and weave pattern are symmetrical throughout all layers of the composite stack.



Symmetric Laminates: A laminate is symmetric when the plies above and below the mid-plane mirror one another. Symmetrical layups help prevent thermal twisting.



Panels that are 1.4mm / 1/16’’ or thicker are quasi-isotropic laminates made with non-woven, no-crimp carbon fiber plies, oriented at 0º/90º/+45º/–45º. Quasi-isotropic plies orientation results in a uniform distribution of strength and enhances both torsional and diagonal stiffness.



Cross-plied layup will yield a panel with higher structural integrity, which many applications may require. Laminate stacking and ply orientation can be adjusted for specific applications; for example, if you require greater panel strength in a particular direction, you want to avoid increasing the weight with additional plies.



Detailed lay-ups and fabric stack lists can be requested for each of our panels. Please specify the panel model number when inquiring.



Epoxy: All panels are made with high-performance epoxy resin that offers excellent mechanical functions, clarity, and improved UV stability. An elevated post-cure temperature is applied to increase the mechanical strength of the panel, resulting in a higher Tg and enhancing the inter-laminar shear strength.



Our panels are NOT clear coated or UV Protected. To ensure the panel’s longevity, we highly recommend that you apply a clear coat with UV Protection to the surfaces of panels that may be exposed to sunlight, such as the DURATEC sun shield.



Features:

  • Lightweight.
  • High strength, good flexibility.
  • Wear-resistant, impact-resistant.
  • Anti-aging and corrosion resistance.
  • Ideal material for contoured or angled cuts.
  • Apply to medical instruments, car material, and sports goods.
  • Can effectively solve the difficulty of multilayer carbon fiber percolation cloth and the problem of large quantities, the reinforcing effect is good, and construction is convenient.
  • Used to reinforce the concrete floor, bridge plate reinforcement, concrete, brick masonry wall, scissors wall reinforcement, bridge pier, and pile, such as columns, chimneys, tunnels, pools, reinforce the reinforcement concrete pipe, etc.

Custom Sizes


We have the ability to do custom size, thickness, and finish. In bulk, we can even cut your sheets to spec with shapes. Please inquire if this is necessary for your project.



Carbon Fiber Plate Sheet Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory



Products Display:

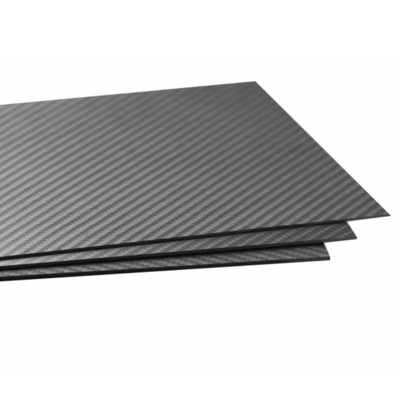

3K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus 03K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus 13K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus 23K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus 33K Matte Finish 2mm Carbon Fiber Plate Laminate Construction High Modulus 4
