Custom Cut Flexible Carbon Fiber Plate Smooth Glossy 0.5mm Thick

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Payment
Payment Terms : T/T, PayPal,Western Union , L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: TM_340mm_410mm_2.5mm

Detail Information

Product Name: Flexibility Carbon Fibre Sheets Product Type: Carbon Fiber Fabric
Supply Type: Make-to-Order Material: 100% Carbon Fiber
Style: Twill Use: Industry
Feature: Abrasion-Resistant, Anti-Static, Heat-Insulation, Waterproof, High Strength, Solid Applications: Aerospace Beam And Spars, Telescopes, Arrows, Robotics, Etc.
High Light:

3k Weave Carbon Fiber Panels

,

Smooth Glossy Carbon Fiber Plate

,

0.5Mm Carbon Fiber Sheet

Product Description

Custom Cut Smooth Glossy Flexibility Carbon Fibre Sheets - 0.5 mm thick



DESCRIPTION



These custom-cut smooth glossy FLEXIBLE carbon fibre sheets are manufactured using 100% genuine carbon fibre infused with epoxy resin.



The FLEXIBLE 0.25 mm thick carbon fibre sheet is an ultra-thin sheet possessing paper card-like stiffness, translating into an ultra-flexible thin sheet with the ability to conform to the tightest of curves (~10 mm radii) or tubes as small as 35 mm diameter.



This flexible sheet will need to be mounted to a rigid backing material and is not recommended for structural applications or wrapping compound curves. Our FLEXIBLE 0.25 mm thick carbon fibre sheets are supplied with high-quality 3M pressure-sensitive adhesive films for mounting sheets to backing surfaces.



The FLEXIBLE 0.5 mm thick carbon fibre sheet is moderately flexible and has the ability to conform to very gentle curves whilst at the same time possessing moderate strength and stiffness. Our customers often use this for decorative veneering applications with a flat surface such as door cards. It requires additional backing support to maintain its shape.



For advice on selecting the correct thickness please check out our Thickness Selection Guide. Our FLEXIBLE 0.5 mm thick carbon fibre sheet is created from multiple layers of high-quality 2/2 twill 3k weave carbon fibre with an areal density of 240 gsm to create a classic carbon fibre look.



The sheet possesses a mirror-like gloss finish on one side and a matt finish on the other to enable optimum bonding. The gloss side of all our carbon fibre sheets are covered in a removable protective film that will help prevent marking/scratching and maintain the glossy surface finish when you’re cutting and finishing the sheet for your application. Note 3M pressure-sensitive adhesive is not supplied by our FLEXIBLE 0.5 mm carbon fibre sheets.



Specification Summary:

  • Carbon fibre 2/2 Twill 240gsm
  • Mirror gloss finish
  • Scratch protection film
  • Multiple uses for road car and motorsport applications

Recommended Applications:

  • Marine: Cabin interior design, covering vents, hatches etc
  • Automotive: Interior trim pieces, dashboards.
  • Consumer: Architectural/structural panel veneers, splashbacks, etc

Dimensions & Tolerances

  • Thickness: Available in 0.25 mm+/-0.05 mm and 0.5 mm+/-0.1 mm
  • Dimensions: Available in various sizes up to 2440 x 1200 mm +/-2.0 mm.

Quality & Performance Guarantee


Our FLEXIBLE carbon fibre sheets are 100% pinhole free and are a perfect choice for adhering to smooth flat and curved surfaces. Our sheets produce a sleek, flawless, sophisticated look with amazing depth that we guarantee cannot be bettered.



Cutting, Shaping & Finishing


These ultra-thin carbon fibre sheets can be cut with standard tools including scissors, craft knife, guillotine or scalpel where you must always wear appropriate eye protection when cutting. Finally, for more information check out our Composite Cutting & Finishing Guide on our Technical Support pages.



Single-Sided Carbon Fiber Plate Specification:



Item Name

Thickness

Length & Width

Weave

Finish

SKU Code

N.W.

Regular MOQ

1st Order MOQ

Ship From

05005060, Full CF Plate, Plain Weave,6K, Matte, TT

5

500mm*600mm

Twill

Glossy

TG05005060PLTFCF3KTT

2.48

5

1

China factory

04005060, Full CF Plate, Plain Weave,5K, Matte, TT

4

500mm*600mm

Twill

Glossy

TG04005060PLTFCF3KTT

1.94

5

1

China factory

03005060, Full CF Plate, Plain Weave,4K, Matte, TT

3

500mm*600mm

Twill

Glossy

TG03005060PLTFCF3KTT

1.46

5

1

China factory

02505060, Full CF Plate, Plain Weave,3K, Matte, TT

2.5

500mm*600mm

Twill

Glossy

TG02505060PLTFCF3KTT

0

5

1

China factory

02005060, Full CF Plate, Plain Weave,3K, Matte, TT

2

500mm*600mm

Twill

Glossy

TG02005060PLTFCF3KTT

0.96

5

1

China factory

01505060, Full CF Plate, Plain Weave,3K, Matte, TT

1.5

500mm*600mm

Twill

Glossy

TG01505060PLTFCF3KTT

0.73

5

1

China factory

01005060, Full CF Plate, Plain Weave,3K, Matte, TT

1

500mm*600mm

Twill

Glossy

TG01005060PLTFCF3KTT

0.53

5

1

China factory

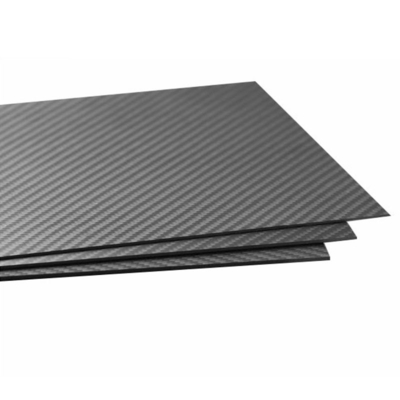

Custom Cut Flexible Carbon Fiber Plate Smooth Glossy 0.5mm Thick 0Custom Cut Flexible Carbon Fiber Plate Smooth Glossy 0.5mm Thick 1Custom Cut Flexible Carbon Fiber Plate Smooth Glossy 0.5mm Thick 2
