Custom 3K Carbon Fiber Rectangular Tube 0.5mm - 20mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Rectangle Carbon Fibre Tube Shape: Rectangle
Weave: 3K Plain / 3K Twill / Unidirection Raw Materials: Carbon Fiber, Epoxy
Surface: Glossy/ Matte/ 50% Glossy Colors: Black Or Any Color From RAL
Denisty: 1.5g/cm3 Wall Thickness: From 0.5mm To 20mm
High Light:

3K Carbon Fiber Rectangular Tube

,

Carbon Fiber Rectangular Tube 20mm

,

Rectangular Carbon Fiber Box

Product Description

Traditional 3K Rectangle Carbon Fibre Tube - Custom Sizes and Thickness



Our traditional rectangular composite tubes suit a variety of applications that need flat sides and make a great addition to any project. These stiff, lightweight tubes have incredible axial stiffness and can be cut to specific lengths with a wide range of tolerances. For custom sizes and thicknesses, tell us more about your requirements.



If you've got an idea for a rectangular carbon tube and know your specifications, choose your specs from the table below and send us a request for a quote. You can use the table to browse through internal diameters, outer diameters, wall thickness, price, and weight. Typical uses include Linear guides, measurement beams, spars and beams, UAV components, interior design, automation equipment, CNC cuttings, lase cutters, and sporting equipment.



About our products

  • Wall thickness will depend on individual requirements.
  • The outer corner radius will increase with wall thickness. inner radius defined by specific tooling or custom radius can be achieved if required.
  • Standard walls range from 1.4 - 6.0mm; a price range per meter is shown for those thicknesses.
  • Some over-run stock tubes can be ordered in smaller amounts and are available in specific sizes (quantities available vary constantly).
  • Wall thicknesses of about 6.0mm or as thin as 0.5mm, or alternative laminate and carbon fibre orientations can be custom-ordered.

Benefits of rectangular carbon tubes

  • High-tensile and torsional strength to low-weight ratio
  • Resistance to fatigue
  • Carbon RHS tubes weigh 60% of a size-for-size alloy tube
  • Dimensional stability through temperature large ranges due to extremely low coefficient of thermal expansion (CTE), making RHS tubes popular for measurement tubes and for mounting linear guides
  • Weigh as little as a third of the weight of aluminum tubes Can be used in either orientation to achieve different stiffness or mechanical properties in a single tube
  • Square and RHS tubes can be machined with very flat faces or with holes for engineering purposes
Material Rectangle Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.

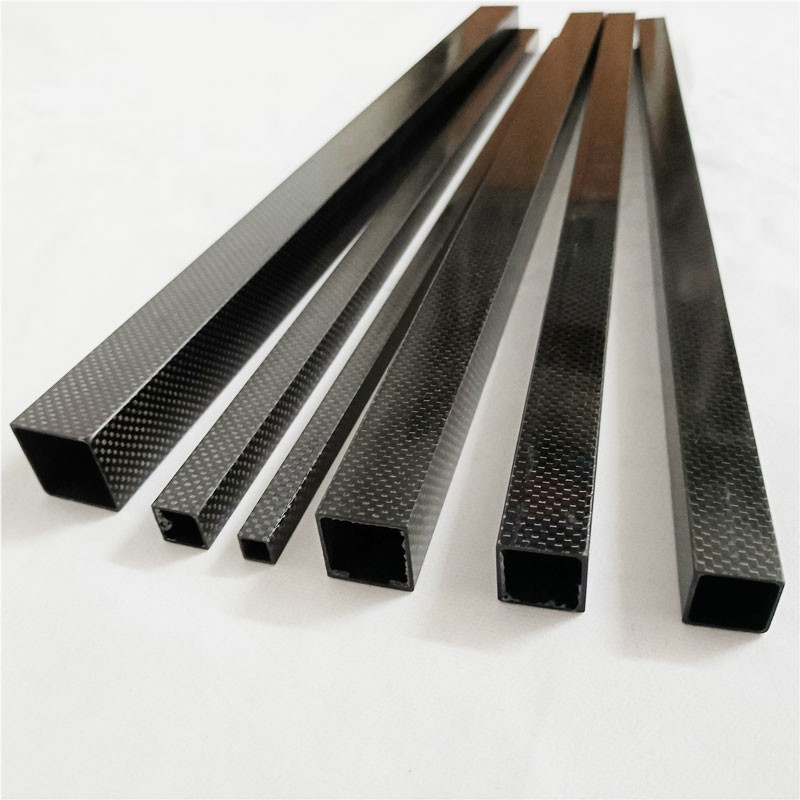

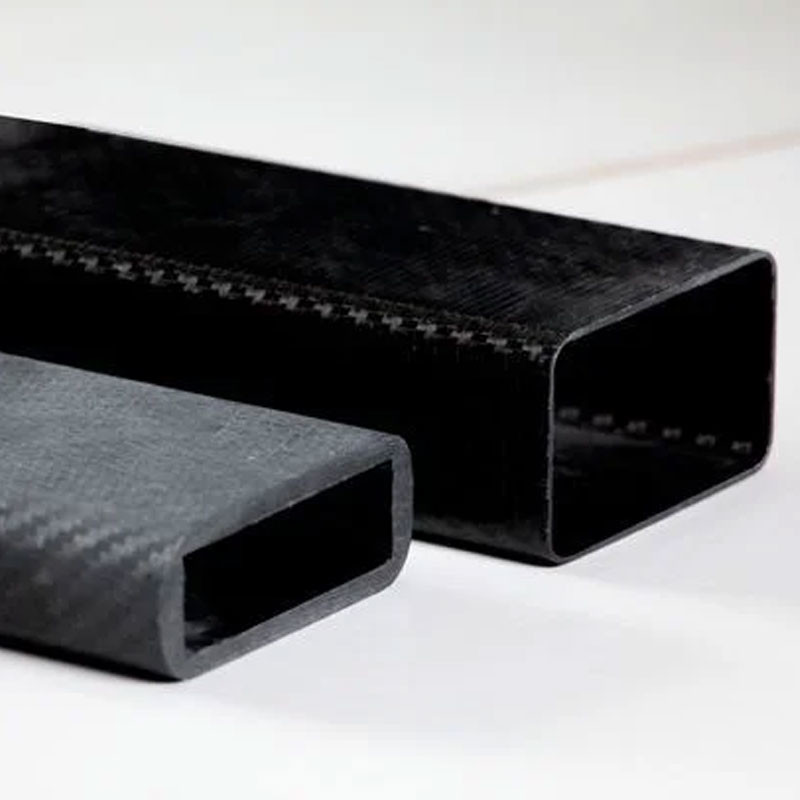

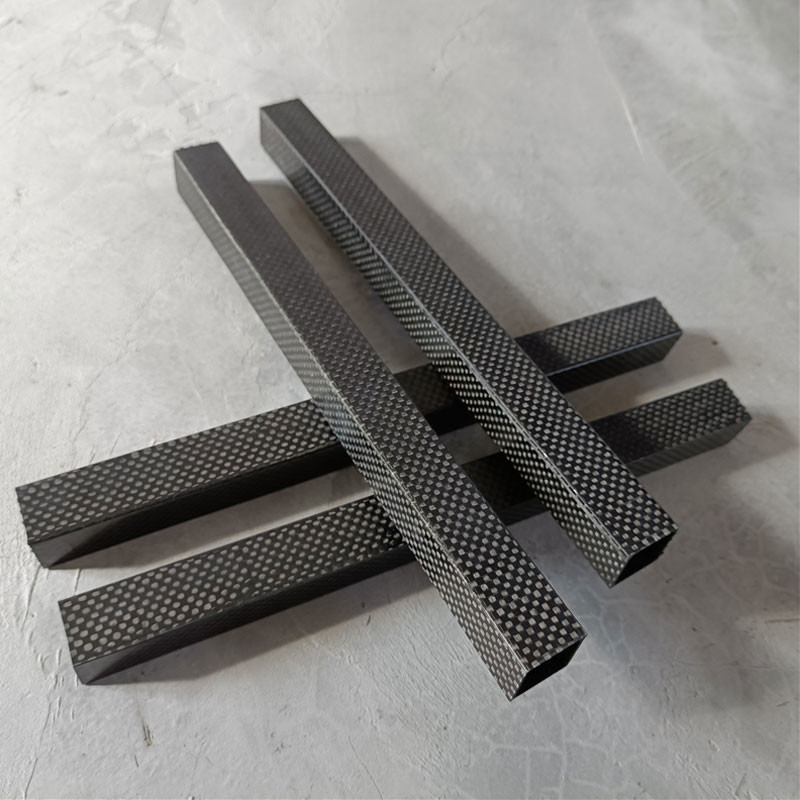

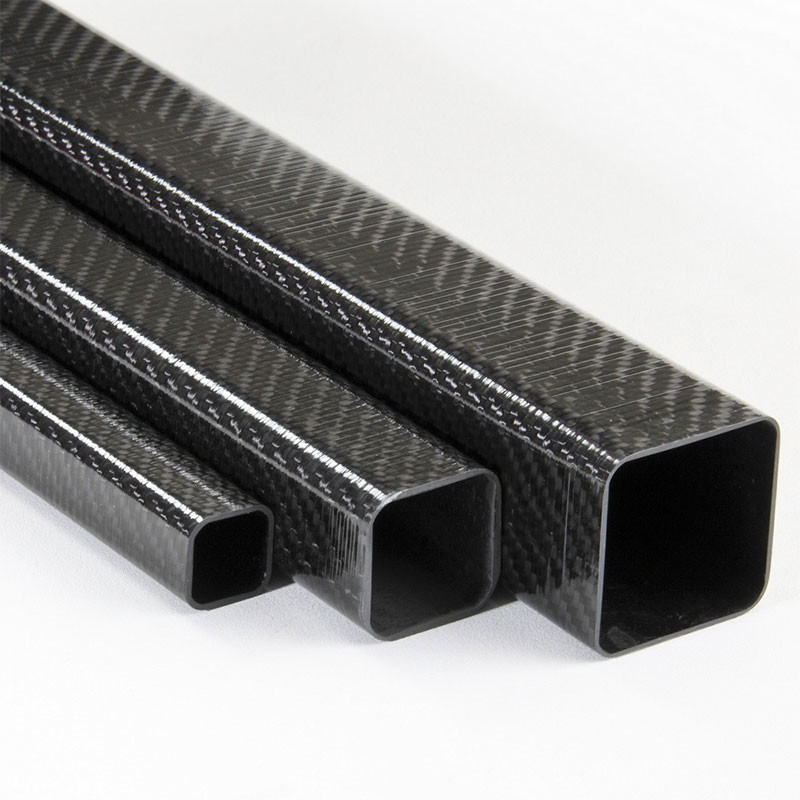

Custom 3K Carbon Fiber Rectangular Tube 0.5mm - 20mm 0Custom 3K Carbon Fiber Rectangular Tube 0.5mm - 20mm 1Custom 3K Carbon Fiber Rectangular Tube 0.5mm - 20mm 2
