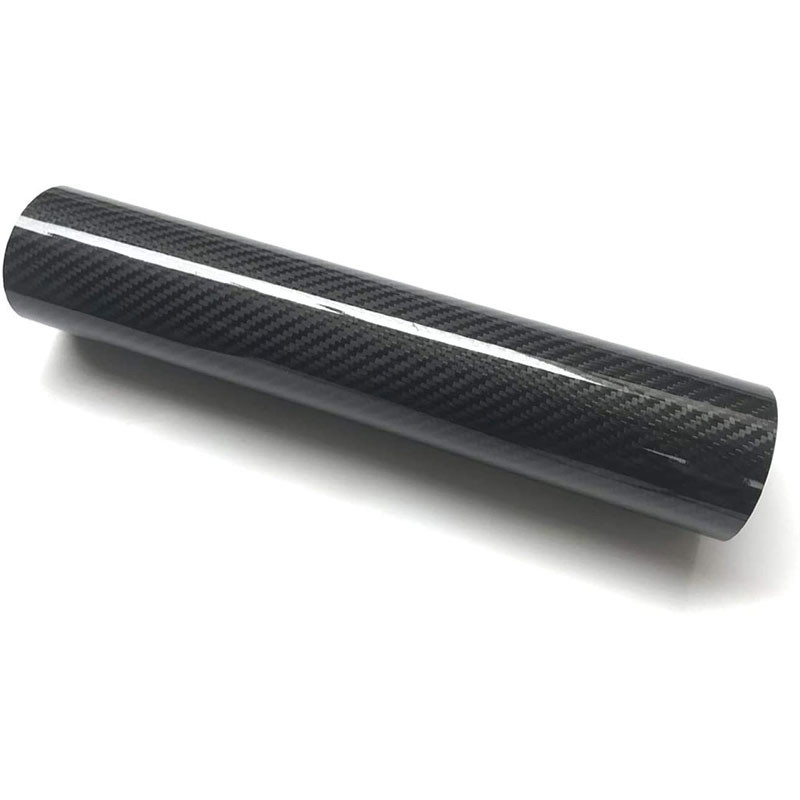

Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: Carbon Fiber Round Tubings Material Type: Composite
Material: Carbon Fiber Type: Round Tube
Color: Black Grade: Standard
Temperature Range: 30°F - 390°F Finish: Twill Weave
High Light:

Twill Weave Carbon Fiber Round Tube


500x25x23mm Carbon Fiber Tube


Medical Carbon Fiber Pipe

Product Description

High Quality Carbon Fiber Round Tubings 500x25x23mm for Many Applications


These Carbon Fiber Round Tubings are great for reinforcing structures, use them alone or as reinforcements for foam or balsa structures. A roll-wrapped carbon tube is manufactured by wrapping unidirectional carbon fiber prepreg tape around a mandrel with the majority, but not all, of the carbon fiber running longitudinally. This type of construction offers a higher strength-to-weight ratio than is available in pultruded tubes. Typically used where thin-walled, lightweight tubes are required to provide additional torsional stiffness and high strength.


The outer ply of material on this tube is a 2x2 twill weave which will prevent fiber breakout better than unidirectional material. Thus, fabric tubes provide an ideal surface for machining. The core of this tube is almost always comprised of multi-directional "unit" plies which make most carbon fiber fabric and unidirectional tubes ideal for bending and compression applications.



  • Lightweight
  • Constructed out of carbon fiber and reinforced plastic
  • Aluminum corrodes, and carbon fiber does not
  • Machinable and bond-able


Material Carbon Fiber Round Tubings
Shape Round/oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


Our Service:


1. It ensures that a year of quality assurance and 24 hours online customer service.

2. Protection of your sales area, ideas of design, and all your private information.

3. Request for samples is accepted.

4. Drilling and slotting are accepted.

5. We guarantee the products to be manufactured with the finest materials and mature technics.

All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.




1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.


2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.


3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.


5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.


6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.


7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.

Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 0Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 1Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 2Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 3Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 4Twill Weave Finish Carbon Fiber Round Tube 500 x 25 x 23mm For Medical 5
