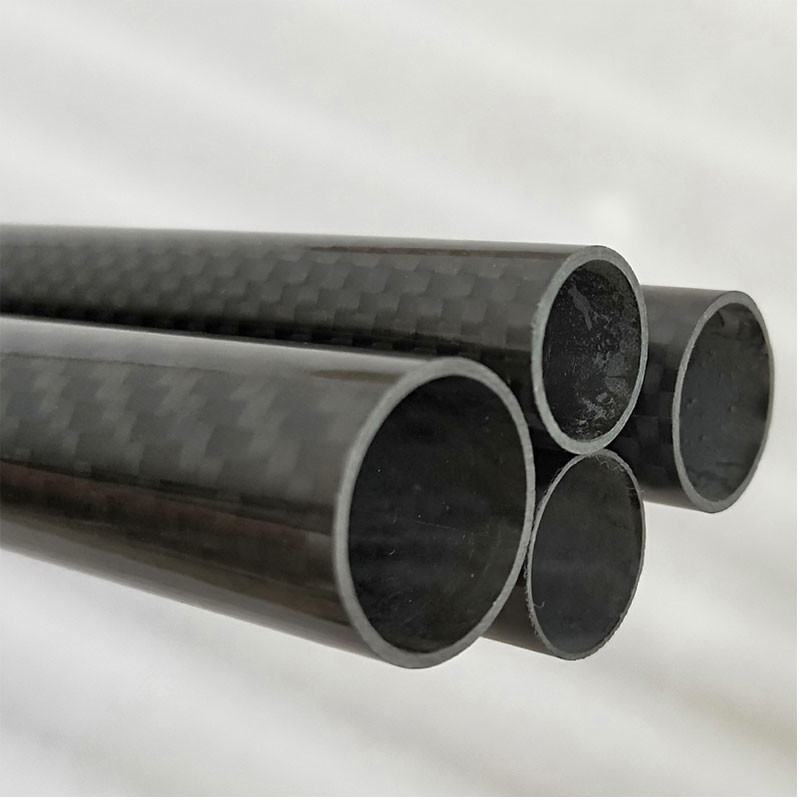

100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: 3K Carbon Fiber Tube Shape: Round Or Custom
Composite Material: 100% Pure Carbon Fiber Technology: Roll-wrapped
Weaves: 3K Plain / 3K Twill / Unidirection Surface: Twill/Plain
Working Temperature: -50-150℃ Application: Multi-Function, UAV/RC Toys/Building/Sports, Etc.
High Light:

Carbon Fiber Tube 500mm X 18mm

,

Carbon Fiber Tube 20mm

,

Twill Pure Carbon Fiber Tube

Product Description

3K Carbon Fiber Tube 500mm x 18mm 19mm 20mm 21mm 22mm High Quality with 100% full carbon

Our tube is a roll tube (Filament winding Technology), not pultrusion tube, roll tube was have the longitude and weft yarn, but pultrusion tube only has the longitude, not weft yarn, so, the strength is not as well as roll tubes. Carbon fiber is very lightweight, the strength is steel's 9 times, but the weight was about 1/3 of steel! You could enjoy a more favorable price with a larger quantity.

Our carbon fiber tubes are all manufactured by our own production workshops. Our carbon fiber material is imported from Japan. Because of its lightweight and high strength, which are wildly used for automation robotics, telescoping poles, FPV frame and sports equipment.

Material: 100% real carbon fiber composite, T300 carbon fibers.
Lay up: Both Sides 3K +Middle UD Carbon
Weave: twill, plain or one-way cloth
Surface finish: glossy or matte
Color: black or customized
Length: 500mm,1000mm, or customized
Outside diameter: 6-40mm or customized
Processing: CNC machining per your requirement

Technique: Roll-wrapped
OEM Service: Accept


Special Features:

1. High strength
2. Good tenacity
3. High corrosion-resistance
4. Excellent structural properties
5. Dimensional stability
6. Smooth finish on the surface
7. Good resilience
8. Lasting performance
9. Consistent cross-section
10. Variety of colors for choice



Material 3K Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, welcome to visit our factory!

Q: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable too.

Q: What is the lead time?
A: Standard size Sample needs 5 days, mass production needs 15-30 days, according to the quantity

Q: Do you offer OEM service?
A: We accept OEM orders for all our production lines, including the client's logos and labels. After many years of exploration and development, we are sure we can meet all your requirements.

Q: How long can I get a response after I send an inquiry?
A: We will reply to each inquiry within 12 hours.

Q: Your quotation does NOT meet my target price
A: We can propose materials, accessories, or design alternatives to lower the price of your project

Q: What is carbon fiber used for?
A: Carbon fiber -- sometimes known as graphite fiber -- is a strong, stiff, lightweight material that has the potential to replace steel and is popularly used in specialized, high-performance products like aircraft, race cars and sporting equipment.

Q: Is carbon fiber stronger than steel
A: Carbon fibers are classified by the tensile modulus of the fiber. ... Thus, the strongest carbon fibers are ten times stronger than steel and eight times that of aluminum, not to mention much lighter than both materials, 5 and 1.5 times respectively.

Q: Why is carbon fiber so expensive?
A: Another carbon fiber cost factor is energy. ... It takes a lot of energy to reinforce each fiber with carbon atoms. Energy, is also required to bundle the carbon together into fibers and threads. Energy costs are probably the most expensive factor in carbon fiber manufacturing.

Q: What are the advantages and disadvantages of carbon fiber?
A: Carbon fiber reinforced polymer (CFRP) materials possess good rigidity, high strength, low density, corrosion resistance, vibration resistance, high ultimate strain, high fatigue resistance & low thermal conductivity. They are bad conductors of electricity and are not magnetic.

Q: Is carbon fiber resistant to water?
A: The carbon fiber in the composite does not absorb water from the environment, and its resistance remained unchanged when immersed in water.

Q: Is carbon fiber the future?
A: The future of carbon fiber is undoubtedly on a positive course. However, the speed at which carbon fiber integrates into larger commercial markets and more and more common applications is largely dependent on the capabilities of existing carbon fiber manufacturers.

100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm 0100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm 1100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm 2100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm 3100% Pure Carbon Fiber Tube Twill Surface 500mm X 18mm 19mm 20mm 21mm 22mm 4
