Round Glossy 3K Carbon Fiber Tube High Strength Roll Wrapped CF Tubes

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Normal Corrugated Carton Packing for International Shipment Delivery Time : 7 working days after receiving Order Pay
Payment Terms : T/T, Western Union, L/C Supply Ability : 1500pcs month
Place of Origin: China Brand Name: Tanku
Certification: SGS, ROHS Model Number: OEM

Detail Information

Product Name: 100% 3K CF Tubes Material Description: 100% Toray Carbon Fiber
Pattern: 3K Twill, Accept 1K, 2K, 4K, 5K, Etc Shape: Round/Oval
Size: Customer 's Requirement Density: 1.5g/cm3
Surface Finish: Glossy Material: 75% Carbon Fiber And 23% Resin And 2% Filler
High Light:

Round Glossy Carbon Fiber Tube

,

Roll Wrapped CF Tubes

,

Marine Carbon Fiber Round Tube

Product Description

Black or Custom Carbon Fiber Tube High Strength 100% 3K CF Tubes



Whether your project is big or small, we are bound to have round carbon fiber tubing that suits your needs. As an added bonus we are generally able to ship right away on most products listed in our store! Aside from aesthetic variations of our many round stock tubes, you might also wish to consider their superb mechanical properties as well. That is after all the main reason we love carbon fiber so much! Of course, it's an added bonus that it looks incredible too.



Roll-wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general, each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high-performance, engineered product.



Applications

  • Automotive
  • Light Aircraft Tubing
  • Construction
  • Duct rod / Fish rods
  • Aerospace Instrument & Interior Supports
  • Photography & Sound Booms
  • Outer Space & Terrestrial Antennae Supports
  • Corrosion Resistant Equipment Marine
  • Sporting Goods
  • Oil & Gas
  • Robotic Arms & Supports
  • Power Generation
  • Window Shades
  • Wastewater Treatment
  • Advertising Panels
  • Lifting Spars

Advantages of Pull Braiding Tube

  1. High modulus: With fiber by cross weave, the modulus is much better than that of pultrusion tube. The strength is almost similar to that of roll wrapped tube.
  2. High output: By automatic production, the output of a common pull braiding tube can be 2000meters a day.
  3. Much longer: The max length of the pull braiding tube can be 10 meters, with no limit by the mold-like roll-wrapped tube.
  4. More economic: The cost is much lower than a roll wrap tube.
  5. Nice appearance: The weave of fiber show look nicer than pultrusion tube.

Performance



Although specially laminated, ground, lacquered and polished to produce a carbon fibre tube with a stunning appearance, our 3K Woven Finish tubes are serious tubes suitable for demanding engineering applications including robotics/automation, R/C models, UAVs, recreational equipment, motorsport and marine.



Material Round Carbon Fibre Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm



Our Service:

1. It ensures that a year of quality assurance and 24 hours online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature technics.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.

FAQ:

1. Can you produce according to the samples or drawings?
Yes, we can produce your samples or technical drawings. We can create the molds and fixtures.

2. What are your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, balance before shipment.

3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. What are your terms of packing?
Generally, we pack our goods in neutral cartons. It is fragile we will make the wooden frame. and we also can according to your requirements.

5. What are your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost-effective for you.

6. How to solve the quality problems after sales?
Take photos of the problems and send them to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.

7. Is it OK to print my logo on carbon fiber products?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

8. You are a manufacturer or trading company?
We are a factory. Welcome to visit our factory at any time.

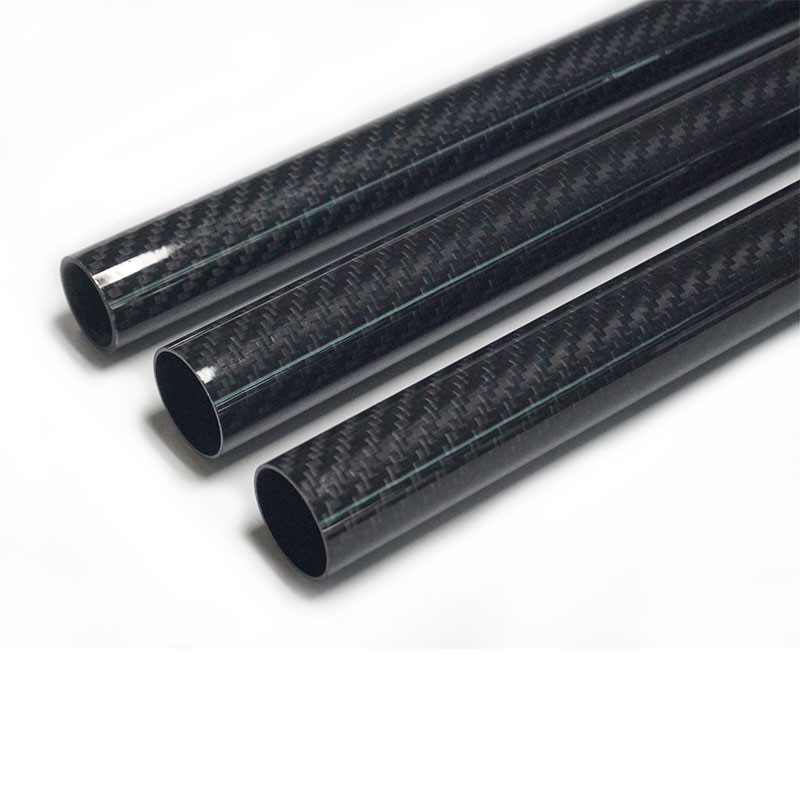

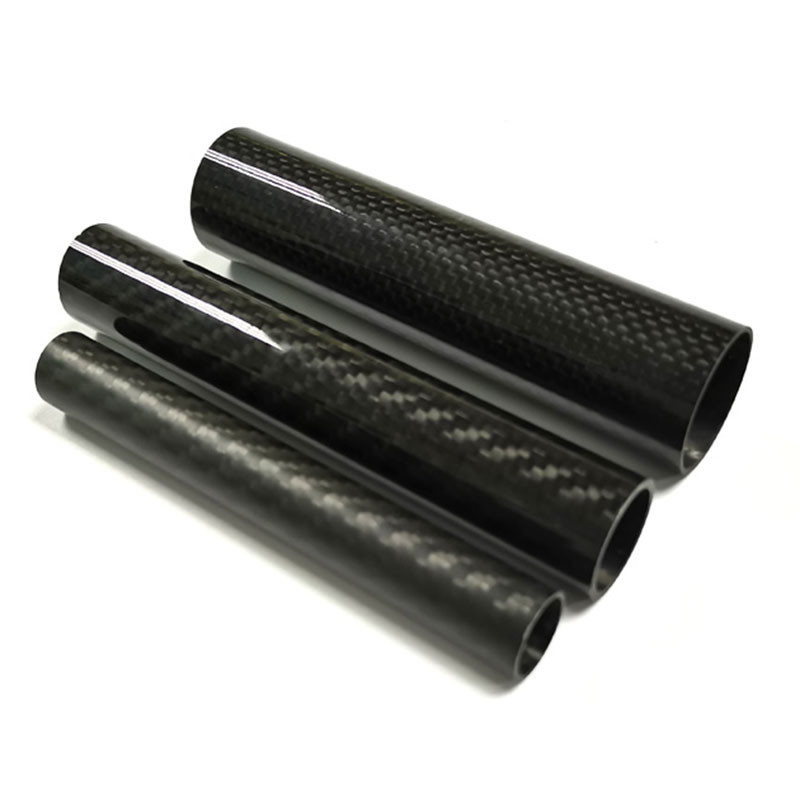

Round Glossy 3K Carbon Fiber Tube High Strength Roll Wrapped CF Tubes 0Round Glossy 3K Carbon Fiber Tube High Strength Roll Wrapped CF Tubes 1Round Glossy 3K Carbon Fiber Tube High Strength Roll Wrapped CF Tubes 2Round Glossy 3K Carbon Fiber Tube High Strength Roll Wrapped CF Tubes 3
